TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11FILLER CAP; FUEL TANK FILLER CAP WITH GASKET, 23977DA, replaces 23995DB
-
21GASKET; FUEL TANK FILLER CAP GASKET
-
4BOLT Hex, 7/16'' - 14 x 3/4'', Gr 5; CAP SCREW, 7/16 x 3/4'' N.c. hex head
-
4СТОПОРНАЯ ШАЙБА 7/16''; WASHER, LOCK, 7/16''
-
51ПРОБКА НАЛИВ.ОТВЕР.; GASOLINE TANK FILLER CAP (Distillate or kerosene)
-
61ПРОКЛАДКА; GASOLINE TANK FILLER CAP GASKET (Distillate or kerosene)
-
2BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5;
-
2NUT 3/8''-16, G8;
-
2LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
2WASHER 3/8''; (13/32'' I.D. x 1'' O.D. x 16 ga.) 3/8''
-
3VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;
-
3VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;
-
3RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8''
-
3VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;
-
3RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8''
-
1POULIE Slotted Hex Nut, 7/16'' N.F.; HEX SLOTTED NUT, 7/16'' N.F.
-
1GOUPILLE FENDUE 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''
-
2REMSKIVE Slotted Hex Nut, 7/16'' N.F.; HEX SLOTTED NUT, 7/16'' N.F.
-
2SPLITBOLT 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''
-
103FLADSKIVE; FUEL TANK PAD
-
13-REMSKIVE Slotted Hex Nut, 7/16'' N.F.; FOLLOWS REFERENCE NO. 9
-
161SLANGEMØTRIK 1/2''-20; FUEL PIPE COUPLING NUT (Carburetor end)
-
171VALVE; GASOLINE OR FUEL TANK NEEDLE VALVE 55474D WITH NUT, 29899D (Distillate or kerosene) (S/N 15744 up)
-
1TUBE NUT 1/2''-20; FUEL TANK NEEDLE VALVE COUPLING NUT (Distillate or kerosene)
-
141STRAINER ASSY.; FUEL STRAINER WITH NUT, 29899D (Will work for 51066DCX) (Gasoline)
-
141STRAINER ASSY.; FUEL STRAINER WITH 2 NUTS, 29899D (Distillate or kerosene) (S/N 50866 up)
-
192RÖRMUTTER 1/2''-20; COUPLING NUT (Distillate or kerosene)
-
191RÖRMUTTER 1/2''-20; COUPLING NUTS (Gasoline)
-
211VENTIL; STEM, assembly (S/N 501 to)
-
211COCK; STEM, assembly
-
231BODY; STRAINER BODY (Distillate or kerosene) (Optional with 64968D) (S/N 50866 to)
-
241FILTER STRAINER; STRAINER SCREEN
-
251FILTER BOWL; STRAINER BOWL (Metal) (Field change) (S/N
-
251BICCHIERINO; STRAINER BOWL (Heat resisting glass)
-
261SUPPORTO; BAIL, assembly
-
281GUARNIZIONE; STRAINER GASKET (Will work for 13193D)
-
291SCODELLINO; NUT
-
UARTAPPO; new style ''thicker'' triple baffle gas cap
Select All
Select
Ref.
1Qty
1Availability
Part #
23995DCDescription
FILLER CAP; FUEL TANK FILLER CAP WITH GASKET, 23977DA, replaces 23995DBImg
Alts
Select
Ref.
2Qty
1Availability
Part #
23977DADescription
GASKET; FUEL TANK FILLER CAP GASKETImg
Alts
Select
Ref.
Qty
4Availability
Part #
179856Description
BOLT Hex, 7/16'' - 14 x 3/4'', Gr 5; CAP SCREW, 7/16 x 3/4'' N.c. hex headImg
Alts
Select
Ref.
Qty
4Availability
Part #
103322Description
СТОПОРНАЯ ШАЙБА 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
5Qty
1Availability
Part #
40756DDescription

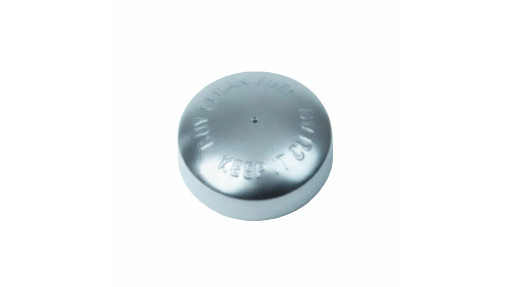

ПРОБКА НАЛИВ.ОТВЕР.; GASOLINE TANK FILLER CAP (Distillate or kerosene)Img
Alts
Select
Ref.
6Qty
1Availability
Part #
40752DDescription
ПРОКЛАДКА; GASOLINE TANK FILLER CAP GASKET (Distillate or kerosene)Img
Alts
Select
Ref.
Qty
2Availability
Part #
179837Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
2Availability
Part #
103321Description
LOCK WASHER 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
495-21044Description
WASHER 3/8''; (13/32'' I.D. x 1'' O.D. x 16 ga.) 3/8''Img
Alts
Select
Ref.
Qty
3Availability
Part #
179837Description
VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
3Availability
Part #
179837Description
VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
3Availability
Part #
103321Description
RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
Qty
3Availability
Part #
179837Description
VIS Hex, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
3Availability
Part #
103321Description
RONDELLE FREIN 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
102646Description
POULIE Slotted Hex Nut, 7/16'' N.F.; HEX SLOTTED NUT, 7/16'' N.F.Img
Alts
Select
Ref.
Qty
1Availability
Part #
103373Description
GOUPILLE FENDUE 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''Img
Alts
Select
Ref.
Qty
2Availability
Part #
102646Description
REMSKIVE Slotted Hex Nut, 7/16'' N.F.; HEX SLOTTED NUT, 7/16'' N.F.Img
Alts
Select
Ref.
Qty
2Availability
Part #
103373Description
SPLITBOLT 3/32'' x 3/4''; Pin, Split (Cotter), 3/32'' x 3/4''Img
Alts
Select
Ref.
13Qty
-Availability
Part #
102646Description
REMSKIVE Slotted Hex Nut, 7/16'' N.F.; FOLLOWS REFERENCE NO. 9Img
Alts
Select
Ref.
16Qty
1Availability
Part #
222-503Description

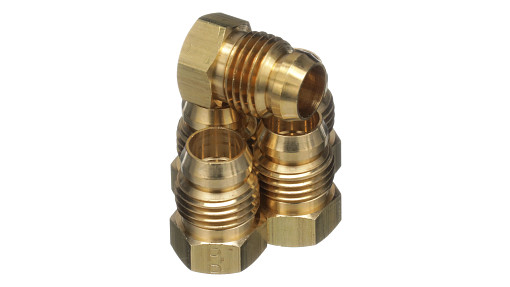

SLANGEMØTRIK 1/2''-20; FUEL PIPE COUPLING NUT (Carburetor end)Img
Alts
Select
Ref.
17Qty
1Availability
Part #
55474DXDescription
VALVE; GASOLINE OR FUEL TANK NEEDLE VALVE 55474D WITH NUT, 29899D (Distillate or kerosene) (S/N 15744 up)Img
Alts
Select
Ref.
Qty
1Availability
Part #
222-503Description

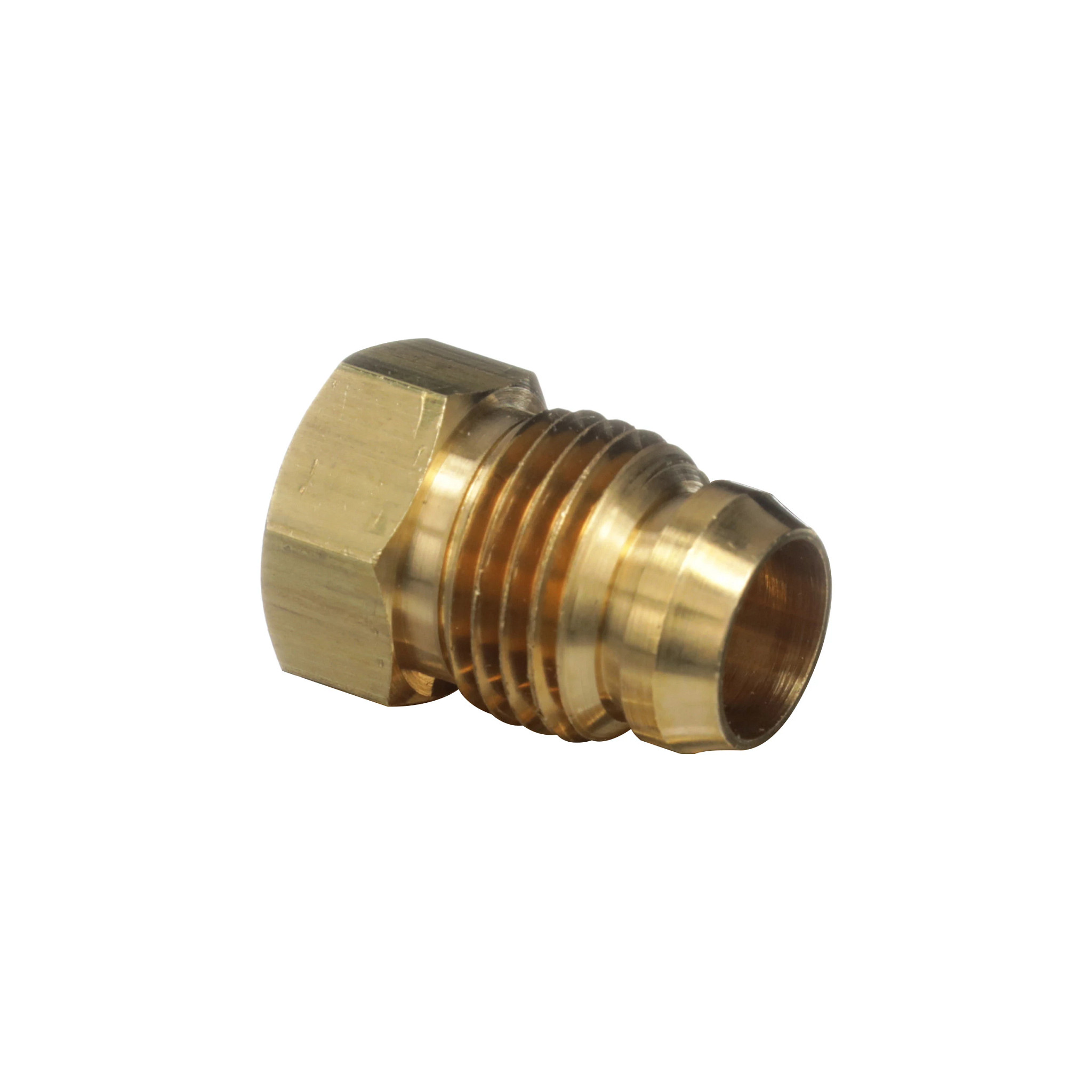

TUBE NUT 1/2''-20; FUEL TANK NEEDLE VALVE COUPLING NUT (Distillate or kerosene)Img
Alts
Select
Ref.
14Qty
1Availability
Part #
358245R91Description
STRAINER ASSY.; FUEL STRAINER WITH NUT, 29899D (Will work for 51066DCX) (Gasoline)Img
Alts
Select
Ref.
14Qty
1Availability
Part #
58361DBDescription
STRAINER ASSY.; FUEL STRAINER WITH 2 NUTS, 29899D (Distillate or kerosene) (S/N 50866 up)Img
Alts
Select
Ref.
19Qty
2Availability
Part #
222-503Description
RÖRMUTTER 1/2''-20; COUPLING NUT (Distillate or kerosene)Img
Alts
Select
Ref.
19Qty
1Availability
Part #
222-503Description
RÖRMUTTER 1/2''-20; COUPLING NUTS (Gasoline)Img
Alts
Select
Ref.
21Qty
1Availability
Part #
52855DDescription
VENTIL; STEM, assembly (S/N 501 to)Img
Alts
Select
Ref.
23Qty
1Availability
Part #
58838DDescription
BODY; STRAINER BODY (Distillate or kerosene) (Optional with 64968D) (S/N 50866 to)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
13194DDescription
FILTER STRAINER; STRAINER SCREENImg
Alts
Select
Ref.
25Qty
1Availability
Part #
58839DDescription
FILTER BOWL; STRAINER BOWL (Metal) (Field change) (S/NImg
Alts
Select
Ref.
25Qty
1Availability
Part #
357957R1Description
BICCHIERINO; STRAINER BOWL (Heat resisting glass)Img
Alts
Select
Ref.
28Qty
1Availability
Part #
355888R2Description
GUARNIZIONE; STRAINER GASKET (Will work for 13193D)Img
Alts
Select
Ref.
Qty
UARAvailability
Part #
224839C92Description

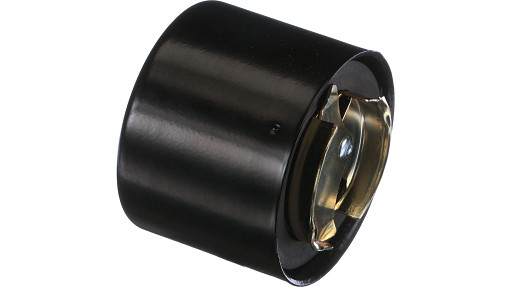

TAPPO; new style ''thicker'' triple baffle gas capImg
Alts
