TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
18BOLT (SPREADER) 7/16'' - 20 x 4''; Differential case
-
32GEAR; Differential bevel (28 teeth)
-
44GEAR; PINION, differential bevel (15 teeth)
-
61WHEEL; GEAR, bevel drive (49 teeth) (Farmall 460 Series - International 460 Series Hi-Utility)
-
74STRIP; PLATE, differential case bolt lock
-
82BALL BEARING 65mm ID x 120mm OD x 23mm W; BALL, differential (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)
-
92TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONE, differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)
-
102BEARING CUP 112.7252 mm OD x 25.5016 mm; Differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)
-
112SHAFT; Bull pinion and brake (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 up
-
122SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RING, bull pinion shaft bearing cage (5-1/16 x 5-17/32 x 15/64'')
-
13ARSHIM; Bull pinion shaft bearing cage, extra light (.004'')
-
162SHIM; SPARE PART Bull pinion shaft bearing cage, heavy (.030'')
-
1812BOLT; Bull pinion shaft bearing cage
-
192BALL BEARING; BALL, bull pinion and brake shaft (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)
-
192BEARING ASSY 2.3622'' ID x 4.3275'' OD x 0.8661''; BALL, bull pinion and brake shaft (Farmall 460 Series 11677 up)
-
192BALL BEARING 60mm ID x 110mm OD x 22mm W; BALL, bull pinion and brake shaft (International 460 Series 5423 up)
-
202SNAP RING; Bull pinion and brake shaft snap (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)
-
202RING; Bull pinion and brake shaft snap (Farmall 460 Series 11677 up, International 460 Series 5423 up)
-
212OIL SEAL; OIL , bull pinion shaft
-
222O-RING 0.551'' ID x 0.07'' Width; O-RING, bull pinion shaft bearing retainer (3-23/32 x 4-5/32 x 7/32'') Farmall 460 Series 501 to 11676, International 460 Series 501 to 5422
-
222OIL SEAL; O-RING, bull pinion shaft bearing retainer (4-1/8 x 4-1/2 x 3/16'') Farmall 460 Series 11677 up, International 460 Series 5423 up
-
252HUB; BULL GEAR AND HUB ASSEMBLY (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 up
-
2BALL BEARING 60mm ID x 110mm OD x 22mm W; BALL
-
2HUB; BULL GEAR AND HUB
-
2TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONE
-
2BEARING CUP 112.7252 mm OD x 25.5016 mm;
-
2GEAR;
-
2SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RING
-
2OIL SEAL; O-RING
-
1O-RING 0.869'' ID x 0.66'' Width; O-RING
-
4GEAR; PINION
-
4STRIP; PLATE
-
2RING;
-
1BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; BOLT, Hex, 5/16''-18 x 3/4'', G5, Full Thd
-
2SHAFT;
-
1SHIELD;
-
4SHIM; SPARE PART
-
4SHIM;
-
1PACKAGE; Final drive field improvement (For Farmall 460 Series except Hi-Clear Tractors) (Consists of - same as 374796R91 except - deduct
-
1BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Hex, 5/16''-18 x 3/4'', G5, Full Thd
-
2BEARING;
-
1BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Hex, 3/8''-16 x 3/4'', G5, Full Thd
-
2BALL BEARING 60mm ID x 110mm OD x 22mm W; BALL
-
2HUB; BULL GEAR AND HUB
-
2TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONE
-
2BEARING CUP 112.7252 mm OD x 25.5016 mm;
-
2GEAR;
-
1O-RING 0.869'' ID x 0.66'' Width;
-
2SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RING
-
2OIL SEAL; O-RING
-
4GEAR; PINION
-
4STRIP; PLATE
-
2CAP; PLUG
-
2RING;
-
1BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Hex, 3/8''-16 x 3/4'', G5, Full Thd
-
1SHIELD;
-
4SHIM; SPARE PART
-
4SHIM;
-
1PACKAGE,SERVICE; Bull gear, bull pinion and brake shaft (Consists of Bull Gear, 374575R91 and Shaft, 374577R1) (Will work for 374391R1) (For all tractors except Farmall 460 Series Hi-Clear) Farmall 460 Series 11677 to 12824, International 460 Series; (SN Break) Between 5423 and 5645
Select All
Select
Ref.
1Qty
8Availability
Part #
48471DDescription
BOLT (SPREADER) 7/16'' - 20 x 4''; Differential caseImg
Alts
Select
Ref.
3Qty
2Availability
Part #
360962R2Description
GEAR; Differential bevel (28 teeth)Img
Alts
Select
Ref.
4Qty
4Availability
Part #
360961R1Description
GEAR; PINION, differential bevel (15 teeth)Img
Alts
Select
Ref.
6Qty
1Availability
Part #
362570R1Description
WHEEL; GEAR, bevel drive (49 teeth) (Farmall 460 Series - International 460 Series Hi-Utility)Img
Alts
Select
Ref.
7Qty
4Availability
Part #
43699DDescription
STRIP; PLATE, differential case bolt lockImg
Alts
Select
Ref.
8Qty
2Availability
Part #
ST218ADescription

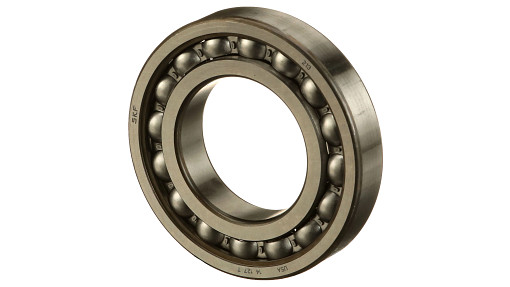

BALL BEARING 65mm ID x 120mm OD x 23mm W; BALL, differential (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)Img
Alts
Select
Ref.
9Qty
2Availability
Part #
131475R91Description
TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONE, differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)Img
Alts
Select
Ref.
10Qty
2Availability
Part #
972466R1Description
BEARING CUP 112.7252 mm OD x 25.5016 mm; Differential bearing (Farmall 460 Series 11677 up, International 460 Series 5423 up)Img
Alts
Select
Ref.
11Qty
2Availability
Part #
374577R2Description
SHAFT; Bull pinion and brake (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 upImg
Alts
Select
Ref.
12Qty
2Availability
Part #
4222DDescription
SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RING, bull pinion shaft bearing cage (5-1/16 x 5-17/32 x 15/64'')Img
Alts
Select
Ref.
13Qty
ARAvailability
Part #
376541R1Description
SHIM; Bull pinion shaft bearing cage, extra light (.004'')Img
Alts
Select
Ref.
16Qty
2Availability
Part #
47849DDescription
SHIM; SPARE PART Bull pinion shaft bearing cage, heavy (.030'')Img
Alts
Select
Ref.
18Qty
12Availability
Part #
357034R1Description
BOLT; Bull pinion shaft bearing cageImg
Alts
Select
Ref.
19Qty
2Availability
Part #
ST279Description
BALL BEARING; BALL, bull pinion and brake shaft (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)Img
Alts
Select
Ref.
19Qty
2Availability
Part #
279454R91Description
BEARING ASSY 2.3622'' ID x 4.3275'' OD x 0.8661''; BALL, bull pinion and brake shaft (Farmall 460 Series 11677 up)Img
Alts
Select
Ref.
19Qty
2Availability
Part #
ST227BDescription
BALL BEARING 60mm ID x 110mm OD x 22mm W; BALL, bull pinion and brake shaft (International 460 Series 5423 up)Img
Alts
Select
Ref.
20Qty
2Availability
Part #
358059R1Description

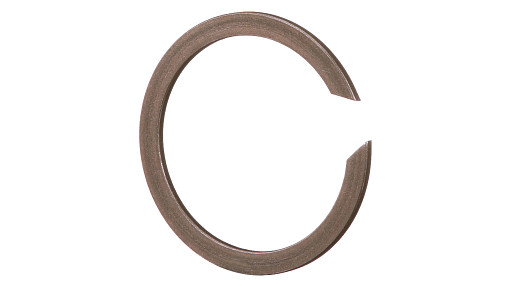

SNAP RING; Bull pinion and brake shaft snap (Farmall 460 Series 501 to 11676, International 460 Series; (SN Break) Between 501 and 5422)Img
Alts
Select
Ref.
20Qty
2Availability
Part #
357194R1Description

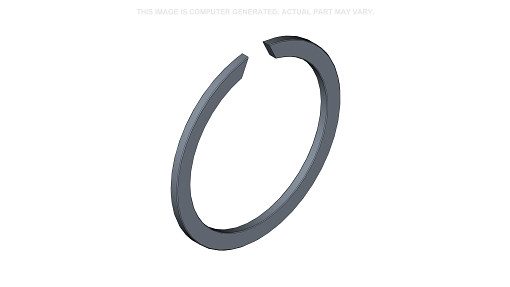

RING; Bull pinion and brake shaft snap (Farmall 460 Series 11677 up, International 460 Series 5423 up)Img
Alts
Select
Ref.
21Qty
2Availability
Part #
20290DDescription
OIL SEAL; OIL , bull pinion shaftImg
Alts
Select
Ref.
22Qty
2Availability
Part #
358101R1Description
O-RING 0.551'' ID x 0.07'' Width; O-RING, bull pinion shaft bearing retainer (3-23/32 x 4-5/32 x 7/32'') Farmall 460 Series 501 to 11676, International 460 Series 501 to 5422Img
Alts
Select
Ref.
22Qty
2Availability
Part #
254690R1Description
OIL SEAL; O-RING, bull pinion shaft bearing retainer (4-1/8 x 4-1/2 x 3/16'') Farmall 460 Series 11677 up, International 460 Series 5423 upImg
Alts
Select
Ref.
25Qty
2Availability
Part #
374575R91Description
HUB; BULL GEAR AND HUB ASSEMBLY (25 degree pressure angle teeth) Farmall 460 Series 12825 up, International 460 Series 5646 upImg
Alts
Select
Ref.
Qty
2Availability
Part #
ST227BDescription
BALL BEARING 60mm ID x 110mm OD x 22mm W; BALLImg
Alts
Select
Ref.
Qty
2Availability
Part #
131475R91Description
TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONEImg
Alts
Select
Ref.
Qty
2Availability
Part #
972466R1Description
BEARING CUP 112.7252 mm OD x 25.5016 mm;Img
Alts
Select
Ref.
Qty
2Availability
Part #
4222DDescription
SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RINGImg
Alts
Select
Ref.
Qty
1Availability
Part #
375355R1Description
O-RING 0.869'' ID x 0.66'' Width; O-RINGImg
Alts
Select
Ref.
Qty
1Availability
Part #
179816Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; BOLT, Hex, 5/16''-18 x 3/4'', G5, Full ThdImg
Alts
Select
Ref.
Qty
1Availability
Part #
375258R91Description
PACKAGE; Final drive field improvement (For Farmall 460 Series except Hi-Clear Tractors) (Consists of - same as 374796R91 except - deductImg
Alts
Select
Ref.
Qty
1Availability
Part #
179816Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Hex, 5/16''-18 x 3/4'', G5, Full ThdImg
Alts
Select
Ref.
Qty
1Availability
Part #
179837Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Hex, 3/8''-16 x 3/4'', G5, Full ThdImg
Alts
Select
Ref.
Qty
2Availability
Part #
ST227BDescription
BALL BEARING 60mm ID x 110mm OD x 22mm W; BALLImg
Alts
Select
Ref.
Qty
2Availability
Part #
131475R91Description
TAPERED BEARING 2.075'' ID x 4.4375'' OD; CONEImg
Alts
Select
Ref.
Qty
2Availability
Part #
972466R1Description
BEARING CUP 112.7252 mm OD x 25.5016 mm;Img
Alts
Select
Ref.
Qty
1Availability
Part #
375355R1Description
O-RING 0.869'' ID x 0.66'' Width;Img
Alts
Select
Ref.
Qty
2Availability
Part #
4222DDescription
SEAL 5 - 1/16 x 5 - 17/32 x 15/64''; O-RINGImg
Alts
Select
Ref.
Qty
1Availability
Part #
179837Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Hex, 3/8''-16 x 3/4'', G5, Full ThdImg
Alts
Select
Ref.
Qty
1Availability
Part #
374581R91Description
PACKAGE,SERVICE; Bull gear, bull pinion and brake shaft (Consists of Bull Gear, 374575R91 and Shaft, 374577R1) (Will work for 374391R1) (For all tractors except Farmall 460 Series Hi-Clear) Farmall 460 Series 11677 to 12824, International 460 Series; (SN Break) Between 5423 and 5645Img
Alts
