128 - CLUTCH, CLUTCH CONNECTIONS AND TORQUE AMPLIFIER OPERATING HANDLE, FARMALL 560 SERIES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    368794R2

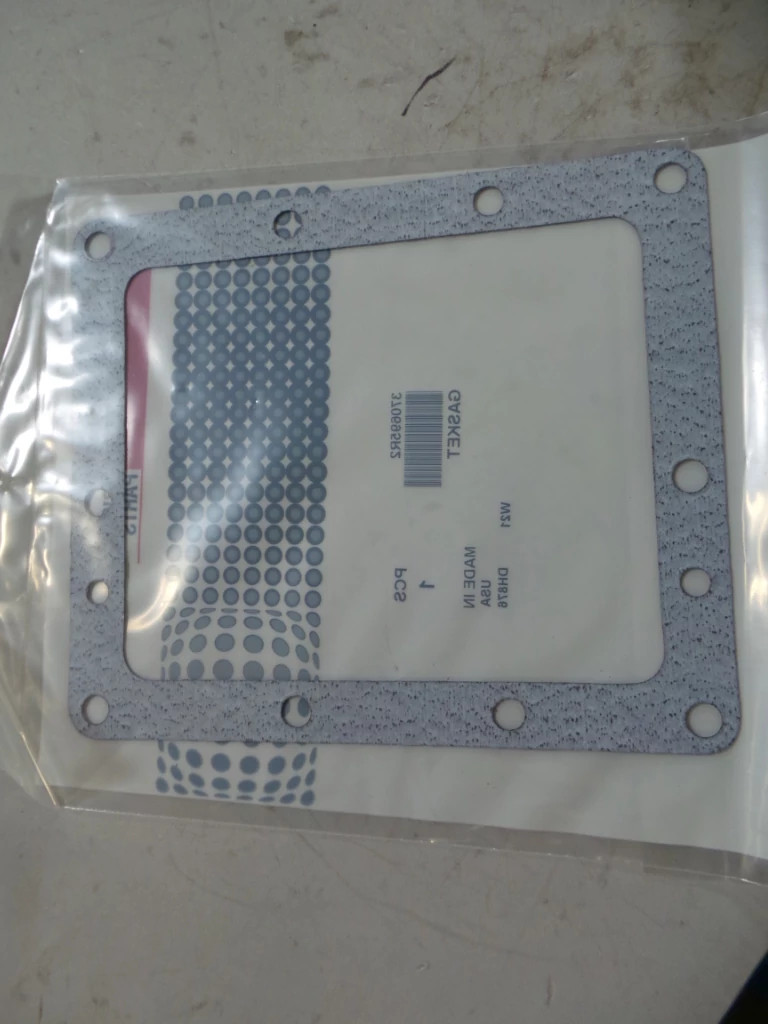

    GASKET; clutch housing
  • 2
    1
    361248R92
    OIL SEAL; OIL SEAL, transmission drive shaft (see note A)
  • 3
    2
    359011R1
    PLUG; cup (for sealing torque amplifier clutch release shaft opening)
  • 5
    1
    361280R3
    GASKET; clutch housing top cover (see note A)
  • 7
    1
    361258R1

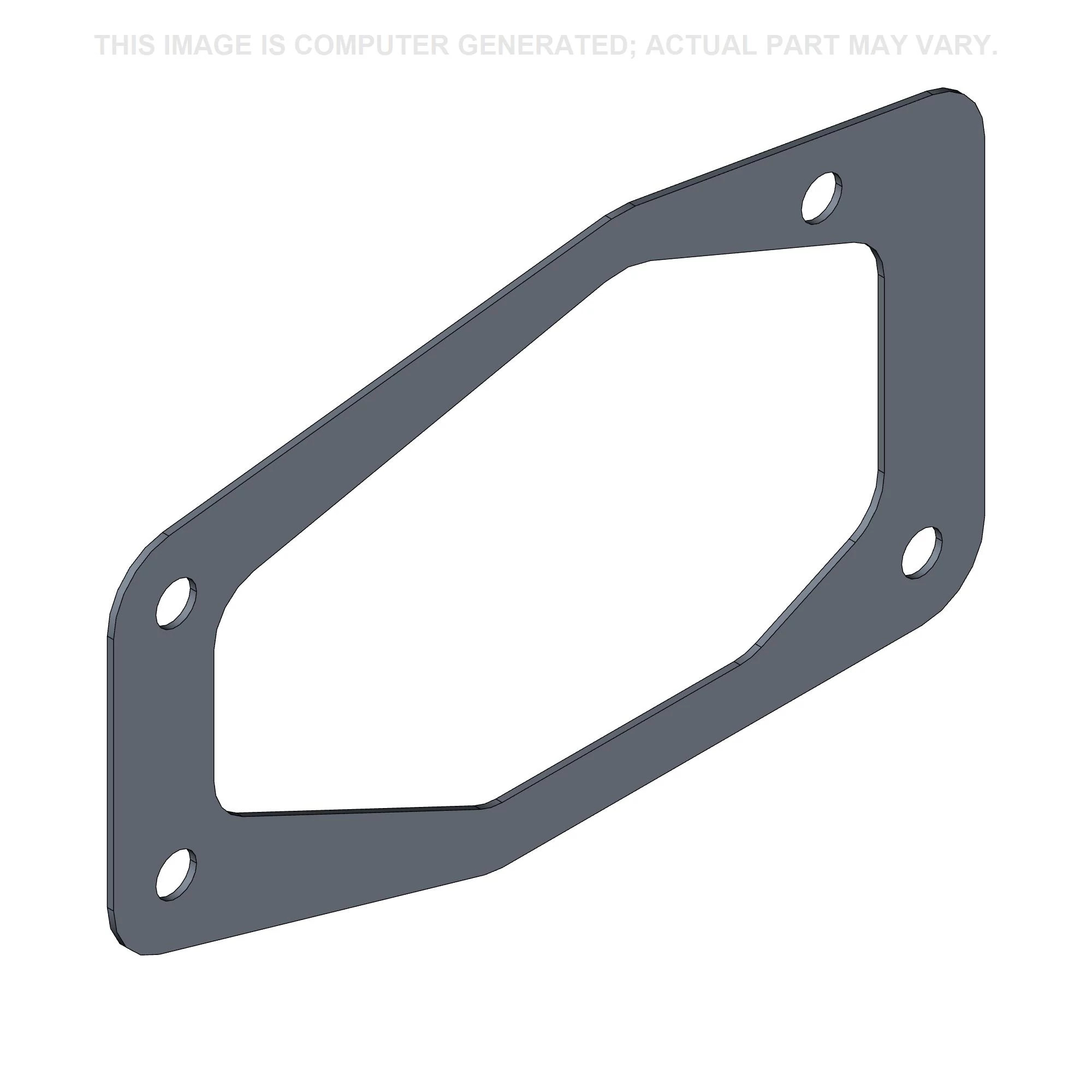

    GASKET; clutch housing top cover cap (see note A)
  • 9A
    1
    370695R1
    GASKET; pump opening cover, (see note A)
  • 1
    145201R1
    PLUG; oil retainer cup
  • 11
    1
    359126R94
    SEAL; OIL SEAL, power take-off drive gear (see note A)
  • 12
    2
    45979D
    STUD; PIN, engine rear support dowel
  • 13
    4
    NLS
    NO LONGER SERVICED; PLUG, clutch housing dust seal
  • 14
    1
    359129R2
    GASKET; power take-off driven gear cover (see note A)
  • 15
    1
    359149R3
    GASKET; seasonal disconnect or bottom cover (see note A)
  • 18
    1
    372827R11
    COVER; ASSEMBLY, power take-off driven gear (see note A)
  • 21
    1
    359925R3
    PAWL; torque amplifier operating handle
  • 23
    2
    359922R2
    PIN; torque amplifier operating handle pawl grip (also order retainer, 356892R2 on Farmall 560 series; (SN Break) Between 501 and 35770)
  • 24
    2
    356893R2
    WASHER; RETAINER, pawl grip pin Farmall 560 series, 35771 up
  • 26
    1
    359920R2
    SPRING; pawl control grip
  • 30
    1
    273354
    SHEAVE; FITTING, 3/16'' straight drive type lubrication (torque amplifier handle) (optional with 443566)
  • 31
    1
    NLS
    NO LONGER SERVICED; PIN, 1/2 x 1'' dowel
  • 33
    1
    357164R1
    SPRING; handle operating return
  • 35
    1
    357164R1
    SPRING; clutch pedal return
  • 37
    1
    273354
    SHEAVE; FITTING, 3/16'' straight drive type lubrication (optional with 443566)
  • 37
    1
    80722
    LUBE NIPPLE 3/16'' x .55'' lg, Drive; FITTING, 3/16'' straight drive type lubrication (optional with 273354)
  • 39
    2
    359929R1
    PIN; torque amplifier release lever
  • 40
    4
    109461
    LUBE NIPPLE 1/8''-27 x .66 lg; NIPPLE, LUBE, (Optional with 138322H) 1/8''-27 x .66 lg
  • 40
    4
    80710
    LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, (Optional with 109461) 1/8''-27 x .66 lg
  • 42
    2
    103906
    WOODRUFF KEY; KEY, no. 8 Woodruff
  • 43
    1
    359930R1
    CLEVIS; engine clutch to torque amplifier clutch control
  • 46
    1
    61084D
    SPRING; torque amplifier clutch release shaft lever
  • 47
    1
    352131R1
    PIN; clutch operating rod yoke
  • 1
    4226S
    PIN; 1/2 x 1-15/16'' headed
  • 50
    1
    358878R1
    SLEEVE; COUPLING, transmission driving shaft
  • 51
    1
    358877R1
    SHAFT; clutch
  • 52
    1
    359974R12
    SHAFT; ASSEMBLY, clutch (tractors equipped with torque amplifier)
  • 53
    1
    364432R91
    SLEEVE CYLINDER; SLEEVE, w/ring, 364411R1 assembly, clutch shaft (tractors with torque amplifier)
  • 54
    1
    364411R1
    SPRING; RING, clutch shaft sleeve snap
  • 55
    1
    362028R91
    BALL BEARING; BEARING, torque amplifier clutch release
  • 56
    1
    359900R1
    RING; SLEEVE, torque amplifier clutch release
  • 57
    2
    359901R1
    SPRING; torque amplifier clutch release sleeve
  • 58
    1
    359902R4
    YOKE; FORK, torque amplifier clutch release (see note B)
  • 61
    2
    359904R1
    PIVOT; torque amplifier clutch release sleeve Farmall 560 series; (SN Break) Between 501 and 36196
  • 62
    2
    359908R1
    THRUST WASHER; torque amplifier clutch release shaft
  • 63
    2
    359909R1
    RING; RETAINER, torque amplifier clutch release shaft
  • 65
    2
    18465D
    WASHER; KEY, clutch release fork
  • 66
    1
    5800DB
    FORK; clutch release
  • 67
    1
    359022R2
    PIVOT; SLEEVE, clutch release
  • 68
    1
    365720R1
    PIPE; clutch release sleeve grease
  • 69
    1
    Q3618
    LUBE NIPPLE 5/16''-32 x .66 lg; FITTING, 5/16-32 NEF straight lubrication (optional with 18541R91)
  • 69
    1
    18541R91
    LUBE NIPPLE; FITTING, 5/16-32 NEF straight lubrication (optional with Q3618)
  • 70
    1
    365867R91
    BALL BEARING; clutch release
  • 71
    1
    ST544

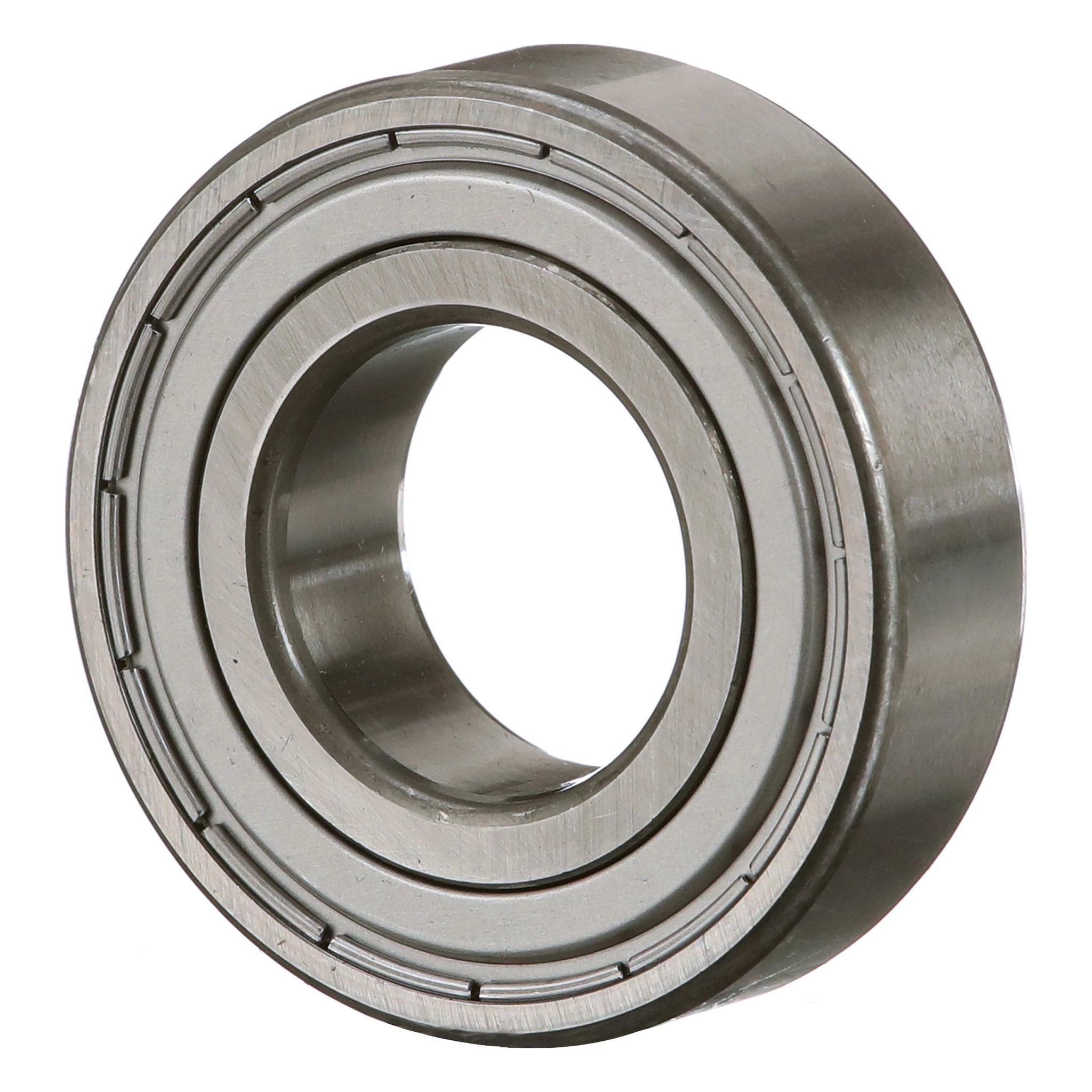

    BALL BEARING 25mm ID x 52mm OD x 15mm W; BALL BEARING, clutch pilot
  • 73
    1
    370801R1
    GASKET; oil strainer opening cover
  • 75
    2
    375559R1
    PIN; torque amplifier clutch release pivot Farmall 560 series, 36197 up
