0.05.4[01] - MAINTENANCE PARTS - FILTERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84214564

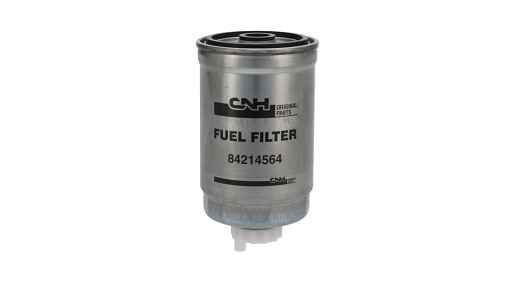

    FUEL FILTER; Spin On, w/Water Separator, Every 600 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 2
    1
    84217953

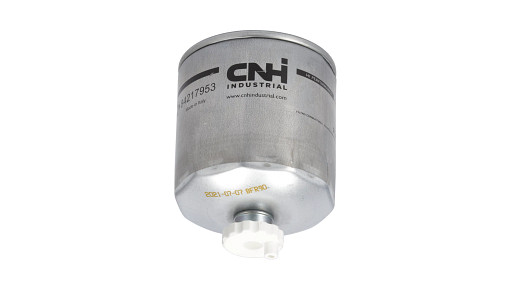

    FUEL FILTER; Fuel sedimenting device, Every 600 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 3
    1
    84221215

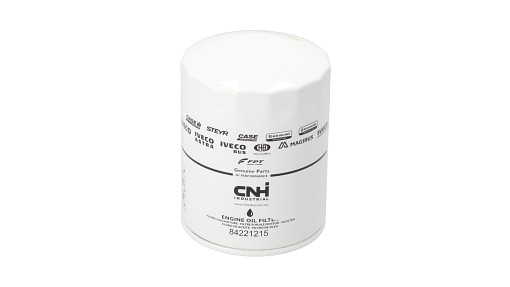

    ENGINE OIL FILTER; Spin On , Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 4
    1
    5194879
    HYDRAULIC OIL FILTER; Element, Power shuttle transmission, with Hi-Lo, Every 600 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 5
    1
    1909143
    FILTER; Steering direction servocontrol - 2WD, Every 600 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR Models
  • 6
    1
    84592273
    FILTER; Power Steering 2WD & 4WD, Every 600 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 7
    1
    5165615

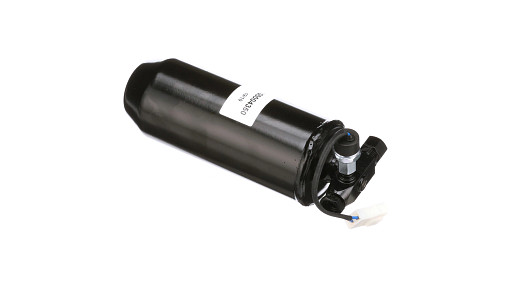

    RECEIVER-DRIER; Primary Cartridge, Air Conditioning, Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 8
    1
    1931160
    ELEMENT; Self-cleaning, Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models
  • 8
    1
    1931161
    ELEMENT; Every 300 hours;Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 8
    1
    1931166

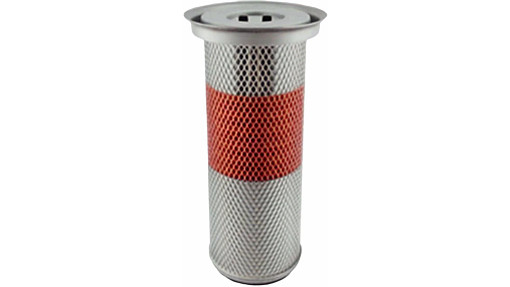

    AIR FILTER; Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models with the variante 199

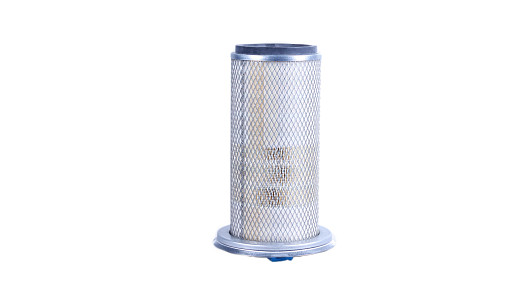

  • 8
    1
    1931168
    AIR FILTER; Self-Cleaning, Every 300 hours;Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models with the variante 199
  • 9
    1
    1930588

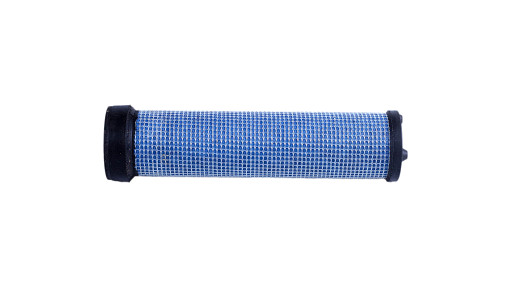

    AIR FILTER; Safety, self-cleaning, Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models
  • 9
    1
    1931167
    AIR FILTER; Safety, self-cleaning, Every 300 hours;Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 9
    1
    1931164
    AIR FILTER; Safety, Every 300 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR Models with the variante 199
  • 9
    1
    1931169
    AIR FILTER; Safety, Every 300 hours;Valid with JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models with the variante 199

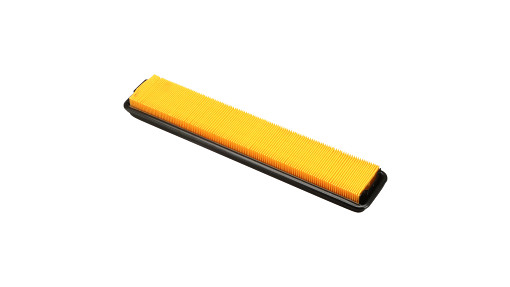

  • 10
    2
    5196842
    CAB FILTER; Primary, Intake, Every 1200 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
  • 11
    2
    82033107

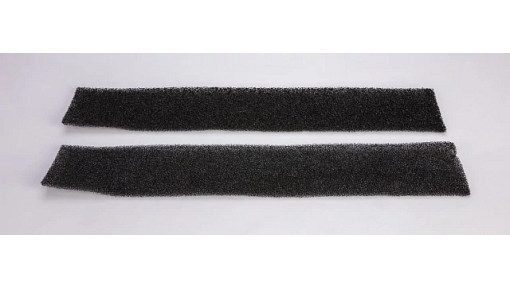

    AIR FILTER; Secondary, Intake, Every 1200 hours;Valid with JX70U-CASE IH TRACTOR, JX80U-CASE IH TRACTOR, JX90U-CASE IH TRACTOR, JX100U-CASE IH TRACTOR Models
