050 - BLADE CARRIER & BLADES

TABLE OF CONTENTS

DIAGRAM

PART LIST

View Callout Only

Clear callout

Add all to Pick List
View Details

Serial Number Window

Select All

Ref.

Qty

Part #

Alts

Description


1

1

MAG101D1003

CARRIER; Blade, RC727
1

1

MAG401D5470

CARRIER; Blade, RC845, RC84HD
2

2

MAG401D0067

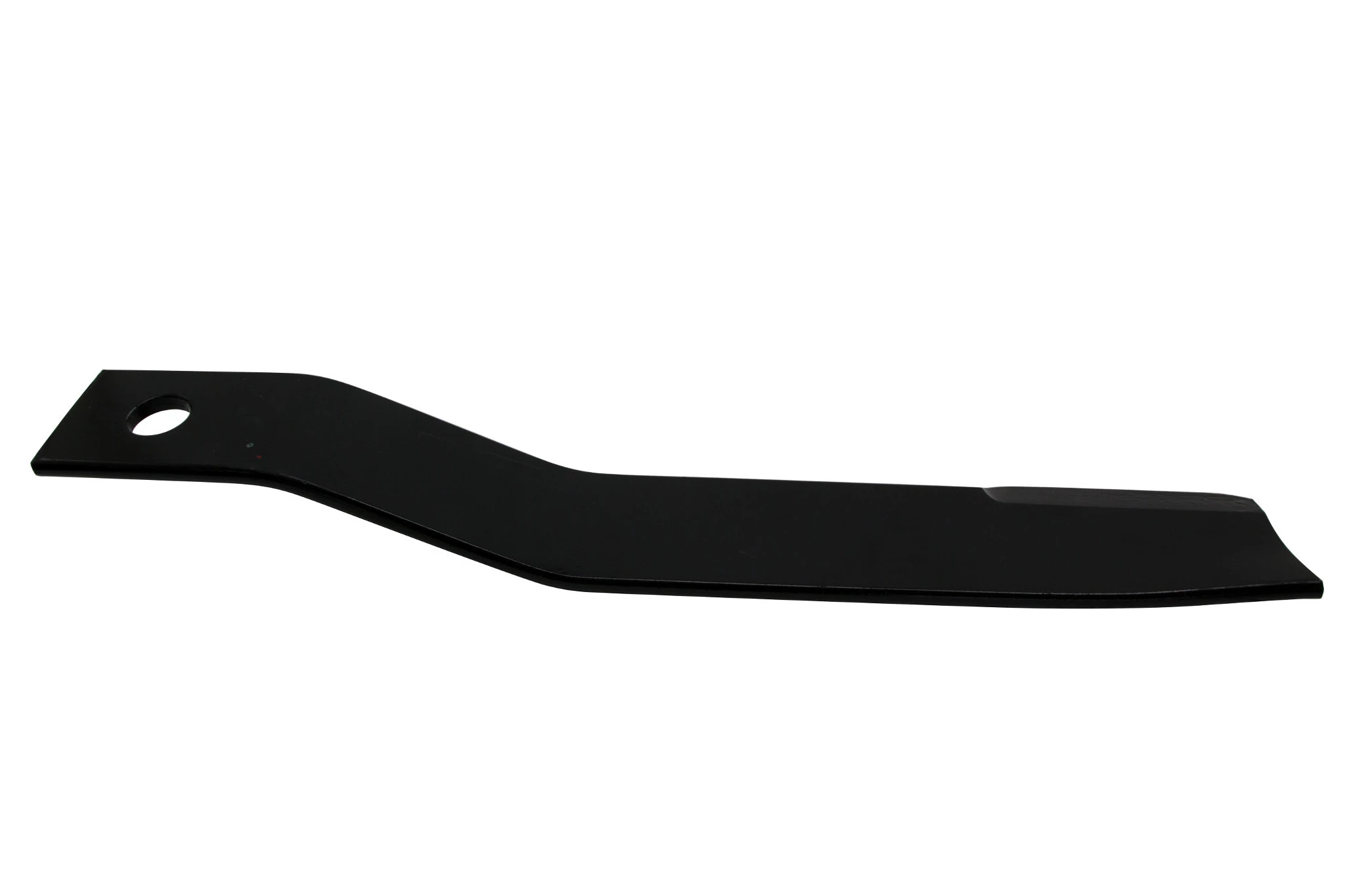

BLADE;
3

2

MAG412D0057D01

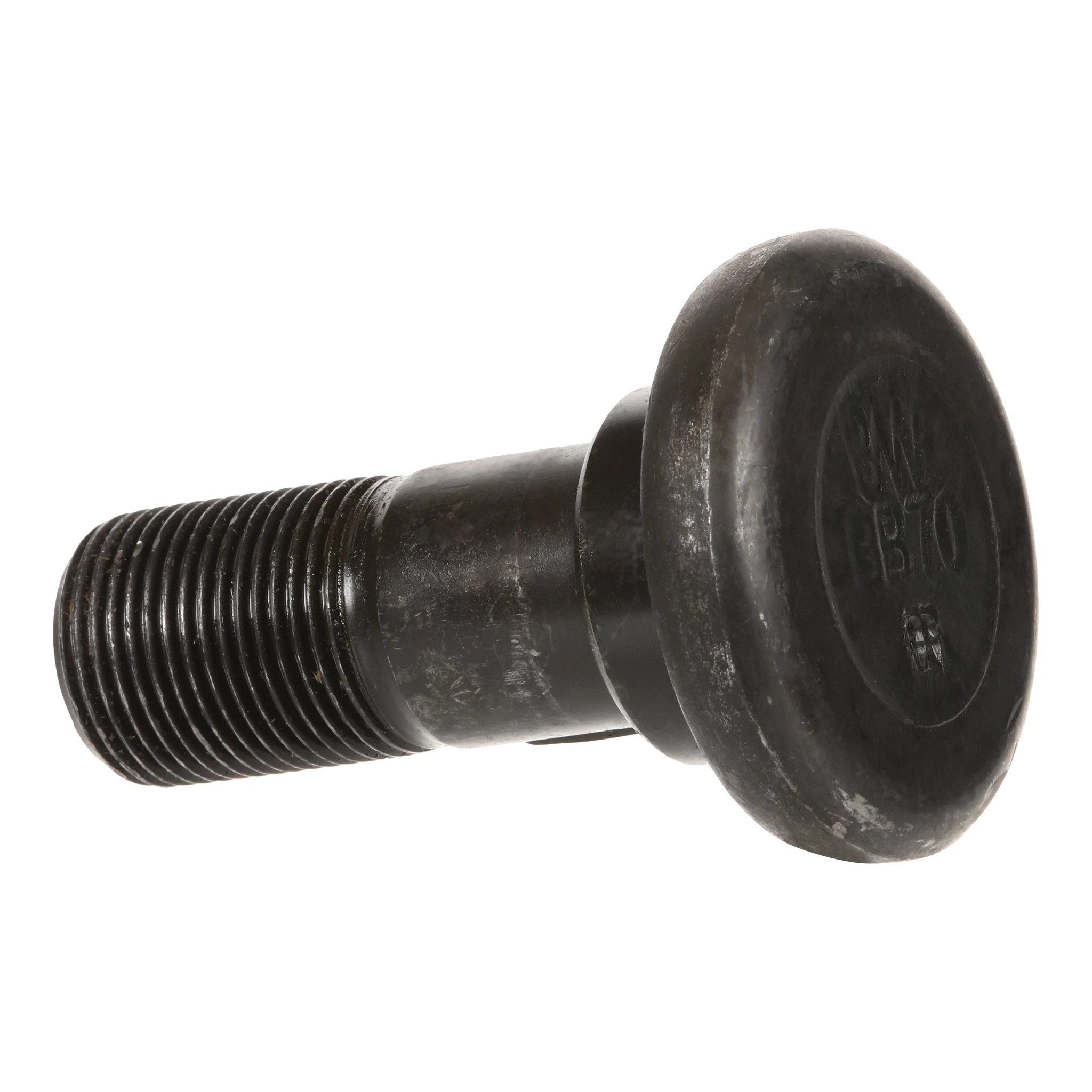

BOLT; Blade
4

2

MAG900D8771

LOCK WASHER;
5

2

MAG900D8614D01

NUT; Jam
6

2

MAG412D8043D01

KIT; Bolt Includes: Ref. 3-5
