717721366 - RC720 - 6' VA... 00 - COMPLETE MACHINE 003 - SHEAR PIN DRIVELINE
003 - SHEAR PIN DRIVELINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

MAG343D134

Description

PTO; Complete Includes: Ref. 1A-97, RC480


Alts

Select

Ref.

1

Qty

1

Availability

Part #

MAG343D135

Description

PTO; Complete Includes: Ref. 1A-97, RC600


Alts

Select

Ref.

1

Qty

1

Availability

Part #

MAG401D0306D6

Description

PTO; Complete Includes: Ref. 1A-97, RC720


Alts

Select

Ref.

1A

Qty

1

Availability

Part #

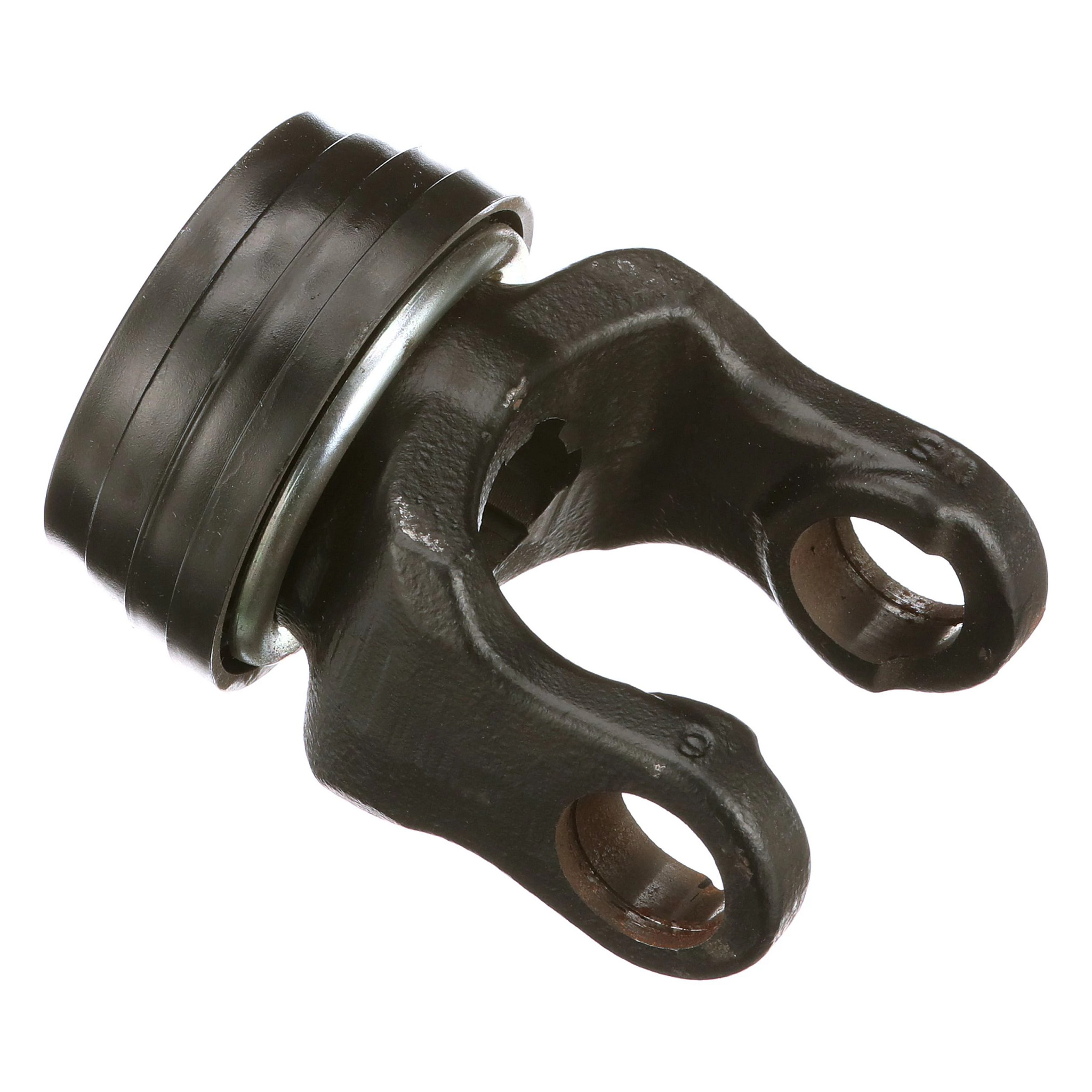

MAG343D1133

Description

YOKE; 1-3/8-6Z Twist Collar


Alts

Select

Ref.

2

Qty

1

Availability

Part #

MAG343D1211

Description

KIT; Cross


Alts

Select

Ref.

5

Qty

2

Availability

Part #

MAG343D1704

Description

YOKE; Outer Tube


Alts

Select

Ref.

11

Qty

1

Availability

Part #

MAG343D1502

Description

ROLL PIN;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

MAG501D0120

Description

TUBE; Outer, RC480


Alts

Select

Ref.

12

Qty

1

Availability

Part #

MAG501D0384

Description

TUBE; Outer, RC600


Alts

Select

Ref.

12

Qty

1

Availability

Part #

MAG501D0110

Description

TUBE; Outer, RC720


Alts

Select

Ref.

13

Qty

1

Availability

Part #

MAG501D0121

Description

TUBE; Inner, RC480


Alts

Select

Ref.

13

Qty

1

Availability

Part #

MAG501D0385

Description

TUBE; Inner, RC600


Alts

Select

Ref.

13

Qty

1

Availability

Part #

MAG501D0111

Description

TUBE; Inner, RC720


Alts

Select

Ref.

14

Qty

1

Availability

Part #

MAG341048000

Description

ROLL PIN;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

MAG343D1304

Description

YOKE; Inner Tube


Alts

Select

Ref.

30

Qty

1

Availability

Part #

MAG343D1857

Description

YOKE; Shear Pin


Alts

Select

Ref.

51

Qty

1

Availability

Part #

MAG343D1931

Description

PIN; QD Kit


Alts

Select

Ref.

52

Qty

1

Availability

Part #

MAG240002451

Description

KIT; RS Collar


Alts

Select

Ref.

97

Qty

1

Availability

Part #

MAG083B04120L

Description

KIT; Safety Guard Kit B4 (Cut to desired length)


Alts
