PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11ROLLER 3'' od x 3.875'' long; Anti-Scalp MWX72R, MW72R
-
11ROLLER 4'' od x 3.875'' long; Anti-Scalp - MWX60S, MW60S, MWX72S, MW72S
-
21SPACER; Belt Tension Arm
-
32PULLEY; Idler
-
41ROD; Belt Adjustment, '' T '' Shaped, 60''
-
41ROD; Belt Adjustment, '' T '' Shaped, 72''
-
41ROD; Belt Adjustment
-
61CLIP; Double Spring
-
51SPRING; Tension
-
71ARM; Belt Tension
-
81SPACER; Fixed Idler
-
93PULLEY; Mower Spindle
-
103SPINDLE; Assy., with Pulley
-
111BRACKET; Ear, Rear HOC Adjustment Bar
-
121CLAMP; U-Clamp
-
121CLAMP; U-Clamp - MWX60S, MW60S, MWX72S, MW72S
-
132WHEEL BEARING KIT; Wheel & Bearing Assy., Rear, Includes: Ref. 14
-
141BEARING ASSY; Kit, Wheel Bearing Includes: Ref. 14A-14D
-
14A1NOT SOLD SEPARAT; Bearing
-
14B2NOT SOLD SEPARAT; Thrust Washer
-
14C1NOT SOLD SEPARAT; Spanner
-
14D2NOT SOLD SEPARAT; Seal-Retainer
-
151BAR; Rear HOC, 60'', MWX60S, MW60S
-
151BAR; Rear HOC, 72'', MWX72S, MW72S
-
151BAR; Rear HOC, 72'' - MWX72R, MW72R
-
163SPACER 14.27mm ID x 22.23mm OD x 9.53mm L; Blade, Spacer
-
173BLADE; Blade, Cutting, 60''
-
173BLADE; Blade, Cutting, 60'' - HIGH LIFT
-
173BLADE; Blade, Cutting, 72''
-
173BLADE; Cutting, 72'' - HIGH LIFT
-
173BLADE; Cutting, 1/4x3/21 1'' OS Gator, 72''
-
183SPACER; Spindle
-
191COTTER PIN 1/8'' x 1 1/2''; PIN, SPLIT (COTTER), 1/8'' x 1-1/2''
-
201PIN 12.6mm OD x 131.06mm L; Clevis, 1/2'' x 5''
-
211BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''
-
222WASHER 5/8'';
-
236NUT 3/8''-16, Cl 5;
-
241CLEVIS PIN 1/4'' x 3/4''; PIN, CLEVIS, 1/4'' x 3/4''
-
251COTTER PIN 1/16'' x 5/8''; Pin, Split (Cotter), 1/16'' x 5/8''
-
262LOCK NUT 5/8'' - 11, Gr C; Nut, Lock, GC, 5/8''-11
-
271NUT 1/2''-13, GC; NUT, LOCK, 1/2''-13, GC;Used BSN A9BD001;Used BSN A9BC001
-
281WASHER 1/2'';
-
292LUBE NIPPLE 1/4'' - 28 NPTF; NIPPLE, LUBE, 1/4''-28 x .56'' lg, Self-Tap
-
291LUBE NIPPLE 90 Degree Elbow, 1/4'' - 28 NPTF;
-
303LOCK NUT 3/4'' - 16; Nut, Lock, 3/4''-16, GC
-
313KEY; Square, 1/4'' x 7/8''
-
321PIN; Clevis, 3/8'' x 2-1/8''
-
331RING; Wire
-
349NUT 7/16''-20, G5;
-
3510LOCK WASHER 3/8'';
-
363BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
373BOLT Hex, 1/2'' - 13 x 3-1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3-1/2''
-
381BOLT Hex, 3/8'' - 16 x 2-1/4'', Gr 5;
-
381PROCURE LOCALLY; Bolt, 3/8''-16 x 2-1/2'' - MWX60S, MW60S, MWX72S, MW72S
-
393BOLT; 9/16''-12x1-3/4'', ''Grade 5''
-
401BOLT Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4''
-
411KNOB; Grip, Rear HOC Handle
-
421V-BELT; Belt - MWX60S, MW60S - 60'', Effective Length 159.8''
-
421V-BELT; Belt - MWX72S, MW72S, MWX72R, MW72R - 72'', Effective Length 174.8''
-
431BRACKET; Used BSN A9BC001
-
442PROCURE LOCALLY; Washer, Lock, 1/2'', MWX60S, MW60S, MWX72S, MW72S
-
451SPACER; U-Clamp - Special - MWX60S, MW60S, MWX72S, MW72S
Select All
Select
Ref.
1Qty
1Availability
Part #
AUB161573Description

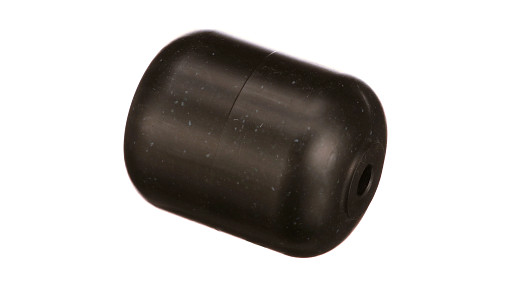

ROLLER 3'' od x 3.875'' long; Anti-Scalp MWX72R, MW72RImg
Alts
Select
Ref.
1Qty
1Availability
Part #
AUB162988Description

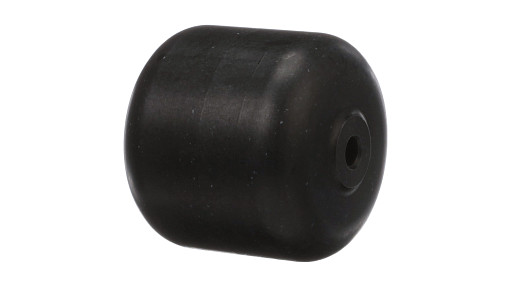

ROLLER 4'' od x 3.875'' long; Anti-Scalp - MWX60S, MW60S, MWX72S, MW72SImg
Alts
Select
Ref.
4Qty
1Availability
Part #
AUB162367Description
ROD; Belt Adjustment, '' T '' Shaped, 60''Img
Alts
Select
Ref.
4Qty
1Availability
Part #
AUB161423Description
ROD; Belt Adjustment, '' T '' Shaped, 72''Img
Alts
Select
Ref.
11Qty
1Availability
Part #
CSE160594Description
BRACKET; Ear, Rear HOC Adjustment BarImg
Alts
Select
Ref.
12Qty
1Availability
Part #
CSE164030Description
CLAMP; U-Clamp - MWX60S, MW60S, MWX72S, MW72SImg
Alts
Select
Ref.
13Qty
2Availability
Part #
AUB121712Description

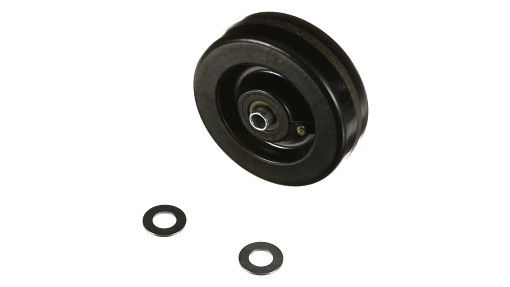

WHEEL BEARING KIT; Wheel & Bearing Assy., Rear, Includes: Ref. 14Img
Alts
Select
Ref.
14Qty
1Availability
Part #
AUB121865Description

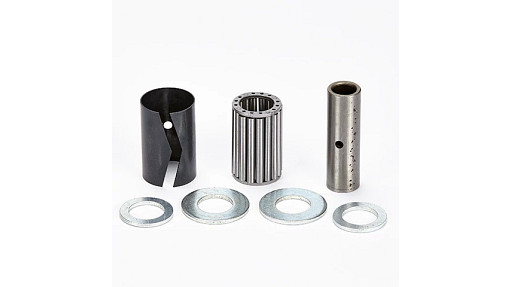

BEARING ASSY; Kit, Wheel Bearing Includes: Ref. 14A-14DImg
Alts
Select
Ref.
15Qty
1Availability
Part #
CSE161855Description
BAR; Rear HOC, 60'', MWX60S, MW60SImg
Alts
Select
Ref.
15Qty
1Availability
Part #
CSE164010Description
BAR; Rear HOC, 72'', MWX72S, MW72SImg
Alts
Select
Ref.
15Qty
1Availability
Part #
CSE162647Description
BAR; Rear HOC, 72'' - MWX72R, MW72RImg
Alts
Select
Ref.
16Qty
3Availability
Part #
AUB162284Description
SPACER 14.27mm ID x 22.23mm OD x 9.53mm L; Blade, SpacerImg
Alts
Select
Ref.
17Qty
3Availability
Part #
AUB162836Description

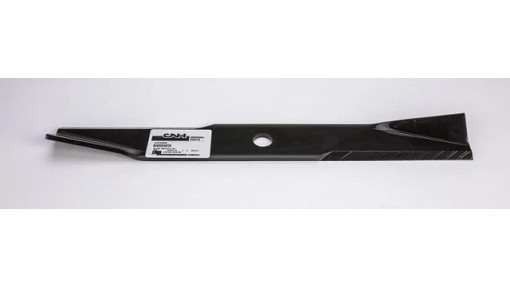

BLADE; Blade, Cutting, 60'' - HIGH LIFTImg
Alts
Select
Ref.
17Qty
3Availability
Part #
AUB144701Description

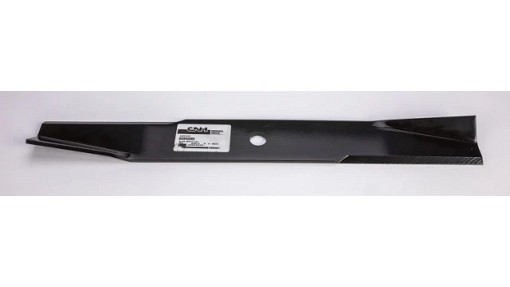

BLADE; Cutting, 72'' - HIGH LIFTImg
Alts
Select
Ref.
17Qty
3Availability
Part #
AUB163681Description
BLADE; Cutting, 1/4x3/21 1'' OS Gator, 72''Img
Alts
Select
Ref.
19Qty
1Availability
Part #
432-824Description
COTTER PIN 1/8'' x 1 1/2''; PIN, SPLIT (COTTER), 1/8'' x 1-1/2''Img
Alts
Select
Ref.
20Qty
1Availability
Part #
AUB967064Description
PIN 12.6mm OD x 131.06mm L; Clevis, 1/2'' x 5''Img
Alts
Select
Ref.
21Qty
1Availability
Part #
413-1028Description
BOLT Hex, 5/8'' - 11 x 1-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-3/4''Img
Alts
Select
Ref.
24Qty
1Availability
Part #
9672307Description
CLEVIS PIN 1/4'' x 3/4''; PIN, CLEVIS, 1/4'' x 3/4''Img
Alts
Select
Ref.
25Qty
1Availability
Part #
280224Description
COTTER PIN 1/16'' x 5/8''; Pin, Split (Cotter), 1/16'' x 5/8''Img
Alts
Select
Ref.
26Qty
2Availability
Part #
85700693Description
LOCK NUT 5/8'' - 11, Gr C; Nut, Lock, GC, 5/8''-11Img
Alts
Select
Ref.
27Qty
1Availability
Part #
232-4148Description
NUT 1/2''-13, GC; NUT, LOCK, 1/2''-13, GC;Used BSN A9BD001;Used BSN A9BC001Img
Alts
Select
Ref.
29Qty
2Availability
Part #
219-87Description
LUBE NIPPLE 1/4'' - 28 NPTF; NIPPLE, LUBE, 1/4''-28 x .56'' lg, Self-TapImg
Alts
Select
Ref.
29Qty
1Availability
Part #
219-93Description
LUBE NIPPLE 90 Degree Elbow, 1/4'' - 28 NPTF;Img
Alts
Select
Ref.
30Qty
3Availability
Part #
280724Description

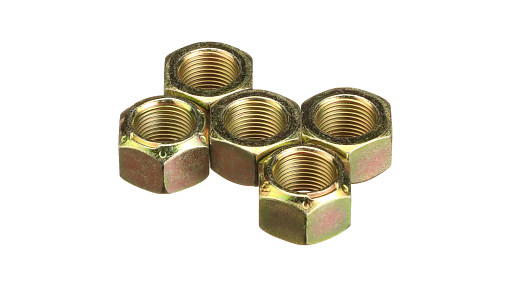

LOCK NUT 3/4'' - 16; Nut, Lock, 3/4''-16, GCImg
Alts
Select
Ref.
36Qty
3Availability
Part #
413-616Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5;Img
Alts
Select
Ref.
37Qty
3Availability
Part #
413-856Description
BOLT Hex, 1/2'' - 13 x 3-1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3-1/2''Img
Alts
Select
Ref.
38Qty
1Availability
Part #
413-636Description
BOLT Hex, 3/8'' - 16 x 2-1/4'', Gr 5;Img
Alts
Select
Ref.
38Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, 3/8''-16 x 2-1/2'' - MWX60S, MW60S, MWX72S, MW72SImg
Alts
Select
Ref.
39Qty
3Availability
Part #
AUB967187Description
BOLT; 9/16''-12x1-3/4'', ''Grade 5''Img
Alts
Select
Ref.
40Qty
1Availability
Part #
413-1044Description
BOLT Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4''Img
Alts
Select
Ref.
42Qty
1Availability
Part #
AUB161355Description

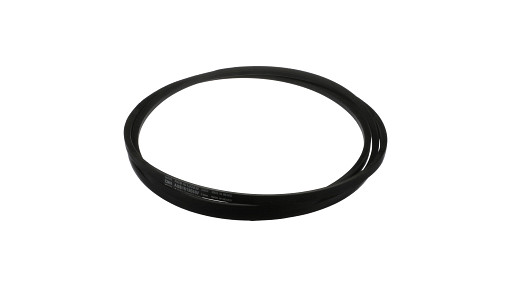

V-BELT; Belt - MWX60S, MW60S - 60'', Effective Length 159.8''Img
Alts
Select
Ref.
42Qty
1Availability
Part #
AUB161711Description
V-BELT; Belt - MWX72S, MW72S, MWX72R, MW72R - 72'', Effective Length 174.8''Img
Alts
Select
Ref.
44Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 1/2'', MWX60S, MW60S, MWX72S, MW72SImg
Alts
Select
Ref.
45Qty
1Availability
Part #
AUB164038Description
SPACER; U-Clamp - Special - MWX60S, MW60S, MWX72S, MW72SImg
Alts
