28 - HYDRAULIC HOSES & FITTINGS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    6
    218-5128
    ELBOW 90%O% Elbow, 9/16'' - 18 Male JIC x 3/4'' - 16 Male ORB;
  • 2
    1
    SML45882
    CONTROL VALVE; Valve, Control, Gresen V-10, Refer to Fig. 26 for breakdown
  • 3
    5
    SML44942
    RESTRICTOR VALVE; Valve, Restrictor, .074
  • 4
    14
    SML328441
    ADAPTER; Fitting
  • 5
    2
    SML382909

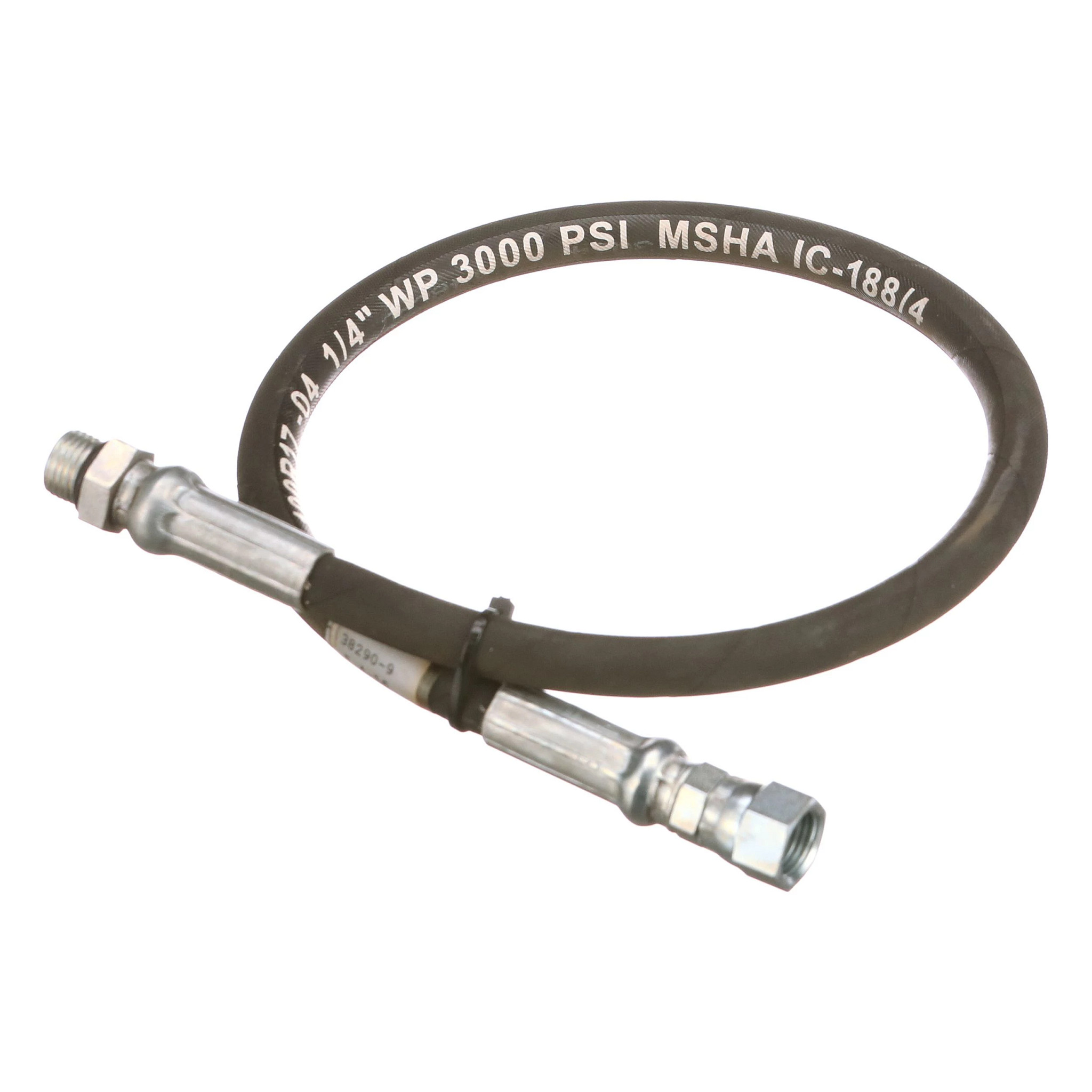

    HOSE; 1/4 x 24'' (Swing Cylinder to Swing Cylinder)
  • 6
    6
    218-5066
    HYD CONNECTOR 7/8'' - 14 Male JIC x 3/4'' - 16 Male ORB; CONNECTOR, HYD., Straight, 7/8''-14 Flare x 3/4''-16 O-Ring Boss, Incl. O-Ring 237-6008
  • 7
    6
    218-5232
    ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, 37 Degree Fem Sw; -10 90?, 7/8''-14 Flare Male x Swivel Flare Female
  • 8
    1
    SML3283713
    HOSE 0.25'' ID x 124.00''; (Dipper & Bucket Rod) 0.25'' ID x 124.00''
  • 9
    1
    SML3283711

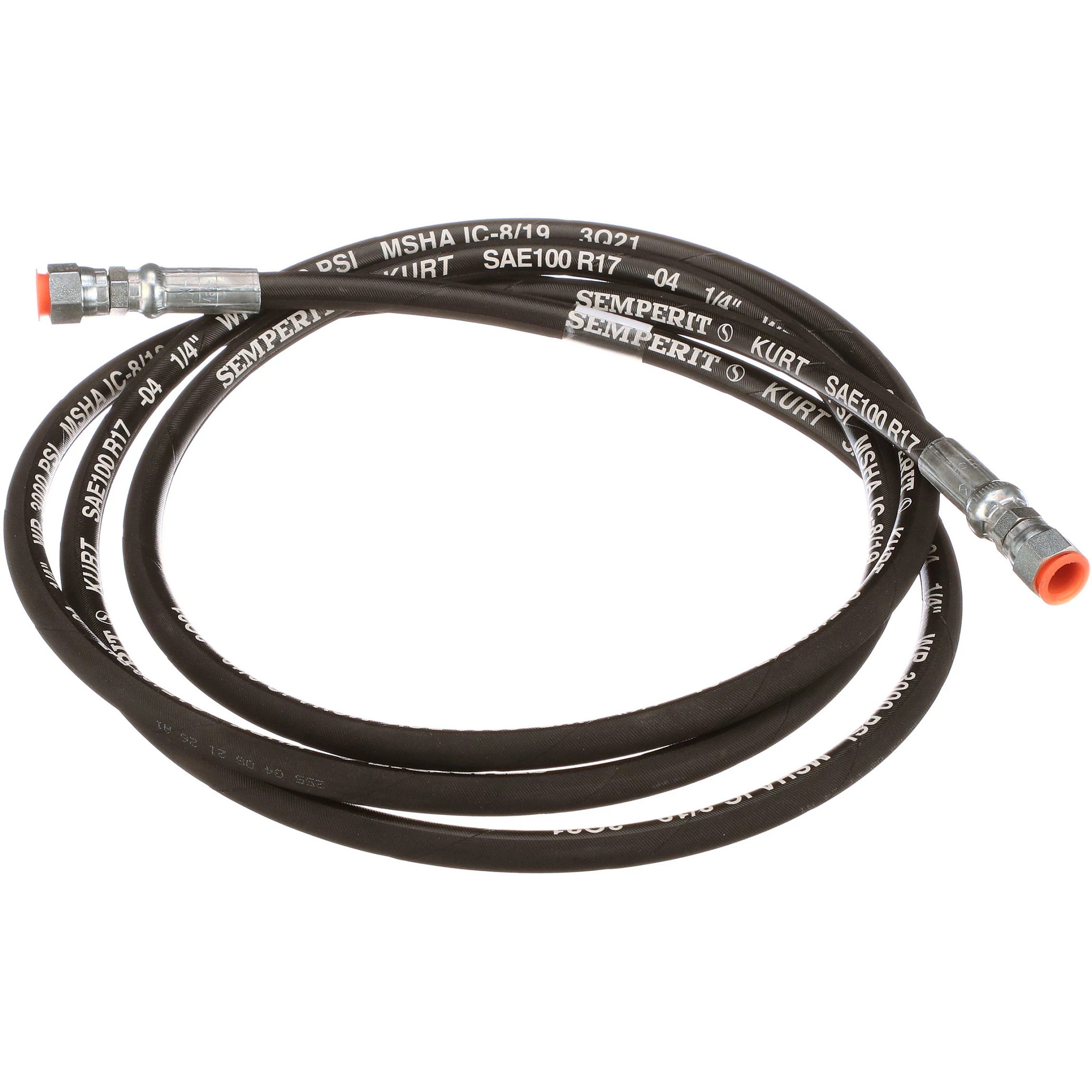

    HOSE 0.25'' ID x 108.00''; (Dipper & Bucket Base) 0.25'' ID x 108.00''
  • 10
    4
    SML3283710

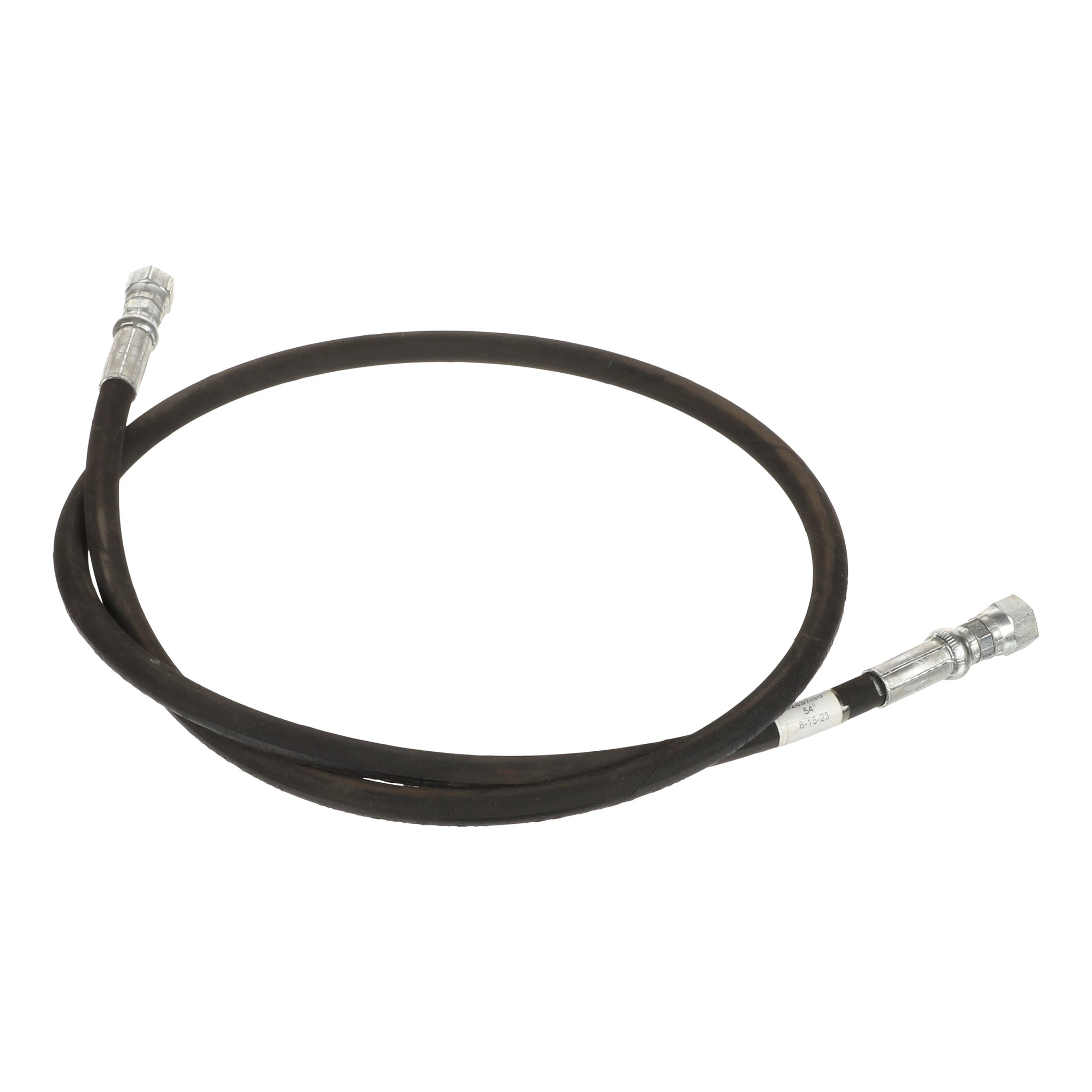

    HOSE 0.25'' ID x 54.00''; (Stabilizer to Valve) 0.25'' ID x 54.00''
  • 11
    2
    218-5106
    90 ELBOW 90 Degree Elbow, 3/4'' - 16 Male JIC x 3/4'' - 16 Male ORB; Fitting, 90? Elbow, 3/4''-16 JIC x 3/4''-16 O-Ring
  • 12
    2
    SML328379
    HOSE 0.25'' ID x 40.00''; (Swing Cylinder to Valve) 0.25'' ID x 40.00''
  • 13
    1
    SML3485320
    SLEEVE; Nylon
  • 14
    2
    SML3283712

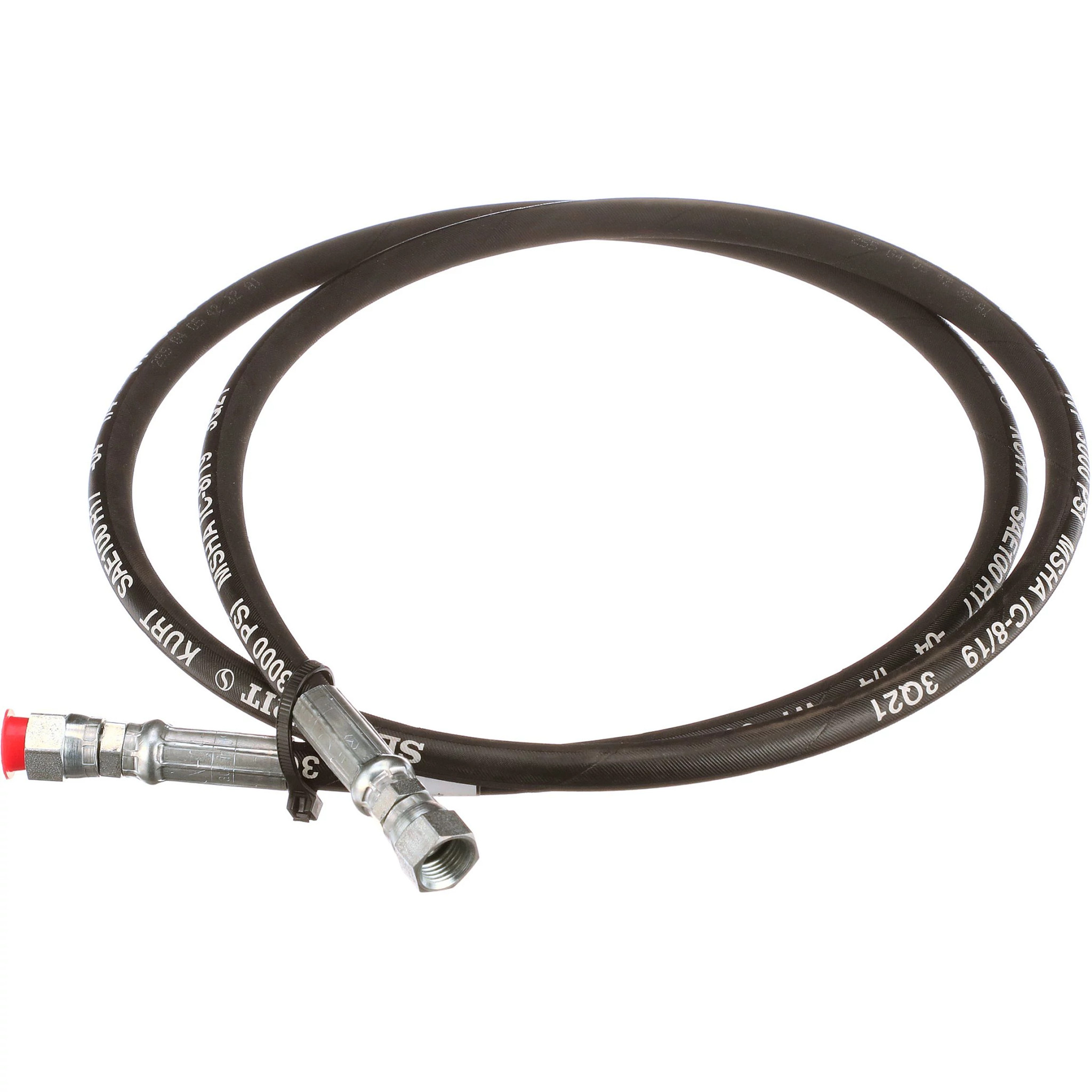

    HOSE 0.25'' ID x 66.00''; 0.25'' ID x 66.00''
  • 15
    5
    SML60762
    CLAMP; Hose
  • 16
    1
    86581720
    SECURING STRAP; Strap, Tie, Adjustable, 1/2 x 20''
  • 17
    11
    86582400
    STRAP; Adjustable Tie, 3/16'' x 11''
  • 18
    4
    SML448651
    LOOM; Woven Cotten
  • 19
    1
    SML3485322
    SLEEVE; Nylon, 24''
  • 20
    2
    SML3485321
    SLEEVE; Nylon, 30''
  • 21
    1
    SML3485323
    SLEEVE; Nylon, 44''
  • 22
    2
    SML3283716
    HOSE; Hose, Flexible, 1/4'' x 102'' (Dipper Cylinder Base & Rod)
