TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HOUSING; Includes: Ref. 2-3
-
21NOT SOLD SEPARAT; Left Casing
-
31NOT SOLD SEPARAT; Right Casing
-
41GEAR; Kit, Worm & Gear Includes: Ref. 5-6
-
51NOT SOLD SEPARAT; Gear
-
61NOT SOLD SEPARAT; Worm
-

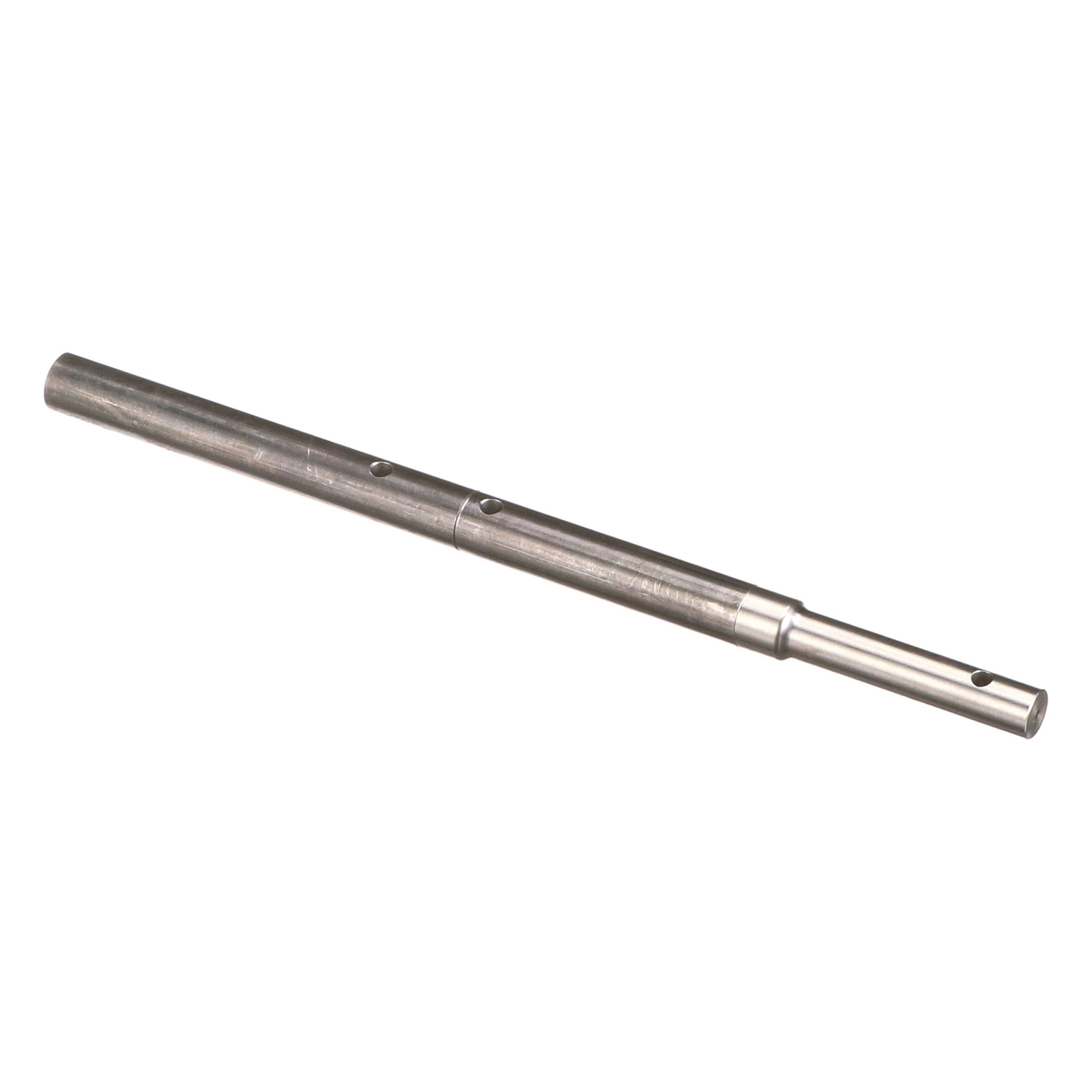

71DRIVE SHAFT;
-
82BEARING ASSY; SPARE PART
-
92BEARING ASSY; Bearing
-
101SEAL KIT; Includes: Ref. 11-12
-
112NOT SOLD SEPARAT; Seal
-
121NOT SOLD SEPARAT; Seal
-
131CAP;
-
141BREATHER; 1/8'', 5 psi
-
152PLUG; Plug, 1/8''
-
161PIN; Spring, 5/16'' x 1 -1/4''
-
172PIN; Dowel, 3/16'' x 1/2''
-
184NOT SERVICED; Bolt, Hex, 5/16'' x 2 -1/2''
-
192PROCURE LOCALLY; Bolt, Hex, 5/16'' x 1 -1/2''
-
206PROCURE LOCALLY; Nut, Lock, Nylon Insert, 5/16''
Select All
Ref.
4Qty
1Availability
Part #
BER4500020Description
GEAR; Kit, Worm & Gear Includes: Ref. 5-6Img
Alts
Ref.
18Qty
4Availability
Part #
NSDescription
NOT SERVICED; Bolt, Hex, 5/16'' x 2 -1/2''Img
Alts
Ref.
19Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Hex, 5/16'' x 1 -1/2''Img
Alts
Ref.
20Qty
6Availability
Part #
PLDescription
PROCURE LOCALLY; Nut, Lock, Nylon Insert, 5/16''Img
Alts
