10-05 - HYDRAULICS, HYDRAULIC SUPPLY, MANUAL STEERING, CONSTANT MESH GEAR TRANSMISSION, 244 AND 254
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1273436C1
    TUBE; suction, replaces 1273408C1
  • 2
    1
    1282753C1
    TUBE; supply, replaces 1273409C1 on 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008387 and below by also ordering union bolt, 1282526C1 and two seal washers, 1282713C1
  • 3
    1
    1273410C91
    PUMP; ASSY, hydraulic, only serviceable part is kit, 1273407C1
  • 4
    934309R1
    LOCK WASHER M8; WASHER, 8 mm lock
  • 4
    30167R1
    NUT M8, Cl 10; M8 PHC class 10
  • 1
    1273407C1
    SEAL KIT; seal repair
  • 4
    1
    1269871C1
    O-RING 17.8mm ID x 2.4mm Width; replaces 1269872C1
  • 5
    3
    86977790
    BOLT Hex, M6 x 1 x 45mm, Cl 8.8; M6 x 45 mm class 8.8
  • 3
    933833R1
    LOCK WASHER M6; WASHER, 6 mm lock
  • 6
    1
    1269871C1
    O-RING 17.8mm ID x 2.4mm Width;
  • 7
    4
    86977789

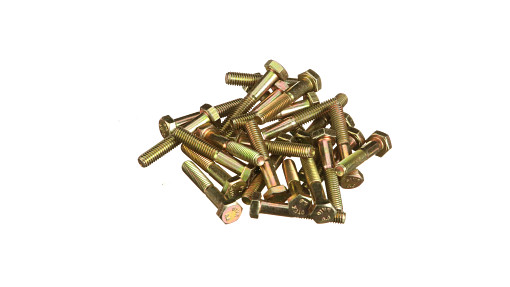

    BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
  • 4
    933833R1
    LOCK WASHER M6; WASHER, 6 mm lock
  • 8
    1
    1273138C1
    HYDRAULIC OIL FILTER; FILTER
  • 9
    1
    1269881C1
    O-RING; O-RING
  • 10
    1
    1273411C1
    PLUG; filter
  • 12
    2
    681896C1
    HOSE CLAMP #20, .81/1.75 Type F Worm, W/liner; CLAMP, no. 20 shoe type f hose
  • 13
    2
    1273413C1
    SEALING WASHER; washer, 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008367 and below
  • 13
    1
    1282713C1
    SEALING WASHER; SEAL, washer, 244 tractors w/serial no. 008462 and above, 254 tractors w/serial no. 008388 and above
  • 14
    1
    1273414C1
    BOLT Hex, M16 x 25mm, Drilled; BOLT, union, 244 tractors w/serial no. 008461 and below, 254 tractors w/serial no. 008387 and below
  • 14
    1
    1282526C1
    BOLT M16 x 1.5 x 30mm; BOLT, union, 244 tractors w/serial no. 008462 and above, 254 tractors w/serial no. 008388 and above
  • 15
    1
    1273415C1
    CLAMP; tube
  • 16
    1
    1273416C1
    HOSE 25.00 mm ID x 35.00 mm; - Cushion, Tube 25.00 mm ID x 35.00 mm
  • 17
    1
    1273417C1
    HOSE 10.00 mm ID x 35.00 mm; - Cushion, Tube 10.00 mm ID x 35.00 mm
  • 18
    1
    1273394C1
    BOLT Hex, M10 x 1.25 x 25mm;
  • 19
    1
    825-11410
    NUT M10 x 1.25, Cl 8; flange
  • 20
    1
    1273418C1
    TUBE; suction
  • 21
    3
    43130
    BOLT Hex, M8 x 1.25 x 50mm, Cl 8.8; M8 x 50 class 8.8
  • 3
    934309R1
    LOCK WASHER M8; WASHER, 8 mm lock
  • 22
    1
    1269875C1
    O-RING;
