DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TANK; FUEL TANK (part kit K963616)
-
21CAP; FILLER CAP (part kit K963616)
-
1PLUG; DRAIN PLUG, 1/8 BSP (part kit K963616)
-
1WASHER 9.92mm ID x 14.29mm OD x 2mm Thk; FIBRE WASHER, 3/8 in. (part kit K963616)
-
31PLUG; 3/8 UNF, leak-off aperture (gasoline) (part kit K963616)
-
1WASHER; COPPER WASHER, leak-off aperture (gasoline) (part kit K963616)
-
44DAMPER; RUBBER BUSH, fuel tank to support brackets (part kit K963616)
-
54WASHER; RUBBER WASHER, fuel tank to support brackets (part kit K963616)
-
64PLATE; CLAMPING PLATE, fuel tank to support brackets (part kit K963616)
-
74TUBE; DISTANCE TUBE, fuel tank to support brackets (part kit K963616)
-
84BOLT; 1/4 UNC x 1-1/2 in., fuel tank to support brackets (part kit K963616)
-
4SPRING WASHER; SPRING WASHER, 1/4 in., fuel tank to support brackets (part kit K963616)
-
91BRACKET; engine stop control (part kit K963616)
-
2NUT; No. 8 UNC, stop bracket to tank support (part kit K963616)
-
2RING; SPRING WASHER, 3/16 in., stop bracket to tank support (part kit K963616)
-
101SUPPORT; BRACKET, left-hand (part kit K963616)
-
111TANK; SUPPORT BRACKET, right-hand (part kit K963616)
-
121TANK; FUEL TANK KIT, to service K943309 with side mounted fuel gauge, Kit comprises of Ref. 1 - 11 above;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
131CAP; FILLER CAP;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
1PLUG; DRAIN PLUG, 1/8 BSP;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
1WASHER 9.92mm ID x 14.29mm OD x 2mm Thk; FIBRE WASHER, 3/8 in.;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
141PLUG; 3/8 UNF, leak-off aperture (gasoline);Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
1WASHER; COPPER WASHER, 3/8 in., leak-off aperture (gasoline);Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
152STRIP; SEATING STRIP, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
164WASHER; RUBBER WASHER, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
174TUBE; DISTANCE TUBE, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
184PLATE; CLAMPING PLATE, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
194SCREW; SETSCREW, 1/2 UNC x 7/8 in., fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
201SUPPORT; BRACKET, left-hand;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
211SUPPORT; BRACKET, right-hand;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280
-
224SCREW 3/8'' - 16 x 3/4'', Gr S; SETSCREW, 3/8 UNC x 3-1/4 in., brackets to clutch housing, pipes and fittings
-
4SPRING WASHER; SPRING WASHER, 3/8 in., brackets to clutch housing, pipes and fittings
-
23A1HOSE 0.312'' OD x 22'' L; FUEL PIPE, tank to feed pump (diesel), fittings
-
241VALVE; FUEL TAP (diesel), pipes and fittings
-
1O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 6, 90 Duro; 'O' RING, 5/16 in. internal dia., optional equipment (diesel), pipes and fittings
-
251FITTING; UNION, 1/2 UNF x 1/2 UNF, optional equipment (diesel), pipes and fittings
-
1WASHER; FIBRE WASHER, 7/16 in. internal dia., optional equipment (diesel), pipes and fittings
-
23B1PIPE; FUEL PIPE, tank to feed pump (gasoline), fittings
-
1CLIP; pipe to heat shield (gasoline), fittings
-
1SCREW Phillips Drive, Pan HD, #10 - 32 x 1/2''; No. 10 UNF x 1/2 in., pipe to heat shield (gasoline), fittings
-
1NUT; No. 10 UNF, pipe to heat shield (gasoline), fittings
-
1RING; SPRING WASHER, 3/16 in., pipe to heat shield (gasoline), fittings
-
26A-GUARD; HEAT SHIELD (gasoline), pipes and fittings;Used on model 885, S/N E2039 and after
-
26B1SHIELD; HEAT SHIELD, fuel tank, pipes and fittings;Used on model 885, up to S/N E2039
-
2SCREW 3/8'' - 16 x 3/4'', Gr S; SETSCREW, 3/8 UNC x 3/4 in., shield to cylinder block (gasoline), pipes and fittings
-
2WASHER; 3/8 in., shield to cylinder block (gasoline), pipes and fittings
-
1SCREW; SETSCREW, 1/2 UNF x 5/8 in., shield to lifting nut (gasoline), pipes and fittings
-
1LOCK WASHER; SPRING WASHER, 1/2 in., shield to lifting nut (gasoline), pipes and fittings
-
1NUT; 1/2 UNF, pipes and fittings;See Figure M21 for Sending Units.
Select All
Select
Ref.
1Qty
1Availability
Part #
K946006Description
TANK; FUEL TANK (part kit K963616)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
K901983Description
CAP; FILLER CAP (part kit K963616)Img
Alts
Select
Ref.
Qty
1Availability
Part #
K19591Description
PLUG; DRAIN PLUG, 1/8 BSP (part kit K963616)Img
Alts
Select
Ref.
Qty
1Availability
Part #
K19504Description

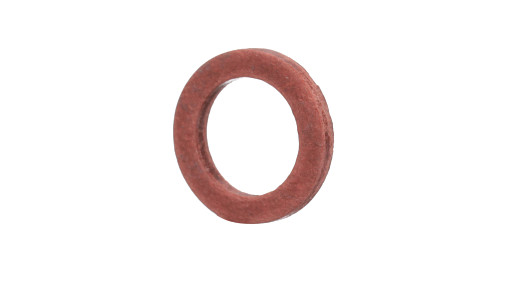

WASHER 9.92mm ID x 14.29mm OD x 2mm Thk; FIBRE WASHER, 3/8 in. (part kit K963616)Img
Alts
Select
Ref.
3Qty
1Availability
Part #
K619524Description
PLUG; 3/8 UNF, leak-off aperture (gasoline) (part kit K963616)Img
Alts
Select
Ref.
Qty
1Availability
Part #
K16732Description
WASHER; COPPER WASHER, leak-off aperture (gasoline) (part kit K963616)Img
Alts
Select
Ref.
4Qty
4Availability
Part #
K626462Description
DAMPER; RUBBER BUSH, fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
5Qty
4Availability
Part #
K915725Description
WASHER; RUBBER WASHER, fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
6Qty
4Availability
Part #
K915726Description
PLATE; CLAMPING PLATE, fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
7Qty
4Availability
Part #
K627006Description
TUBE; DISTANCE TUBE, fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
8Qty
4Availability
Part #
K600150Description
BOLT; 1/4 UNC x 1-1/2 in., fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
Qty
4Availability
Part #
K626341Description
SPRING WASHER; SPRING WASHER, 1/4 in., fuel tank to support brackets (part kit K963616)Img
Alts
Select
Ref.
9Qty
1Availability
Part #
K943270Description
BRACKET; engine stop control (part kit K963616)Img
Alts
Select
Ref.
Qty
2Availability
Part #
K607040Description
NUT; No. 8 UNC, stop bracket to tank support (part kit K963616)Img
Alts
Select
Ref.
Qty
2Availability
Part #
K626340Description
RING; SPRING WASHER, 3/16 in., stop bracket to tank support (part kit K963616)Img
Alts
Select
Ref.
10Qty
1Availability
Part #
K945965Description
SUPPORT; BRACKET, left-hand (part kit K963616)Img
Alts
Select
Ref.
11Qty
1Availability
Part #
K945994Description
TANK; SUPPORT BRACKET, right-hand (part kit K963616)Img
Alts
Select
Ref.
12Qty
1Availability
Part #
K963616Description
TANK; FUEL TANK KIT, to service K943309 with side mounted fuel gauge, Kit comprises of Ref. 1 - 11 above;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
13Qty
1Availability
Part #
K901983Description
CAP; FILLER CAP;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
Qty
1Availability
Part #
K19591Description
PLUG; DRAIN PLUG, 1/8 BSP;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
Qty
1Availability
Part #
K19504Description
WASHER 9.92mm ID x 14.29mm OD x 2mm Thk; FIBRE WASHER, 3/8 in.;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
14Qty
1Availability
Part #
K619524Description
PLUG; 3/8 UNF, leak-off aperture (gasoline);Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
Qty
1Availability
Part #
K16732Description
WASHER; COPPER WASHER, 3/8 in., leak-off aperture (gasoline);Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
15Qty
2Availability
Part #
K943348Description
STRIP; SEATING STRIP, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
16Qty
4Availability
Part #
K915725Description
WASHER; RUBBER WASHER, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
17Qty
4Availability
Part #
K915727Description
TUBE; DISTANCE TUBE, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
18Qty
4Availability
Part #
K915726Description
PLATE; CLAMPING PLATE, fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
19Qty
4Availability
Part #
K602704Description
SCREW; SETSCREW, 1/2 UNC x 7/8 in., fuel tank to support bracket;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
20Qty
1Availability
Part #
K943267Description
SUPPORT; BRACKET, left-hand;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
21Qty
1Availability
Part #
K943316Description
SUPPORT; BRACKET, right-hand;Used on model 885, up to S/N 626877;Used on model 885G, up to S/N 651280Img
Alts
Select
Ref.
22Qty
4Availability
Part #
K602982Description
SCREW 3/8'' - 16 x 3/4'', Gr S; SETSCREW, 3/8 UNC x 3-1/4 in., brackets to clutch housing, pipes and fittingsImg
Alts
Select
Ref.
Qty
4Availability
Part #
K19482Description
SPRING WASHER; SPRING WASHER, 3/8 in., brackets to clutch housing, pipes and fittingsImg
Alts
Select
Ref.
23AQty
1Availability
Part #
K943320Description
HOSE 0.312'' OD x 22'' L; FUEL PIPE, tank to feed pump (diesel), fittingsImg
Alts
Select
Ref.
24Qty
1Availability
Part #
K622061Description
VALVE; FUEL TAP (diesel), pipes and fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K14573Description
O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 6, 90 Duro; 'O' RING, 5/16 in. internal dia., optional equipment (diesel), pipes and fittingsImg
Alts
Select
Ref.
25Qty
1Availability
Part #
K626024Description
FITTING; UNION, 1/2 UNF x 1/2 UNF, optional equipment (diesel), pipes and fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K626950Description
WASHER; FIBRE WASHER, 7/16 in. internal dia., optional equipment (diesel), pipes and fittingsImg
Alts
Select
Ref.
23BQty
1Availability
Part #
K943356Description
PIPE; FUEL PIPE, tank to feed pump (gasoline), fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K621697Description
CLIP; pipe to heat shield (gasoline), fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
86625206Description
SCREW Phillips Drive, Pan HD, #10 - 32 x 1/2''; No. 10 UNF x 1/2 in., pipe to heat shield (gasoline), fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K617080Description
NUT; No. 10 UNF, pipe to heat shield (gasoline), fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K626340Description
RING; SPRING WASHER, 3/16 in., pipe to heat shield (gasoline), fittingsImg
Alts
Select
Ref.
26AQty
-Availability
Part #
K947910Description
GUARD; HEAT SHIELD (gasoline), pipes and fittings;Used on model 885, S/N E2039 and afterImg
Alts
Select
Ref.
26BQty
1Availability
Part #
K943391Description
SHIELD; HEAT SHIELD, fuel tank, pipes and fittings;Used on model 885, up to S/N E2039Img
Alts
Select
Ref.
Qty
2Availability
Part #
K602982Description
SCREW 3/8'' - 16 x 3/4'', Gr S; SETSCREW, 3/8 UNC x 3/4 in., shield to cylinder block (gasoline), pipes and fittingsImg
Alts
Select
Ref.
Qty
2Availability
Part #
K19472Description
WASHER; 3/8 in., shield to cylinder block (gasoline), pipes and fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K613140Description
SCREW; SETSCREW, 1/2 UNF x 5/8 in., shield to lifting nut (gasoline), pipes and fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K626345Description
LOCK WASHER; SPRING WASHER, 1/2 in., shield to lifting nut (gasoline), pipes and fittingsImg
Alts
Select
Ref.
Qty
1Availability
Part #
K617581Description
NUT; 1/2 UNF, pipes and fittings;See Figure M21 for Sending Units.Img
