0.05.4[03] - MAINTENANCE PARTS - FUSES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    AR
    82030798
    RELAY 12V, 70A; 12V, 70A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with STD;After Date 30 August 2007
  • 1
    AR
    82038934
    RELAY 12V, 2A; Rear View Mirror;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with VAR. 330827, 331827;After Date 30 August 2007
  • 2
    AR
    87422637

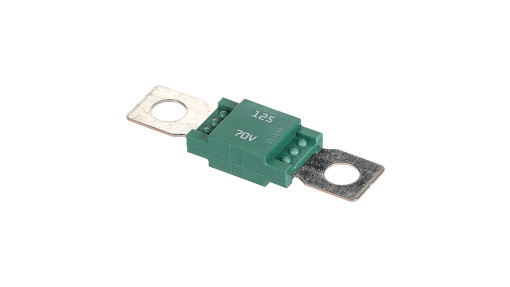

    FUSE 125A, Green; 125A, Green;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
  • 3
    AR
    82023624

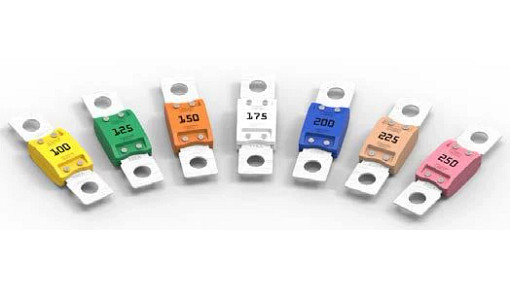

    FUSE 250A, Strip Type, Mega, Pink; 250A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with STD;From serial N.(27 November 2009 for Basildon Prod. / ZABL51933 for St. Valentin Prod.)
  • 4
    AR
    10395890

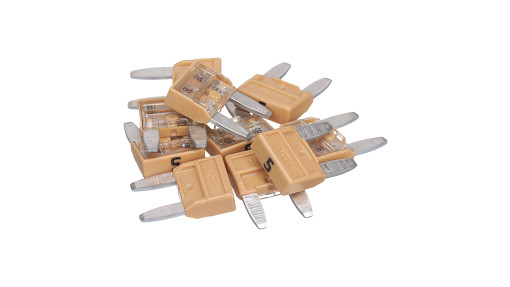

    FUSE 5A, Mini, Beige; 5A, Minival;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
  • 5
    AR
    87392809

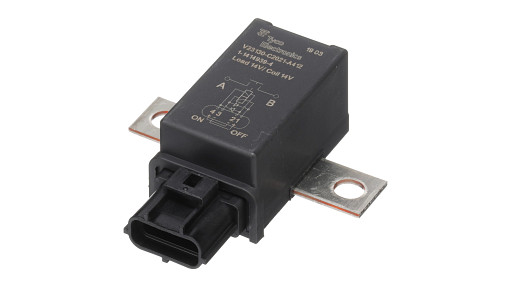

    RELAY High Current, 14V, 190A; 12V, 190A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
  • 5
    AR
    87691156

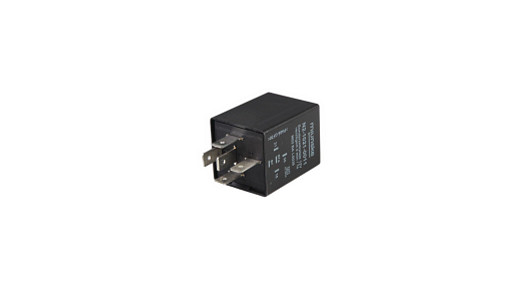

    RELAY; 12V, 10/15A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
  • 5
    AR
    82003697

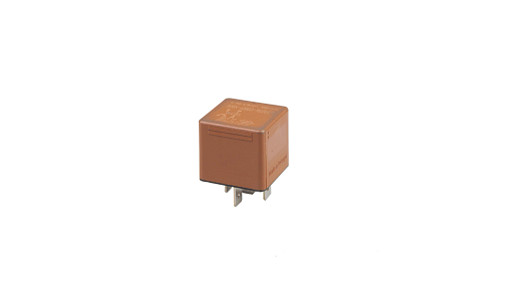

    RELAY 12V, 30A; 12V, 30A, Microrelay;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with VAR. 330803, 332803
  • 5
    AR
    84543666
    RELAY 12V, 40A, Mini; 12V, 30A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with STD;After Date 30 August 2007
  • 5
    AR
    87639044

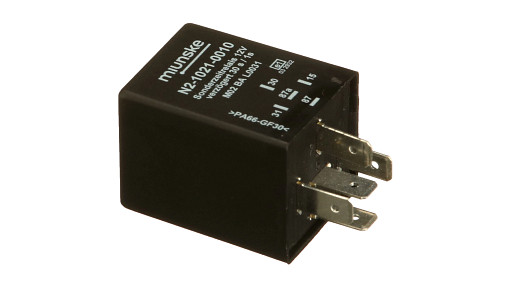

    RELAY; 12V, 10/15A;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
  • 6
    AR
    86619908
    RELAY 12V, 150A; 12V;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with VAR. 330204;From serial N. (ZABL01091 Basildon Prod. / Z9BL55198 St. Valentin Prod.)
  • 6
    AR
    84543528
    RELAY 12V, 20A, Micro; 15/25A, Flasher;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with VAR. 331723, VAR. 332727, 332737, 332739, VAR. 332821, 334821, VAR. 330786;From serial N.(27 November 2009 for Basildon Prod. / ZABL51933 for St. Valentin Prod.)
  • 6
    AR
    82017871
    RELAY 12V, 20A; 12V, 35A, Maxival;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with VAR. 330079, 331761, 332761, 334761, 336761, 337761, VAR. 332821;From serial N.(27 November 2009 for Basildon Prod. / ZABL51933 for St. Valentin Prod.)
  • 6
    AR
    87304226
    RELAY 12V, Combined, Black; 12V;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models;Valid with STD;After Date 30 August 2007
  • 7
    AR
    84174070

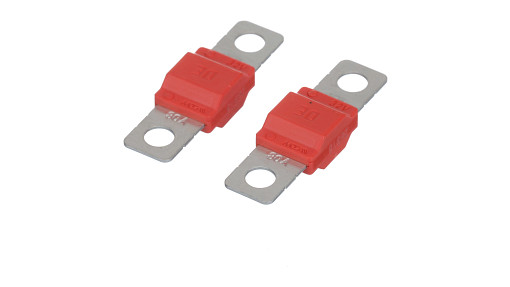

    FUSE 30A, Strip Type, Midi, Orange; 30A, Orange;Valid with PUMA 115-TRACTOR, PUMA 125-TRACTOR, PUMA 140-TRACTOR, PUMA 155-TRACTOR Models
