PUMA 140 - TRACTOR - GARU... 00 - GENERAL 0.05.4[03] - MAINTENANCE ...
0.05.4[03] - MAINTENANCE PARTS - FUSES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    AR
    82030798
    RELAY 12V, 70A; 12V, 70A, Starter Motor;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 2
    AR
    87422637
    FUSE 125A, Green; 125A, Green;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 3
    AR
    82023624
    FUSE 250A, Strip Type, Mega, Pink; 250A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 3
    AR
    84174070
    FUSE 30A, Strip Type, Midi, Orange; 32V, 30A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 4
    AR

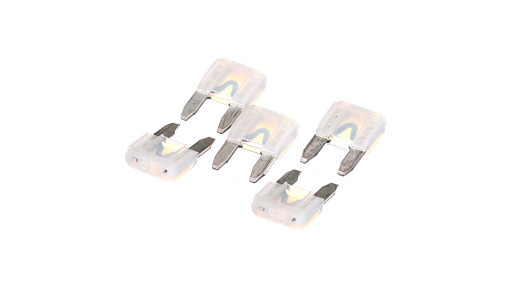

    10401290
    FUSE 25 amp Mini; 25A, Minival;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 5
    AR
    84543666
    RELAY 12V, 40A, Mini; 12V, 30A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 5
    AR
    87392809
    RELAY High Current, 14V, 190A; 12V, 190A, High Current;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 5
    AR
    87691156
    RELAY; 12V, 10/15A, Battery Isolator, 4 min delay;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models
  • 6
    AR
    82017871
    RELAY 12V, 20A; 12V, 35A, Maxival;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 332727, 332737, 332739, VAR. 337782, 332821, 334821, VAR. 330077, 331077, VAR. 332692, VAR. 331761, 336761, VAR. 332761, 337761, VAR. 330079, 334761;D7019 After Date 25 January 2011
  • 6
    AR
    86619908
    RELAY 12V, 150A; 12V, 120A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 330204
  • 6
    AR
    84543528
    RELAY 12V, 20A, Micro; 15/25A, Flasher;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 330798, VAR. 331723 ,VAR. 332723, 332737, 332739;D7018 After Date 24 January 2011
  • 6
    AR
    87304226
    RELAY 12V, Combined, Black; 12V, Wiper Timer;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with STD
Select All

Select

Ref.

1

Qty

AR

Availability

Part #

82030798

Description

RELAY 12V, 70A; 12V, 70A, Starter Motor;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

2

Qty

AR

Availability

Part #

87422637

Description

FUSE 125A, Green; 125A, Green;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

3

Qty

AR

Availability

Part #

82023624

Description

FUSE 250A, Strip Type, Mega, Pink; 250A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

3

Qty

AR

Availability

Part #

84174070

Description

FUSE 30A, Strip Type, Midi, Orange; 32V, 30A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

4

Qty

AR

Availability

Part #

10401290

Description

FUSE 25 amp Mini; 25A, Minival;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

5

Qty

AR

Availability

Part #

84543666

Description

RELAY 12V, 40A, Mini; 12V, 30A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

5

Qty

AR

Availability

Part #

87392809

Description

RELAY High Current, 14V, 190A; 12V, 190A, High Current;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

5

Qty

AR

Availability

Part #

87691156

Description

RELAY; 12V, 10/15A, Battery Isolator, 4 min delay;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models


Alts

Select

Ref.

6

Qty

AR

Availability

Part #

82017871

Description

RELAY 12V, 20A; 12V, 35A, Maxival;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 332727, 332737, 332739, VAR. 337782, 332821, 334821, VAR. 330077, 331077, VAR. 332692, VAR. 331761, 336761, VAR. 332761, 337761, VAR. 330079, 334761;D7019 After Date 25 January 2011


Alts

Select

Ref.

6

Qty

AR

Availability

Part #

86619908

Description

RELAY 12V, 150A; 12V, 120A;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 330204


Alts

Select

Ref.

6

Qty

AR

Availability

Part #

84543528

Description

RELAY 12V, 20A, Micro; 15/25A, Flasher;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with VAR. 330798, VAR. 331723 ,VAR. 332723, 332737, 332739;D7018 After Date 24 January 2011


Alts

Select

Ref.

6

Qty

AR

Availability

Part #

87304226

Description

RELAY 12V, Combined, Black; 12V, Wiper Timer;Valid with PUMA 125 TRACTOR - GARU, PUMA 140 TRACTOR - GARU, PUMA 155 TRACTOR - GARU Models;Valid with STD


Alts
