2-002 - RADIATOR AND FAN SHROUD
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

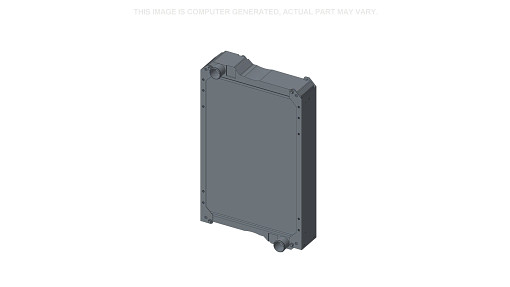

256326A1

Description

RADIATOR; Radiator Assy, See Figure 2-003


Alts

Select

Ref.

2

Qty

1

Availability

Part #

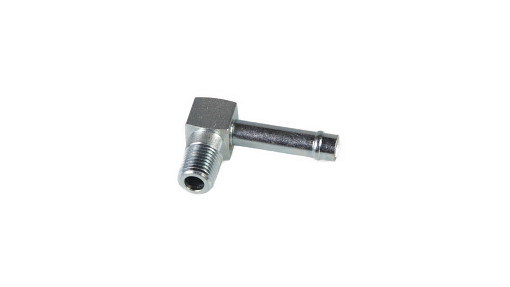

217-132

Description

90 ELBOW 90 Degree Elbow, 3/8'' Hose Barb x 1/4'' Male NPTF;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

86568834

Description

HEX PLUG 1/4'' - 18 NPT;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

278432A1

Description

FAN;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

255030A1

Description

DRIVE; MX180, MX200, MX220


Alts

Select

Ref.

5

Qty

1

Availability

Part #

255031A1

Description

DRIVE; MX240, MX270


Alts

Select

Ref.

6

Qty

1

Availability

Part #

248916A4

Description

SHROUD; SHROUD


Alts

Select

Ref.

7

Qty

1

Availability

Part #

256717A2

Description

SUPPORT; BRACKET


Alts

Select

Ref.

8

Qty

1

Availability

Part #

256719A3

Description

SUPPORT; BRACKET


Alts

Select

Ref.

9

Qty

7

Availability

Part #

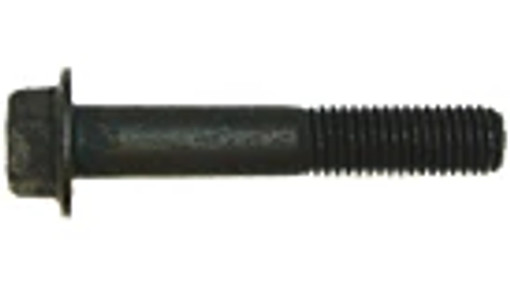

844-8016

Description

FLANGE BOLT Hex, M8 x 16mm, Cl 8.8;


Alts

Select

Ref.

10

Qty

2

Availability

Part #

825-2408

Description

FLANGE NUT M8 x 1.25, Flg, Cl 8;


Alts

Select

Ref.

11

Qty

6

Availability

Part #

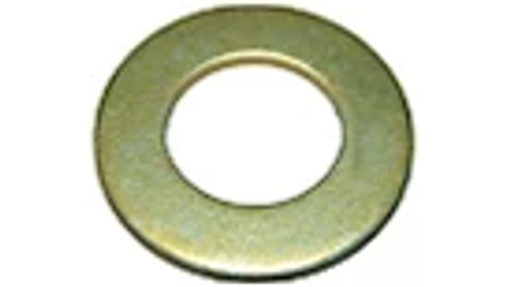

496-11034

Description

WASHER 11/32'' x 11/16'' x 1/16'', HDN;


Alts

Select

Ref.

12

Qty

6

Availability

Part #

829-1408

Description

NUT Hex, M8 x 1.25, Cl 10.9;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

242065A1

Description

RADIATOR HOSE;


Alts

Select

Ref.

21

Qty

2

Availability

Part #

1348264C1

Description

HOSE CLAMP 12.7mm - 16.5mm; 3/8 ID


Alts

Select

Ref.

22

Qty

1

Availability

Part #

217-180

Description

FITTING 3/8'' Hose Barb x 1/4'' Female NPTF; ADAPTER, 3/8 barb x 1/4 fem PT


Alts

Select

Ref.

23

Qty

1

Availability

Part #

217-103

Description

DRAINCOCK/TAP SUPPLY 1/4'' PT; VALVE, 1/4 PT


Alts

Select

Ref.

25

Qty

1

Availability

Part #

255647A3

Description

SUPPORT; BRACKET


Alts

Select

Ref.

26

Qty

4

Availability

Part #

854-12025

Description

BOLT Hvy Hex, M12 x 25mm, Cl 10.9;


Alts

Select

Ref.

27

Qty

4

Availability

Part #

60-6650T1

Description

RUBBER BUSHING;


Alts

Select

Ref.

28

Qty

4

Availability

Part #

396-41041

Description

WASHER 13/32'' x 1 1/8'' x .134'', HDN;


Alts

Select

Ref.

29

Qty

4

Availability

Part #

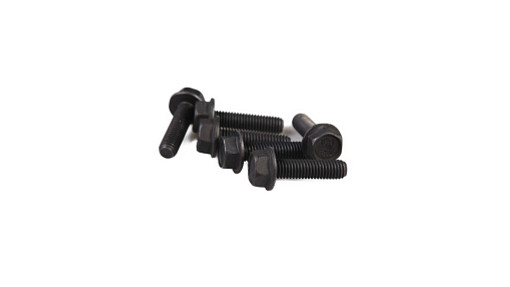

854-8030

Description

BOLT Hvy Hex, M8 x 30mm, Cl 10.9; BOLT flange, M8 x 30, 10.9


Alts

Select

Ref.

30

Qty

1

Availability

Part #

292392A2

Description

PLATE; PLATE, LARGE MX180


Alts

Select

Ref.

30

Qty

1

Availability

Part #

256706A1

Description

PLATE; PLATE, LARGE MX200, MX220, MX240, MX270


Alts

Select

Ref.

31

Qty

2

Availability

Part #

844-8016

Description

FLANGE BOLT Hex, M8 x 16mm, Cl 8.8;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

282085A1

Description

LINING; TRIM, MX180


Alts

Select

Ref.

32

Qty

2

Availability

Part #

282085A1

Description

LINING; TRIM, MX200, MX220, MX240, MX270


Alts

Select

Ref.

35

Qty

1

Availability

Part #

198575A1

Description

BOLT; BOLT special


Alts

Select

Ref.

36

Qty

1

Availability

Part #

9804279

Description

FLANGE NUT Hex, M12, Cl 8;


Alts

Select

Ref.

37

Qty

1

Availability

Part #

255646A1

Description

SUPPORT; BRACKET, left-hand


Alts

Select

Ref.

38

Qty

1

Availability

Part #

255645A1

Description

SUPPORT; BRACKET, right-hand


Alts

Select

Ref.

39

Qty

4

Availability

Part #

844-8016

Description

FLANGE BOLT Hex, M8 x 16mm, Cl 8.8;


Alts

Select

Ref.

40

Qty

1

Availability

Part #

296292A1

Description

SEALING STRIP;


Alts

Select

Ref.

41

Qty

1

Availability

Part #

296294A1

Description

SEALING STRIP;


Alts

Select

Ref.

42

Qty

1

Availability

Part #

296295A1

Description

SEALING STRIP;


Alts

Select

Ref.

Qty

-

Availability

Part #

394774A1

Description

GUIDE; supports hood when down


Alts

Select

Ref.

Qty

-

Availability

Part #

394773A1

Description

GUIDE; supports hood when down


Alts
