MX200 - CASE IH MAGNUM TR... 02 - ENGINE 2-012 - AFTERCOOLER, MX20...
2-012 - AFTERCOOLER, MX200, MX220, MX240, MX270
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

194375A1

Description

AFTERCOOLER;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

255645A1

Description

SUPPORT; BRACKET, left-hand


Alts

Select

Ref.

3

Qty

1

Availability

Part #

255646A1

Description

SUPPORT; BRACKET, right-hand


Alts

Select

Ref.

4

Qty

4

Availability

Part #

844-8016

Description

FLANGE BOLT Hex, M8 x 16mm, Cl 8.8;


Alts

Select

Ref.

5

Qty

4

Availability

Part #

60-6650T1

Description

RUBBER BUSHING;


Alts

Select

Ref.

6

Qty

4

Availability

Part #

396-41041

Description

WASHER 13/32'' x 1 1/8'' x .134'', HDN;


Alts

Select

Ref.

7

Qty

4

Availability

Part #

854-8030

Description

BOLT Hvy Hex, M8 x 30mm, Cl 10.9; BOLT flange, M8 x 30, 10.9


Alts

Select

Ref.

10

Qty

1

Availability

Part #

J918685

Description

PIPE;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

J883284

Description

O-RING 0.07'' Thk x 2.364'' ID, -36;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

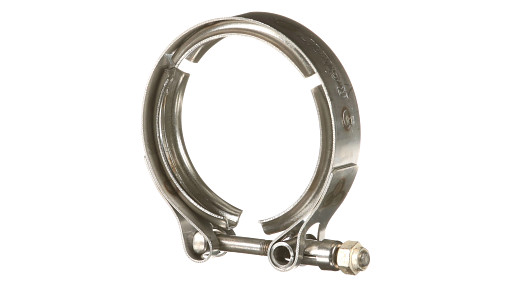

J069053

Description

CLAMP 66.54mm ID; Replaces: J69053


Alts

Select

Ref.

14

Qty

1

Availability

Part #

194378A2

Description

HOSE;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

220849A2

Description

TUBE; TUBE


Alts

Select

Ref.

17

Qty

2

Availability

Part #

311810A1

Description

TUBE; HOSE


Alts

Select

Ref.

18

Qty

1

Availability

Part #

220850A1

Description

TUBE; TUBE


Alts

Select

Ref.

19

Qty

1

Availability

Part #

232441A1

Description

INTAKE AIR HOSE 76.20 mm ID, SAE 20R4 Class D-1;


Alts

Select

Ref.

20

Qty

8

Availability

Part #

352198A1

Description

CLAMP 90mm;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

220851A1

Description

ELBOW;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

J917892

Description

GASKET 0.79mm Thk; mounting


Alts

Select

Ref.

23

Qty

4

Availability

Part #

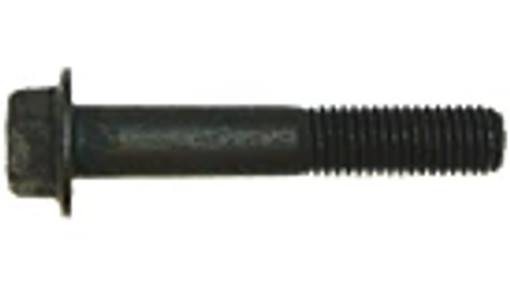

844-8030

Description

BOLT Hex, M8 x 1.25 x 30mm, Cl 8.8;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

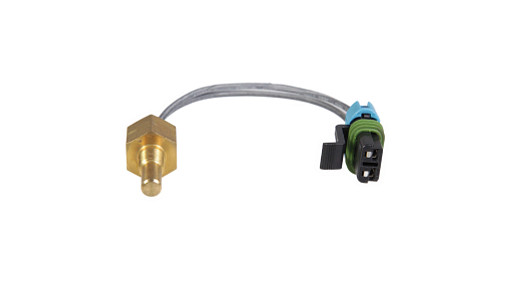

194346A1

Description

SENSOR; air to air temperature, MX200, MX220


Alts

Select

Ref.

25

Qty

1

Availability

Part #

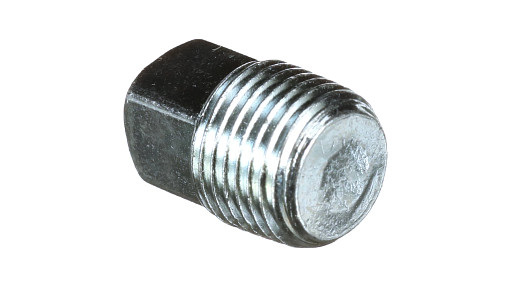

86643151

Description

HEX PLUG 1/8''-27 NPTF; MX240, MX270


Alts
