02-12 - WATER PUMP SYSTEM, MX255 AND MX285
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

Qty

1

Availability

Part #

J804927

Description

WATER PUMP; Incl 1 - 3


Alts

Select

Ref.

Qty

1

Availability

Part #

87308650R

Description

REMAN-WATER PUMP WATER PUMP; MX255, MX285 Reman for New P/N J804927


Alts

Select

Ref.

Qty

-

Availability

Part #

87308650C

Description

CORE-WATER PUMP WATER PUMP; Return Number


Alts

Select

Ref.

1

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Pump


Alts

Select

Ref.

2

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Pulley


Alts

Select

Ref.

3

Qty

1

Availability

Part #

238-5244

Description

O-RING 0.139'' Thk x 4.234'' ID, -244, Cl 5, 75 Duro;


Alts

Select

Ref.

4

Qty

3

Availability

Part #

J934054

Description

VIS A EMBASE; M8 x 28


Alts

Select

Ref.

Qty

1

Availability

Part #

J945330

Description

SUPPORT; Incl 5 - 10


Alts

Select

Ref.

5

Qty

1

Availability

Part #

NSS

Description

PAS VENDU SÉPARÉMENT; Support


Alts

Select

Ref.

6

Qty

1

Availability

Part #

J934104

Description

MOYEU;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

J933441

Description

ROULEMENT A BILLES;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

100-21244

Description

ANNEAU D'ARRET 2.44'', Int, #244;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

J933440

Description

ROULEMENT A BILLES Ball, 30mm ID x 62mm OD x 16mm W;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

J931016

Description

RETAINER;


Alts

Select

Ref.

11

Qty

4

Availability

Part #

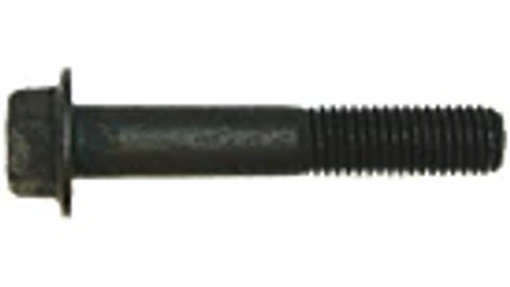

844-10050

Description

BOLT Hvy Hex, M10 x 50mm, Cl 8.8;


Alts

Select

Ref.

12

Qty

1

Availability

Part #

J914462

Description

POULIE 8 Rib, 165.25mm OD, 60mm Bolt Pattern;


Alts

Select

Ref.

13

Qty

4

Availability

Part #

844-10080

Description

VIS Hvy Hex, M10 x 80mm, Cl 8.8;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

87409564

Description

TENDEUR DE COURROIE;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

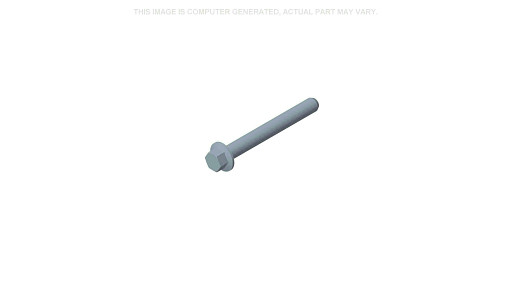

J282433

Description

VIS A EMBASE Hex, M10 x 1.5 x 85mm;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

87402831

Description

COURROIE 27.92mm W x 2065mm L, 8 Ribs;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

CASD142327

Description

SPACER 15mm ID x 74mm OD x 54mm Thk;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

446890A1

Description

SHAFT; Fan Adapter


Alts

Select

Ref.

19

Qty

1

Availability

Part #

440140A1

Description

PULLEY ASSY.; Idler


Alts
