02-21 - WASTEGATE ACTUATOR, MX210 AND MX230
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    REF
    INSTRUCTION; Turbocharger Assy, Inc. 1 - 12, Also Inc. 2 - 22, See Figure 02-19
  • 1
    1
    J531892C
    CORE-HYD CYLINDER HYD CYLINDER;
  • 1
    1
    J593678
    ACTUATOR;
  • 1
    1
    J593679C
    CORE-SOLENOID SOLENOID;
  • 1
    1
    J533135C
    CORE-HYD CYLINDER HYD CYLINDER;
  • 1
    1
    J580830C
    CORE-HYD CYLINDER HYD CYLINDER;
  • 1
    1
    J587337C
    ACTUATOR ACTUATOR;
  • 1
    1

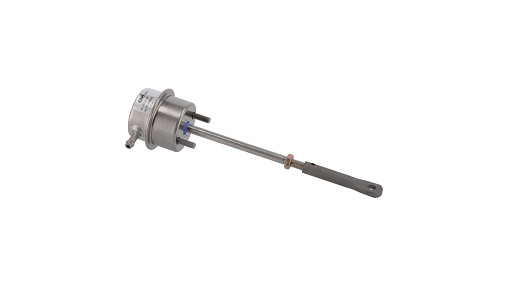

    J593678R
    REMAN-ELECTRIC ACTUATOR SOLENOID; Cummins - ACTUATOR - Wastegate
  • 1
    1

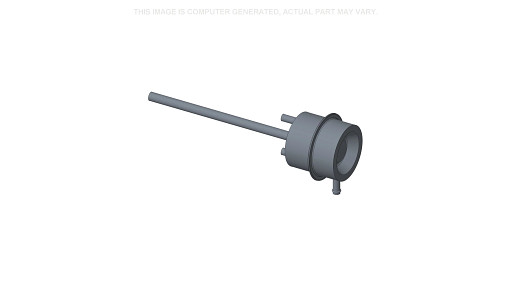

    J593678C
    CORE-SOLENOID SOLENOID; Return Number, ACTUATOR
  • 2
    1
    J528177
    LINK;
  • 3
    1
    425-155
    JAM NUT Jam, 5/16''-24, G5;
  • 4
    2
    J592050
    NUT;
  • 5
    1
    J528221
    CIRCLIP;
  • 1
    NSS
    NOT SOLD SEPARAT; Housing, Inc. 6 - 12
  • 6
    3
    895-11008
    WASHER 9mm ID x 16mm OD x 1.6mm Thk;
  • 7
    3
    J532195
    SPACER 9.38mm ID x 16.03mm OD x 13.7mm L; 13.6 mm
  • 8
    1
    J532196
    SPACER 9.38mm ID x 16.03mm OD x 19mm L; 19 mm
  • 9
    1
    814-8050
    BOLT Hex, M8 x 1.25 x 50mm, Cl 8.8;
  • 10
    1
    J532671
    BRACKET;
  • 11
    1
    NSS
    NOT SOLD SEPARAT; Housing
  • 12
    2
    814-8035
    BOLT Hex, M8 x 1.25 x 35mm, Cl 8.8;
