PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1GASKET KIT; Inc. 1 - 31
-
11SEALING RING 72.39mm ID x 90.39mm OD x 9mm Thk; Front Cover;See Figure 02-11
-
26SEAL 118mm ID x 122.32mm OD x 4mm Thk; See Figures 02-23, 02-26
-
31GASKET 1.65mm Thk; Water Inlet Mounting;See Figure 02-23
-
41GASKET; Rear Cover;See Figure 02-24
-
51GASKET; Suction Tube;See Figure 02-17
-
61GASKET 0.71mm Thk; Oil Cooler Mounting;See Figure 02-16
-
71GASKET; Filter Head;See Figure 02-16
-
81JOINT TORIQUE 0.07'' Thk x 2.614'' ID, -38, Cl 5, 75 Duro; 66 mm ID;See Figure 02-23
-
91BAGUE D'ETANCHEITE Square, 2.51mm Thk x 6.27mm ID, -108; See Figure 03-12
-
101GASKET 1.19mm Thk; Oil Cooler;See Figure 02-16
-
111JOINT TORIQUE 0.07'' Thk x 0.8'' ID; 3/4'' ID x 1/16'';See Figure 02-16
-
121GASKET 1.21mm Thk; Pump Mounting;See Figure 02-23
-
131GASKET 1.15mm Thk; See Figure 02-20
-
151GASKET 1.01mm Thk; Gear Housing;See Figure 02-11
-
171GASKET; Breather;See Figure 02-21
-
182O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 8, 90 Duro; See Figure 03-04
-
192O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 8, 90 Duro; See Figure 03-04
-
201O-RING 0.07'' Thk x 0.426'' ID, -13, Cl 5, 75 Duro; See Figure 02-20
-
213O-RING 0.103'' Thk x 0.424'' ID, -111, Cl 5, 75 Duro; See Figure 02-20
-
221O-RING 0.139'' Thk x 4.234'' ID, -244, Cl 5, 75 Duro; See Figure 02-10
-
231O-RING 3.05mm Thk x 23.62mm ID; See Figure 02-16
-
242O-RING 2.2mm Thk x 19.3mm ID; 19 ID x 2,2 mm;See Figure 02-23
-
259O-RING 8.1mm ID x 11.3mm OD x 1.6mm Thk, Cl 6, 90 Duro; See Figure 03-04
-
261GASKET 1.65mm Thk; Water Inlet;See Figure 02-20
-
271O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 8, 90 Duro; 3/4 OD Tube
-
282O-RING 2.2mm Thk x 11.3mm ID;
-
292O-RING 11.3MM ID x 2.2 Thk;
-
304SEALING WASHER; 12 x 19 x 1,5 mm
Select All
Select
Ref.
1Qty
1Availability
Part #
J903475Description
SEALING RING 72.39mm ID x 90.39mm OD x 9mm Thk; Front Cover;See Figure 02-11Img
Alts
Select
Ref.
2Qty
6Availability
Part #
J907177Description
SEAL 118mm ID x 122.32mm OD x 4mm Thk; See Figures 02-23, 02-26Img
Alts
Select
Ref.
3Qty
1Availability
Part #
J945603Description

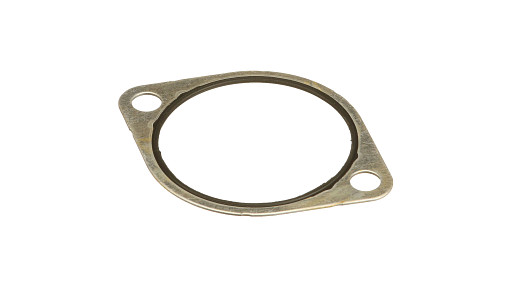

GASKET 1.65mm Thk; Water Inlet Mounting;See Figure 02-23Img
Alts
Select
Ref.
4Qty
1Availability
Part #
J914301Description
GASKET; Rear Cover;See Figure 02-24Img
Alts
Select
Ref.
5Qty
1Availability
Part #
J914302Description
GASKET; Suction Tube;See Figure 02-17Img
Alts
Select
Ref.
6Qty
1Availability
Part #
J918174Description

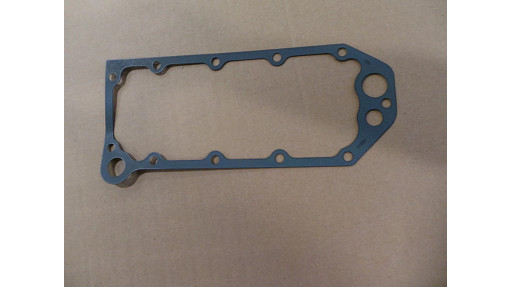

GASKET 0.71mm Thk; Oil Cooler Mounting;See Figure 02-16Img
Alts
Select
Ref.
7Qty
1Availability
Part #
J921605Description
GASKET; Filter Head;See Figure 02-16Img
Alts
Select
Ref.
8Qty
1Availability
Part #
J926048Description

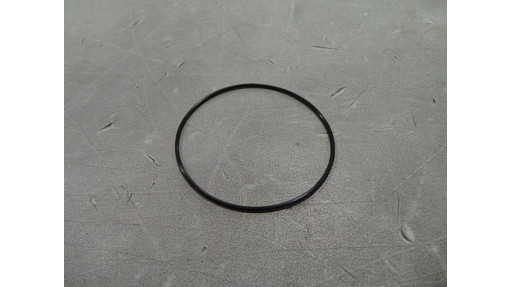

JOINT TORIQUE 0.07'' Thk x 2.614'' ID, -38, Cl 5, 75 Duro; 66 mm ID;See Figure 02-23Img
Alts
Select
Ref.
9Qty
1Availability
Part #
J926722Description

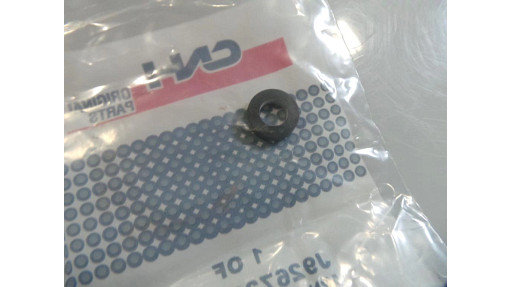

BAGUE D'ETANCHEITE Square, 2.51mm Thk x 6.27mm ID, -108; See Figure 03-12Img
Alts
Select
Ref.
10Qty
1Availability
Part #
J929011Description

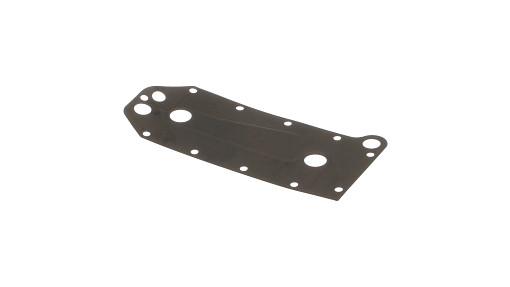

GASKET 1.19mm Thk; Oil Cooler;See Figure 02-16Img
Alts
Select
Ref.
11Qty
1Availability
Part #
J930911Description

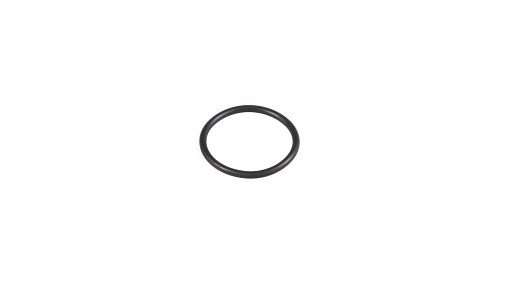

JOINT TORIQUE 0.07'' Thk x 0.8'' ID; 3/4'' ID x 1/16'';See Figure 02-16Img
Alts
Select
Ref.
12Qty
1Availability
Part #
J939258Description
GASKET 1.21mm Thk; Pump Mounting;See Figure 02-23Img
Alts
Select
Ref.
13Qty
1Availability
Part #
87612306Description

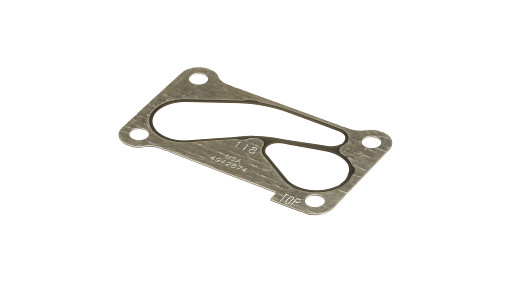

GASKET 1.15mm Thk; See Figure 02-20Img
Alts
Select
Ref.
15Qty
1Availability
Part #
J944293Description

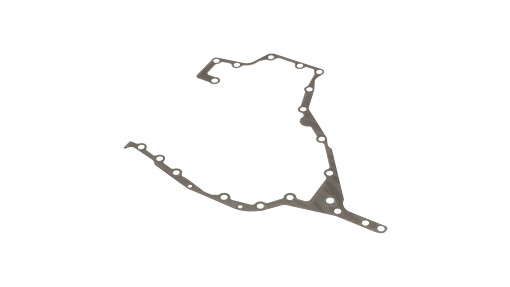

GASKET 1.01mm Thk; Gear Housing;See Figure 02-11Img
Alts
Select
Ref.
17Qty
1Availability
Part #
J944683Description
GASKET; Breather;See Figure 02-21Img
Alts
Select
Ref.
18Qty
2Availability
Part #
237-8008Description
O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 8, 90 Duro; See Figure 03-04Img
Alts
Select
Ref.
19Qty
2Availability
Part #
237-8010Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 8, 90 Duro; See Figure 03-04Img
Alts
Select
Ref.
20Qty
1Availability
Part #
238-5013Description
O-RING 0.07'' Thk x 0.426'' ID, -13, Cl 5, 75 Duro; See Figure 02-20Img
Alts
Select
Ref.
21Qty
3Availability
Part #
238-5111Description
O-RING 0.103'' Thk x 0.424'' ID, -111, Cl 5, 75 Duro; See Figure 02-20Img
Alts
Select
Ref.
22Qty
1Availability
Part #
238-5244Description
O-RING 0.139'' Thk x 4.234'' ID, -244, Cl 5, 75 Duro; See Figure 02-10Img
Alts
Select
Ref.
23Qty
1Availability
Part #
A77724Description

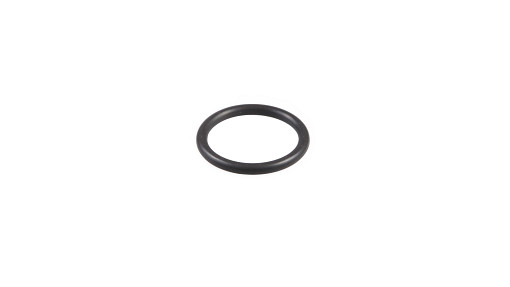

O-RING 3.05mm Thk x 23.62mm ID; See Figure 02-16Img
Alts
Select
Ref.
24Qty
2Availability
Part #
313246A1Description

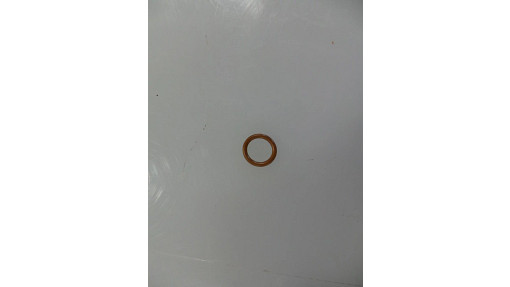

O-RING 2.2mm Thk x 19.3mm ID; 19 ID x 2,2 mm;See Figure 02-23Img
Alts
Select
Ref.
25Qty
9Availability
Part #
637-62081Description
O-RING 8.1mm ID x 11.3mm OD x 1.6mm Thk, Cl 6, 90 Duro; See Figure 03-04Img
Alts
Select
Ref.
26Qty
1Availability
Part #
J945603Description
GASKET 1.65mm Thk; Water Inlet;See Figure 02-20Img
Alts
Select
Ref.
27Qty
1Availability
Part #
237-8012Description
O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 8, 90 Duro; 3/4 OD TubeImg
Alts
Select
Ref.
30Qty
4Availability
Part #
J935171Description
SEALING WASHER; 12 x 19 x 1,5 mmImg
Alts
