02-08 - EXHAUST SYSTEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

255270A4

Description

MUFFLER Aspirated; Standard


Alts

Select

Ref.

1

Qty

1

Availability

Part #

323648A1

Description

MUFFLER W/ Spark Arrester, Aspirated; Spark Arrester, N.A. Only


Alts

Select

Ref.

2

Qty

1

Availability

Part #

226775A1

Description

GASKET 1.22mm Thk;


Alts

Select

Ref.

3

Qty

3

Availability

Part #

387795A1

Description

STUD;


Alts

Select

Ref.

4

Qty

3

Availability

Part #

387798A1

Description

WASHER 13.5mm ID x 24mm OD x 3mm Thk;


Alts

Select

Ref.

5

Qty

3

Availability

Part #

387796A1

Description

NUT;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

318616A2

Description

ELBOW;


Alts

Select

Ref.

7

Qty

3

Availability

Part #

828-12045

Description

BOLT Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

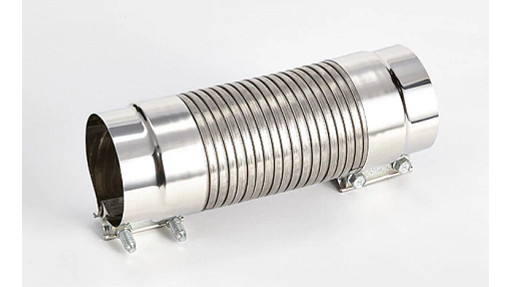

87387410

Description

HOSE 101.6mm ID x 228.6mm L, SAE 30R4;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

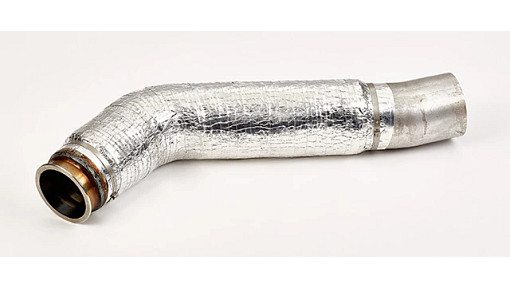

442323A1

Description

TUBE Incl Ceramic Fiber Insulation; MX210;MX230


Alts

Select

Ref.

9

Qty

1

Availability

Part #

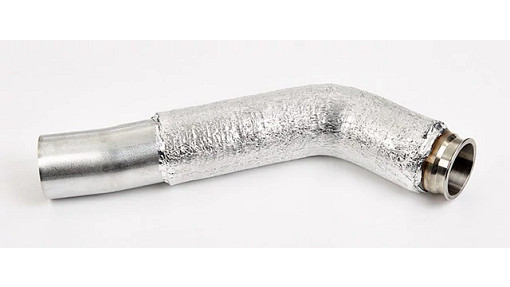

444052A1

Description

TUBE Incl Ceramic Fiber Insulation; MX255;MX285


Alts

Select

Ref.

10

Qty

1

Availability

Part #

A170807

Description

CLAMP 102mm ID; Includes Hardware


Alts

Select

Ref.

11

Qty

1

Availability

Part #

251944A2

Description

PROTECTION PLATE; Starter


Alts

Select

Ref.

12

Qty

3

Availability

Part #

614-10016

Description

BOLT Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

299201A2

Description

PROTECTION PLATE; Brake Line


Alts

Select

Ref.

14

Qty

1

Availability

Part #

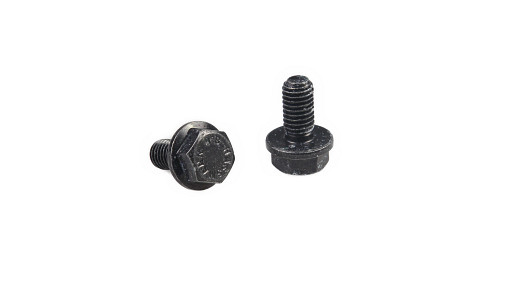

555-1

Description

BOLT Hvy Hex, M8 x 16mm, Cl 8.8;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

86983866

Description

BRACKET;


Alts

Select

Ref.

16

Qty

3

Availability

Part #

895-11010

Description

WASHER 11mm ID x 20mm OD x 2mm Thk;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

87416132

Description

MUFFLER; Severe Duty


Alts

Select

Ref.

18

Qty

1

Availability

Part #

87416127

Description

EXTENSION;


Alts

Select

Ref.

19

Qty

1

Availability

Part #

131853A1

Description

HOSE CLAMP;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

41-1622

Description

PLUG Cup, 1 3/8'', Stainless; Used with Severe Duty Muffler


Alts

Select

Ref.

Qty

1

Availability

Part #

417631A1

Description

KIT; Exhaust Elbow Insulation, Inc. 21, 22


Alts

Select

Ref.

21

Qty

1

Availability

Part #

414177A1

Description

INSULATOR; Exhaust


Alts

Select

Ref.

22

Qty

2

Availability

Part #

86637711

Description

HOSE CLAMP 108mm - 130mm;
