706 - INTERNATIONAL TRACT... 07 - HYDRAULIC SYSTEM F-13 - HYDRAULICS SYSTEM,...
F-13 - HYDRAULICS SYSTEM, DRAFT CONTROL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    444776
    PLUG Sq Soc, 1/4''-18 NPTF; 1/4-18 NPTF sq-soc pipe, will work for 385935R92
  • 2
    1
    382774R2
    BUSHING 70.78mm ID x 76.2mm OD x 80.26mm L; BEARING, rockshaft LH
  • 3
    1
    382775R2
    BUSHING 76.85mm ID x 81.28mm OD x 80.26mm L; BEARING, rochshaft RH
  • 4
    1
    382776R91
    OIL SEAL; rockshaft oil LH
  • 5
    1
    382778R91
    OIL SEAL; rockshaft RH oil
  • 6
    1
    382798R1
    BUSHING; eccentric shaft position control
  • 7
    1
    380264R2
    GASKET; rear frame cover
  • 8
    1
    382415R1
    COVER; valve adj opening
  • 6
    179814
    SPACER;
  • 9
    1
    382416R1
    GASKET; valve adj opening cover
  • 1
    279991R1
    SCREW; W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd. cap
  • 2
    179841
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; 3/8-16 x 1-1/4 hex-hd cap
  • 1
    103323
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 2
    103321
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 11
    1
    384377R1
    O-RING 0.103'' Thk x 2.55'' ID, -141, Cl 6, 90 Duro; 2-5/16 x 2-1/2 x 3/32, hyd component housing large
  • 12
    1
    381884R1
    O-RING 0.103'' Thk x 0.987'' ID, -120, Cl 6, 90 Duro; 1 x 1-3/16 x 3/32, hyd component housing small
  • 12
    1
    386867R1
    O-RING 0.103'' Thk x 1.11'' ID, -122, Cl 6, 90 Duro; 1-1/8 x 1-5/16 x 3/32, hyd component housing
  • 13
    1
    382792R11
    SUPPORT ASSY.; SUPPORT ASSY, draft control quadrant
  • 2
    280161
    BOLT Hex, 3/8'' - 16 x 3'', Gr 5;
  • 2
    103321
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 15
    1
    383133R91
    SEAL; quadrant support oil
  • 16
    1
    382793R1
    GASKET; quadrant support opening
  • 17
    1
    382794R1
    COVER; quadrant support
  • 4
    179791
    BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5;
  • 18
    1
    382795R1
    GASKET; quadrant support cover
  • 19
    1
    399384R1
    SECTOR; QUADRANT, control, will work for 382796R1
  • 3
    179828
    BOLT Hex, 5/16'' - 18 x 2 1/2'', Gr 5;
  • 3
    103320
    LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
  • 22
    1
    382801R1
    BALL; KNOB, position control handle
  • 23
    1
    378619R11
    GUIDE; ASSY, position control handle
  • 2
    413-48
    BOLT Hex, 1/4'' - 20 x 1/2'', Gr 5; SCREW, 1/4-20 x 1/2 C-Z hex-hd. cap
  • 2
    492-11025
    LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
  • 24
    1
    371599R2
    PIN; PIN, adjustable stop
  • 25
    1
    371600R2
    HANDLE; KNOB, adjustable stop pin
  • 26
    1
    378620R1
    STOP; pisition control handle
  • 1
    144417H
    NUT 1/4''-28, GB; 1/4-28 C-Z Esna stop
  • 27
    1
    376056R1
    DISC; position control handle friction
  • 28
    1
    382802R11
    SHAFT; ASSY, position control
  • 29
    1
    378067R1
    SPRING; position control handle friction
  • 30
    2
    376063R1
    NUT; position control handle friction spring
  • 1
    103346
    WASHER; 13/16 x 1-1/2 x .134
  • 32
    2
    378066R1
    SNAP RING #X74, .616'' Dia, E-Type; Ring, Retaining, #X74, .616'' Dia., E-Type, position control shaft
  • 33
    1
    382804R21
    HANDLE; ASSY, sensitivity control

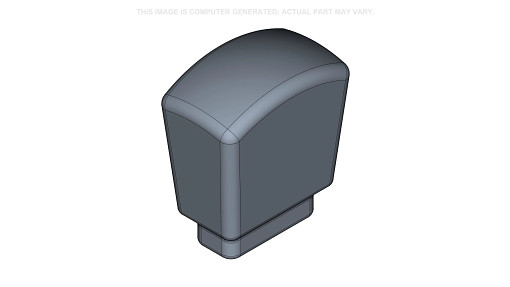

  • 34
    1
    382805R1
    KNOB; sensitivity control handle
  • 35
    1
    380421R1
    FRICTION WASHER; DISC, sensitivity control handle friction
  • 36
    1
    384602R91
    SHAFT; ASSY, sensitivity control lever
  • 2
    114503
    JAM NUT Jam, 3/8''-16, G5;
  • 3
    376066R1
    BELLEVILLE WASHER; Bellville
  • 1
    Q1597
    WASHER 13/32'' x 3/4'' x 16 ga; 13/32 x 3/4 x 16 ga.
  • 37
    1
    355967R1
    O-RING 0.364'' ID x 0.003'' Width; 3/8 x 1/2 x 1/16, sensitivity control shaft
  • 38
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, sensitivity control shaft
  • 40
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, sensitivity control lever pin
  • 41
    1
    384511R91
    SUPPORT; ASSY, position control stop pivot
  • 1
    179840
    BOLT Hex, 3/8'' - 16 x 1 1/8'', Gr 5; SCREW, 3/8-16 x 1-1/8 hex-hd. cap
  • 1
    413-622
    BOLT Hex, 3/8'' - 16 x 1-3/8'', Gr 5; SCREW, 3/81-6 x 1-3/8 hex-hd. cap
  • 2
    103321
    LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
  • 42
    1
    384513R11
    LEVER; ASSY, draft control stop
  • 43
    1
    381478R1
    SNAP RING #X43, .375'' Dia, E-Type; Ring, Retaining, #X43, .375'' Dia., E-Type, draft control stop lever
  • 44
    1
    382825R11
    LEVER; BELLCRANK ASSY, position control
  • 45
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, position control bellcrank pin
  • 46
    1
    204502R1
    SNAP RING #43, Ext; Position control bellcrank #43, Ext
  • 47
    1
    382828R91
    LEVER; ECCENTRIC ASSY, draft control
  • 48
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, draft control eccentric shaft
  • 49
    1
    370290R1
    SNAP RING #50, .392'' Dia, E-Type; Ring, Retaining, #50, .392'' Dia., E-Type, draft control eccentric
  • 50
    1
    384399R91
    ECCENTRIC; ECCETRIC ASSY, position control
  • 51
    1
    355967R1
    O-RING 0.364'' ID x 0.003'' Width; 3/8 x 1/2 x 1/16, eccentric shaft
  • 52
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, position control eccentric pin
  • 53
    1
    971043R1
    SNAP RING #50, Ext; Eccentric shaft #50, Ext
  • 54
    1
    382838R1
    LINK;
  • 55
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, eccentric to rockshaft link
  • 57
    1
    382841R1
    PIN; walking
  • 58
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, valve pin
  • 59
    1
    382842R1
    SCREW Shldr, Hex, 5/16'' - 18 x 0.65'', W/ Nylon Pellet; shoulder
  • 60
    1
    382843R11
    BEAM; ASSY, follow-up walking
  • 61
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, follow-up walking beam
  • 62
    1
    382845R1
    LINK; walking
  • 63
    1
    104977R1
    SNAP RING #X31, .243'' Dia, E-Type; RING, RETAINING, , Walking beam to bellcrank #X31, .243'' Dia, E-Type
  • 64
    1
    382846R1
    ROD; position control, lower
  • 65
    1
    382847R1
    TURNBUCKLE; position control rod
  • 1
    114503
    JAM NUT Jam, 3/8''-16, G5;
  • 66
    1
    382848R11
    ROD; ASSY, position control, upper
  • 67
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, position control rod pin
  • 68
    1
    382787R1
    ROD; ARM, draft control sensing pick-up
  • 69
    1
    382788R1
    PIN; sensing pick-up arm
  • 70
    1
    110668R1
    CIRCLIP #37, .300'' Dia, E-Type; Ring, Retaining, #37, .300'' Dia., E-Type, sensing pick-up arm pin
  • 71
    1
    387413R1
    SPRING; sensing arm return
  • 72
    1
    387414R1
    ANCHOR; spring, part of cylinder & valve, 381376R97
  • 73
    1
    382786R1
    LEVER; LINK, draft control eccentric to sensing lever
  • 74
    1
    388573R1
    ROCKSHAFT; hyd. draft control, also order two washers, 388574R1 for Farmall tractors 501 to 15825 and International tractors
  • 75
    1
    382810R2
    ROD; BELLCRANK, rockshaft

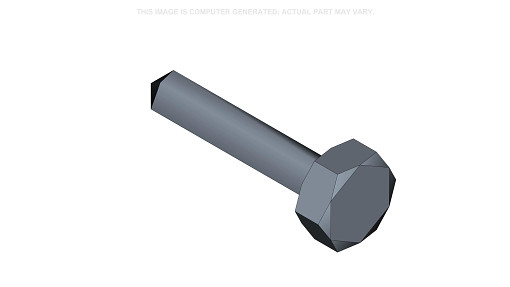

  • 76
    1
    382811R1
    SET SCREW Hex, 3/8'' - 16, Lok-Thd x 1 1/2'', Cone Pt; rockshaft Bellcrank lok-thread set
  • 77
    1
    382812R4
    ROD; piston connecting
  • 78
    1
    398314R1
    SPARE PART; PIN, 1/4 x 2-13/16 x 2-43/64 headed, piston connecting rod, also order pin, 103384 & washer, 16558R1 for Farmall tractors up to serial no. 26008 or International tractors up to serial no. 4193
  • 1
    103384
    COTTER PIN 1/8'' x 3/4''; Pin, Split (Cotter), 1/8'' x 3/4''
  • 1
    16558R1
    WASHER; 17/64 x 5/8 x .049 ga.
  • 79
    1
    379310R1
    SNAP RING #25, .207'' Dia, E-Type; Ring, Retaining, #25, .207'' Dia., E-Type, piston connecting rod pin, Farmall tractors up to serial no. 26008, International tractors up to serial no. 4193
  • 80
    1
    384518R11
    CAM; ASSY, rockshaft actuating hub

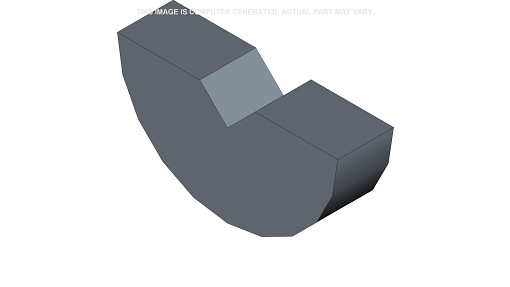

  • 81
    1
    376057R1
    BUCKET TOOTH KEY; KEY, rockshaft actuating hub cam
  • 82
    1
    382816R1
    SET SCREW; rockshaft actuating hub cam set
  • 83
    1
    382818R1
    RETAINER; rockshaft arm, Farmall tractors 501 to 15825, International tractors
  • 2
    271556
    WHEEL CYLINDER Hex, 5/8'' - 11 x 1 1/4'', Gr 5; SCREW, 5/8-11 x 1-1/4 hex-hd. cap
  • 84
    1
    NSS
    NOT SOLD SEPARAT; CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder & valve
  • 2
    271560
    PANEL Hex, 5/8'' - 11 x 1 3/4'', Gr 5;
  • 2
    NLS
    NO LONGER SERVICED; SCREW, 5/8-11 x 3-3/4 hex-hd. cap
  • 85
    2
    387926R2
    RING; seal
  • 86
    1
    385942R91
    TUBE; ASSY, cylinder lub, also order drop control valve, 385940R91 if lub tube is not connected with coupling nut
  • 1
    179816
    BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
  • 1
    103320
    LOCK WASHER 5/16''; WASHER, LOCK, 5/16''
  • 87
    1
    19984R1
    TUBE NUT 7/16''-24; NUT, 7/16-24 hi-duty tube fitting
  • 88
    2
    388574R1
    WASHER 16.51mm ID x 82.55mm OD x 4.78mm Thk; rockshaft arm retainer, Farmall tractors 15826 up, International tractors 2412 up
  • 2
    271556
    WHEEL CYLINDER Hex, 5/8'' - 11 x 1 1/4'', Gr 5; SCREW, 5/8-11 x 1-1/4 hex-hd. cap
