PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11PIN 1/4'' x 1 1/4'', Coiled; 1/4'' x 1 1/4'', Coiled
-
21RAIL; SPEED SHIFT FORK
-
34SNAP RING #75, Ext;
-
42SPRING; POPPET BALL
-
52BALL 10.31mm OD, Gr 24; 13/32 CHROME STEEL POPPET
-
62SHIFTER FORK;
-
72DOWEL; PIN, 1/2 X 2-1/4 CHAMFERED
-
81ARM; SPEED SHIFT 3RD/4TH - FAST SPEED
-
91ARM; SPEED SHIFT 1ST/2ND
-
102PLATE; PLATE, LARGE INTERLOCK
-
11-GASKET; TOP COVER - W/TORQUE AMP
-
11-GASKET; TOP COVER
-
121SNAP RING #68, Ext;
-
131COVER ASSY; CLUTCH HOUSING TOP - FAST SPEED
-
131COVER ASSY; CLUTCH HOUSING TOP - SLOW SPEED
-
1STUD; TOP COVER
-
1PLUG Cup, 3/8''; 3/8 CUP
-
1PLUG Cup, 1 1/4'', Stainless; 1-1/4 CUP
-
-BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; 2 REQUIRED FAST SPEED - 4 REQUIRED SLOW SPEED
-
16BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5;
-
131COVER ASSY; CLUTCH HOUSING TOP - FAST SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TA
-
131COVER ASSY; CLUTCH HOUSING TOP - SLOW SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TA
-
1STUD; TOP COVER
-
1PLUG Cup, 3/8''; 3/8 CUP
-
2PLUG Cup, 1 1/4'', Stainless; 1-1/4 CUP
-
4BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
2BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5;
-
14BOLT Hex, 3/8'' - 16 x 1'', Gr 5; W/Forward and Reverse
-
141O-RING 0.07'' Thk x 0.551'' ID, -15, Cl 5, 75 Duro; NO 15
-
151ADAPTER;
-
161ARM; SPEED SHIFT 3RD/4TH - SLOW SPEED
-
172O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16
-
181HOUSING; SPEED SHIFT ARM
-
2BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
191O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;
-
201ARM ASSY.; SPEED SHIFT ACTUATING 3RD/4TH - SLOW SPEED
-
1SPECIAL NUT 1/2''-13; 1/2-13 NYLON INSERT
-
211PIVOT ASSY.; INTERLOCK - FAST SPEED
-
2BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
222O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16
-
231HOUSING; SPEED SHIFT ARM
-
1BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
1NUT 5/16'' - 18, Gr 5;
-
1LOCK WASHER 5/16'';
-
241O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;
-
251ARM ASSY.; SPEED SHIFT ACTUATING 1ST/2ND
-
1SPECIAL NUT 1/2''-13; NYLON INSERT 1/2-13
-
262HOSE CLAMP; WORM DRIVE
-
262HOSE CLAMP #06, .44/.78 Type F Worm;
-
262HOSE CLAMP #9, 9/16'', Spring; HOSE - OPTIONAL
-
271HOSE 6.75 mm ID, 12.7 mm OD, 92 mm Length; Lubrication
-
281ARM ASSY.; SPEED SHIFT ACTUATING 3RD/4TH - FAST SPEED
-
1SPECIAL NUT 1/2''-13; NYLON INSERT 1/2-13
-
301HOUSING; SPEED SHIFT ARM
-
2BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
311O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16
-
32-WASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk;
-
331SNAP RING #75, Ext; pressure lub body #75, Ext
-
351PIPE 0.25'' OD, 190.5, 83 mm Length; TRANSMISSION LUB
-
361O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; 1/4 X 3/8 X 1/16
Select All
Select
Ref.
1Qty
1Availability
Part #
38-21620Description

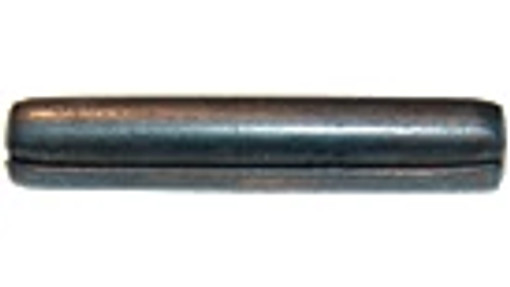

PIN 1/4'' x 1 1/4'', Coiled; 1/4'' x 1 1/4'', CoiledImg
Alts
Select
Ref.
5Qty
2Availability
Part #
211-1013Description

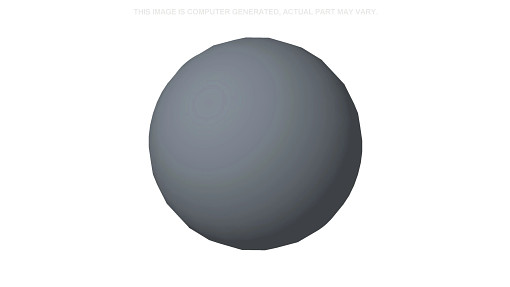

BALL 10.31mm OD, Gr 24; 13/32 CHROME STEEL POPPETImg
Alts
Select
Ref.
7Qty
2Availability
Part #
1500656C1Description
DOWEL; PIN, 1/2 X 2-1/4 CHAMFEREDImg
Alts
Select
Ref.
8Qty
1Availability
Part #
3129171R2Description
ARM; SPEED SHIFT 3RD/4TH - FAST SPEEDImg
Alts
Select
Ref.
10Qty
2Availability
Part #
1500249C2Description
PLATE; PLATE, LARGE INTERLOCKImg
Alts
Select
Ref.
11Qty
-Availability
Part #
401621R3Description
GASKET; TOP COVER - W/TORQUE AMPImg
Alts
Select
Ref.
13Qty
1Availability
Part #
3129161R91Description
COVER ASSY; CLUTCH HOUSING TOP - FAST SPEEDImg
Alts
Select
Ref.
13Qty
1Availability
Part #
3129163R91Description
COVER ASSY; CLUTCH HOUSING TOP - SLOW SPEEDImg
Alts
Select
Ref.
Qty
1Availability
Part #
41-1620Description

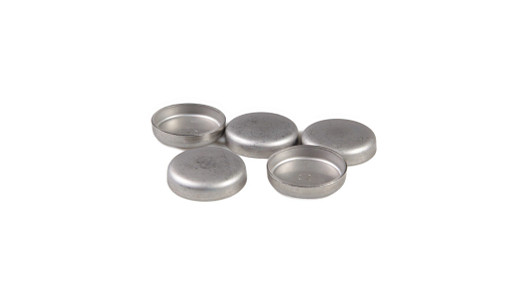

PLUG Cup, 1 1/4'', Stainless; 1-1/4 CUPImg
Alts
Select
Ref.
Qty
-Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; 2 REQUIRED FAST SPEED - 4 REQUIRED SLOW SPEEDImg
Alts
Select
Ref.
Qty
16Availability
Part #
413-614Description
BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5;Img
Alts
Select
Ref.
13Qty
1Availability
Part #
3129157R91Description
COVER ASSY; CLUTCH HOUSING TOP - FAST SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TAImg
Alts
Select
Ref.
13Qty
1Availability
Part #
3129160R91Description
COVER ASSY; CLUTCH HOUSING TOP - SLOW SPEED W/TORQUE AMP - W/FORWARD AND REVERSE W/O TAImg
Alts
Select
Ref.
Qty
2Availability
Part #
41-1620Description
PLUG Cup, 1 1/4'', Stainless; 1-1/4 CUPImg
Alts
Select
Ref.
Qty
4Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
2Availability
Part #
413-612Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
Qty
14Availability
Part #
413-616Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; W/Forward and ReverseImg
Alts
Select
Ref.
14Qty
1Availability
Part #
371544R1Description
O-RING 0.07'' Thk x 0.551'' ID, -15, Cl 5, 75 Duro; NO 15Img
Alts
Select
Ref.
16Qty
1Availability
Part #
3129167R2Description
ARM; SPEED SHIFT 3RD/4TH - SLOW SPEEDImg
Alts
Select
Ref.
17Qty
2Availability
Part #
391733R1Description
O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16Img
Alts
Select
Ref.
Qty
2Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
19Qty
1Availability
Part #
392385R1Description
O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;Img
Alts
Select
Ref.
20Qty
1Availability
Part #
3129174R1Description
ARM ASSY.; SPEED SHIFT ACTUATING 3RD/4TH - SLOW SPEEDImg
Alts
Select
Ref.
Qty
1Availability
Part #
131-208Description
SPECIAL NUT 1/2''-13; 1/2-13 NYLON INSERTImg
Alts
Select
Ref.
21Qty
1Availability
Part #
1500246C1Description
PIVOT ASSY.; INTERLOCK - FAST SPEEDImg
Alts
Select
Ref.
Qty
2Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
22Qty
2Availability
Part #
391733R1Description
O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16Img
Alts
Select
Ref.
Qty
1Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
24Qty
1Availability
Part #
392385R1Description
O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;Img
Alts
Select
Ref.
25Qty
1Availability
Part #
3129166R1Description
ARM ASSY.; SPEED SHIFT ACTUATING 1ST/2NDImg
Alts
Select
Ref.
Qty
1Availability
Part #
131-208Description
SPECIAL NUT 1/2''-13; NYLON INSERT 1/2-13Img
Alts
Select
Ref.
26Qty
2Availability
Part #
279025R91Description
HOSE CLAMP #06, .44/.78 Type F Worm;Img
Alts
Select
Ref.
26Qty
2Availability
Part #
215761R1Description
HOSE CLAMP #9, 9/16'', Spring; HOSE - OPTIONALImg
Alts
Select
Ref.
27Qty
1Availability
Part #
1500242C1Description
HOSE 6.75 mm ID, 12.7 mm OD, 92 mm Length; LubricationImg
Alts
Select
Ref.
28Qty
1Availability
Part #
3129172R2Description
ARM ASSY.; SPEED SHIFT ACTUATING 3RD/4TH - FAST SPEEDImg
Alts
Select
Ref.
Qty
1Availability
Part #
131-208Description
SPECIAL NUT 1/2''-13; NYLON INSERT 1/2-13Img
Alts
Select
Ref.
Qty
2Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
31Qty
1Availability
Part #
391733R1Description
O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 X 1-1/4 X 1/16Img
Alts
Select
Ref.
32Qty
-Availability
Part #
95-81056Description

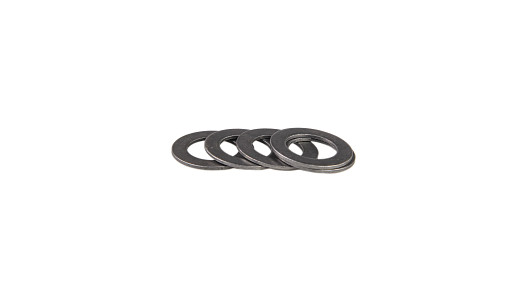

WASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk;Img
Alts
Select
Ref.
33Qty
1Availability
Part #
269181R1Description
SNAP RING #75, Ext; pressure lub body #75, ExtImg
Alts
Select
Ref.
35Qty
1Availability
Part #
3129164R1Description
PIPE 0.25'' OD, 190.5, 83 mm Length; TRANSMISSION LUBImg
Alts
Select
Ref.
36Qty
1Availability
Part #
352219R1Description
O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; 1/4 X 3/8 X 1/16Img
