K-04[A] - HYDRAULIC PUMP (PLESSEY A33/17268), 1390 TRACTOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    K944907
    PUMP; ASSEMBLY - hydraulic, single (Plessey A33/17268), Includes: Ref. 2 - 11
  • 2
    1
    K962112
    COVER; - pump
  • 3
    1
    K964838
    ROTOR; S - pump (Set of 2)
  • 4
    2
    K964840
    BEARING ASSY; ASSEMBLY - pump (With bushings)
  • 5
    4
    K964839
    BULLONE; - 3/8 inch UNF, special
  • 6
    4
    K964920
    PERNO; DOWEL - ring
  • 7
    4
    K19482
    RONDELLA ELASTICA; WASHER - lock, 3/8 inch
  • 8
    4
    K964837
    DADO; - 3/8 inch UNF
  • 9
    1
    K962100
    PIASTRA; FLANGE - pump
  • 10
    1
    K962106
    OIL SEAL 16.13mm ID x 28.83mm OD x 7.92mm Thk; - oil, 5/8 x 1-1/8 x 5/16 inch
  • 11
    1
    K964831
    GUARNIZIONE, TENUTA; SEAL KIT - pump
  • 12
    1
    K916535

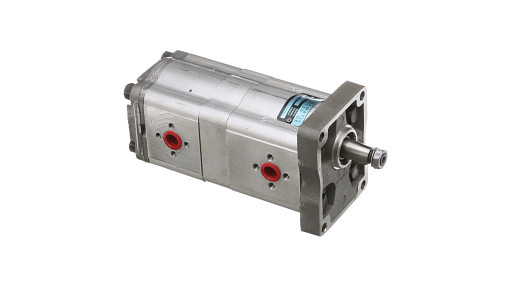

    POMPA; ASSEMBLY - hydraulic, tandem (Plessey A33/25,07724), Includes: Ref. 13 - 24
  • 13
    1
    K962109
    GEAR; ROTORS - pump (Set of 2)
  • 14
    2
    K962116
    BEARING ASSY; BEARING ASSEMBLY - pump (With bushings)
  • 15
    4
    K962099
    PIN; DOWEL - ring
  • 16
    1
    K962107
    FLEXIBLE COUPLING; COUPLING - bearing
  • 17
    1
    K962105
    GEAR; ROTORS - pump (Set of 2)
  • 18
    2
    K962089
    BEARING ASSY; ASSEMBLY - pump (With bushings)
  • 19
    4
    K964920
    PIN; DOWEL - ring
  • 20
    4
    K962111
    BOLT; - 3/8 inch UNF, special
  • 21
    4
    K19482
    SPRING WASHER; WASHER - lock, 3/8 inch
  • 22
    4
    K616982
    NUT; - 3/8 inch UNF
  • 23
    1
    K962106
    OIL SEAL 16.13mm ID x 28.83mm OD x 7.92mm Thk; - oil, 5/8 x 1-1/8 x 5/16 inch
  • 24
    1
    K964831
    SEAL; SEAL KIT - pump
  • 25
    4
    K606506
    BOLT; - 1/4 UNC x 1-1/4 inch
  • 26
    4
    K626341
    SPRING WASHER; WASHER - lock, 1/4 inch
  • 27
    1
    K200045
    DISC; - locating
  • 28
    1
    K200174
    PUMP; BRACKET - support, pump
  • 29
    1
    K621815
    PIN; DOWEL - 1/2 x 1-1/2 inch
  • 30
    2
    K600408
    BOLT 3/8'' x 2''; - 3/8 UNC x 2 inch
  • 31
    2
    K19482
    SPRING WASHER; WASHER - lock, 3/8 inch
  • 32
    2
    K622042
    RING; DOWEL - ring
  • 33
    1
    K200046
    GEAR; SLEEVE - drive, pump
  • 34
    1
    K19604
    KEY; - Woodruff no. 405
  • 35
    1
    K626380
    WASHER; - tab, gear nut
  • 36
    1
    425-157
    JAM NUT Jam, 7/16''-20, G5; - 7/16 inch UNF
  • 37
    1
    K200047
    COUPLING; COUPLING - pump drive
  • 38
    3
    K600563
    BOLT; - 3/8 UNC x 2-1/4 inch
  • 39
    3
    232-1416

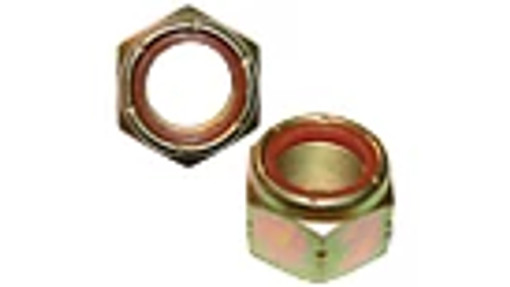

    LOCK NUT 3/8''-16, GC; NUT - self-locking, 3/8 inch UNC
  • 40
    1
    K955266
    FLEXIBLE COUPLING; COUPLING - flexible
  • 41
    3
    K600408
    BOLT 3/8'' x 2''; - 3/8 UNC x 2 inch
  • 42
    3
    K19482
    SPRING WASHER; WASHER - lock, 3/8 inch
  • 1
    K200916
    НАСОС; ASSEMBLY - single (Dowty IP 3044)
  • 1
    K954263
    НАСОС; ASSEMBLY - tandem (Dowty IP-IP/3044-3036) (See page K4-3)
  • 1
    K260308
    КОМПЛЕКТ ПРОКЛАДОК; KIT - seals for K200916
  • 1
    K260307
    К-Т УПЛОТНИТ. КОЛЕЦ; KIT - seals for K954263
  • 1
    K307058
    НАСОС; ASSEMBLY - single (Bosch 0510-625-339)
  • 1
    K261709
    УПЛОТНИТЕЛЬНОЕ КОЛЬЦ; - shaft
  • 26
    1
    K261708
    УПЛОТНИТЕЛЬНОЕ КОЛЬЦ; KIT - seal
