TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1CYLINDER; ASSY, power steering, order cylinder assy 391982R91, Farmall tractors up to serial no. 12380, International tractors up to serial no. 12701
-
1CYLINDER; ASSY, power steering, Farmall tractors with serial no. 12381 & above, International tractors with serial no. 12702 & above
-
12OIL SEAL; piston rod wiper
-
32BACK-UP RING Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk; piston rod seal back-up
-
42O-RING 0.139'' Thk x 0.984'' ID, -214, Cl 6, 90 Duro; 1 x 1-1/4 x 1/8, piston rod seal
-
52BACK-UP RING 2.385'' ID x 0.052'' Width; cylinder hd O-ring back-up
-
62O-RING 0.103'' Thk x 2.175'' ID, -139, Cl 5, 75 Duro; 2-3/16 x 2-3/8 x 3/32, cylinder head
-
72RETAINER; cylinder head, used only with 379562R92
-
72SPRING; RETAINER, cylinder head, used only with 391982R91
-
81O-RING; 2 x 2-1/4 x 1/8, piston seal
-
91SEALING RING; RING, piston
-
101PISTON; ASSY, steering cylinder
-
111O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 3/4 x 15/16 x 3/32, piston rod
-
132BACK-UP RING; WASHER, tube seal O-ring back-up
-
141O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; 3/8 x 1/2 x 1/16, inner piston rod tube seal
-
151ANCHOR; ASSY, piston rod
-
1KIT; cylinder service, consists of ref nos 1, 3 thru 9, 11, 13 & 14
Select All
Select
Ref.
Qty
1Availability
Part #
379562R92Description
CYLINDER; ASSY, power steering, order cylinder assy 391982R91, Farmall tractors up to serial no. 12380, International tractors up to serial no. 12701Img
Alts
Select
Ref.
Qty
1Availability
Part #
391982R91Description
CYLINDER; ASSY, power steering, Farmall tractors with serial no. 12381 & above, International tractors with serial no. 12702 & aboveImg
Alts
Select
Ref.
3Qty
2Availability
Part #
379571R1Description

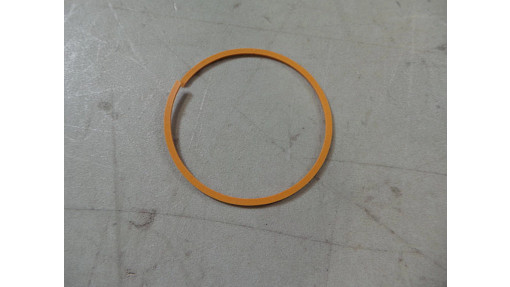

BACK-UP RING Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk; piston rod seal back-upImg
Alts
Select
Ref.
4Qty
2Availability
Part #
380794R1Description
O-RING 0.139'' Thk x 0.984'' ID, -214, Cl 6, 90 Duro; 1 x 1-1/4 x 1/8, piston rod sealImg
Alts
Select
Ref.
5Qty
2Availability
Part #
382063R1Description

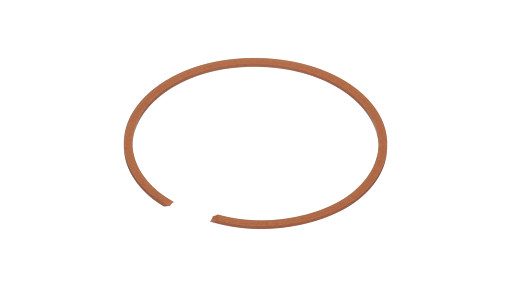

BACK-UP RING 2.385'' ID x 0.052'' Width; cylinder hd O-ring back-upImg
Alts
Select
Ref.
6Qty
2Availability
Part #
379457R1Description
O-RING 0.103'' Thk x 2.175'' ID, -139, Cl 5, 75 Duro; 2-3/16 x 2-3/8 x 3/32, cylinder headImg
Alts
Select
Ref.
7Qty
2Availability
Part #
379568R1Description
RETAINER; cylinder head, used only with 379562R92Img
Alts
Select
Ref.
7Qty
2Availability
Part #
391985R1Description
SPRING; RETAINER, cylinder head, used only with 391982R91Img
Alts
Select
Ref.
8Qty
1Availability
Part #
290028R1Description
O-RING; 2 x 2-1/4 x 1/8, piston sealImg
Alts
Select
Ref.
10Qty
1Availability
Part #
379563R11Description
PISTON; ASSY, steering cylinderImg
Alts
Select
Ref.
11Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 3/4 x 15/16 x 3/32, piston rodImg
Alts
Select
Ref.
13Qty
2Availability
Part #
382236R1Description

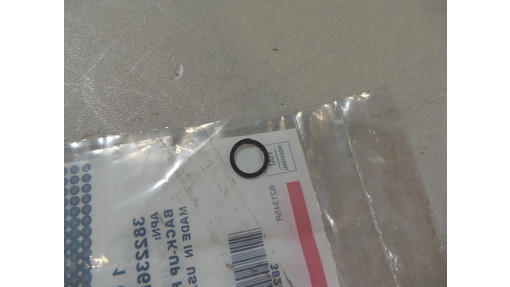

BACK-UP RING; WASHER, tube seal O-ring back-upImg
Alts
Select
Ref.
14Qty
1Availability
Part #
379365R1Description
O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; 3/8 x 1/2 x 1/16, inner piston rod tube sealImg
Alts
Select
Ref.
Qty
1Availability
Part #
386694R91Description
KIT; cylinder service, consists of ref nos 1, 3 thru 9, 11, 13 & 14Img
Alts
