MAXXUM 100 - TRACTOR - TI... 00 - GENERAL 0.05.4[02] - MAINTENANCE ...
0.05.4[02] - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    4899178
    BELT V-Belt, 28.48mm W x 1550mm L, 8 Ribs; Fan Belt, Every 300 hours or annually
  • 2
    1
    87710661
    BELT Flat, 14.04mm W x 990mm L, 4 Ribs; Air Conditioner Compressor Belt, Every 300 hours or annually
  • 3
    1
    87318375
    STARTER MOTOR; On Engine;C5695 Before Date 18 April 2007 Basildon Prod. / Z7BE52170 St. Valentin Prod.
  • 3
    1
    87653219C
    CORE-STARTER STARTER; On Engine;D5695 After Date 17 April 2007 Basildon Prod. / Z7BE52169 St. Valentin Prod.
  • 3
    1
    87653219
    STARTER MOTOR; On Engine;D5695 After Date 17 April 2007 Basildon Prod. / Z7BE52169 St. Valentin Prod.
  • 3
    1
    87653219R
    REMAN-STARTER STARTER; On Engine;D5695 After Date 17 April 2007 Basildon Prod. / Z7BE52169 St. Valentin Prod.
  • 4
    1
    87361082
    ALTERNATOR; On Engine;C5771 Before Date 07 June 2007 Basildon Prod. / Z7BE51911 St. Valentin Prod.
  • 4
    1
    87652087C
    CORE-ALTERNATOR ALTERNATOR; On Engine;D5771 After Date 06 June 2007 Basildon Prod. / Z7BE51910 St. Valentin Prod., C6248 Before Date 28 February 2010
  • 4
    1
    87652087
    ALTERNATOR; On Engine;D5771 After Date 06 June 2007 Basildon Prod. / Z7BE51910 St. Valentin Prod., C6248 Before Date 28 February 2010
  • 4
    1
    87652087R
    REMAN-ALTERNATOR ALTERNATOR; On Engine;D5771 After Date 06 June 2007 Basildon Prod. / Z7BE51910 St. Valentin Prod., C6248 Before Date 28 February 2010
  • 1
    87652087R
    REMAN-ALTERNATOR ALTERNATOR; Reman Alternator
  • 1
    87652087C
    CORE-ALTERNATOR ALTERNATOR; Return Number
  • 4
    1
    82020011C
    CORE-ALTERNATOR ALTERNATOR; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    87652087C
    CORE-ALTERNATOR ALTERNATOR; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    84141452C

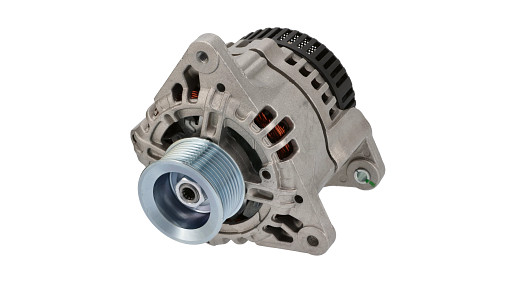

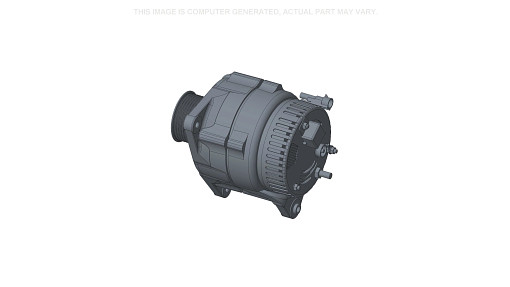

    CORE-ALTERNATOR 12V, 120A, W/ Pulley; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    84141452R
    REMAN-ALTERNATOR 12V, 120A, W/ Pulley; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    84141452
    ALTERNATOR 12V, 120A, W/ Pulley; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    87361082C
    CORE-ALTERNATOR ALTERNATOR; On Engine;D6248 After Date 27 February 2010
  • 4
    1
    87755553C
    CORE-ALTERNATOR ALTERNATOR; On Engine;D6248 After Date 27 February 2010
