10.216.AI[01] - FUEL TANK & ASSOCIATED PARTS (4-OCT-2013 & NEWER)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    47477757
    FUEL TANK; Assy
  • 2
    1
    47566816
    FITTING Fuel, 5/16'' Hose Barb x 11.8mm J2044;
  • 3
    1
    47542915

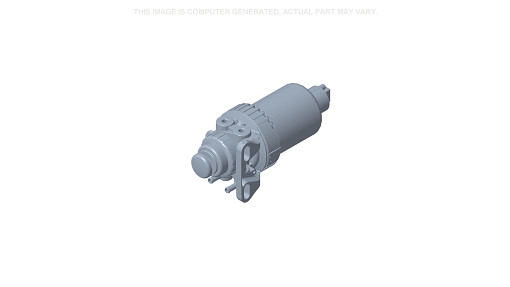

    FILTER ASSY FUEL; Prime Pump Assy
  • 4
    UAR
    47924456
    FUEL HOSE 5/16 ID X 2240mm -30R7; Fuel Line, OAL 14.8 FT
  • 5
    1
    87054825
    SUPPORT; Fuel Tank
  • 6
    2
    637964
    SELF-TAP SCREW Hex, 3/8'' - 16 x 3/4'';
  • 7
    1
    47747587
    SENDER UNIT; Fuel
  • 8
    1
    84350218
    FITTING Fuel, 90 Degree Elbow, 5/16'' Hose Barb x 3/8'' Voss;
  • 9
    1
    47800654
    BRACKET; ECU Mounting
  • 10
    1
    84338049
    MOUNTING PLATE; Fuel Sender Unit
  • 11
    1
    47800557
    BRACKET; Fuel Line Routing
  • 12
    4
    9804256
    FLANGE BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8;
  • 13
    5
    84259663
    CABLE TIE 228.6mm L, Nylon, Black;
  • 14
    UAR
    87702286
    TRIM Bulk, 1/8'' x 30480mm L; OAL 80mm
  • 15
    1
    84367737
    LOCK WASHER 22.6mm OD x 1.27mm Thk;
  • 16
    1
    84370069
    CHAIN; Fuel Cap
  • 17
    1
    84553918

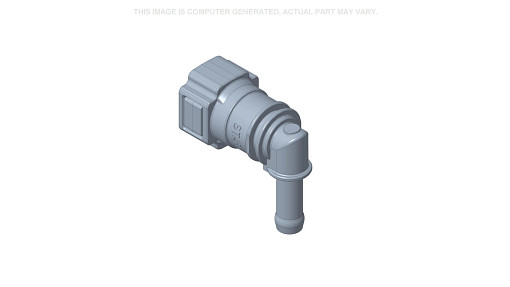

    FITTING 90 Degree Quick Connect, 9.89mm Hose Bead;
  • 18
    1
    84350217
    FITTING Fuel, 90 Degree Elbow, 5/16'' Hose Barb x 5/16'' Voss;
  • 19
    2
    9804260
    FLANGE BOLT Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8;
  • 20
    5
    L11541
    CABLE TIE 203.2mm L, Nylon;
  • 21
    6
    87436932

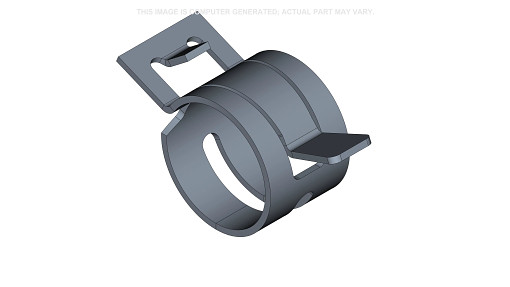

    HOSE CLAMP 13.9mm - 15.5mm, CTB-15 Style C, CST/ZND;
  • 22
    2
    87037711
    SPRING NUT U, Multi-Thd Sht, M8 x 1.25, PLN;
  • 23
    2
    84602030
    PAD; Foam Insulation
  • 24
    2
    86624144

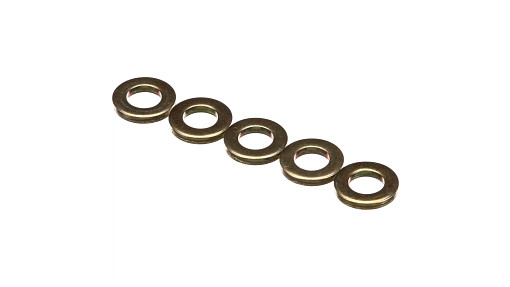

    WASHER 0.41'' ID x 0.75'' OD x 0.12'' Thk;
  • 25
    2
    87030529
    SELF-TAP SCREW HWH, 3/8'' - 16 x 7/8'';
  • 26
    2
    47357144

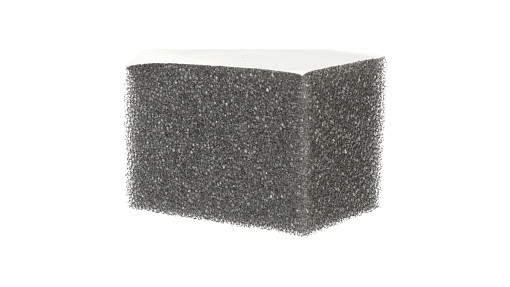

    FOAM INSULATION 70mm L x 50.8mm W x 50.8mm H; Deck
