35.723.030 - BUCKET LIFT CYLINDER - MSL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    LDR12712610
    CYLINDER Double Acting, 40mm Rod, 460mm Stroke; Bucket Lift, Incl 2 - 10, 12 - 21
  • 2
    1
    LDR12700915
    ROD; Rear
  • 3
    1
    LDR12707011
    BEARING ASSY; 40mm ID x 70mm OD
  • 4
    1
    LDR12707012
    PISTON; Hydraulic, 70mm OD
  • 5
    2
    LDR5005984
    SCREW; Stop
  • 6
    1
    LDR5016621
    RING; Retaining
  • 7
    1
    LDR5016669
    RING; Retaining
  • 8
    2
    LDR5018515
    BUSHING ID = 30.20mm OD = 34.15mm;
  • 9
    1
    LDR12712823
    ROD; Piston
  • 10
    2
    LDR5018514
    BUSHING;
  • 11
    1
    LDR5033712

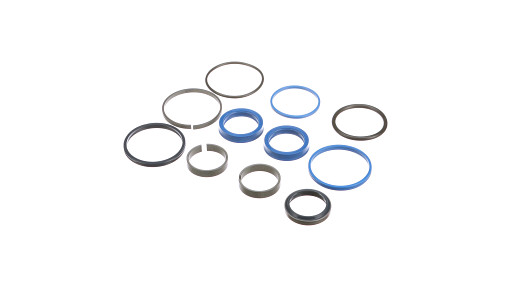

    SEAL KIT; Services 1, Contains 11 Seals, Incl 12 - 20
  • 12
    1
    NSS
    NOT SOLD SEPARAT; O - Ring, 63.09mm OD x 3.53mm Thk, Incl in 1, 11
  • 13
    2
    NSS
    NOT SOLD SEPARAT; Guide Ring, 65mm ID x 70mm OD x 5.5mm Thk, Incl in 1, 11
  • 14
    1
    NSS
    NOT SOLD SEPARAT; Guide Ring, 40mm ID x 45mm OD x 7mm Thk, Incl in 1, 11
  • 15
    1
    NSS
    NOT SOLD SEPARAT; Wiper, 40mm ID x 50mm OD x 7mm Thk, Incl in 1, 11
  • 16
    2
    NSS
    NOT SOLD SEPARAT; Piston Seal, 54.5mm ID x 70mm OD x 6.3mm Thk, Incl in 1, 11
  • 17
    1
    NSS
    NOT SOLD SEPARAT; Seal, 40mm ID x 50mm OD x 10mm Thk, Incl in 1, 11
  • 18
    1
    NSS
    NOT SOLD SEPARAT; Cover Seal, 64.6mm ID x 70mm OD x 6.2mm Thk, Incl in 1, 11
  • 19
    1
    NSS
    NOT SOLD SEPARAT; Cover Seal, 53.4mm ID x 58mm OD x 4.1mm Thk, Incl in 1, 11
  • 20
    1
    NSS
    NOT SOLD SEPARAT; Plug, Incl in 1, 11
  • 21
    1
    LDR12700017
    GUIDE; Hydraulic Cylinder
