Ref.
Qty
Part #
Alts
Description
-
11ELBOW 90 Degree, 1/2'' NPT Street; 1/2'' - 90 deg. street
-
21NO LONGER SERVICED; tractor hyd lift housing reducing
-
51TUBE .625'' OD; hyd return
-
61HYD TUBE .5'' OD; TUBE, power beyond port to tractor hitch
-
71RING; 1/2'' tube nut sealing
-
81NUT 0.69'' Length; 1/2'' power beyond tube
-
91ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8'' - 90 deg. valve outlet power beyond port
-
1O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve port elbow
-
101O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; power beyond port elbow
-
121SEAL; power beyond port
-
131SEAL; SEAL, control valve power beyond port
-
141VALVE; hyd control (for component parts of this assembly, refer to ''hydraulic control valve'' in section C of this catalog)
-
3BOLT Hex, 3/8'' - 16 x 2 1/4'', Gr 5; 3/8 x 2-1/4''
-
3NUT 3/8'' - 16, Gr 5;
-
3LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''
-
151O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve inlet port elbow
-
161ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8'' - 90 deg. valve inlet port
-
1O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve inlet port elbow
-
171HOSE; HOSE, tractor hyd pump pressure
-
181TUBE; tractor hyd pump pressure
-
1O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; pressure tube
-
191O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; hyd pump pressure tube
-
201SUPPORT; hyd control valve
-
2BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; 5/16 x 1''
-
2NUT 5/16''-18, G5;
-
2LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
-
211ELBOW 90 Degree, 7/8''-14, 37 Degree x 1/2''-14, NPTF; 7/8'' - 90 deg. valve outlet port
-
222CLAMP; hyd return tube
-
1BOLT 1/4''-20 x 1-1/4'', Cl 5;
-
1NUT Hex, 1/4'' - 20, Gr 5;
-
1LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
232HOSE CLAMP #12, 0.69/1.25 Type F Worm; CLAMP, hyd return hose
-
241FITTING; hyd return hose
-
1KIT; hyd control valve power beyond conversion composed of: (1) sleeve (NSS), (1) seal 850249C1, (1) seal 666218R1
Select All
Select
Ref.
1Qty
1Availability
Part #
108686Description
ELBOW 90 Degree, 1/2'' NPT Street; 1/2'' - 90 deg. streetImg
Alts
Select
Ref.
2Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; tractor hyd lift housing reducingImg
Alts
Select
Ref.
6Qty
1Availability
Part #
851556C11Description
HYD TUBE .5'' OD; TUBE, power beyond port to tractor hitchImg
Alts
Select
Ref.
8Qty
1Availability
Part #
705520R1Description
NUT 0.69'' Length; 1/2'' power beyond tubeImg
Alts
Select
Ref.
9Qty
1Availability
Part #
9410978Description
ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8'' - 90 deg. valve outlet power beyond portImg
Alts
Select
Ref.
Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve port elbowImg
Alts
Select
Ref.
10Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; power beyond port elbowImg
Alts
Select
Ref.
13Qty
1Availability
Part #
666218R1Description
SEAL; SEAL, control valve power beyond portImg
Alts
Select
Ref.
14Qty
1Availability
Part #
851629C91Description
VALVE; hyd control (for component parts of this assembly, refer to ''hydraulic control valve'' in section C of this catalog)Img
Alts
Select
Ref.
Qty
3Availability
Part #
180132Description
BOLT Hex, 3/8'' - 16 x 2 1/4'', Gr 5; 3/8 x 2-1/4''Img
Alts
Select
Ref.
Qty
3Availability
Part #
120382Description
LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
15Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve inlet port elbowImg
Alts
Select
Ref.
16Qty
1Availability
Part #
9410978Description
ELBOW 90 Degree, 7/8''-14, 37 Degree x 7/8''-14, O-Ring; 7/8'' - 90 deg. valve inlet portImg
Alts
Select
Ref.
Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; valve inlet port elbowImg
Alts
Select
Ref.
17Qty
1Availability
Part #
675846R91Description
HOSE; HOSE, tractor hyd pump pressureImg
Alts
Select
Ref.
18Qty
1Availability
Part #
850326C1Description
TUBE; tractor hyd pump pressureImg
Alts
Select
Ref.
Qty
1Availability
Part #
352221R1Description
O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; pressure tubeImg
Alts
Select
Ref.
19Qty
1Availability
Part #
352221R1Description
O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; hyd pump pressure tubeImg
Alts
Select
Ref.
Qty
2Availability
Part #
9635884Description

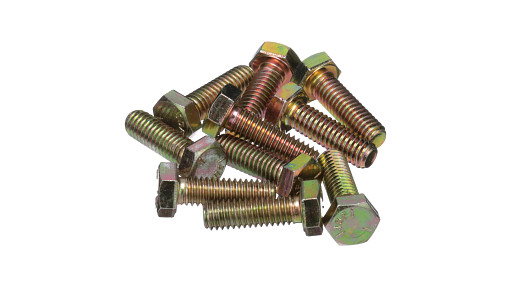

BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; 5/16 x 1''Img
