A-11 - BOOM LIFT HYD, MECH BCKT CNTRL, MODEL 424 1965 TO 1966
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 3
    2
    HOSE; HOSE, 24'' boom cylinder
  • 5
    2
    CLIP; CLAMP, pipe
  • 6
    2
    SUPPORT; boom lift cylinder lock
  • 2
    HEADED PIN 3/8'' x 3''; PIN, 3/8 x 3'' std-hd-dld
  • 2
    SPLIT PIN/SAFETY PIN 2.4mm OD x 60.345mm OAL; C-PIN, 1/8'' Q.A.
  • 7
    1
    VALVE; cut-off
  • 8
    1
    HYD CONNECTOR 3/4''-16, 37 Degree x 3/8''-18, Fem Pipe; CONNECTOR, 1/2'' tube to 3/8'' pipe on cut-off valve
  • 10
    1
    SEALING WASHER; WASHER, adapter
  • 11
    1
    ADAPTER; lift housing
  • 12
    1
    FITTING; CONNECTOR, 1/2'' tube to 1/2'' pipe at adapter
  • 13
    1
    TEE 3/4''-16, 37 Degree x 3/8''-18, NPTF Fem Br; cylinder pipe
Select All

Select

Ref.

3

Qty

2

Availability

Part #

675846R91

Description

HOSE; HOSE, 24'' boom cylinder


Alts

Select

Ref.

5

Qty

2

Availability

Part #

446077R91

Description

CLIP; CLAMP, pipe


Alts

Select

Ref.

6

Qty

2

Availability

Part #

851637C1

Description

SUPPORT; boom lift cylinder lock


Alts

Select

Ref.

Qty

2

Availability

Part #

JA623

Description

HEADED PIN 3/8'' x 3''; PIN, 3/8 x 3'' std-hd-dld


Alts

Select

Ref.

Qty

2

Availability

Part #

610784R1

Description

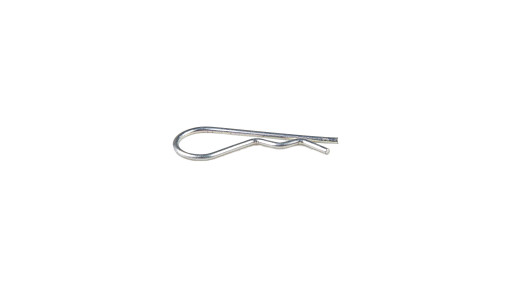

SPLIT PIN/SAFETY PIN 2.4mm OD x 60.345mm OAL; C-PIN, 1/8'' Q.A.


Alts

Select

Ref.

7

Qty

1

Availability

Part #

675275R91

Description

VALVE; cut-off


Alts

Select

Ref.

8

Qty

1

Availability

Part #

9402748

Description

HYD CONNECTOR 3/4''-16, 37 Degree x 3/8''-18, Fem Pipe; CONNECTOR, 1/2'' tube to 3/8'' pipe on cut-off valve


Alts

Select

Ref.

10

Qty

1

Availability

Part #

704337R1

Description

SEALING WASHER; WASHER, adapter


Alts

Select

Ref.

11

Qty

1

Availability

Part #

675278R1

Description

ADAPTER; lift housing


Alts

Select

Ref.

12

Qty

1

Availability

Part #

383118R1

Description

FITTING; CONNECTOR, 1/2'' tube to 1/2'' pipe at adapter


Alts

Select

Ref.

13

Qty

1

Availability

Part #

9403060

Description

TEE 3/4''-16, 37 Degree x 3/8''-18, NPTF Fem Br; cylinder pipe


Alts
