35.100.BI[01] - BUCKET, TILT CYLINDER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

LDR12707011

Description

BEARING ASSY;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

LDR12707012

Description

PISTON;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

LDR12710923

Description

PISTON;


Alts

Select

Ref.

4

Qty

2

Availability

Part #

LDR5018515

Description

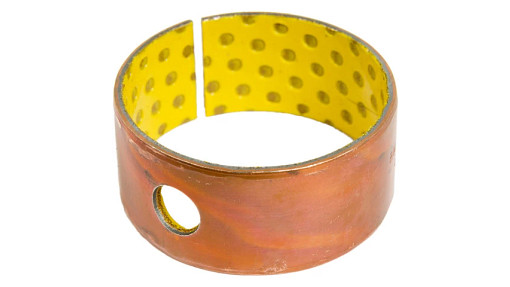

BUSHING ID = 30.20mm OD = 34.15mm; 30/34 x 20


Alts

Select

Ref.

5

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

LDR5018515

Description

BUSHING ID = 30.20mm OD = 34.15mm; 30/34 x 20


Alts

Select

Ref.

7

Qty

1

Availability

Part #

LDR5016621

Description

RING; SgA 65


Alts

Select

Ref.

8

Qty

1

Availability

Part #

LDR5016669

Description

RING; 75 x 4


Alts

Select

Ref.

9

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 63.09 x 3.53


Alts

Select

Ref.

10

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 70/65 x 5.5


Alts

Select

Ref.

11

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 40/45 x 9.7


Alts

Select

Ref.

12

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 40/50 x 7/10


Alts

Select

Ref.

13

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 70/54.5 x 6.3


Alts

Select

Ref.

14

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 40/50 x 10


Alts

Select

Ref.

15

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; 70/64.6 x 6.2


Alts

Select

Ref.

16

Qty

1

Availability

Part #

LDR1120010

Description

PUSH-PULL COUPLING; R 3/8''


Alts

Select

Ref.

17

Qty

1

Availability

Part #

LDR5013852

Description

SEAL; 3/8 ''


Alts

Select

Ref.

Qty

1

Availability

Part #

LDR12710910

Description

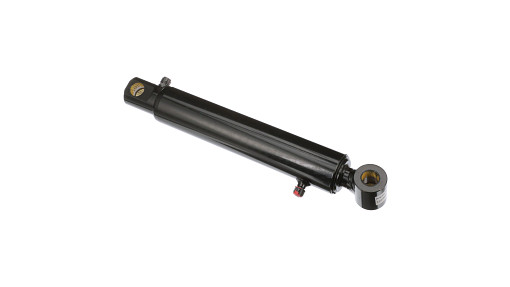

CYLINDER Double Acting, 40mm Rod, 260mm Stroke; Inc. 1 - 15


Alts

Select

Ref.

Qty

1

Availability

Part #

LDR5033704

Description

SEAL KIT; Incl. 9 - 15


Alts
