35.534.AC[01] - VAR - 713665006 - MMV HYDRAULIC HOSE KIT - 3 FUNCTION FOR MAXXUM 110, 115, 120, 125, 130, 140
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

LDR10414058

Description

BRACKET;


Alts

Select

Ref.

2

Qty

2

Availability

Part #

LDR5002053

Description

SCREW M8 x 30mm L;


Alts

Select

Ref.

3

Qty

6

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Nut, Incl in 6


Alts

Select

Ref.

4

Qty

4

Availability

Part #

LDR5013101

Description

WASHER 8.40mm ID x 16mm OD x 1.50mm Thk;


Alts

Select

Ref.

5

Qty

6

Availability

Part #

LDR5040090

Description

DUST CAP;


Alts

Select

Ref.

6

Qty

6

Availability

Part #

LDR5044983

Description

QUICK MALE COUPLING; Incl 3


Alts

Select

Ref.

7

Qty

1

Availability

Part #

LDR11134370

Description

DECAL;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

LDR11136095

Description

DECAL;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

LDR10415124

Description

BRACKET;


Alts

Select

Ref.

10

Qty

2

Availability

Part #

LDR5005999

Description

SCREW M10 x 45mm;


Alts

Select

Ref.

11

Qty

4

Availability

Part #

LDR5033606

Description

CABLE TIE;


Alts

Select

Ref.

12

Qty

6

Availability

Part #

LDR9032192

Description

HYDRAULIC HOSE 1400mm L;


Alts

Select

Ref.

13

Qty

6

Availability

Part #

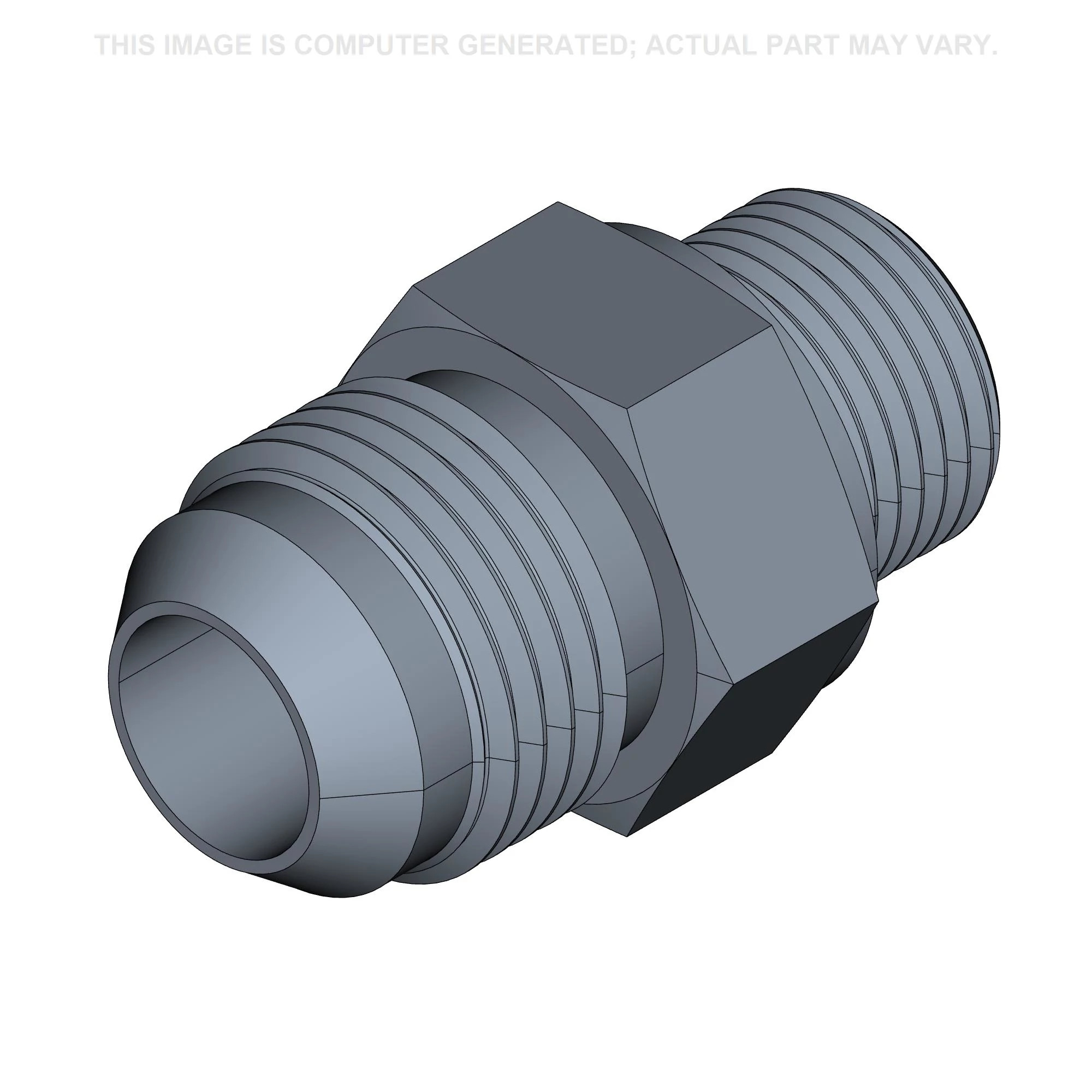

LDR5027483

Description

END FITTING 7/8'' JIC x M18 x 1.5;


Alts

Select

Ref.

14

Qty

6

Availability

Part #

LDR5027928

Description

END FITTING 7/8'' UNF JIC - M22 x 1.5;


Alts
