35.310.AF[050] - MAIN DISTRIBUTION VALVE MSL - VAR - 713767556
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    48172154
    VALVE MSL; CVU Basic, MSL
  • 2
    1
    48172327
    BRACKET; Bracket; (Prod Date) Up to 01-May-2019
  • 2
    1
    LDR60037851
    BRACKET; Bracket; (Prod Date) From 01-May-2019
  • 3
    4
    120103
    BOLT M8 x 1.25 x 16mm, Cl 8.8; Screw MC6S M8x14 (8.8)
  • 4
    1
    48172144
    BLOCK Tilt; Block cpl
  • 5
    1
    48172074
    BLOCK Lift; Block cpl, Lift
  • 6
    1
    48172144
    BLOCK Tilt; Block cpl Tilt
  • 7
    6
    48172087
    SEALING WASHER Tredo 18; Dowty washer Tredo 18
  • 8
    4
    48171178

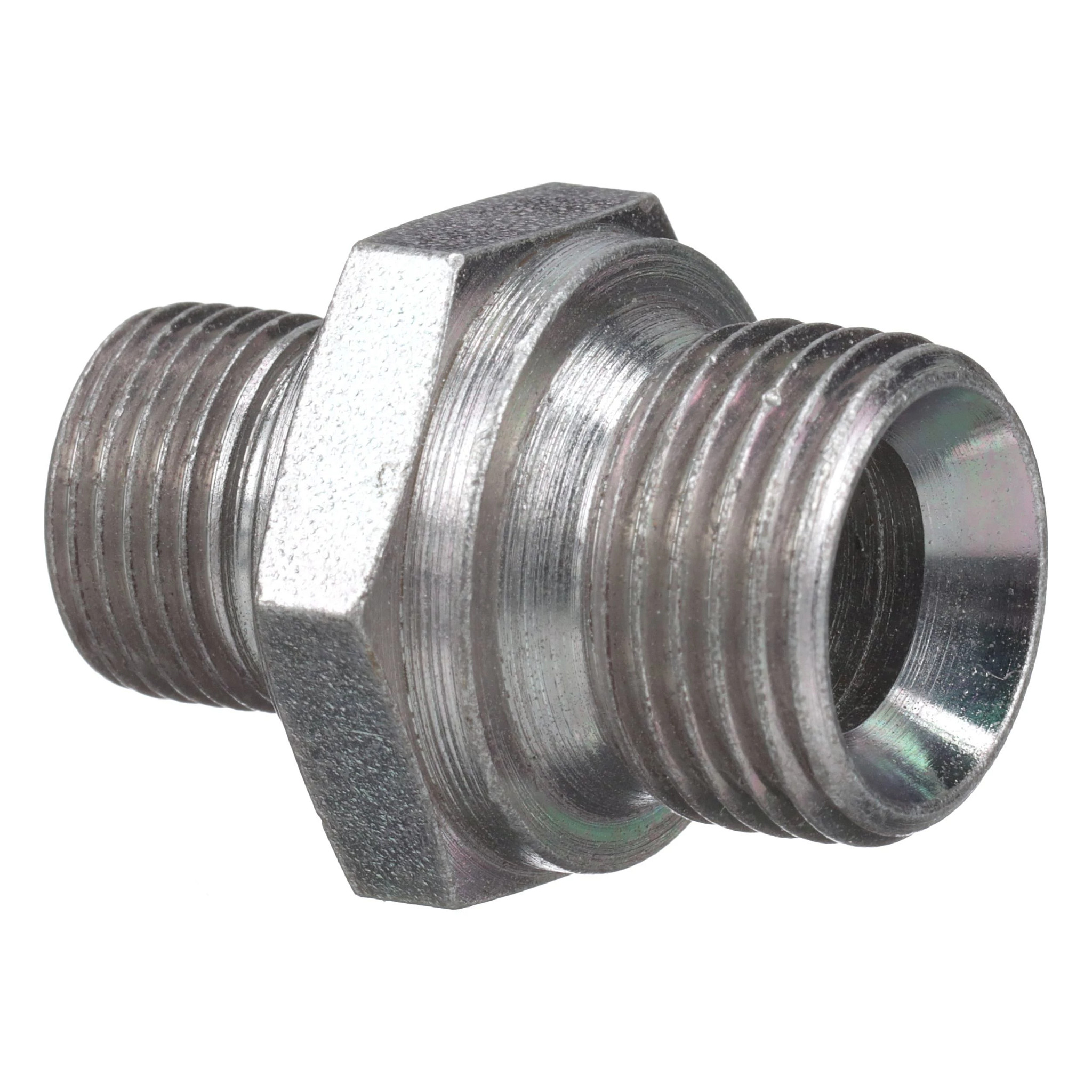

    ADAPTER R 1/2'' x R 3/8''; Adapter, R1/2''-R3/8''
  • 9
    2
    48172070
    ADAPTER G 1/2''; Adapter G 1/2''
  • 10
    1
    48172146
    BLOCK Tilt; Block Tilt;A new releif valve - LDR60063491 with 250 BAR pressure setting has been introduced becuase of this the tilt block has also changed from 48172146 to LDR60063745.
  • 11
    1
    48172147
    VALVE Tilt; Relief valve cpl
  • 12
    1
    48172148
    SEAL KIT; Seal kit
  • 13
    1
    48172074
    BLOCK Lift; Block cpl, Lift
  • 14
    1
    48172321
    BLOCK; Block Lift
  • 15
    6
    48172087
    SEALING WASHER Tredo 18;
  • 16
    2
    48171178
    ADAPTER R 1/2'' x R 3/8'';
  • 17
    4
    48172070
    ADAPTER G 1/2''; Adapter, G 1/2''
  • 18
    1
    LDR60063491
    VALVE RELIEF VALVE 250 BAR; Relief Valve;A new releif valve - LDR60063491 with 250 BAR pressure setting has been introduced becuase of this the tilt block has also changed from 48172146 to LDR60063745.
Select All

Select

Ref.

1

Qty

1

Availability

Part #

48172154

Description

VALVE MSL; CVU Basic, MSL


Alts

Select

Ref.

2

Qty

1

Availability

Part #

48172327

Description

BRACKET; Bracket; (Prod Date) Up to 01-May-2019


Alts

Select

Ref.

2

Qty

1

Availability

Part #

LDR60037851

Description

BRACKET; Bracket; (Prod Date) From 01-May-2019


Alts

Select

Ref.

3

Qty

4

Availability

Part #

120103

Description

BOLT M8 x 1.25 x 16mm, Cl 8.8; Screw MC6S M8x14 (8.8)


Alts

Select

Ref.

4

Qty

1

Availability

Part #

48172144

Description

BLOCK Tilt; Block cpl


Alts

Select

Ref.

5

Qty

1

Availability

Part #

48172074

Description

BLOCK Lift; Block cpl, Lift


Alts

Select

Ref.

6

Qty

1

Availability

Part #

48172144

Description

BLOCK Tilt; Block cpl Tilt


Alts

Select

Ref.

7

Qty

6

Availability

Part #

48172087

Description

SEALING WASHER Tredo 18; Dowty washer Tredo 18


Alts

Select

Ref.

8

Qty

4

Availability

Part #

48171178

Description

ADAPTER R 1/2'' x R 3/8''; Adapter, R1/2''-R3/8''


Alts

Select

Ref.

9

Qty

2

Availability

Part #

48172070

Description

ADAPTER G 1/2''; Adapter G 1/2''


Alts

Select

Ref.

10

Qty

1

Availability

Part #

48172146

Description

BLOCK Tilt; Block Tilt;A new releif valve - LDR60063491 with 250 BAR pressure setting has been introduced becuase of this the tilt block has also changed from 48172146 to LDR60063745.


Alts

Select

Ref.

11

Qty

1

Availability

Part #

48172147

Description

VALVE Tilt; Relief valve cpl


Alts

Select

Ref.

12

Qty

1

Availability

Part #

48172148

Description

SEAL KIT; Seal kit


Alts

Select

Ref.

13

Qty

1

Availability

Part #

48172074

Description

BLOCK Lift; Block cpl, Lift


Alts

Select

Ref.

14

Qty

1

Availability

Part #

48172321

Description

BLOCK; Block Lift


Alts

Select

Ref.

15

Qty

6

Availability

Part #

48172087

Description

SEALING WASHER Tredo 18;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

48171178

Description

ADAPTER R 1/2'' x R 3/8'';


Alts

Select

Ref.

17

Qty

4

Availability

Part #

48172070

Description

ADAPTER G 1/2''; Adapter, G 1/2''


Alts

Select

Ref.

18

Qty

1

Availability

Part #

LDR60063491

Description

VALVE RELIEF VALVE 250 BAR; Relief Valve;A new releif valve - LDR60063491 with 250 BAR pressure setting has been introduced becuase of this the tilt block has also changed from 48172146 to LDR60063745.


Alts
