003 - HYDRAULICS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87369135
    HYD TUBE 12.7mm OD x 980mm L; Bucket Cylinder Base End, Includes: Ref. 24 & 25
  • 2
    1
    87369134

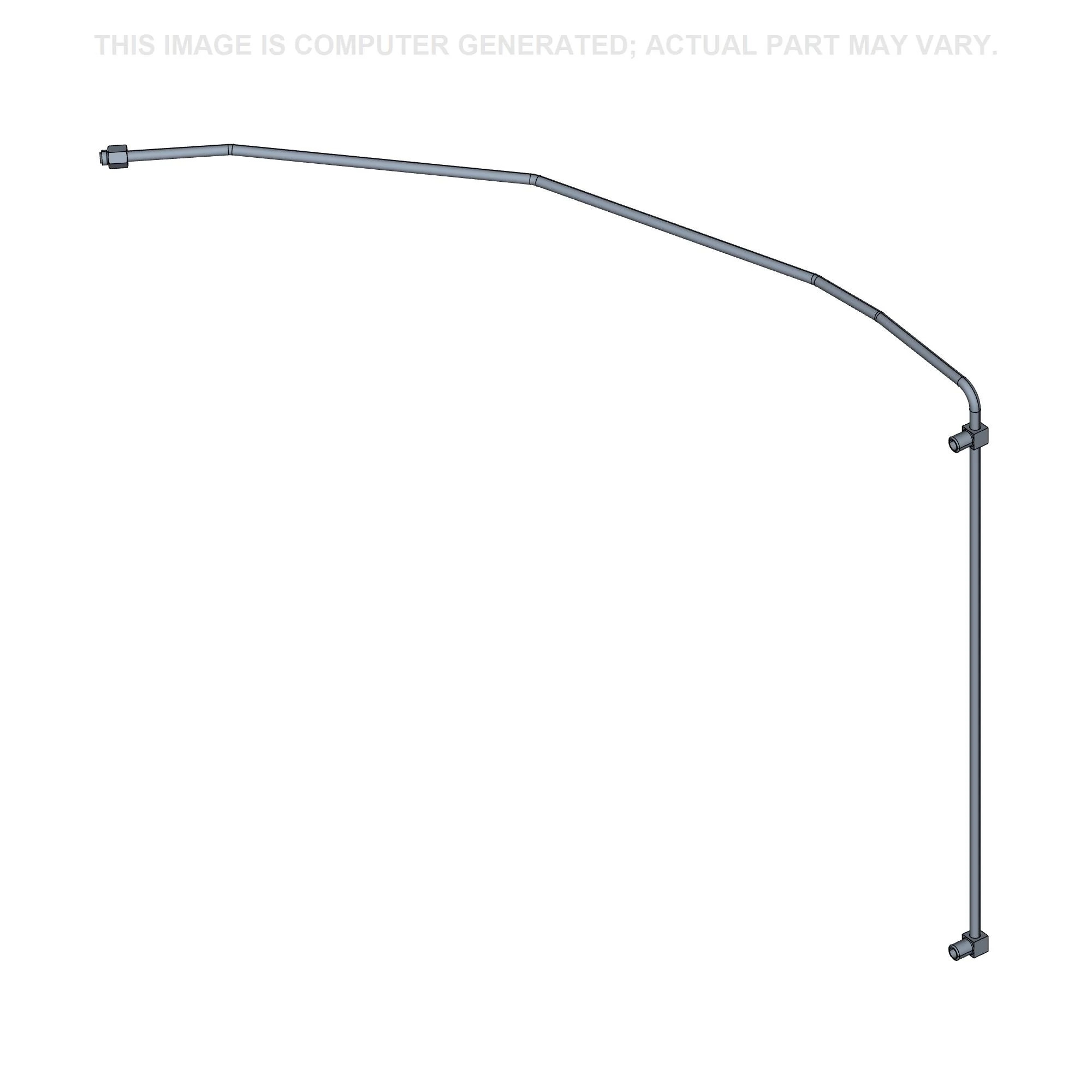

    HYD TUBE 12.7mm OD x 970mm L; Lift Cylinder Base End, Includes: Ref. 24 & 25
  • 3
    4
    9846344
    QUICK MALE COUPLING 3/8'' NPTF; Hydraulic 3/8'', NPTF
  • 4
    1
    86597751
    DUST CAP 23mm OD x 255mm L; Blue
  • 5
    1
    86597750
    DUST CAP 23mm OD x 255mm L; Red
  • 6
    1
    86597752
    DUST CAP 23mm OD x 255mm L; Green
  • 7
    1
    86597753
    DUST CAP 23mm OD x 255mm L; Yellow
  • 8
    10
    323597
    CABLE TIE 165mm OAL x 9mm Thk; CABLE STRAP
  • 9
    2
    9637692
    NUT 3/8'' - 16, Gr B;
  • 10
    2
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 11
    2
    86580556

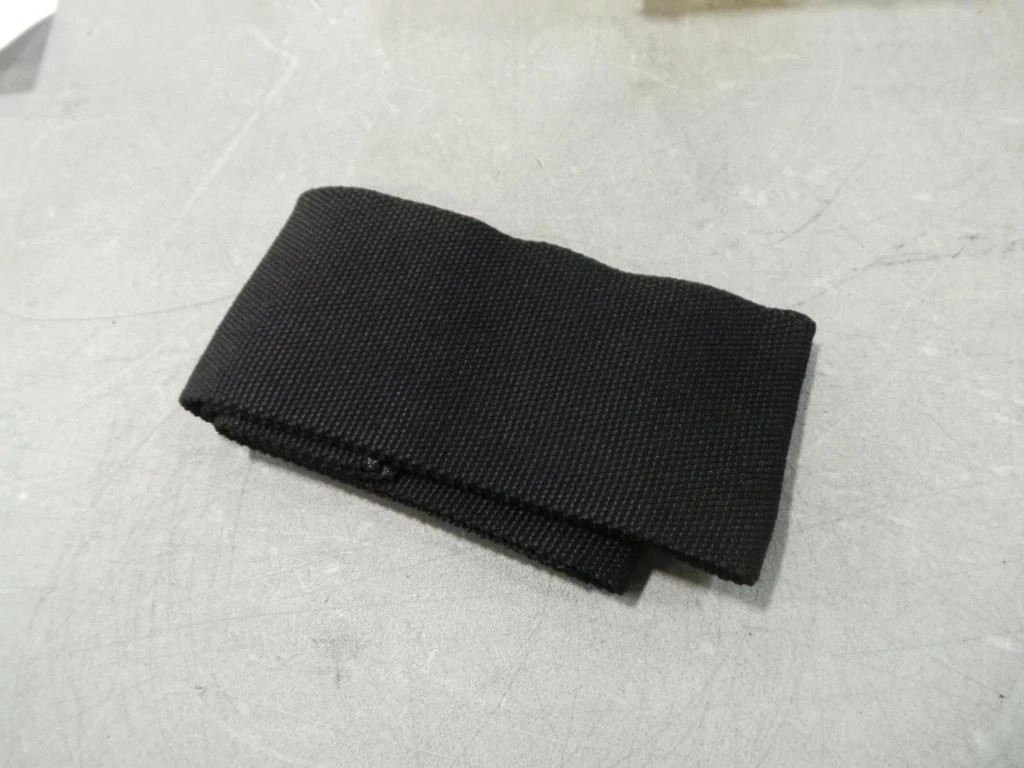

    PROTECTING COVER;
  • 12
    2
    86571694
    CLAMP;
  • 13
    2
    765394
    PAD 19.8mm ID x 31.8mm W x 101.6mm L;
  • 14
    2
    87515944

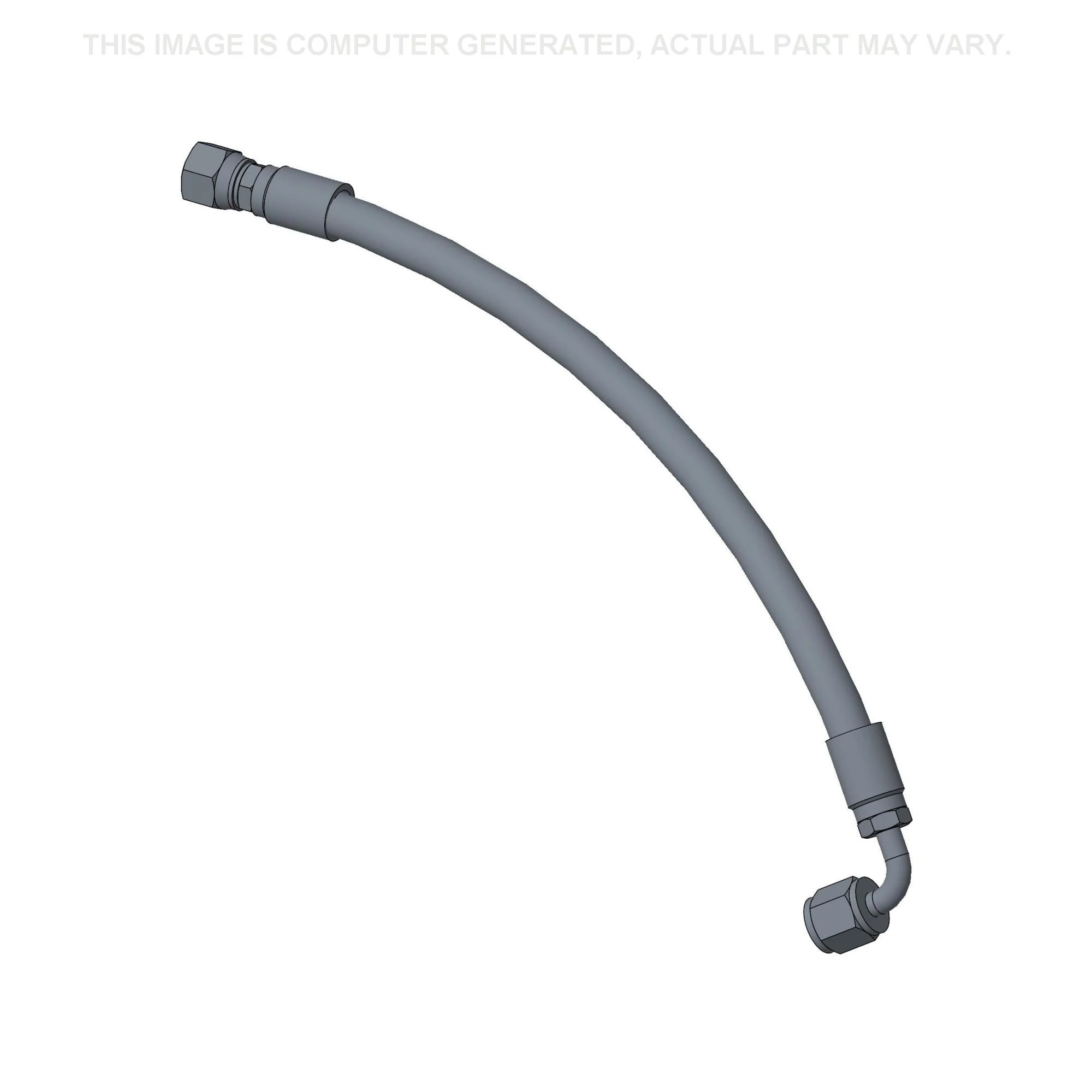

    HOSE 9.53mm ID x 825.5mm L, SAE 100R17; Bucket Cylinder Base End
  • 15
    2
    87515946

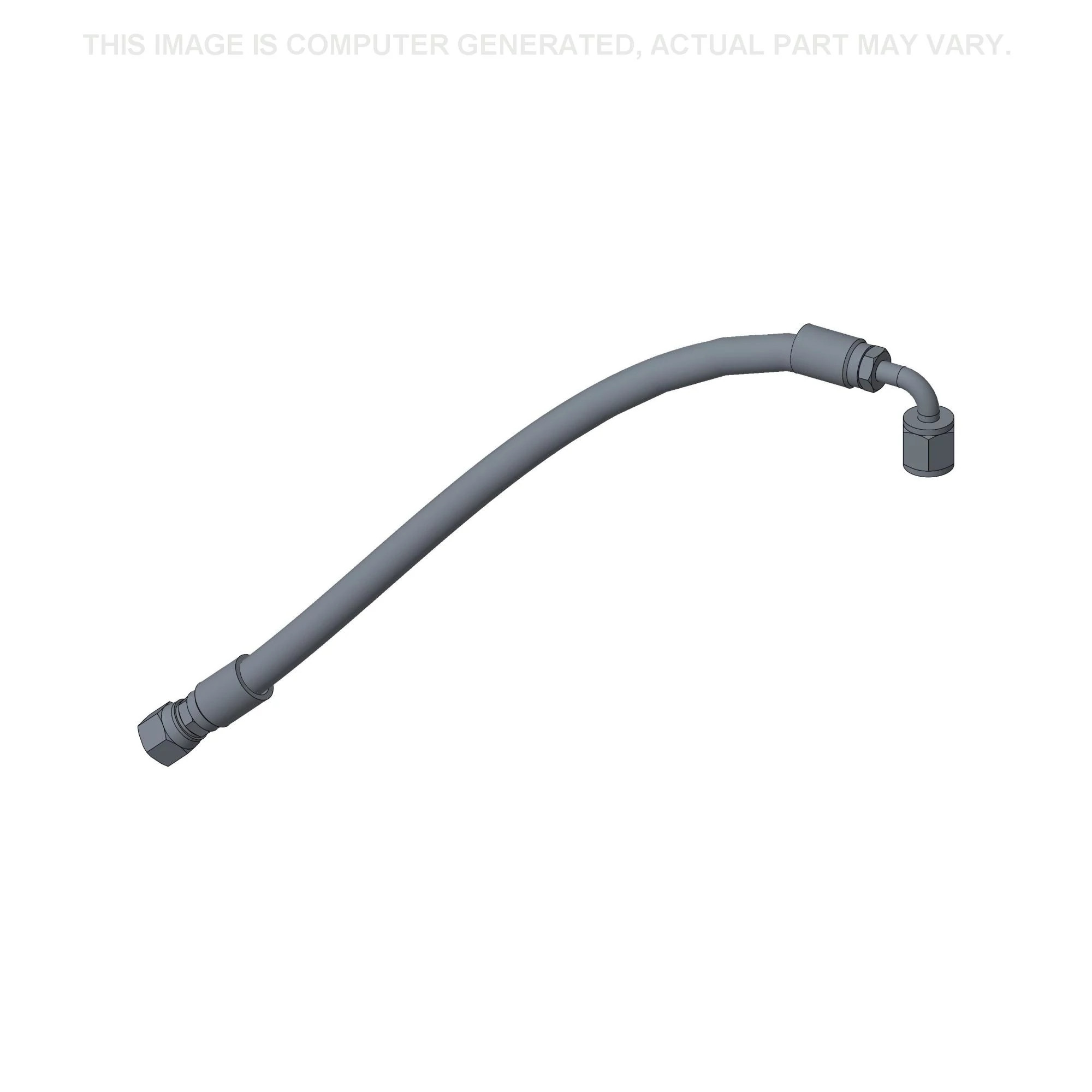

    HOSE 9.53mm ID x 647.7mm L, SAE 100R17; Bucket Cylinder Rod End
  • 16
    2
    87515947
    HOSE 9.52mm ID x 1117.6mm L; Lift Cylinder Base End
  • 17
    2
    87515948

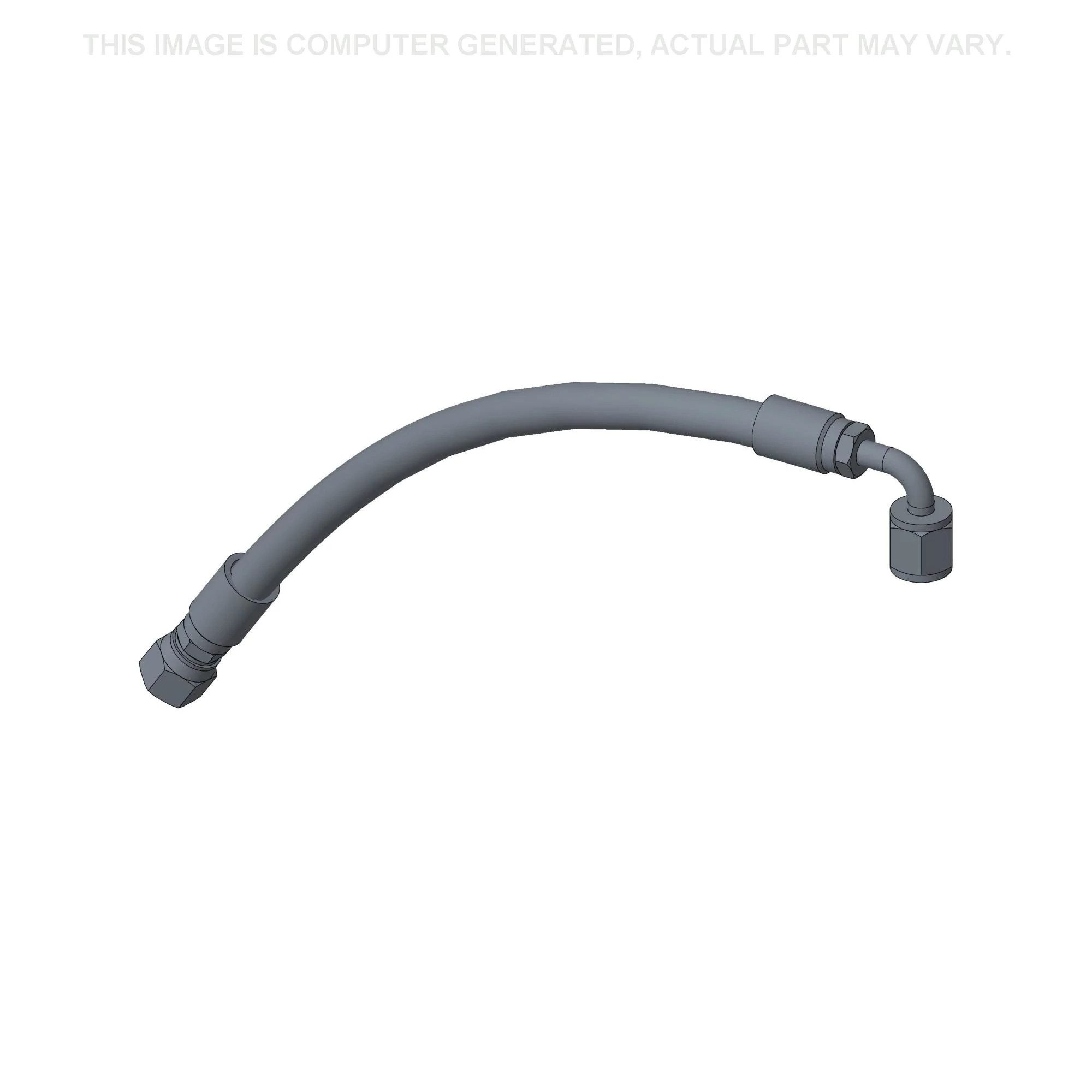

    HOSE 9.52mm ID x 569.9mm L; Lift Cylinder Rod End
  • 18
    4
    86594270

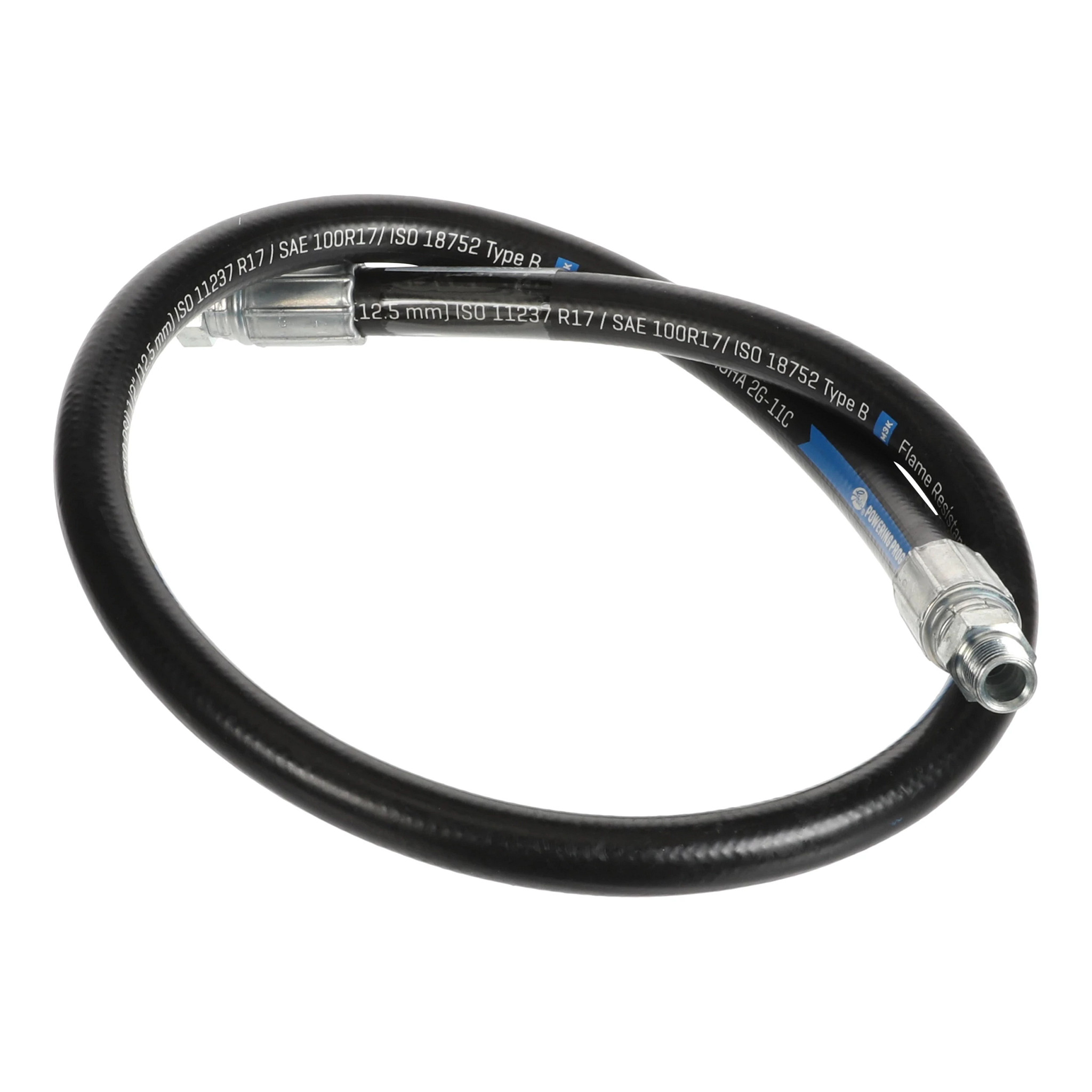

    HYDRAULIC HOSE 12.7mm ID x 1143mm L, SAE 100R17;
  • 19
    2
    87399664

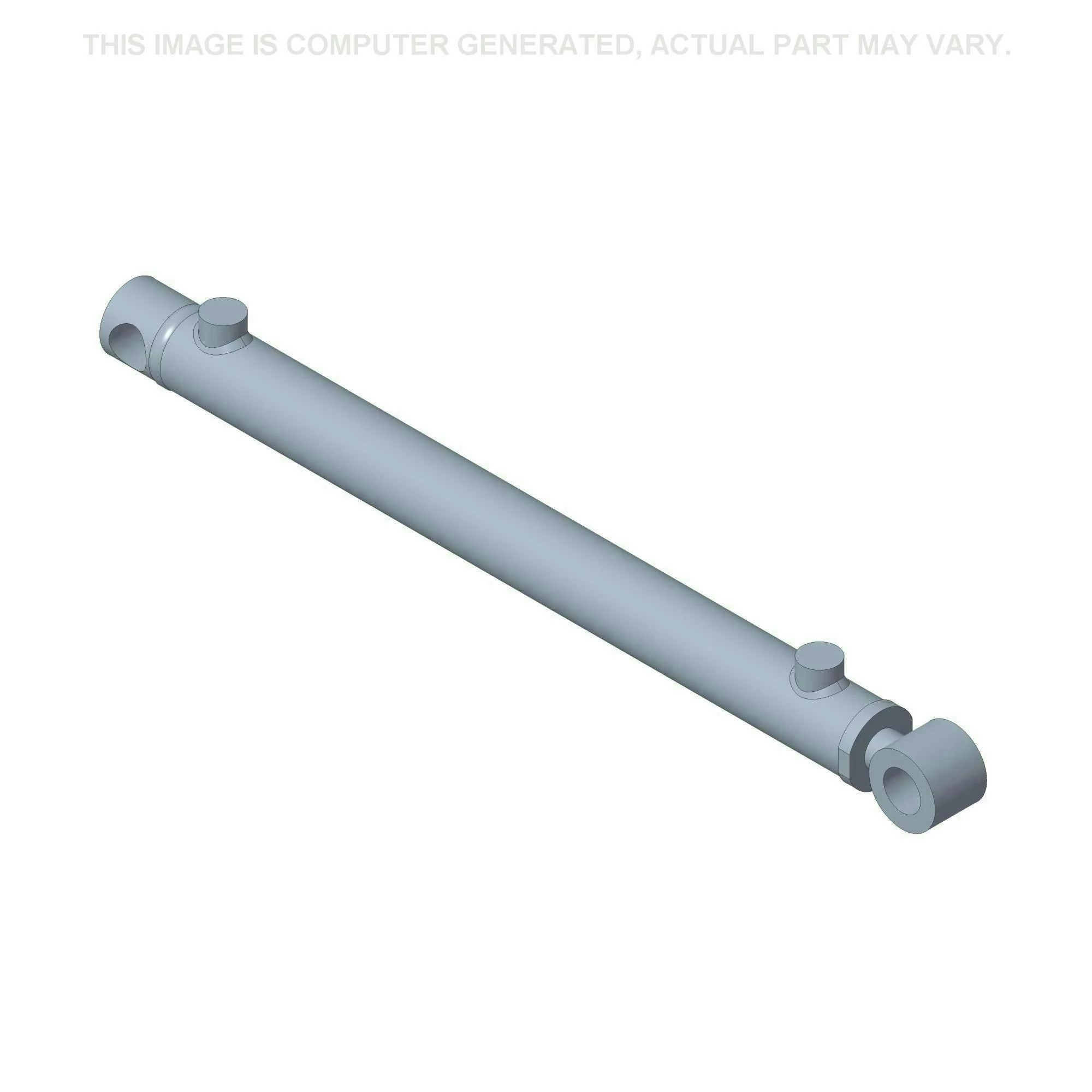

    HYDRAULIC CYLINDER Double Acting, 28.57mm Rod, 484mm Stroke; Bucket
  • 20
    2
    87399665

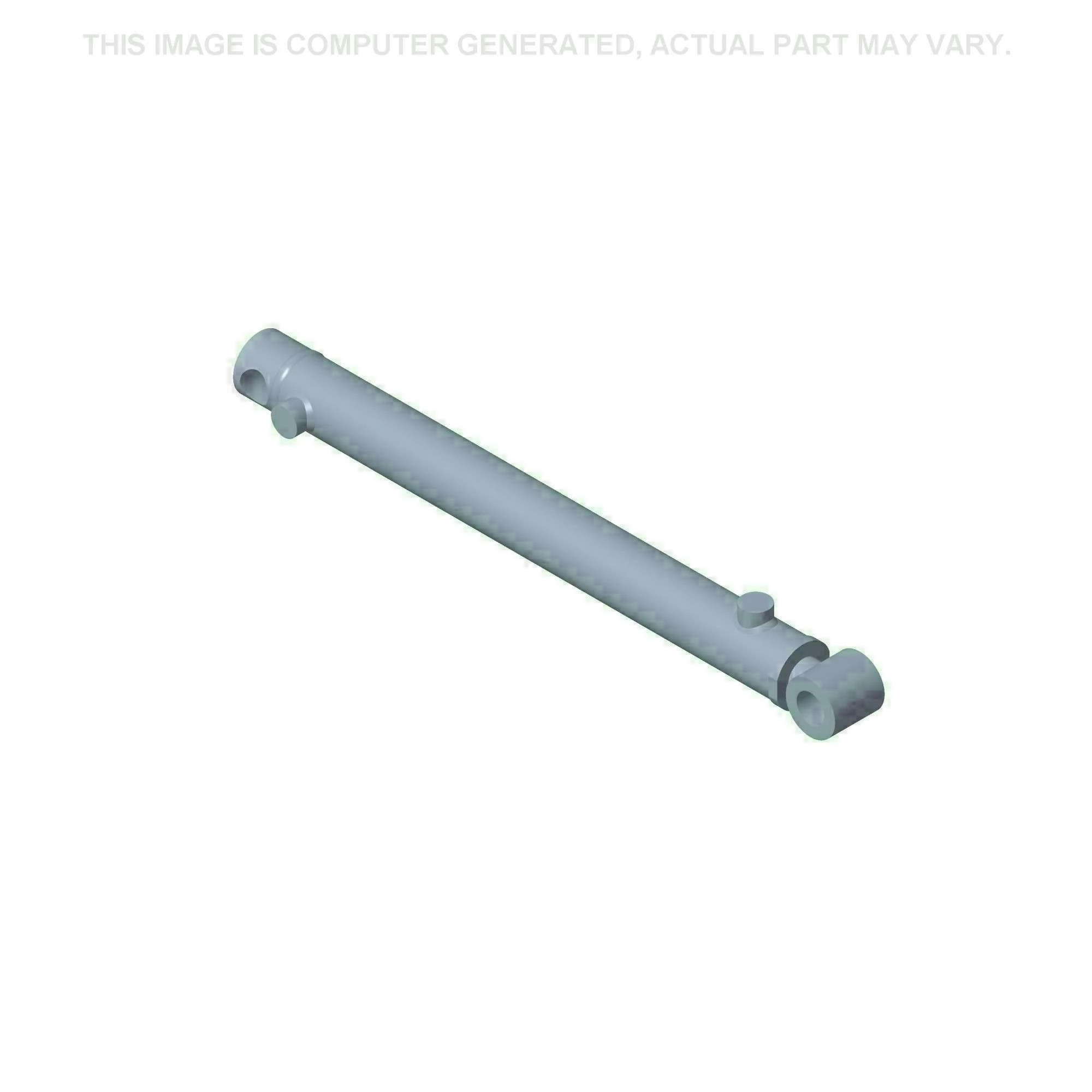

    HYDRAULIC CYLINDER Double Acting, 34.92mm Rod, 464.3mm Stroke; Lift
  • 21
    1
    87369137

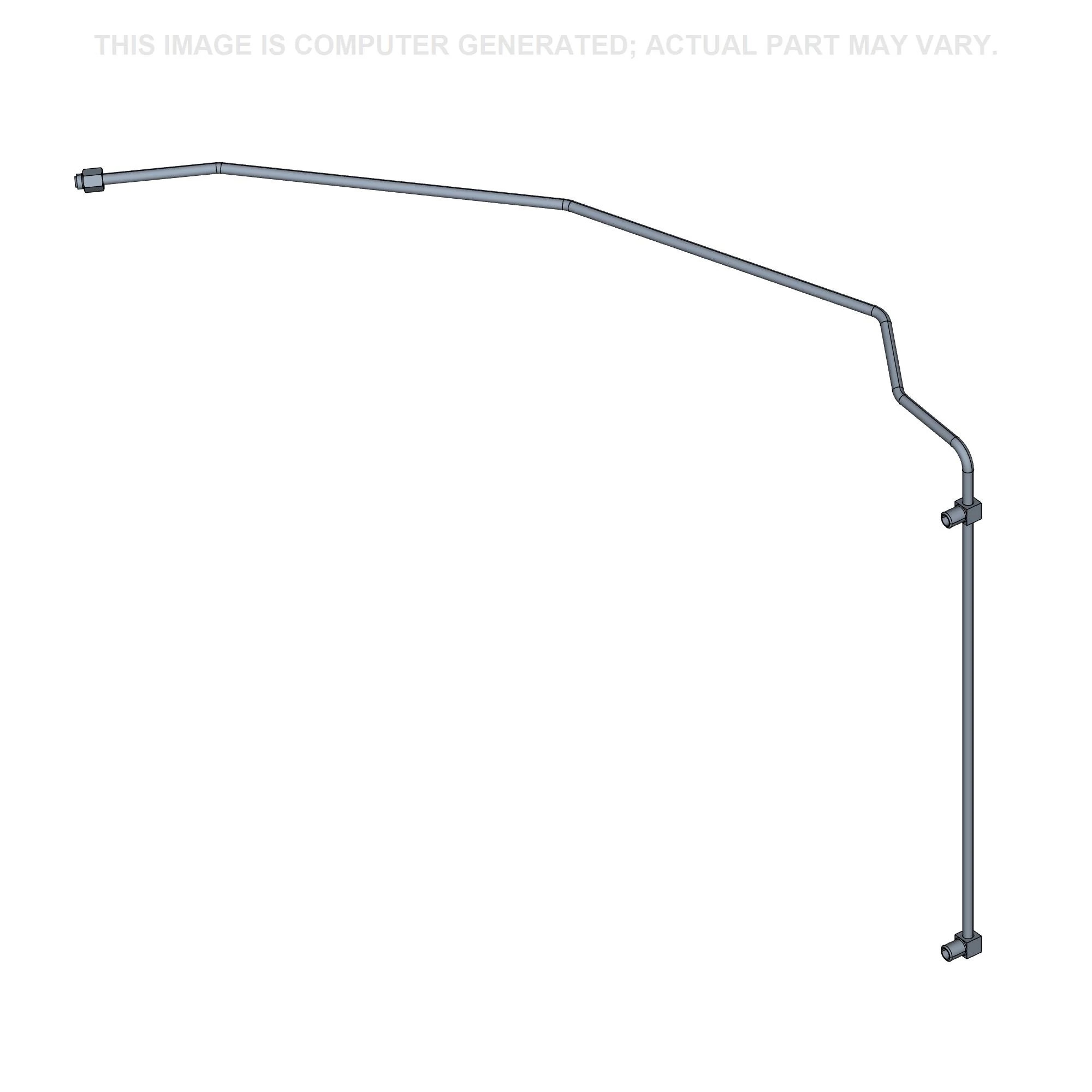

    HYD TUBE 12.7mm OD x 978mm L; Lift Cylinder Base End, Includes: Ref. 24 & 25
  • 22
    1
    87369136

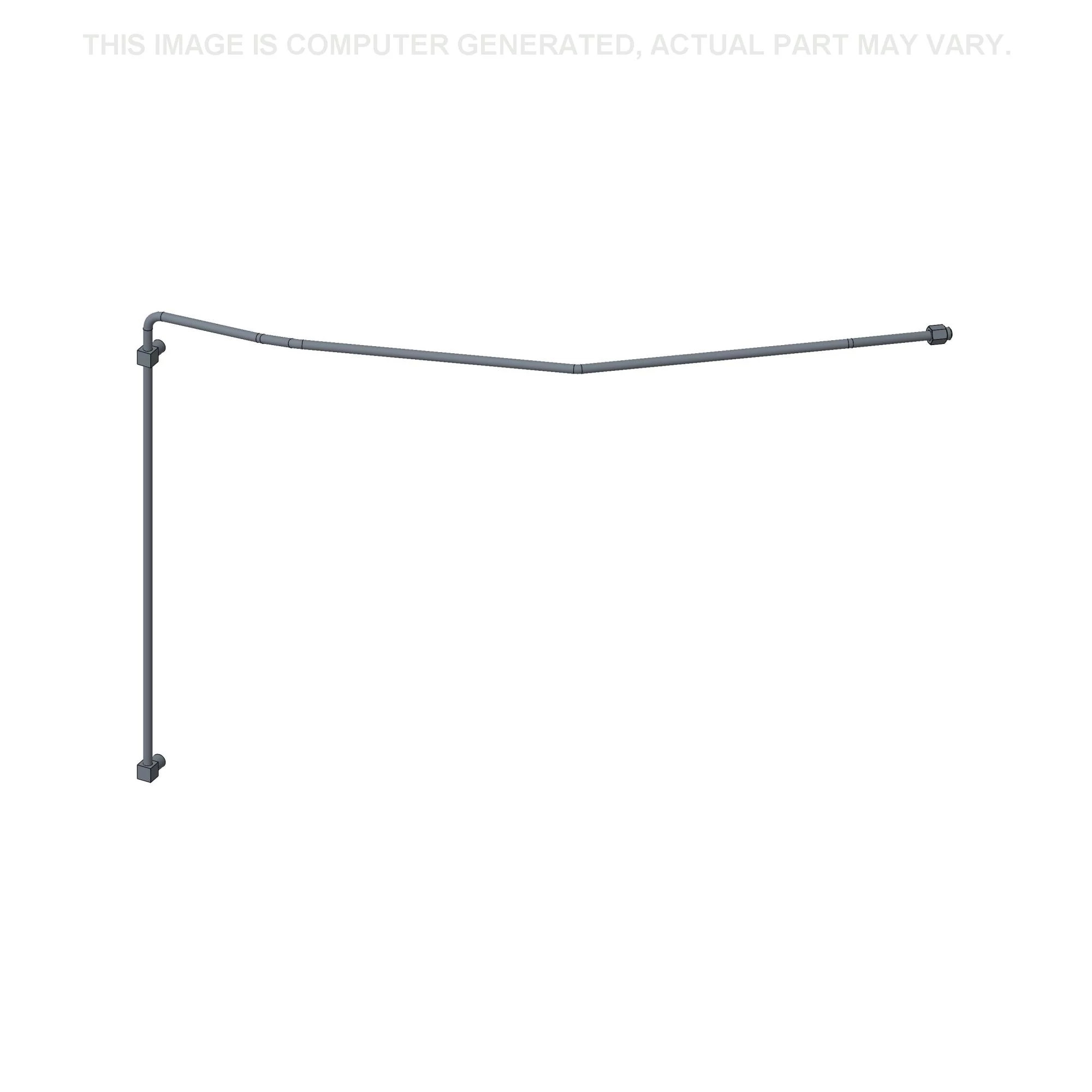

    HYD TUBE 12.7mm OD x 970mm L; Bucket Cylinder Rod End, Includes: Ref. 24 & 25
  • 23
    2
    625822
    CLAMP 1/2'' Tube;
  • 24
    2
    86509354
    PLATE 9/32'' ID x 3/4'' W x 2'' L;
  • 25
    4
    87497919
    SELF-TAP SCREW 1/4'' x 1.75'' L;
  • 26
    2
    86603118
    PUSH-ON NUT 1/2'' OD x 5/64'' Thk;
  • 27
    8
    128825
    O-RING 0.087in Thk x 0.644in ID, -908, Cl 6, 90 Duro; Not Illustrated
  • 28
    8
    128830
    90 ELBOW 90 DEGREE, 3/4'' - 16 JIC x 3/4'' - 16 ORB; Incl. Ref. 23
  • 29
    4
    129428
    TUBE NUT 37 Degree, 3/4''-16, Type B; Not Illustrated
  • 30
    4
    235671
    SLEEVE 37 Degree, 1/2'' Tube; Not Illustrated
