10-008 - FRONT GEAR COVER (DIESEL)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    J903794
    COVER; gear, front
  • 2
    1
    NSS
    NOT SOLD SEPARAT; SEAL oil, crankshaft front, order Ref. 30
  • 3
    1
    J914385
    GASKET 1.02mm Thk; front cover
  • 4
    1
    J920758
    HOUSING; timing gear
  • 5
    1
    J916131
    GASKET; gear housing
  • 6
    11
    845-8050

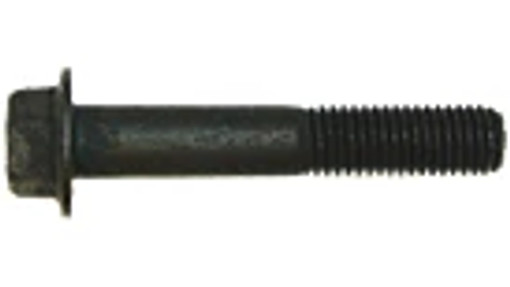

    BOLT Hvy Hex, M8 x 50mm, Cl 8.8;
  • 7
    16
    845-8016
    BOLT Hvy Hex, M8 x 16mm, Cl 8.8;
  • 10
    2
    J900257

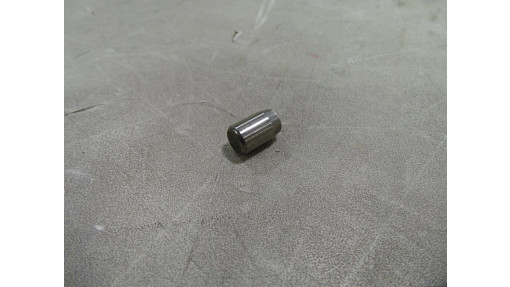

    PIN 10.01mm OD x 16mm L; dowel, locating
  • 11
    1
    J919683
    HOUSING; timing pin
  • 12
    1
    J915772

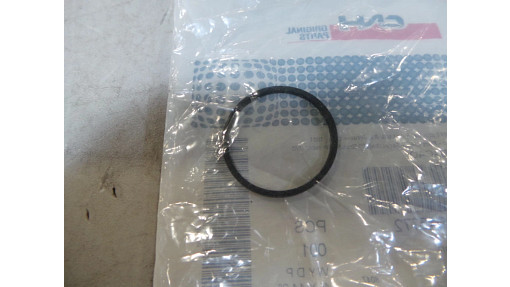

    SEAL Square, 1.68mm Thk x 29.87mm ID, -25; SEALRING Rectangular
  • 13
    2
    J907998
    SCREW M5 x 0.8 x 17mm, Cl 8.8;
  • 14
    1
    J903924

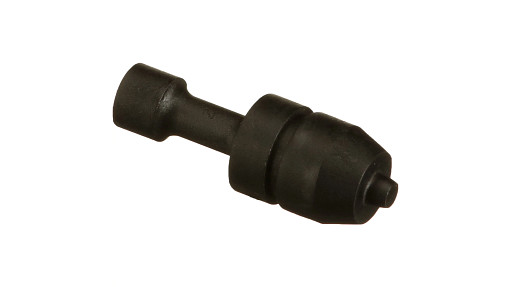

    PIN 18.87mm OD x 55mm L; timing
  • 15
    1
    J913994
    O-RING; sealing
  • 16
    1
    J904849
    SNAP RING 0.875'', Int, #87; Timing pin
  • 17
    1
    J914868
    COVER; PLATE accessory drive
  • 18
    1
    J919601
    GASKET; cover plate
  • 19
    2
    854-12025

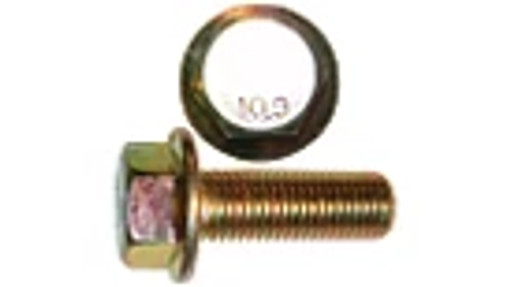

    BOLT Hvy Hex, M12 x 25mm, Cl 10.9;
  • 25
    1
    J903463

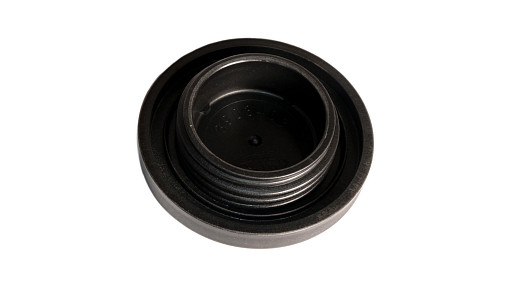

    PLUG M63 x 5; drive hole, tachometer
  • 26
    1
    J903475
    SEALING RING 72.39mm ID x 90.39mm OD x 9mm Thk; cover
  • 30
    1
    J904353

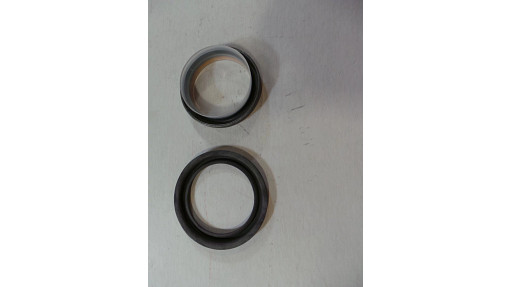

    GASKET KIT 63.5mm ID x 79.62mm OD x 8mm W; seal, oil, crankshaft front
  • 31
    1
    NSS
    NOT SOLD SEPARAT; SEAL oil, crankshaft front
  • 32
    1
    NSS
    NOT SOLD SEPARAT; TOOL seal installation
  • 33
    1
    NSS
    NOT SOLD SEPARAT; TOOL seal installation
  • 34
    1
    J912772
    RETAINER; bolt
  • 35
    1
    845-8060
    BOLT Hvy Hex, M8 x 60mm, Cl 8.8;
