717130026 - DOUBLE WINDRO... 00 - COMPLETE MACHINE 004 - HYDRAULIC SYSTEM
004 - HYDRAULIC SYSTEM
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    76347
    ELBOW 90 Degree, 9/16'' - 18 JIC x 3/4'' - 16 ORB;
  • 2
    1
    87585801
    HOSE;
  • 3
    1
    87585805
    HOSE;
  • 4
    1
    270191
    ORIFICE;
  • 5
    1
    87678179
    HYDRAULIC CYLINDER Double Acting, 28.7mm Rod, 304.8mm Stroke; Hydraulic, Lift Arm, 2.5'' x 12'' x 1.13'' Breakdown, see Fig. 012(2)
  • 6
    1
    216328
    BUMPER;
  • 7
    1
    80754
    COTTER PIN 3/16'' OD x 1-1/2'' OAL;
  • 8
    1
    511935
    PIN 25.4mm OD x 98.43mm L;
  • 9
    1
    87664319
    CHANNEL; Includes: Ref. 34
  • 10
    1
    86521553
    FLANGE BOLT Hex, 5/16'' - 18 x 1'', Gr 5;
  • 11
    1
    600427
    CLAMP 25.4mm, Coat, 8.7mm Bolt Hole, P Type;
  • 12
    1
    86521605
    FLANGE NUT 5/16'' - 18, Gr 5;
  • 13
    1
    87446825
    TEE; Connect to Propel Charge Pump Outlet Port ''D''
  • 14
    3
    263117
    CABLE TIE 292.1mm L, Nylon, Black; CABLE STRAP
  • 16
    2
    87381
    WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk;
  • 15
    1
    87585813
    HYDRAULIC HOSE 12.70 mm ID x 1473.00 mm, SAE 100R16; (Prod Date) From 01-Aug-2010
  • 17
    1
    87585700
    HOSE;
  • 18
    1
    76344
    90 ELBOW 9/16'' - 18 JIC x 9/16'' - 18 ORB;
  • 19
    2
    705914
    ORIFICE;
  • 20
    1
    87034589
    CYLINDER Double Acting, 19.05mm Rod, 101.6mm Stroke; Hydraulic, Side Deflector
  • 20
    1
    84246073
    CYLINDER Double Acting, 19.05mm Rod, 101.6mm Stroke; Hydraulic, Side Deflector; (Prod Date) From 01-Oct-2010
  • 21
    2
    86634564
    PIN;
  • 22
    4
    87398
    COTTER PIN 3/16'' OD x 1-1/4'' OAL;
  • 23
    3
    76350
    HYD CONNECTOR 9/16'' - 18 ORB x 9/16'' - 18 JIC;
  • 24
    1
    87585812
    HYDRAULIC HOSE 6.35 mm ID x 2057.00 mm, SAE 100R16;
  • 25
    1
    129274
    TEE 9/16'' - 18 JIC x 9/16'' - 18 JIC x 9/16'' - 18 JIC; Connect to Main Manifold Port ''P3''
  • 26
    1
    81827427
    HYD CONNECTOR 3/4'' - 16 JIC x 3/4'' - 16 ORB;
  • 27
    1
    87046143
    SLEEVE;
  • 28
    2
    87585813
    HYDRAULIC HOSE 12.70 mm ID x 1473.00 mm, SAE 100R16; (Prod Date) Up to 01-Aug-2010
  • 28
    1
    87021283
    HYDRAULIC HOSE 0.50'' ID x 71.00'', SAE 100R17; HOSE ASSY.; (Prod Date) From 01-Aug-2010
  • 29
    2
    9617891
    90 ELBOW 3/4'' - 16 JIC x 7/8'' - 14 ORB;

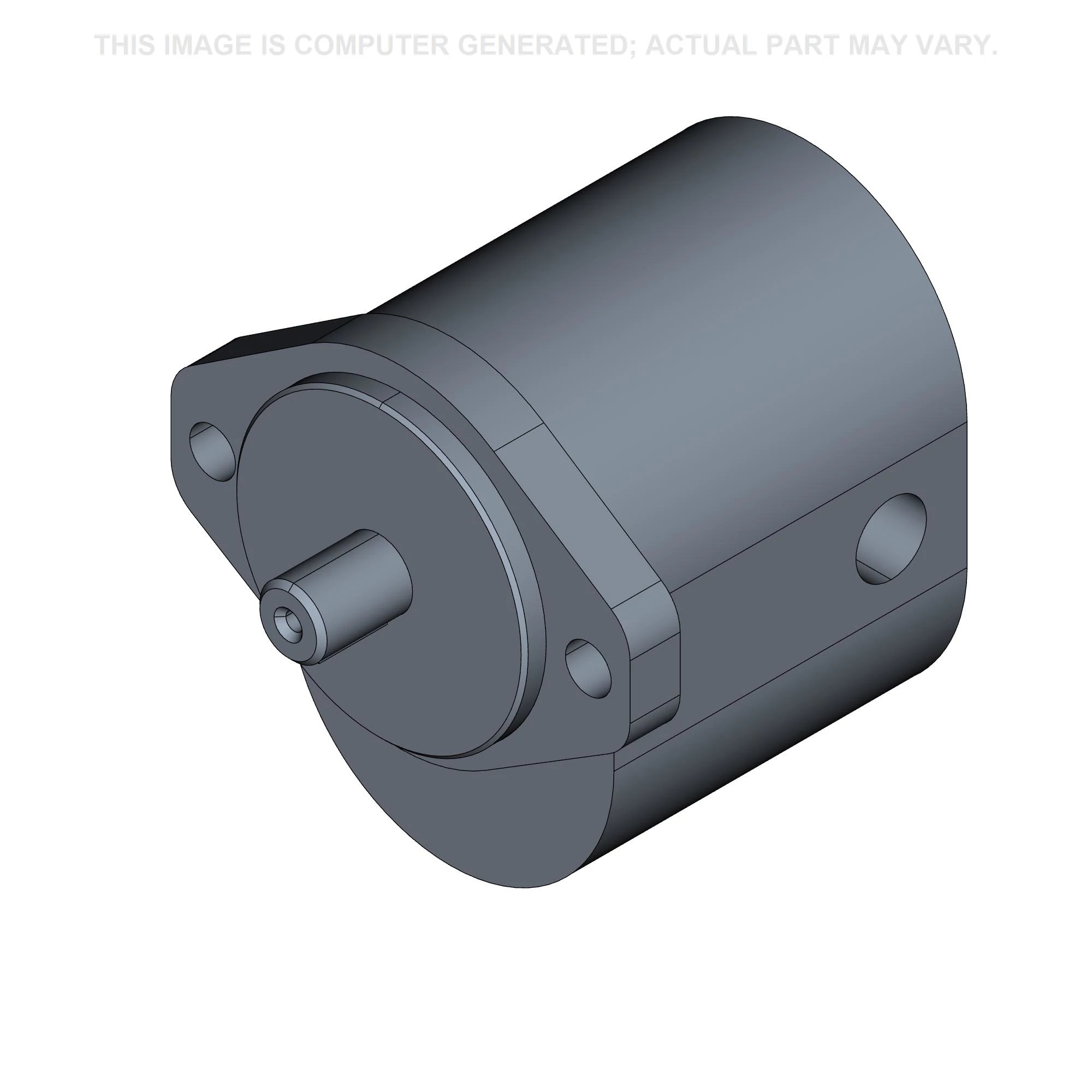

  • 30
    1
    87499864
    HYDRAULIC MOTOR;
  • 30A
    1
    87042713
    SEAL KIT; Services 87499864;Not Illustrated
  • 34
    1
    87651623
    DECAL; DANGER
  • 35
    1
    80756
    COTTER PIN 1/8'' x 3/4'';

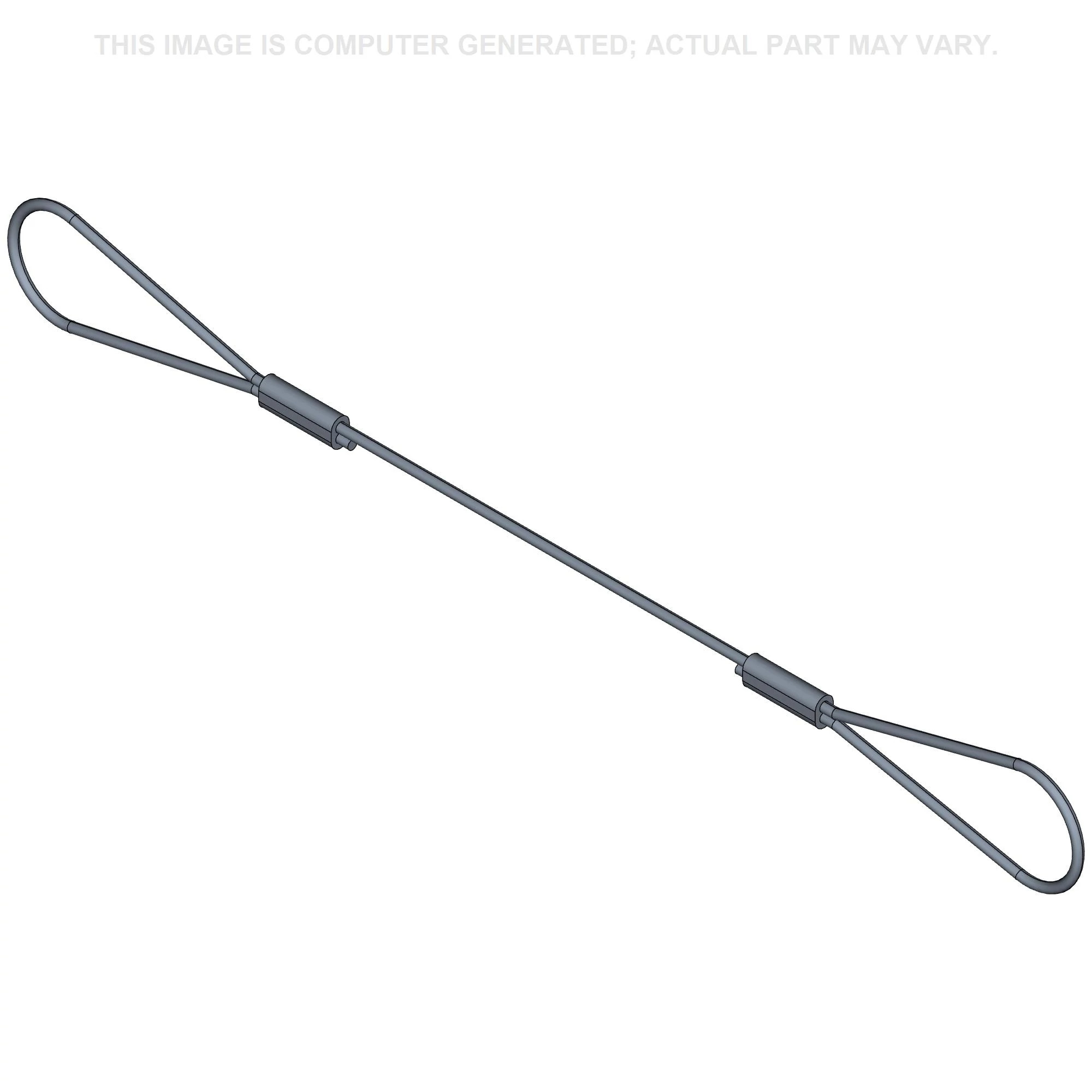

  • 36
    1
    9847357
    CABLE 5 1/2'' L;
  • 37
    1
    86591354
    LOCK PIN;
  • 38
    1
    86624131
    TEE 37 Degree, 1 1/16''-12, 1 5/16''-12 O-Ring Run, 1 1/16''-12;
  • 39
    1
    86624011
    ELBOW 90 Degree, 3/4''-16, 37 Degree x 1 1/16''-12, 37 Degree Fem Sw;
