Ref.
Qty
Part #
Alts
Description
-
11SOLE; stub type inner shoe, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A-1, 100, 130 and 140 tractors
-
11SOLE; divider type inner shoe, Farmall H, M, MD, super H, M, MD, 230, 240, 300, 340, 350, 400, 450, 450, 560 and 706 tractors
-
1CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT W/NUT, 1/2 x 1-1/2 in. crg
-
1BOLT (SPREADER); BOLT W/NUT, 1/2 x 1-1/4 in. mach
-
3LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
1WASHER; 17/32 x 1-1/2 in. x 11 ga
-
21ROD; inner shoe upper grass, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A1, 100, 130 and 140 tractors
-
21ROD; inner shoe upper grass, Farmall, H, M, MD, super H, M, MD, 230, 240, 300, 350, 400, 450, 460, 560 and 706 tractors
-
31ROD; inner shoe lower grass
-
1CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5; BOLT, 1/2 x 1-3/4 in. crg
-
1LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
1WASHER; 17/32 x 1-1/2 in. x 11 ga flat
-
1NUT 1/2''-13, G5;
-
41PLATE; LEDGER PLATE, inner shoe
-
51SHOE; ASSY, inner, will work for 458962R1
-
1SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2 in. hex-hd cap
-
2SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 in. hex-hd cap
-
3WASHER;
-
61BAR; SPACER, cutter bar, not used with 9 ft. bar
-
71PLATE; LEDGER PLATE, plain serrated, 18 for 5 ft. 25 for 7 ft. 33 for 9 ft.
-
1RIVET; 3/16 x 1-3/8 in., 74 degree csk-hd, use w/heavy guard and forged guard, 1960, 1962, 18 ft. for 5 ft, 27 for 7 ft and 34 for 9 ft.
-
1RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 in., 74 degree csk-hd semi-tubular, 1963, one pound package, 18 for 5 ft., 25 for 7 ft and 34 for 9 ft.
-
71CUTTER BAR; LEDGER PLATE, cr-pltd serrated, 22 for 6 ft. 25 for 7 ft.
-
1RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 in., 74 degree, csk-hd semi-tubular, 1963, 22 for 6 ft., 25 for 7 ft., one pound package
-
81GUARD; GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 18 for 5 ft., 24 for 7 ft., and 32 for 9 ft.
-
81GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged, 26 for 7 ft.
-
81GUARD; W/CR-PLTD SERRATED LEDGER PLATE 457608R1, heavy, 22 for 6 ft., 24 for 7 ft.
-
81GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged, 26 for 7 ft.
-
81GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. guard spacing, 26 for 7 ft.
-
9ARSUPPORT; HOLDER, low arch knife
-
101GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer, 1 used for 5 ft., 7 ft. and 9 ft.
-
101GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer, 1 used for 6 ft. and 7 ft.
-
101GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged outer, 1 used for 7 ft.
-
111PLATE; LEDGER PLATE, outer shoe serrated
-
121SHOE; W/LEDGER PLATE, outer
-
2BOLT AND NUT; BOLT W/NUT, outer shoe
-
2LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
131ROD ASSY.; ROD ASSEMBLY, outer shoe grass, not used with 5 ft. bar
-
141CLAMP; outer shoe grass rod, not used with 5 ft. bar
-
1BOLT Hex, 3/8'' - 16 x 1 1/2''; W/NUT, 3/8 x 1-1/2 in. mach
-
1COTTER PIN; PIN, 1/4 x 3/4 in. cotter
-
1LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
151COMPRESSION SPRING; grass rod tension, not used with 5 ft. bar
-
1BOLT; 1/2 x 3 in. sq-hd mach
-
1NUT; 1/2 in. hex-hd lock
-
1WASHER; 17/32 x 1-1/4 x 16 ga
-
161SOLE; W/BRACKET, outer shoe
-
171BOLT AND NUT; W/NUT, outer shoe sole
-
181CLAMP; HOLDER, high arch knife
-
191PLATE ASSY.; WEARING PLATE, 5 for 5 ft. 6 for 6 ft. 7 for 7 ft. and 9 for 9 ft
-
201KNIFE SECTION; SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333
-
1RIVET; no. 6 x 17/32 pln o/hds, 47 for 7 ft. 64 for 9 ft., one pound package
-
201KNIFE SECTION; SECTION, cr-pltd underserrated, 27 for 7 ft.
-
1RIVET; no. 6 x 5/8 pln o/hd, 47, two pound package
-
201KNIFE SECTION; SECTION, smooth, 27 for 7 ft., 35 for 9 ft., replaces MB333
-
1RIVET; no. 6 x 5/8 pln o/hd, 49 for 7 ft., 65 for 9 ft., two pound package
-
201KNIFE SECTION; SECTION, smooth, heavy, 19 for 5 ft., 23 for 6 ft., 27 for 7 ft., and 35 for 9 ft., replaces M3331/2
-
1RIVET; no. 6 x 5/8 pln o/hd, 32 for 5 ft., 39 for 6 ft., 47 for 7 ft., 63 for 9 ft., two pound package
-
201KNIFE SECTION; SECTION, underserrated, heavy, 19 for t ft., 23 for 6 ft., 27 for 7 ft. and 35 for 9 ft., replaces M22831
-
1RIVET; no. 6 x 5/8 pln o/hd, 32 for 5 ft., 29 for 6 ft., 47 for 7 ft. and 63 for 9 ft., two pound package
-
201ASSEMBLY; SECTION, smooth cr-pltd, regular, 27 for 7 ft.
-
201KNIFE SECTION; SECTION, smooth cr-pltd, heavy, 27 for 7 ft., 35 for 9 ft.
-
201KNIFE SECTION; SECTION, underserrated cr-pltd, heavy, 27 for 7 fr. and 35 for 9 ft.
-
1RIVET; no. 6 x 5/8 pln o/hd, 47 for 7 ft. and 64 for 9 ft., two pound package
-
211KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 6 ft.
-
211KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 5 ft.
-
211KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 7 ft.
-
211KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 9 ft.
-
211KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 6 ft.
-
211KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 5 ft.
-
211KNIFE ASSY; KNIFE W/UNDERSERRATED, heavy, sections, 1 used for 7 ft.
-
211KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 9 ft.
-
211KNIFE ASSY; KNIFE W/UNDERSERRATED SECTION, 1 used for 7 ft.
-
211KNIFE; W/PLAIN UNDERSERRATED SECTION, 1 used for 9 ft.
-
211KNIFE ASSY; KNIFE W/SMOOTH PLAIN SECTIONS, 1 used for 7 ft.
-
211KNIFE; W/CR-PLTD UNDERSERRATED SECTIONS, 1 used for 7 ft.
-
211KNIFE; W/CR-PLTD SMOOTH, heavy, sections, 1 used for 7 ft.
-
211KNIFE; W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 7 ft.
-
211KNIFE ASSY; KNIFE W/CR-PLTD SMOOTH, regular, sections, 1 used for 7 ft.
-
211KNIFE; W/CR-PLTD SMOOTH, regular, sections, 1 used for 9 ft.
-
211KNIFE; W/CR-PLTD SMOOTH, heavy, sections, 1 used for 9 ft.
-
211KNIFE; W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 9 ft.
-
221BAR; cutter, 1 used for 6 ft.
-
221BAR; cutter, 1 used for 5 ft.
-
221BAR; cutter, 1 used for 7 ft.
-
221BAR; cutter, 1 used for 9 ft.
-
1BOLT AND NUT; BOLT W/NUT, short guard, 9 for 5 ft., 11 for 6 ft., 13 for 7 ft., and 17 for 9 ft.
-
1PLOW BOLT 7/16'' - 14 x 1 5/8'', Gr 5; BOLT, long guard, 10 for 5 ft., 12 for 6 ft., 14 for 7 ft., and 18 for 9 ft.
-
1NO LONGER SERVICED; 7/16 pln type 5, 1 per bolt
-
231BRONZE BUSHING 25.43mm ID x 28.63mm OD x 35.18mm L; BUSHING, knife head
-
241PLUG; knife head
-
251PITMAN; HEAD ASSY, knife, replaces 462378R11 and 458969R11
-
26ARSHIM; inner shoe, .005
-
271CLAMP; CLIP, grass rod
-
281SOLE; outer shoe, used on M2612X only, 1 used for 5 ft.
-
1BOLT; W/NUT, outer shoe sole, 1 used for 5 ft.
-
291KNIFE SECTION; SECTION W/RIVETS, smooth, regular, triplet end, cr-pltd
-
291VALVE; SECTION W/RIVET, smooth, heavy, triplet end, cr-pltd
-
291KNIFE SECTION; SECTION W/RIVETS, underserrated, heavy, triplet end, cr-pltd
-
291KNIFE SECTION; SECTION W/RIVETS, underserrated, regular, triplet end, cr-pltd
-
ARRIVET; no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound package
-
301GAUGE; guard lip
-
311HOLDER; double windrower guard knife, 6 for 7 ft.
-
321GUARD; standard, double steel windrower knife, 1960-1965, 12 for 7 ft., 16 for 9 ft.;Double heat treated guard part number is 187346A1.
-
321GUARD; standard, forged steel double knife, 1966, 12 for 7 ft., 16 for 9 ft.;Double heat treated guard part number is 187346A1.
-
331GUARD; single steel stub, 27 for 7 ft., 3 for 7 ft. double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guards
-
1BOLT; W/NUT, 7/16 x 1-21/32 no. 3 plow, 26 or 2 for 7 ft., for 472717R1 guard
-
1BOLT; W/NUT, 7/16 x 1-9/16 no. 3 plow, for 613838R1 guard, 12 for 7 ft.
-
341SHIELD; inner shoe
-
1LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lock
-
1WASHER; 15/32 x 1 in. 11 ga
-
351SHIM; spacer, or as required
Select All
Select
Ref.
1Qty
1Availability
Part #
462743R1Description
SOLE; stub type inner shoe, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A-1, 100, 130 and 140 tractorsImg
Alts
Select
Ref.
1Qty
1Availability
Part #
458966R1Description
SOLE; divider type inner shoe, Farmall H, M, MD, super H, M, MD, 230, 240, 300, 340, 350, 400, 450, 450, 560 and 706 tractorsImg
Alts
Select
Ref.
Qty
1Availability
Part #
15041R1Description
CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT W/NUT, 1/2 x 1-1/2 in. crgImg
Alts
Select
Ref.
Qty
1Availability
Part #
17448R1Description
BOLT (SPREADER); BOLT W/NUT, 1/2 x 1-1/4 in. machImg
Alts
Select
Ref.
Qty
3Availability
Part #
103323Description
LOCK WASHER 1/2''; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
2Qty
1Availability
Part #
463405R1Description
ROD; inner shoe upper grass, International super A, super A1, 100, 130, 140, 240, 300, 330, 340, 350, 404, 2404, 2404 Lo Boy, 424, 2424, 2424 Lo Boy, 460 and B-275 tractors also Farmall super A, super A1, 100, 130 and 140 tractorsImg
Alts
Select
Ref.
2Qty
1Availability
Part #
463404R1Description
ROD; inner shoe upper grass, Farmall, H, M, MD, super H, M, MD, 230, 240, 300, 350, 400, 450, 460, 560 and 706 tractorsImg
Alts
Select
Ref.
Qty
1Availability
Part #
88530Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5; BOLT, 1/2 x 1-3/4 in. crgImg
Alts
Select
Ref.
Qty
1Availability
Part #
103323Description
LOCK WASHER 1/2''; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
76730HDescription
WASHER; 17/32 x 1-1/2 in. x 11 ga flatImg
Alts
Select
Ref.
4Qty
1Availability
Part #

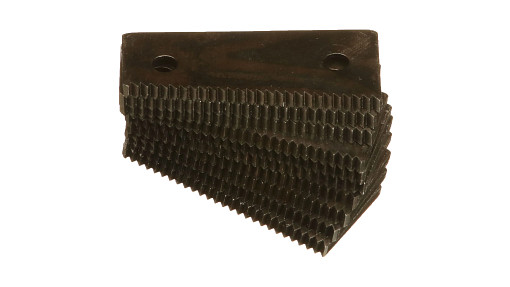

458965R1Description
PLATE; LEDGER PLATE, inner shoeImg
Alts
Select
Ref.
5Qty
1Availability
Part #
486934R91Description
SHOE; ASSY, inner, will work for 458962R1Img
Alts
Select
Ref.
Qty
1Availability
Part #
21371R1Description
SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2 in. hex-hd capImg
Alts
Select
Ref.
Qty
2Availability
Part #
21398R1Description
SCREW; W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 in. hex-hd capImg
Alts
Select
Ref.
6Qty
1Availability
Part #
458942R1Description
BAR; SPACER, cutter bar, not used with 9 ft. barImg
Alts
Select
Ref.
7Qty
1Availability
Part #
455634R1Description
PLATE; LEDGER PLATE, plain serrated, 18 for 5 ft. 25 for 7 ft. 33 for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
14022R1Description
RIVET; 3/16 x 1-3/8 in., 74 degree csk-hd, use w/heavy guard and forged guard, 1960, 1962, 18 ft. for 5 ft, 27 for 7 ft and 34 for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
407039R91Description
RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 in., 74 degree csk-hd semi-tubular, 1963, one pound package, 18 for 5 ft., 25 for 7 ft and 34 for 9 ft.Img
Alts
Select
Ref.
7Qty
1Availability
Part #
457608R1Description
CUTTER BAR; LEDGER PLATE, cr-pltd serrated, 22 for 6 ft. 25 for 7 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
407039R91Description
RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 in., 74 degree, csk-hd semi-tubular, 1963, 22 for 6 ft., 25 for 7 ft., one pound packageImg
Alts
Select
Ref.
8Qty
1Availability
Part #
MC2041ZDescription
GUARD; GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 18 for 5 ft., 24 for 7 ft., and 32 for 9 ft.Img
Alts
Select
Ref.
8Qty
1Availability
Part #
457676R21Description
GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged, 26 for 7 ft.Img
Alts
Select
Ref.
8Qty
1Availability
Part #
457743R92Description
GUARD; W/CR-PLTD SERRATED LEDGER PLATE 457608R1, heavy, 22 for 6 ft., 24 for 7 ft.Img
Alts
Select
Ref.
8Qty
1Availability
Part #
459184R91Description
GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged, 26 for 7 ft.Img
Alts
Select
Ref.
8Qty
1Availability
Part #
484000R11Description
GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. guard spacing, 26 for 7 ft.Img
Alts
Select
Ref.
10Qty
1Availability
Part #
MC2043ZDescription
GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer, 1 used for 5 ft., 7 ft. and 9 ft.Img
Alts
Select
Ref.
10Qty
1Availability
Part #
457745R92Description
GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer, 1 used for 6 ft. and 7 ft.Img
Alts
Select
Ref.
10Qty
1Availability
Part #
459186R91Description
GUARD; W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged outer, 1 used for 7 ft.Img
Alts
Select
Ref.
11Qty
1Availability
Part #
MA330Description
PLATE; LEDGER PLATE, outer shoe serratedImg
Alts
Select
Ref.
Qty
2Availability
Part #
M805XDescription
BOLT AND NUT; BOLT W/NUT, outer shoeImg
Alts
Select
Ref.
Qty
2Availability
Part #
103322Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
13Qty
1Availability
Part #
463326R12Description
ROD ASSY.; ROD ASSEMBLY, outer shoe grass, not used with 5 ft. barImg
Alts
Select
Ref.
14Qty
1Availability
Part #
458979R1Description
CLAMP; outer shoe grass rod, not used with 5 ft. barImg
Alts
Select
Ref.
Qty
1Availability
Part #
17471R1Description
BOLT Hex, 3/8'' - 16 x 1 1/2''; W/NUT, 3/8 x 1-1/2 in. machImg
Alts
Select
Ref.
Qty
1Availability
Part #
103417Description
COTTER PIN; PIN, 1/4 x 3/4 in. cotterImg
Alts
Select
Ref.
Qty
1Availability
Part #
103321Description
LOCK WASHER 3/8''; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
15Qty
1Availability
Part #
M1015Description
COMPRESSION SPRING; grass rod tension, not used with 5 ft. barImg
Alts
Select
Ref.
17Qty
1Availability
Part #
D266XDescription
BOLT AND NUT; W/NUT, outer shoe soleImg
Alts
Select
Ref.
19Qty
1Availability
Part #
MC468Description
PLATE ASSY.; WEARING PLATE, 5 for 5 ft. 6 for 6 ft. 7 for 7 ft. and 9 for 9 ftImg
Alts
Select
Ref.
20Qty
1Availability
Part #
826723C1Description
KNIFE SECTION; SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333Img
Alts
Select
Ref.
Qty
1Availability
Part #
990817R91Description
RIVET; no. 6 x 17/32 pln o/hds, 47 for 7 ft. 64 for 9 ft., one pound packageImg
Alts
Select
Ref.
20Qty
1Availability
Part #
457606R2Description
KNIFE SECTION; SECTION, cr-pltd underserrated, 27 for 7 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 47, two pound packageImg
Alts
Select
Ref.
20Qty
1Availability
Part #
826725C1Description
KNIFE SECTION; SECTION, smooth, 27 for 7 ft., 35 for 9 ft., replaces MB333Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 49 for 7 ft., 65 for 9 ft., two pound packageImg
Alts
Select
Ref.
20Qty
1Availability
Part #
826724C1Description
KNIFE SECTION; SECTION, smooth, heavy, 19 for 5 ft., 23 for 6 ft., 27 for 7 ft., and 35 for 9 ft., replaces M3331/2Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 32 for 5 ft., 39 for 6 ft., 47 for 7 ft., 63 for 9 ft., two pound packageImg
Alts
Select
Ref.
20Qty
1Availability
Part #
826722C1Description
KNIFE SECTION; SECTION, underserrated, heavy, 19 for t ft., 23 for 6 ft., 27 for 7 ft. and 35 for 9 ft., replaces M22831Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 32 for 5 ft., 29 for 6 ft., 47 for 7 ft. and 63 for 9 ft., two pound packageImg
Alts
Select
Ref.
20Qty
1Availability
Part #
457604R2Description
ASSEMBLY; SECTION, smooth cr-pltd, regular, 27 for 7 ft.Img
Alts
Select
Ref.
20Qty
1Availability
Part #
457605R2Description
KNIFE SECTION; SECTION, smooth cr-pltd, heavy, 27 for 7 ft., 35 for 9 ft.Img
Alts
Select
Ref.
20Qty
1Availability
Part #
457607R2Description
KNIFE SECTION; SECTION, underserrated cr-pltd, heavy, 27 for 7 fr. and 35 for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 47 for 7 ft. and 64 for 9 ft., two pound packageImg
Alts
Select
Ref.
21Qty
1Availability
Part #
465111R92Description
KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 6 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
463406R92Description
KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 5 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
462381R92Description
KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
463182R92Description
KNIFE; W/SMOOTH PLAIN, heavy, sections, 1 used for 9 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
465112R92Description
KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 6 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
463408R92Description
KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 5 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
462380R92Description
KNIFE ASSY; KNIFE W/UNDERSERRATED, heavy, sections, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
463159R92Description
KNIFE; W/UNDERSERRATED, heavy, sections, 1 used for 9 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
458968R92Description
KNIFE ASSY; KNIFE W/UNDERSERRATED SECTION, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
463180R92Description
KNIFE; W/PLAIN UNDERSERRATED SECTION, 1 used for 9 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
462379R92Description
KNIFE ASSY; KNIFE W/SMOOTH PLAIN SECTIONS, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
460937R92Description
KNIFE; W/CR-PLTD UNDERSERRATED SECTIONS, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
467748R91Description
KNIFE; W/CR-PLTD SMOOTH, heavy, sections, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
467749R91Description
KNIFE; W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
472088R91Description
KNIFE ASSY; KNIFE W/CR-PLTD SMOOTH, regular, sections, 1 used for 7 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
472089R91Description
KNIFE; W/CR-PLTD SMOOTH, regular, sections, 1 used for 9 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
472090R91Description
KNIFE; W/CR-PLTD SMOOTH, heavy, sections, 1 used for 9 ft.Img
Alts
Select
Ref.
21Qty
1Availability
Part #
472091R91Description
KNIFE; W/CR-PLTD UNDERSERRATED, heavy, sections, 1 used for 9 ft.Img
Alts
Select
Ref.
22Qty
1Availability
Part #
465113R1Description
BAR; cutter, 1 used for 6 ft.Img
Alts
Select
Ref.
22Qty
1Availability
Part #
463410R1Description
BAR; cutter, 1 used for 5 ft.Img
Alts
Select
Ref.
22Qty
1Availability
Part #
458974R1Description
BAR; cutter, 1 used for 7 ft.Img
Alts
Select
Ref.
22Qty
1Availability
Part #
463183R2Description
BAR; cutter, 1 used for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
M805XDescription
BOLT AND NUT; BOLT W/NUT, short guard, 9 for 5 ft., 11 for 6 ft., 13 for 7 ft., and 17 for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
Q3596Description
PLOW BOLT 7/16'' - 14 x 1 5/8'', Gr 5; BOLT, long guard, 10 for 5 ft., 12 for 6 ft., 14 for 7 ft., and 18 for 9 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; 7/16 pln type 5, 1 per boltImg
Alts
Select
Ref.
23Qty
1Availability
Part #
458971R1Description
BRONZE BUSHING 25.43mm ID x 28.63mm OD x 35.18mm L; BUSHING, knife headImg
Alts
Select
Ref.
25Qty
1Availability
Part #
56692C91Description

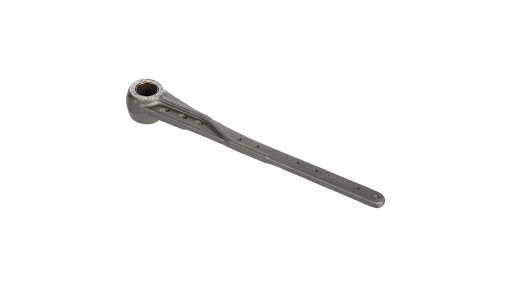

PITMAN; HEAD ASSY, knife, replaces 462378R11 and 458969R11Img
Alts
Select
Ref.
28Qty
1Availability
Part #
M42147Description
SOLE; outer shoe, used on M2612X only, 1 used for 5 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
M806XDescription
BOLT; W/NUT, outer shoe sole, 1 used for 5 ft.Img
Alts
Select
Ref.
29Qty
1Availability
Part #
467457R11Description
KNIFE SECTION; SECTION W/RIVETS, smooth, regular, triplet end, cr-pltdImg
Alts
Select
Ref.
29Qty
1Availability
Part #
467455R11Description
VALVE; SECTION W/RIVET, smooth, heavy, triplet end, cr-pltdImg
Alts
Select
Ref.
29Qty
1Availability
Part #
467456R11Description
KNIFE SECTION; SECTION W/RIVETS, underserrated, heavy, triplet end, cr-pltdImg
Alts
Select
Ref.
29Qty
1Availability
Part #
467458R11Description
KNIFE SECTION; SECTION W/RIVETS, underserrated, regular, triplet end, cr-pltdImg
Alts
Select
Ref.
Qty
ARAvailability
Part #
MB133Description
RIVET; no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound packageImg
Alts
Select
Ref.
31Qty
1Availability
Part #
472720R1Description

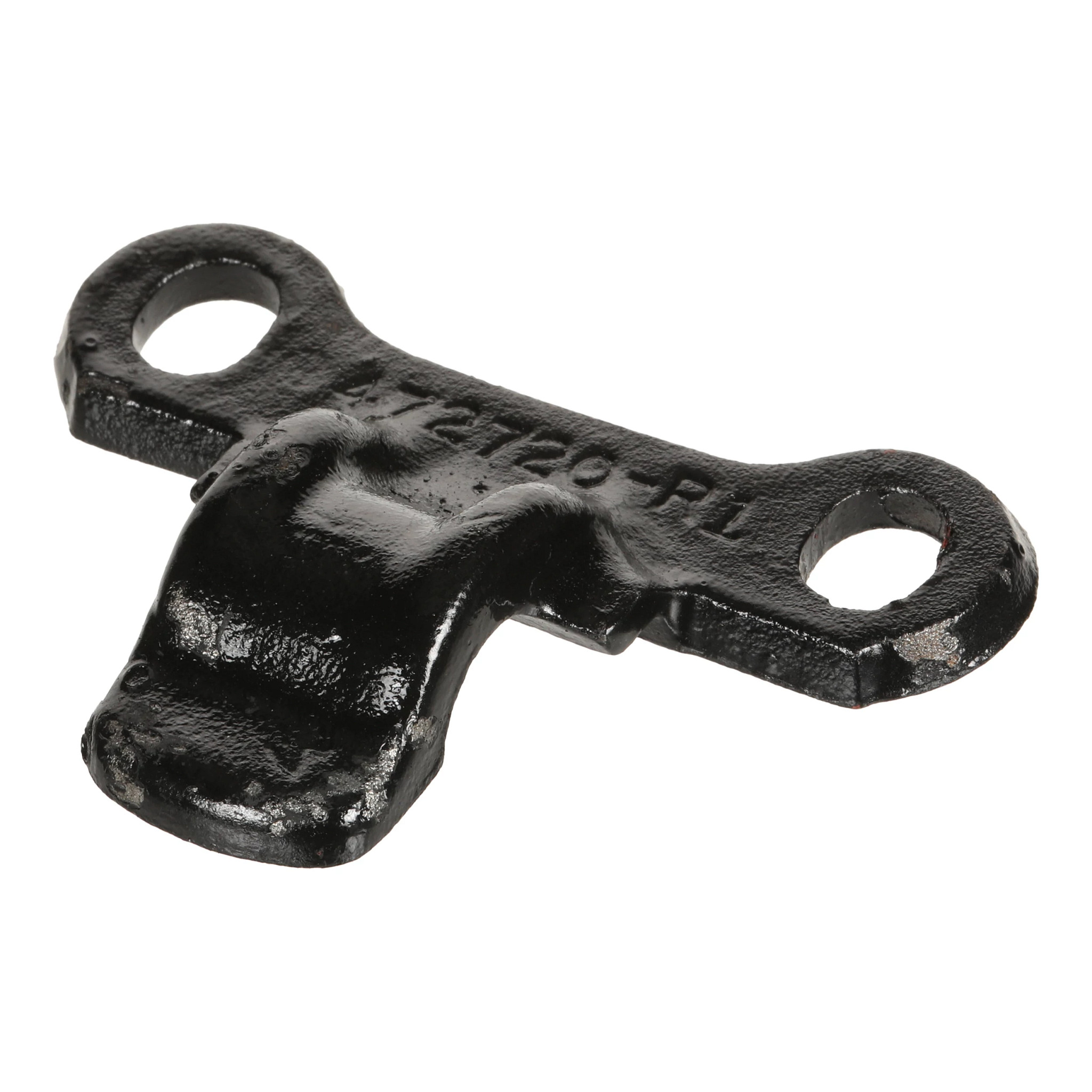

HOLDER; double windrower guard knife, 6 for 7 ft.Img
Alts
Select
Ref.
32Qty
1Availability
Part #
613838R2Description
GUARD; standard, double steel windrower knife, 1960-1965, 12 for 7 ft., 16 for 9 ft.;Double heat treated guard part number is 187346A1.Img
Alts
Select
Ref.
32Qty
1Availability
Part #
483500R3Description
GUARD; standard, forged steel double knife, 1966, 12 for 7 ft., 16 for 9 ft.;Double heat treated guard part number is 187346A1.Img
Alts
Select
Ref.
33Qty
1Availability
Part #
472717R2Description
GUARD; single steel stub, 27 for 7 ft., 3 for 7 ft. double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guardsImg
Alts
Select
Ref.
Qty
1Availability
Part #
Q3596XDescription
BOLT; W/NUT, 7/16 x 1-21/32 no. 3 plow, 26 or 2 for 7 ft., for 472717R1 guardImg
Alts
Select
Ref.
Qty
1Availability
Part #
M806XDescription
BOLT; W/NUT, 7/16 x 1-9/16 no. 3 plow, for 613838R1 guard, 12 for 7 ft.Img
Alts
Select
Ref.
Qty
1Availability
Part #
664646R1Description
LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lockImg
Alts
