TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11GEARBOX; Step Up, Includes: Ref. 2 - 26
-
11REMAN-GEARBOX GEARBOX; Remanufactured GEARBOX
-
11CORE-GEARBOX GEARBOX; Return Number, Gearbox, Step Up
-
21CASTING; Housing
-
32BEARING ASSY 1.375'' ID x 2.875'' OD x 0.9688''; Inner, 1-3/8'' ID x 31/32'' Wide
-
42BEARING CUP; 2-7/8'' OD
-
51RENIFLARD 1/8'' NPT;
-
62GEAR; Spur, 21T
-

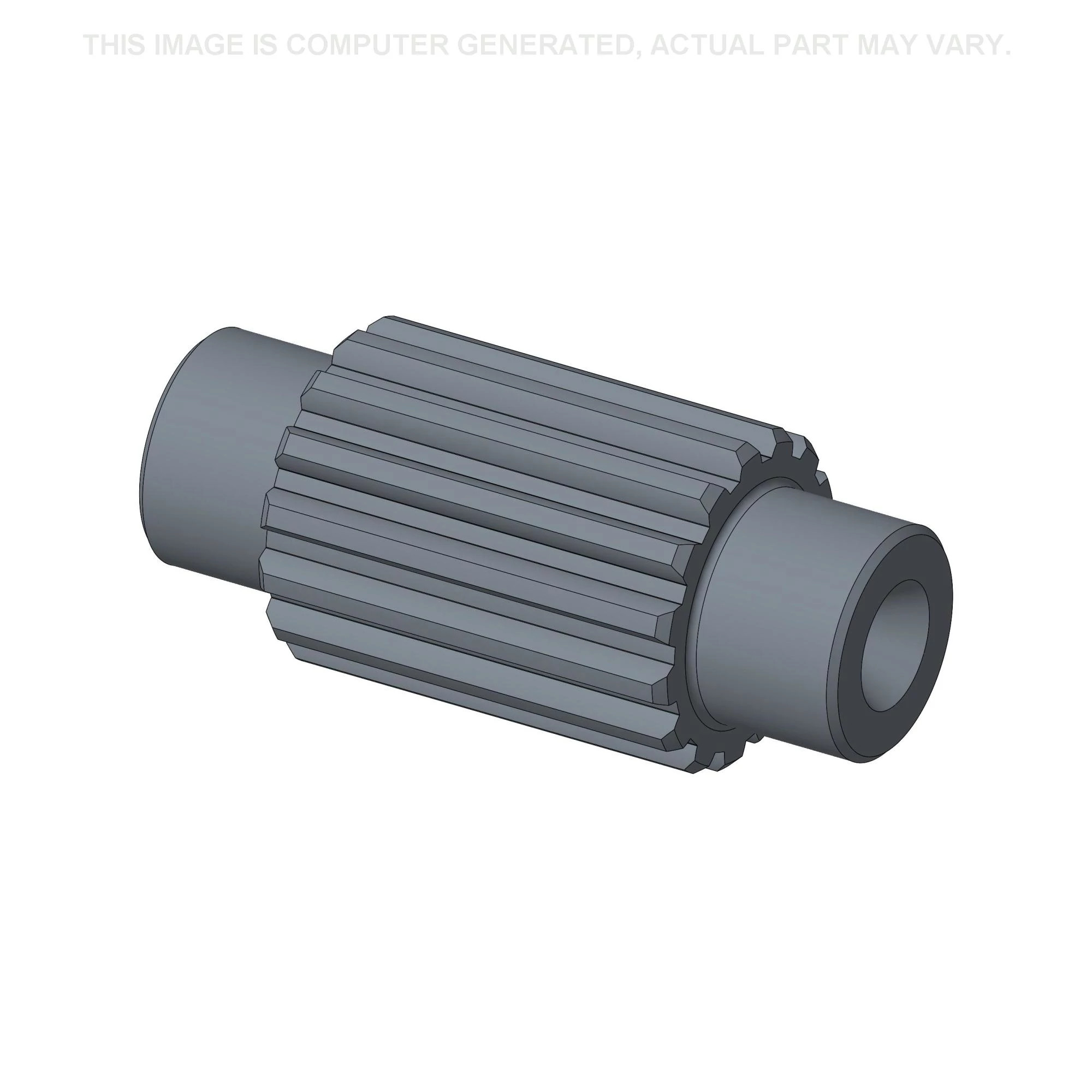

71SHAFT 15 T; Idler
-

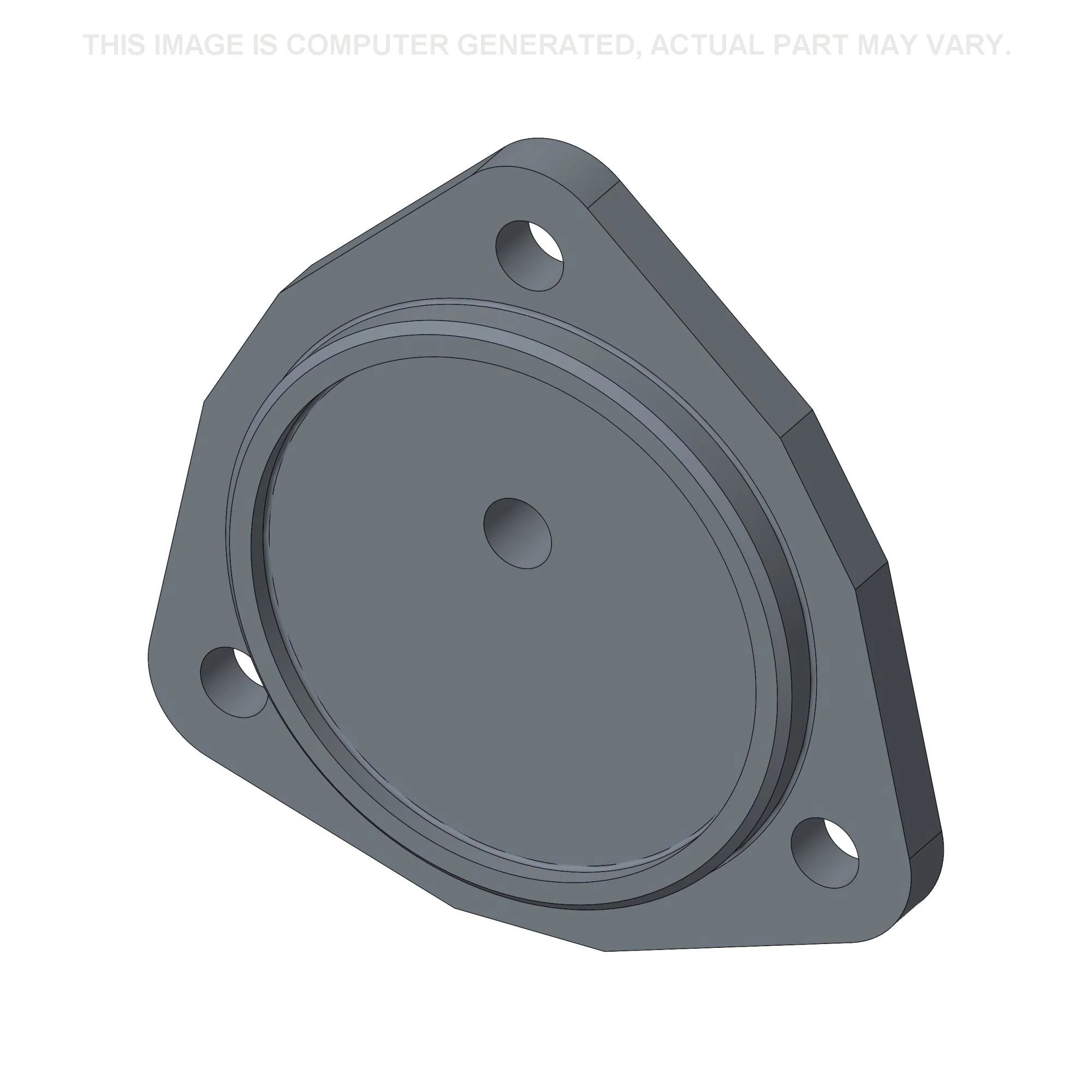

81BEARING ASSY Cap, 2 9/16'' ID; Bearing
-

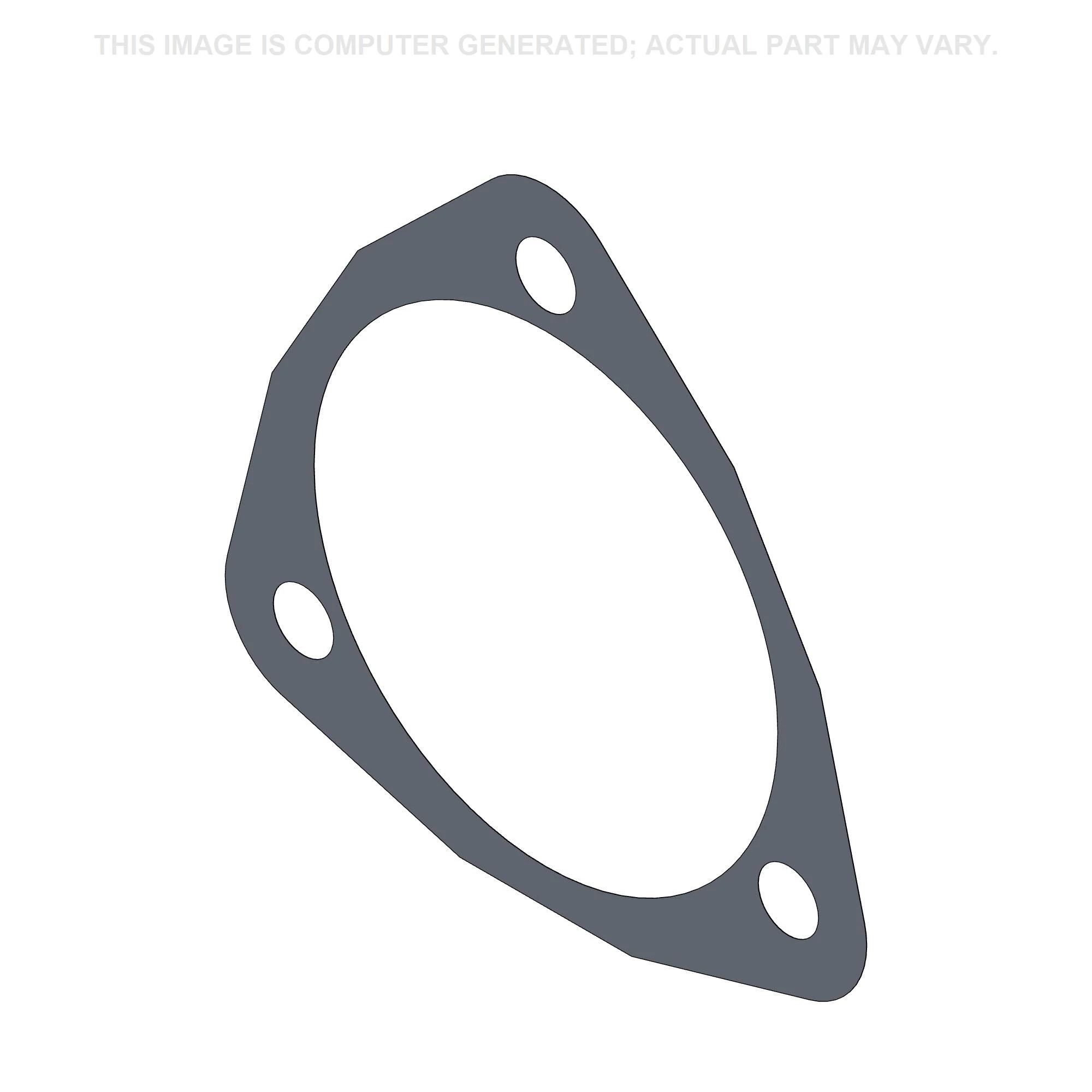

9ARCALE .005'' Thk;
-
9ARSHIM .007'' Thk;
-
9ARSHIM .020'' Thk;
-
101MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETIC
-

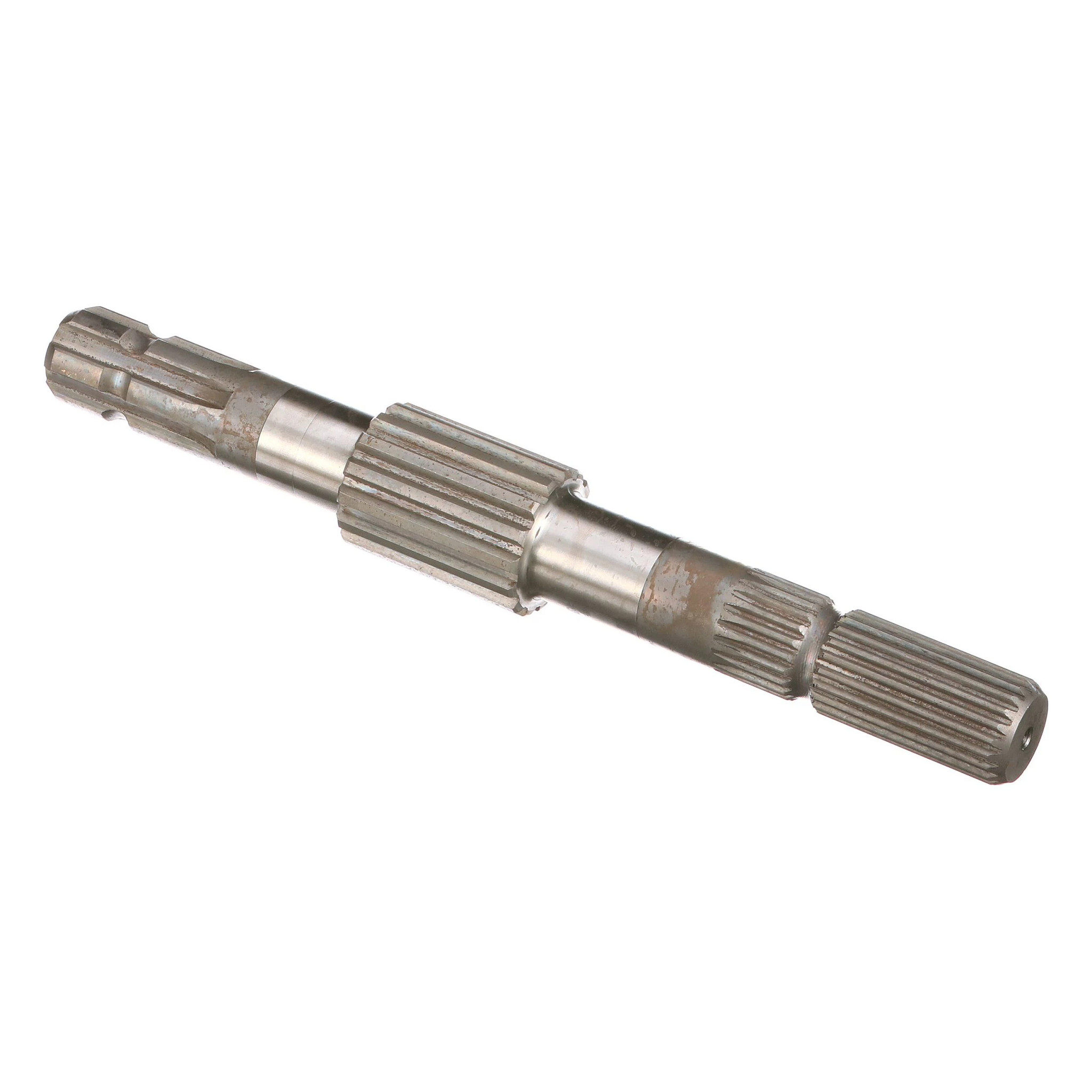

111SHAFT 1.375'' OD x 8.03'' L;
-
123JOINT D'HUILE;
-

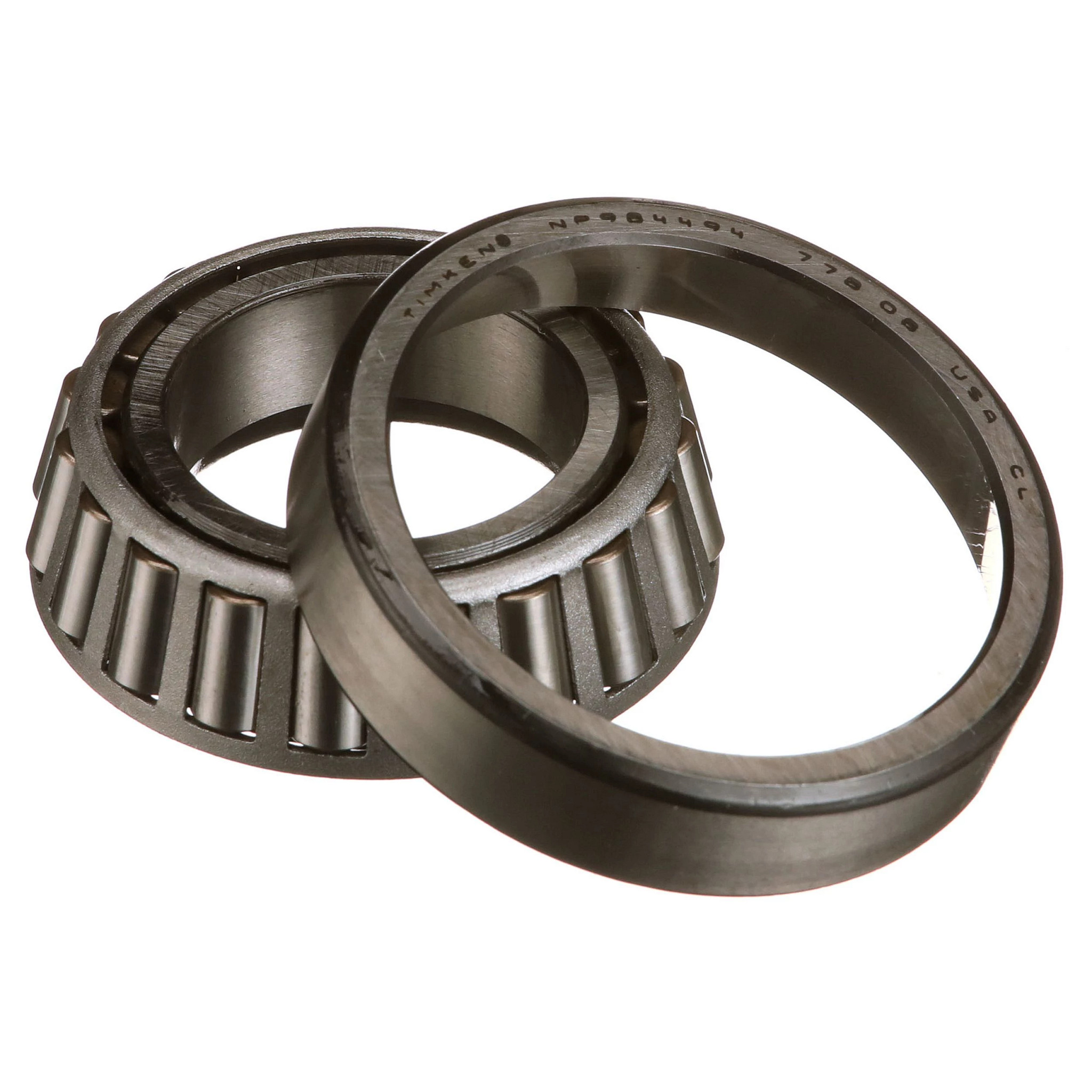

134ROULEMENT ROUL. CONIQ. Tapared Roller, 34.925mm ID x 65.088mm OD x 18.034mm W;
-

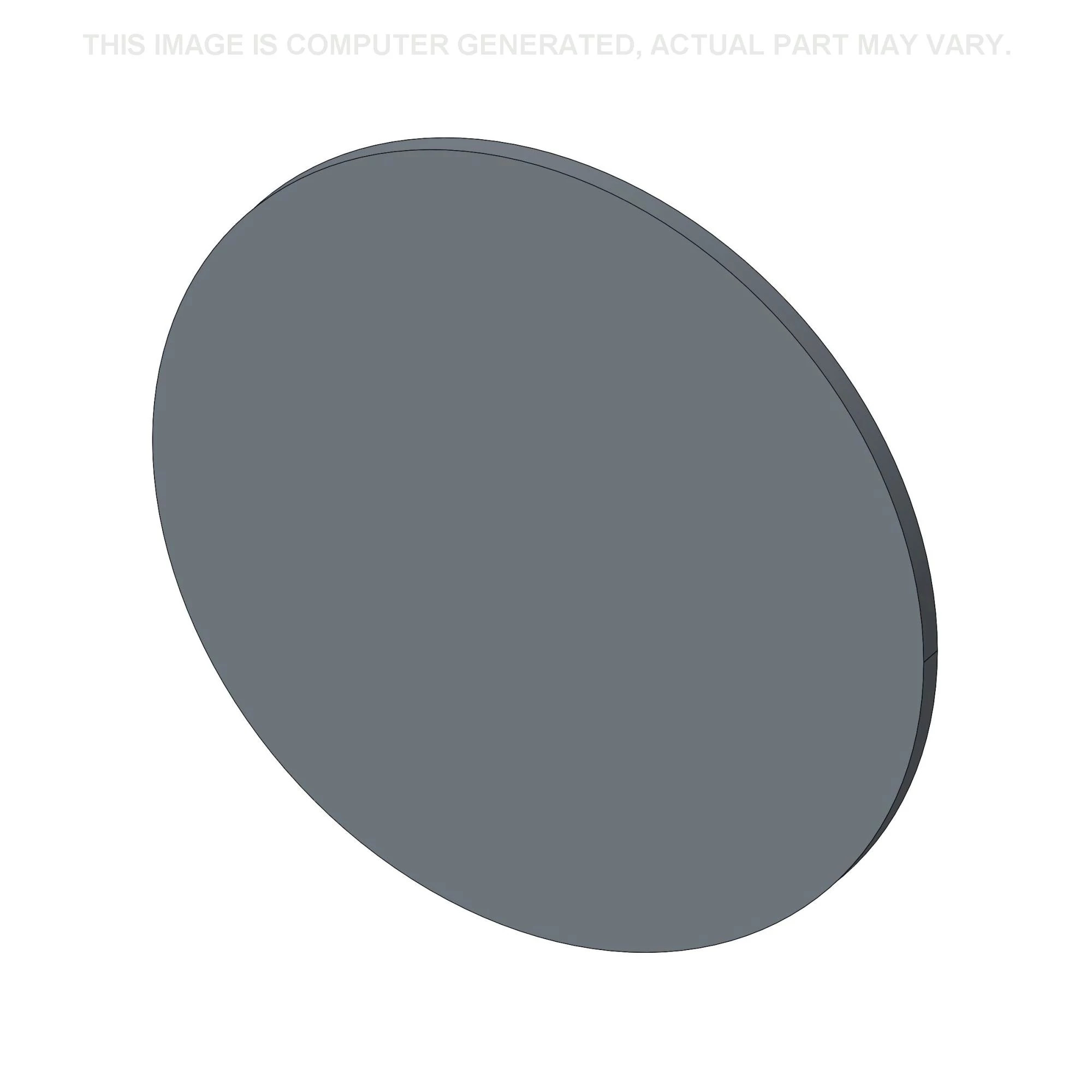

141BOUCHON Exp, 2-11/16'';
-
151PIGNON; Spur, 39T
-

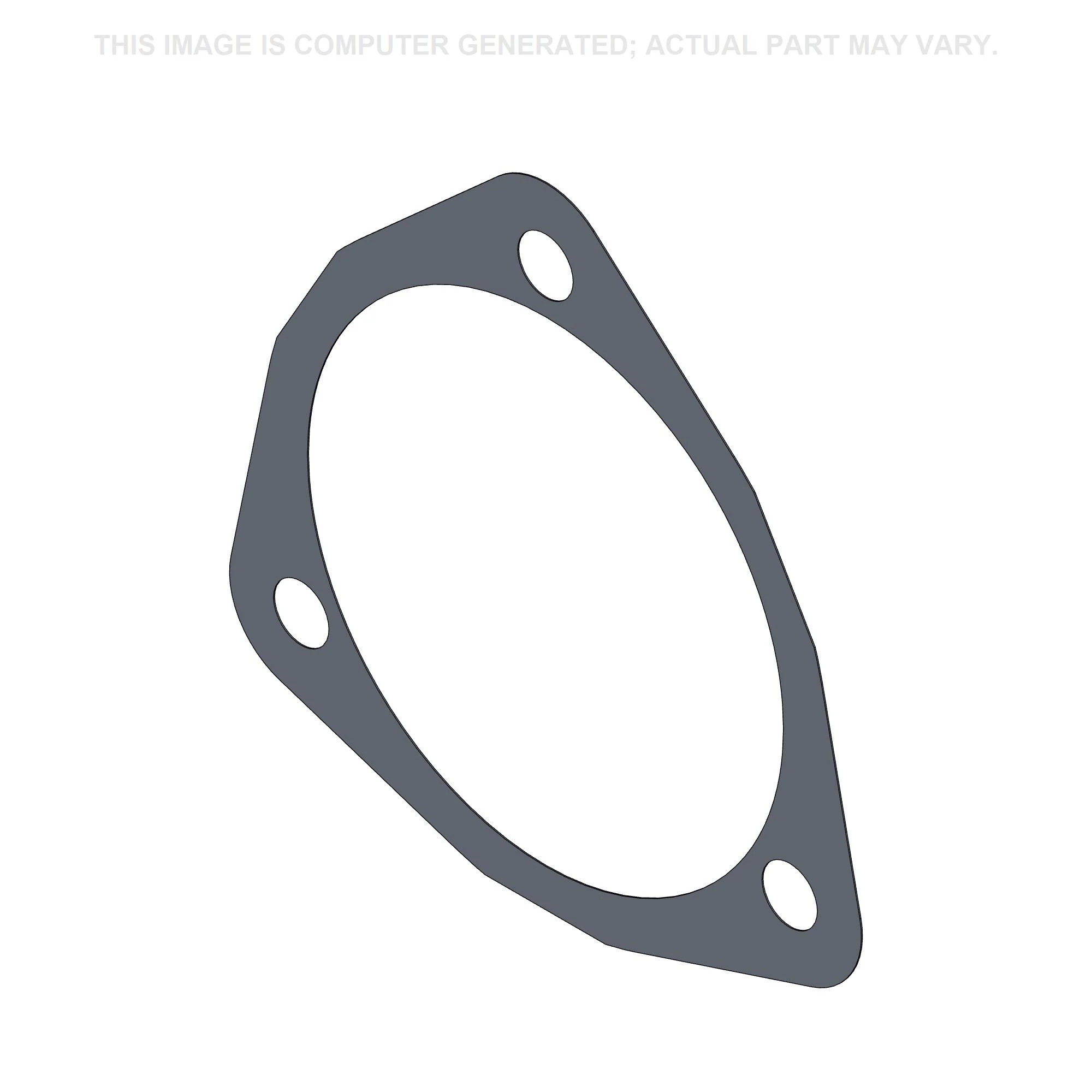

16ARSHIM .002'' Thk; .002''
-
16ARSHIM .005'' Thk;
-
16ARSHIM .007'' Thk;
-
16ARCALE .020'' Thk;
-
171BEARING ASSY Cap, 57.94'' ID;
-

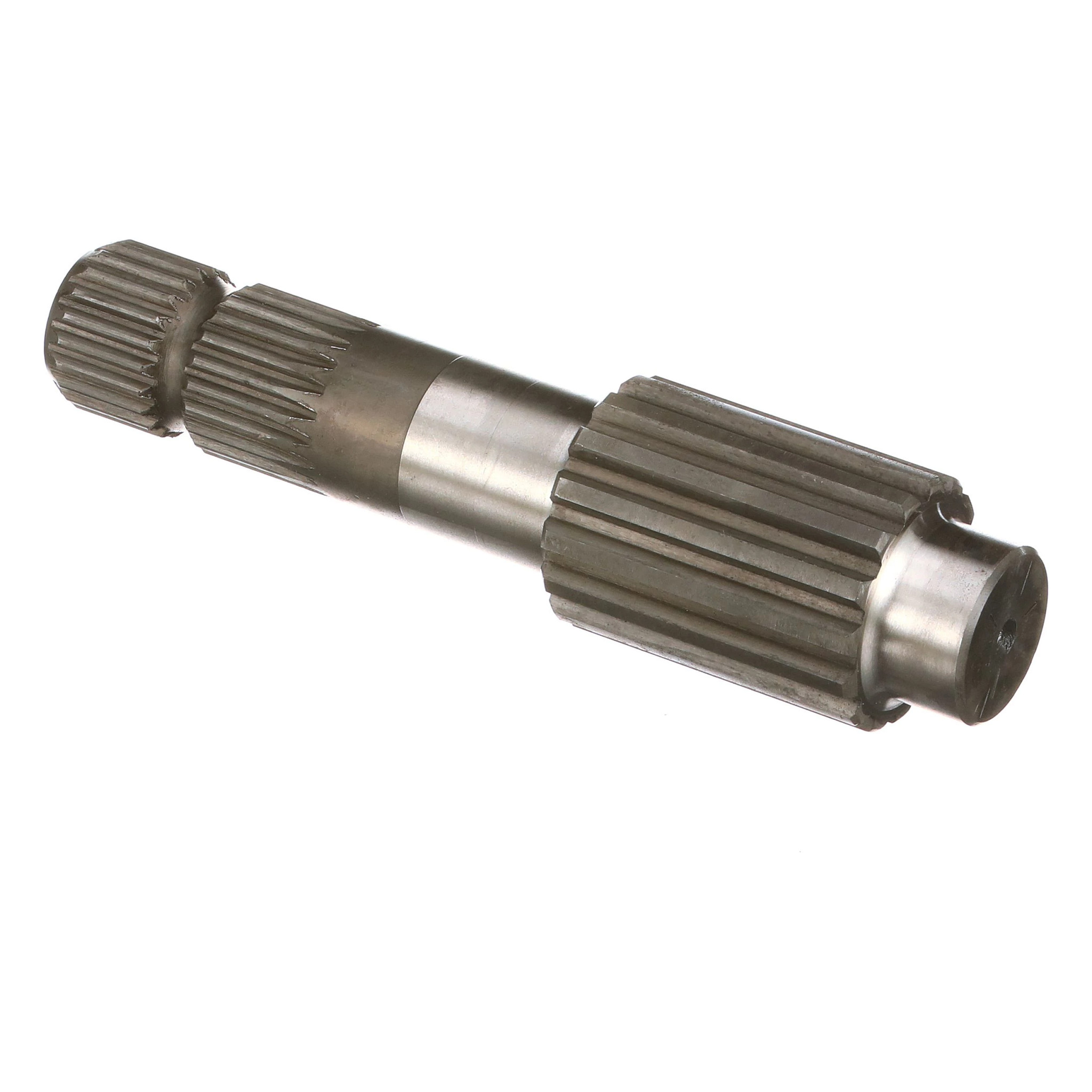

181SHAFT 29.46 mm x 356 mm L;
-

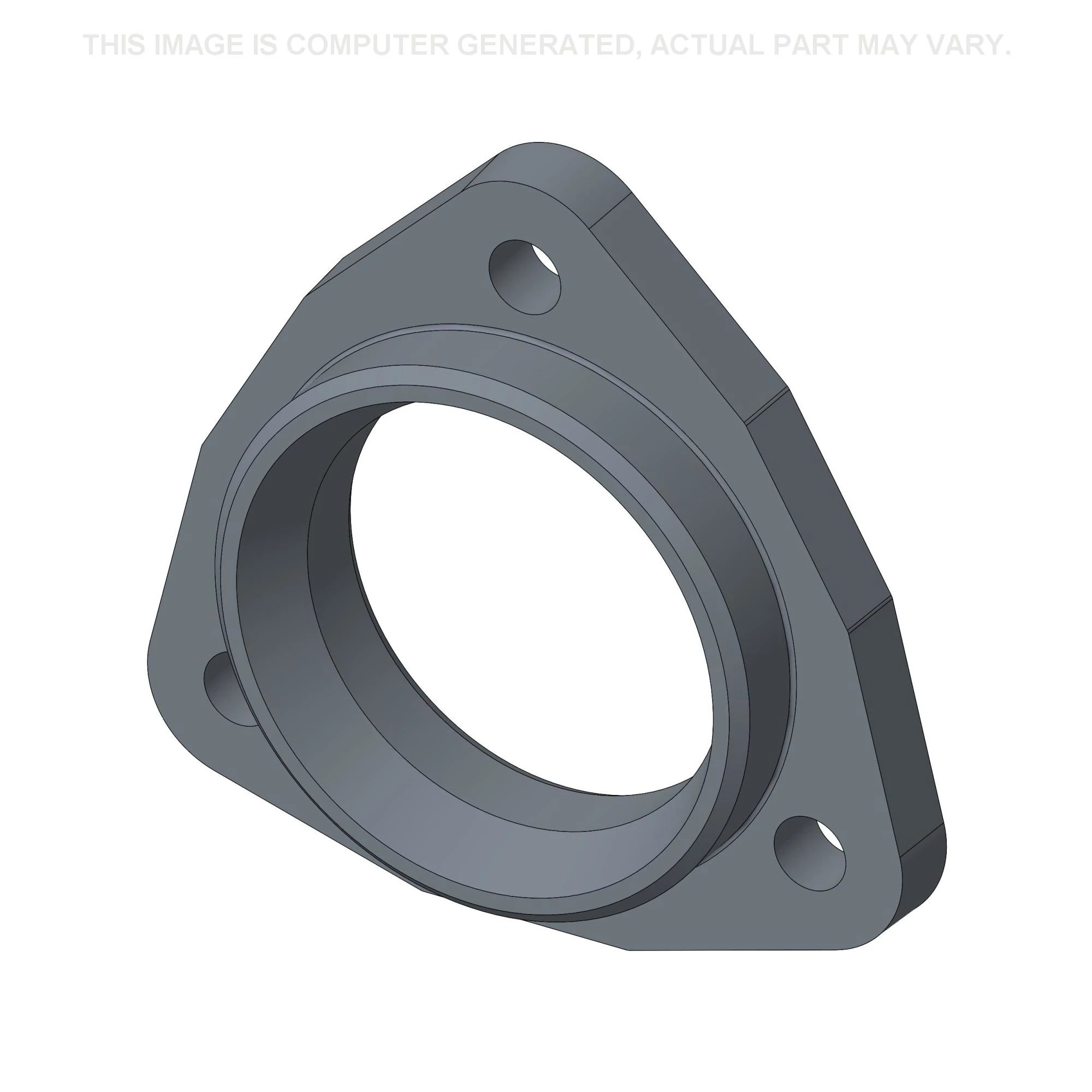

191ROULEMENT Cap 2.001'' ID x 2.562'' OD x 0.75'';
-
201COVER 9.25'' OD x 9.94'' W;
-
212PLUG Hex Soc, 1/8'' - 27 NPT; Pipe, Hex Socket, 1/8''-27 NPT
-
221BAGUE Hex, 3/4'' to 1/8''; Hex; (SN Break) Between 3/4'' and 1/8''
-
239BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5;
-
2417LOCK WASHER 5/16'';
-
258BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
261DRAIN PLUG Sq Hd, 1/2''-14 NPTF;
Select All
Select
Ref.
1Qty
1Availability
Part #
86627215Description
GEARBOX; Step Up, Includes: Ref. 2 - 26Img
Alts
Select
Ref.
1Qty
1Availability
Part #
86627215RDescription
REMAN-GEARBOX GEARBOX; Remanufactured GEARBOXImg
Alts
Select
Ref.
1Qty
1Availability
Part #
86627215CDescription
CORE-GEARBOX GEARBOX; Return Number, Gearbox, Step UpImg
Alts
Select
Ref.
3Qty
2Availability
Part #
560953R91Description
BEARING ASSY 1.375'' ID x 2.875'' OD x 0.9688''; Inner, 1-3/8'' ID x 31/32'' WideImg
Alts
Select
Ref.
8Qty
1Availability
Part #
692535Description
BEARING ASSY Cap, 2 9/16'' ID; BearingImg
Alts
Select
Ref.
10Qty
1Availability
Part #
263136Description
MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETICImg
Alts
Select
Ref.
13Qty
4Availability
Part #
86530145Description
ROULEMENT ROUL. CONIQ. Tapared Roller, 34.925mm ID x 65.088mm OD x 18.034mm W;Img
Alts
Select
Ref.
19Qty
1Availability
Part #
692537Description
ROULEMENT Cap 2.001'' ID x 2.562'' OD x 0.75'';Img
Alts
Select
Ref.
21Qty
2Availability
Part #
56513Description
PLUG Hex Soc, 1/8'' - 27 NPT; Pipe, Hex Socket, 1/8''-27 NPTImg
Alts
Select
Ref.
22Qty
1Availability
Part #
88873Description
BAGUE Hex, 3/4'' to 1/8''; Hex; (SN Break) Between 3/4'' and 1/8''Img
Alts
Select
Ref.
23Qty
9Availability
Part #
413-520Description
BOLT Hex, 5/16'' - 18 x 1-1/4'', Gr 5;Img
Alts
Select
Ref.
25Qty
8Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
26Qty
1Availability
Part #
217-517Description
DRAIN PLUG Sq Hd, 1/2''-14 NPTF;Img
Alts
