1042 - DRAPER HEADER (08/... 09 - CHASSIS 09-37A - FLOAT OPTIMIZER ...
09-37A - FLOAT OPTIMIZER ATTACHMENT - CASE 2100/2300 SERIES COMBINES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    REF
    INSTRUCTION; FLOAT OPTIMIZER KIT, Case 2100/2300 Series Combines;Order 87403521 From Machinery
  • 1
    1
    87422091
    BRACKET; Lower Mounting Bracket
  • 2
    1
    87422110
    SUPPORT; Sensor Mounting
  • 3
    1
    87422090
    SUPPORT; Upper
  • 4
    1
    87422072
    SPRING; Torsion
  • 5
    1
    87408752
    INDICATOR; Gauge, Header Float
  • 6
    1
    87422074
    MOUNT; Rod, Header Float
  • 7
    1
    87408954
    POTENTIOMETER; Sensor
  • 8
    1
    87422093
    POWER ARM; Pivot
  • 9
    1
    87422078
    SUPPORT; Pivot Arm
  • 10
    1
    87422075
    ROD; Linkage
  • 11
    2
    87408732
    CLIP; Rod End
  • 12
    1
    87422077
    ARM/LIFTING DEVICE; Sensing
  • 13
    5
    344825A1
    SUPPORT; Harness
  • 14
    1
    87422061
    WIRE HARNESS; Float Optimizer;Case 2100/2300 Series Combines
  • A
    -
    260-14520
    SELF-TAP SCREW Cross Pan Hd, #10 x 1 1/4''; No. 10 st x 1-1/4
  • B
    -
    413-640
    BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5;
  • C
    -
    232-5316
    FLANGE NUT Flg, 3/8''-16;
  • D
    -
    281-54910
    SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8''; 3/8 st x 5/8
  • E
    -
    495-11041
    WASHER 0.406'' ID x 0.812'' OD x 0.065'' W; (13/32 x 13/16 x 1/16'')
  • F
    -
    1336677C1
    BOLT Regular Sq Nk, 3/8 - 16 x 57mm, Gr 5; 3/8 x 2-1/4
  • G
    -
    495-11053
    WASHER 1/2'', SAE; (17/32'' x 1-1/16'' x 3/32'')
  • H
    -
    231-5146
    FLANGE NUT 3/8''-16;
  • J
    -
    434-612

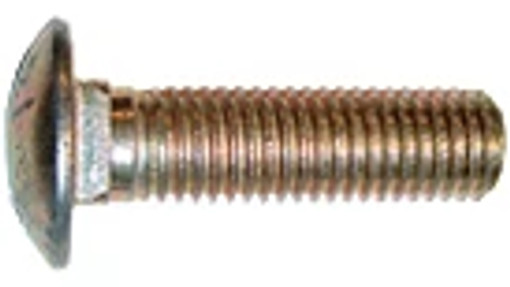

    CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 3/4'', Gr 5; 3/8 x 3/4
  • K
    -
    121-226
    SERRATED BOLT Hex, 3/8'' - 16 x 1'';
  • -
    434-612
    CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 3/4'', Gr 5; 3/8 x 3/4
