DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
12ENTRAINEMENT; Sickle;See Figure 09-14
-
22PLATE; Knife Drive, Locating Tab
-
32PULLEY; Knife Drive
-
42ARM; Output
-
52BROCHE 31.76mm OD x 81mm L; Sickle Head
-
62GRAISSEUR 1/8'' NPT;
-
71ROHR 5870 mm L; Cross Shaft;20.0 Foot Header
-
71TUBE 7392 mm L; Cross Shaft;25.0 Foot Header
-
71TUBE 8916 mm L; Cross Shaft;30.0 Foot Header
-
71TUBE 10440 mm L; Cross Shaft;35.0 Foot Header
-
82GRAISSEUR 90 Degree, 1/4'' NPT x .75'' lg;
-
91SHAFT; Cross;20.0 Foot Header
-
91SHAFT; Cross;25.0 Foot Header
-
91SHAFT; Cross;30.0 Foot Header
-
91SHAFT; Cross;35.0 Foot Header
-
91SHAFT; Cross;40.0 Foot Header
-
101SUPPORT; Lower, Motor
-
101SUPPORT; Lower, Motor
-
111SUPPORT; Motor Mount
-
111SUPPORT; Motor Mount
-
121SUPPORT; Drive
-
121SUPPORT; Drive
-
131MOTEUR HYDRAULIQUE; Knife Drive;Timed Motor, Motor Has 2 Slotted Mounting Bolts
-
1SEAL KIT;
-
141PULLEY; Drive, Double;20.0 And 25.0 Foot Header
-
141PULLEY; Drive, Double;30.0, 35.0, 40.0 and 45.0 Foot Headers
-
151SUPPORT; Pulley, Left Hand
-
151SUPPORT; Pulley, Left Hand
-
161SUPPORT; Pulley, Right Hand
-
172SPARE PART; Cross Shaft
-
182BEARING HOUSING 2.4409in ID, 0.4062in Holes, 3.5625in Holes Diam; Outer
-
192FLANGED BEARING 2.4409in ID, 0.4062in Holes, 3.5625in Holes Diam, w/ Lube Fitting; Inner
-
201SET OF BELTS V-Belt, 16 mm W x 1159 mm L; V-Belt, Timing, Double;20.0 And 25.0 Foot Header
-
201KIT DE COURROIES V-Belt, 16 mm W x 1130 mm L; V-Belt, Timing, Double;30.0, 35.0, 40.0 and 45.0 Foot Headers
-
211POULIE;
-
222SPROCKET; Timing, 72 Teeth
-
232WOODRUFF KEY #18, 1/4'' x 1 1/8''; Cross Shaft
-
242BAGUE; Cross Shaft
-
252BELT; Timing
-
262GUIDE; Belt
-
272SHIELD; Drive Box
-
282ADAPTATEUR 90 Degree, 1/4''-1/8 NPTF;
-
292INSERT;
-
302FLEXIBLE;
-
312FITTING;
-
322WASHER 0.406'' ID x 0.812'' OD x 0.065'' W;
-
332SCHMIERNIPPEL 1/8'' - 27 Dryseal PTF;
-
341SENDER UNIT; Speed, Windrower Headers Only
-
352PLATE; 30.0 And 35.0 Foot Header
-
362PULLEY; Idler
-
372SPACER 15.9mm ID x 31.8mm OD x 17mm L; Pulley
-
382SUPPORT; Pulley
-
A-BOLT Hex, 5/8 - 11 x 57.2;
-
B-VIS Hex, 5/8 - 11 x 44.4;
-
C-RONDELLE 16.48mm ID x 34.09mm OD x 4.42mm Thk;
-
D-VIS 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
-
E-NUT 1/2''-13, GB;
-
F-BOLT Hex, 5/8'' - 11 x 3'', Gr 5;
-
G-NUT 5/8''-11, GB;
-
H-WASHER 0.78'' ID x 2'' OD x 0.18'' Thk;
-
J-CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1'', Gr 5, Full Thd;
-
K-ECROU A EMBASE;
-
L-RONDELLE FREIN 21.2mm ID x 33.6mm OD x 6mm Thk;
-
M-ECROU 3/4''-10, GB;
-
N-CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5, Full Thd;
-
P-LOCK NUT 3/4''-16, GA;
-
Q-CARRIAGE BOLT Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;
-
R-ECROU A EMBASE Flg, 3/8'' - 16;
-
S-RONDELLE FREIN 3/8'';
-
T-VIS Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
U-BOLT Hex, 1/2 - 13 x 4, Gr 5, Full Thd;
-
V-SERRATED NUT Flg, USR, 1/2''-13;
-
W-SCHRAUBE Regular Sq Nk, 1/2 - 13 x 64mm, Gr 5;
-
X-SICHERUNGSMUTTER Non-Mtl 1/2-13 GR B ZN;
-
Y-BOLT Hex Flg, 3/8'' - 16 x 1/2'', Spcl;
-
Z-WASHER 25/32'' x 1 1/2'' x .120'';
-
AA-WASHER 1/2'';
-
FF-VIS A TETE BOMBEE Sq Nk, 5/8'' - 11 x 2 1/2'', Gr 5;
-
GG-RONDELLE FREIN 5/8'';
-
HH-ECROU 5/8''-11, G5;
Select All
Select
Ref.
1Qty
2Availability
Part #
338670A1Description

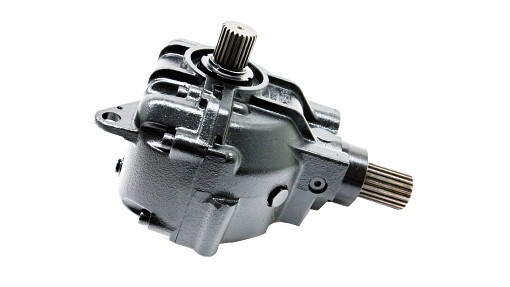

ENTRAINEMENT; Sickle;See Figure 09-14Img
Alts
Select
Ref.
2Qty
2Availability
Part #
87561226Description
PLATE; Knife Drive, Locating TabImg
Alts
Select
Ref.
5Qty
2Availability
Part #
345893A1Description

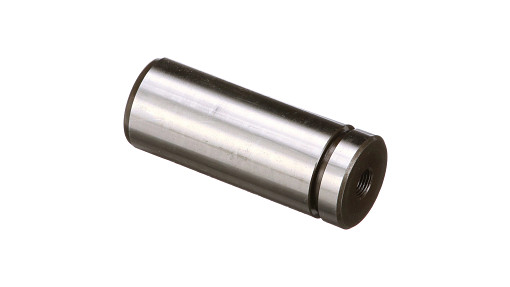

BROCHE 31.76mm OD x 81mm L; Sickle HeadImg
Alts
Select
Ref.
7Qty
1Availability
Part #
87561639Description
ROHR 5870 mm L; Cross Shaft;20.0 Foot HeaderImg
Alts
Select
Ref.
7Qty
1Availability
Part #
87560321Description
TUBE 7392 mm L; Cross Shaft;25.0 Foot HeaderImg
Alts
Select
Ref.
7Qty
1Availability
Part #
87560322Description
TUBE 8916 mm L; Cross Shaft;30.0 Foot HeaderImg
Alts
Select
Ref.
7Qty
1Availability
Part #
87561640Description
TUBE 10440 mm L; Cross Shaft;35.0 Foot HeaderImg
Alts
Select
Ref.
8Qty
2Availability
Part #
86585176Description
GRAISSEUR 90 Degree, 1/4'' NPT x .75'' lg;Img
Alts
Select
Ref.
13Qty
1Availability
Part #
87561182Description
MOTEUR HYDRAULIQUE; Knife Drive;Timed Motor, Motor Has 2 Slotted Mounting BoltsImg
Alts
Select
Ref.
14Qty
1Availability
Part #
87561231Description
PULLEY; Drive, Double;20.0 And 25.0 Foot HeaderImg
Alts
Select
Ref.
14Qty
1Availability
Part #
87561232Description
PULLEY; Drive, Double;30.0, 35.0, 40.0 and 45.0 Foot HeadersImg
Alts
Select
Ref.
18Qty
2Availability
Part #
202909C1Description

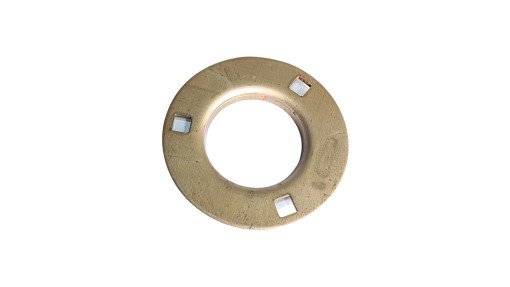

BEARING HOUSING 2.4409in ID, 0.4062in Holes, 3.5625in Holes Diam; OuterImg
Alts
Select
Ref.
19Qty
2Availability
Part #
470745R91Description
FLANGED BEARING 2.4409in ID, 0.4062in Holes, 3.5625in Holes Diam, w/ Lube Fitting; InnerImg
Alts
Select
Ref.
20Qty
1Availability
Part #
87560522Description

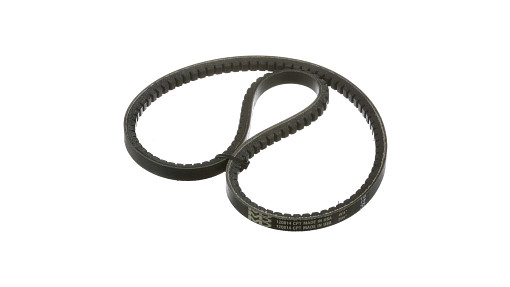

SET OF BELTS V-Belt, 16 mm W x 1159 mm L; V-Belt, Timing, Double;20.0 And 25.0 Foot HeaderImg
Alts
Select
Ref.
20Qty
1Availability
Part #
87566355Description
KIT DE COURROIES V-Belt, 16 mm W x 1130 mm L; V-Belt, Timing, Double;30.0, 35.0, 40.0 and 45.0 Foot HeadersImg
Alts
Select
Ref.
23Qty
2Availability
Part #
126-28Description
WOODRUFF KEY #18, 1/4'' x 1 1/8''; Cross ShaftImg
Alts
Select
Ref.
28Qty
2Availability
Part #
219-439Description
ADAPTATEUR 90 Degree, 1/4''-1/8 NPTF;Img
Alts
Select
Ref.
32Qty
2Availability
Part #
495-11041Description
WASHER 0.406'' ID x 0.812'' OD x 0.065'' W;Img
Alts
Select
Ref.
33Qty
2Availability
Part #
80710Description
SCHMIERNIPPEL 1/8'' - 27 Dryseal PTF;Img
Alts
Select
Ref.
34Qty
1Availability
Part #
87585427Description

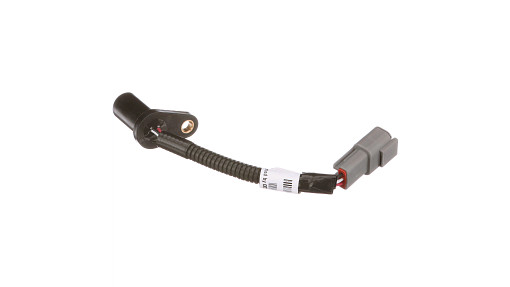

SENDER UNIT; Speed, Windrower Headers OnlyImg
Alts
Select
Ref.
35Qty
2Availability
Part #
87752700Description
PLATE; 30.0 And 35.0 Foot HeaderImg
Alts
Select
Ref.
37Qty
2Availability
Part #
87752695Description
SPACER 15.9mm ID x 31.8mm OD x 17mm L; PulleyImg
Alts
Select
Ref.
CQty
-Availability
Part #
87566801Description
RONDELLE 16.48mm ID x 34.09mm OD x 4.42mm Thk;Img
Alts
Select
Ref.
DQty
-Availability
Part #
87670Description
VIS 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;Img
Alts
Select
Ref.
FQty
-Availability
Part #
87338Description
BOLT Hex, 5/8'' - 11 x 3'', Gr 5;Img
Alts
Select
Ref.
HQty
-Availability
Part #
86624159Description
WASHER 0.78'' ID x 2'' OD x 0.18'' Thk;Img
Alts
Select
Ref.
JQty
-Availability
Part #
280486Description

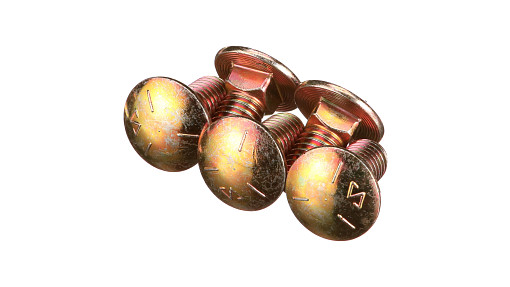

CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1'', Gr 5, Full Thd;Img
Alts
Select
Ref.
LQty
-Availability
Part #
9847025Description
RONDELLE FREIN 21.2mm ID x 33.6mm OD x 6mm Thk;Img
Alts
Select
Ref.
NQty
-Availability
Part #
87868Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5, Full Thd;Img
Alts
Select
Ref.
QQty
-Availability
Part #
86508748Description
CARRIAGE BOLT Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;Img
Alts
Select
Ref.
RQty
-Availability
Part #
86521609Description

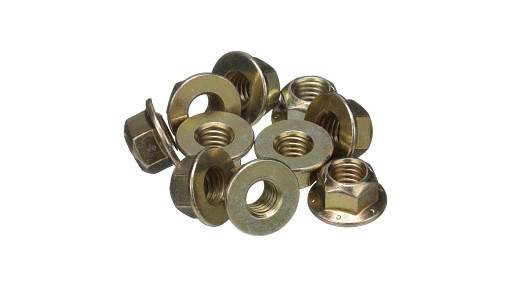

ECROU A EMBASE Flg, 3/8'' - 16;Img
Alts
Select
Ref.
TQty
-Availability
Part #
88011Description
VIS Hex, 3/8'' - 16 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
UQty
-Availability
Part #
87012913Description

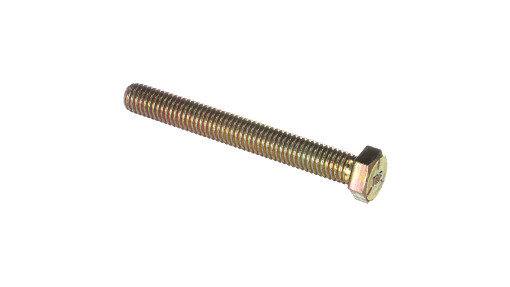

BOLT Hex, 1/2 - 13 x 4, Gr 5, Full Thd;Img
Alts
Select
Ref.
VQty
-Availability
Part #
86512371Description
SERRATED NUT Flg, USR, 1/2''-13;Img
Alts
Select
Ref.
WQty
-Availability
Part #
87566367Description
SCHRAUBE Regular Sq Nk, 1/2 - 13 x 64mm, Gr 5;Img
Alts
Select
Ref.
XQty
-Availability
Part #
87530607Description

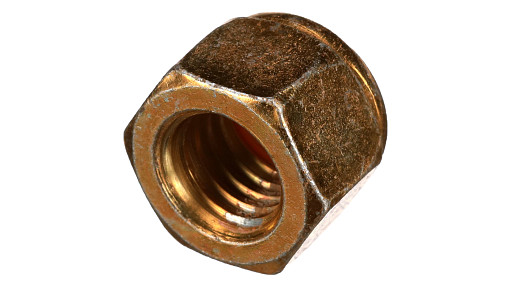

SICHERUNGSMUTTER Non-Mtl 1/2-13 GR B ZN;Img
Alts
Select
Ref.
YQty
-Availability
Part #
409-768Description

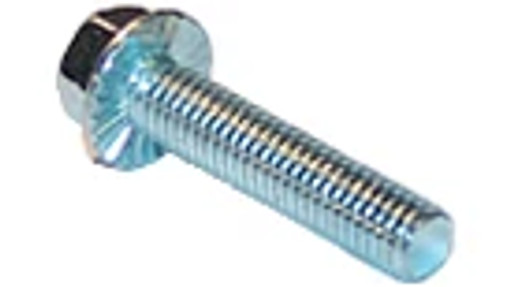

BOLT Hex Flg, 3/8'' - 16 x 1/2'', Spcl;Img
Alts
Select
Ref.
ZQty
-Availability
Part #
495-81042Description
WASHER 25/32'' x 1 1/2'' x .120'';Img
Alts
Select
Ref.
FFQty
-Availability
Part #
433-1040Description
VIS A TETE BOMBEE Sq Nk, 5/8'' - 11 x 2 1/2'', Gr 5;Img
Alts
