09-31 - REEL HYDRAULICS - DOUBLE REEL HEADERS, 30.0, 35.0, 40.0, AND 45 FOOT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    470375C1
    HOSE CLAMP 1'', Insul, 3/8'' Bolt; Hydraulic Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers; (SN Break) Up to `0
  • 1
    2
    470375C1
    HOSE CLAMP 1'', Insul, 3/8'' Bolt; Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2162 Only; (SN Break) Up to `0
  • 1
    3
    470375C1
    HOSE CLAMP 1'', Insul, 3/8'' Bolt; Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2152 Only; (SN Break) Up to `0
  • 1
    1
    87532509
    CLAMP; (SN Break) Up to Y7ZN00301
  • 2
    1
    87560921
    COVER; Left Hand;30.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560917
    COVER; Left Hand;35.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560911
    COVER; Left Hand;40.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87585272
    COVER ASSY; Center;2162 Only; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560919
    COVER; Center;2142 And 2152 Only; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560910
    COVER; Right Hand;2142 And 2152 Only,30.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560918
    COVER; Right Hand;2142 And 2152 Only,35.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    1
    87560907
    COVER; Right Hand;40.0 Foot Header,2152 Only; (SN Break) Up to Y7ZN00301`0
  • 2
    2
    87585280
    COVER ASSY; Reel Hoses;2162 Only,30.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    2
    87585279
    COVER ASSY; Reel Hoses;2162 Only,35.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 2
    2
    87585281
    COVER ASSY; Reel Hoses;40.0 Foot Header,2162 Only; (SN Break) Up to Y7ZN00301`0
  • 3
    1
    87560916
    COVER; Reel Drive;2142 And 2152 Only; (SN Break) Up to `0
  • 3
    1
    87585275
    COVER ASSY; Reel Drive;2162 Only; (SN Break) Up to `0
  • 5
    6
    87561118
    HOLDER; 2142 And 2152 Only,30.0 Foot Header; (SN Break) Up to `0
  • 5
    7
    87561118
    HOLDER; 2142 And 2152 Only,35.0 Foot Header; (SN Break) Up to `0
  • 5
    8
    87561118
    HOLDER; 40.0 Foot Header,2152 Only; (SN Break) Up to `0
  • 6
    4
    87561126
    HOLDER; 2142 And 2152 Only,30.0 Foot Header; (SN Break) Up to `0
  • 6
    5
    87561126
    HOLDER; 2142 And 2152 Only,35.0 Foot Header; (SN Break) Up to `0
  • 6
    6
    87561126
    HOLDER; 40.0 Foot Header,2152 Only; (SN Break) Up to `0
  • 6
    1
    87561126
    HOLDER; 2162 Only,35.0 And 40.0 Foot Headers; (SN Break) Up to `0
  • 19
    1
    REF
    INSTRUCTION; WIRING HARNESS;See Figure 09-34; (SN Break) Up to `0
  • 20
    3
    87561128
    HOLDER; Hose; (SN Break) Up to Y7ZN00301
  • 22
    5
    1336064C1
    CABLE TIE; Cable Tie, Black;30.0 Foot Header; (SN Break) Up to `0
  • 22
    6
    1336064C1
    CABLE TIE; Cable Tie, Black;35.0 Foot Header; (SN Break) Up to `0
  • 22
    7
    1336064C1
    CABLE TIE; Cable Tie, Black;40.0 Foot Header; (SN Break) Up to `0
  • 22
    5
    87407797
    FASTENER YELLOW; Cable Tie, Yellow;30.0 Foot Header; (SN Break) Up to `0
  • 22
    6
    87407797
    FASTENER YELLOW; Cable Tie, Yellow;35.0 Foot Header; (SN Break) Up to `0
  • 22
    7
    87407797
    FASTENER YELLOW; Cable Tie, Yellow;40.0 Foot Header; (SN Break) Up to `0
  • 22
    5
    87407803
    FASTENER GREEN; Cable Tie, Green;30.0 Foot Header; (SN Break) Up to `0
  • 22
    6
    87407803
    FASTENER GREEN; Cable Tie, Green;35.0 Foot Header; (SN Break) Up to `0
  • 22
    7
    87407803
    FASTENER GREEN; Cable Tie, Green;40.0 Foot Header; (SN Break) Up to `0
  • 22
    5
    87407798
    FASTENER RED; Cable Tie, Red;30.0 Foot Header; (SN Break) Up to `0
  • 22
    6
    87407798
    FASTENER RED; Cable Tie, Red;35.0 Foot Header; (SN Break) Up to `0
  • 22
    7
    87407798
    FASTENER RED; Cable Tie, Red;40.0 Foot Header; (SN Break) Up to `0
  • 25
    1
    87561122
    HOLDER; Reel Hoses
  • 27
    AR
    87566342
    CLAMP; 3/8 Tube Size
  • 27
    AR
    87566344
    CLAMP; 5/8 Tube Size
  • 27
    AR
    87532509
    CLAMP; 1/2 Tube Size
  • 28
    AR
    338322A1
    CLIP; Hydraulic Fore-Aft Header,2152 Only; (SN Break) Up to `0
  • 28
    AR
    470375C1
    HOSE CLAMP 1'', Insul, 3/8'' Bolt; Manual Fore-Aft Header,2152 Only; (SN Break) Up to `0
  • 29
    AR
    87532509
    CLAMP;
  • 32
    2
    87585407
    PLATE; Fore-Aft Cylinder
  • 33
    2
    87585463
    SUPPORT ASSY.; Front Fore-Aft Cylinder
  • 34
    2
    87585462
    SUPPORT; Front Fore-Aft Cylinder
  • 35
    2
    427-10300
    CLEVIS PIN 5/8'' x 4'';
  • 36
    3
    88350
    COTTER PIN 5/32'' x 1-1/2'';
  • 37
    1
    87585930
    SPACER 16.81mm ID x 25.53mm OD x 30mm L;
  • 38
    1
    427-10225
    CLEVIS PIN 5/8'' x 1 1/4'';
  • 39
    1
    87585453
    SUPPORT ASSY.; Reel
  • 43
    6
    87383361
    STRAP; 6 Inch;2142 And 2152 Only; (SN Break) Up to `0
  • 43
    9
    87383361
    STRAP; 6 Inch;2162 Only; (SN Break) Up to `0
  • 43
    4
    87383360
    STRAP; 4 Inch
  • 44
    1
    87566758
    GROMMET; Harness and Reel Fore-Aft Hose;2162 Only; (SN Break) Up to `0
  • 45
    2
    87585341
    HOLDER; 2162 Only; (SN Break) Up to Y7ZN00301`0
  • 46
    8
    87585340
    HOLDER; 2162 Only,30.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 46
    10
    87585340
    HOLDER; 2162 Only,35.0 Foot Header; (SN Break) Up to Y7ZN00301`0
  • 46
    12
    87585340
    HOLDER; 40.0 Foot Header,2162 Only; (SN Break) Up to Y7ZN00301`0
  • 47
    4
    495-11066
    WASHER 5/8'', SAE;
  • 48
    1
    87752656
    COVER; Hoses;2162 Only; (SN Break) Up to Y7ZN00301`0
  • 49
    2
    248-2181

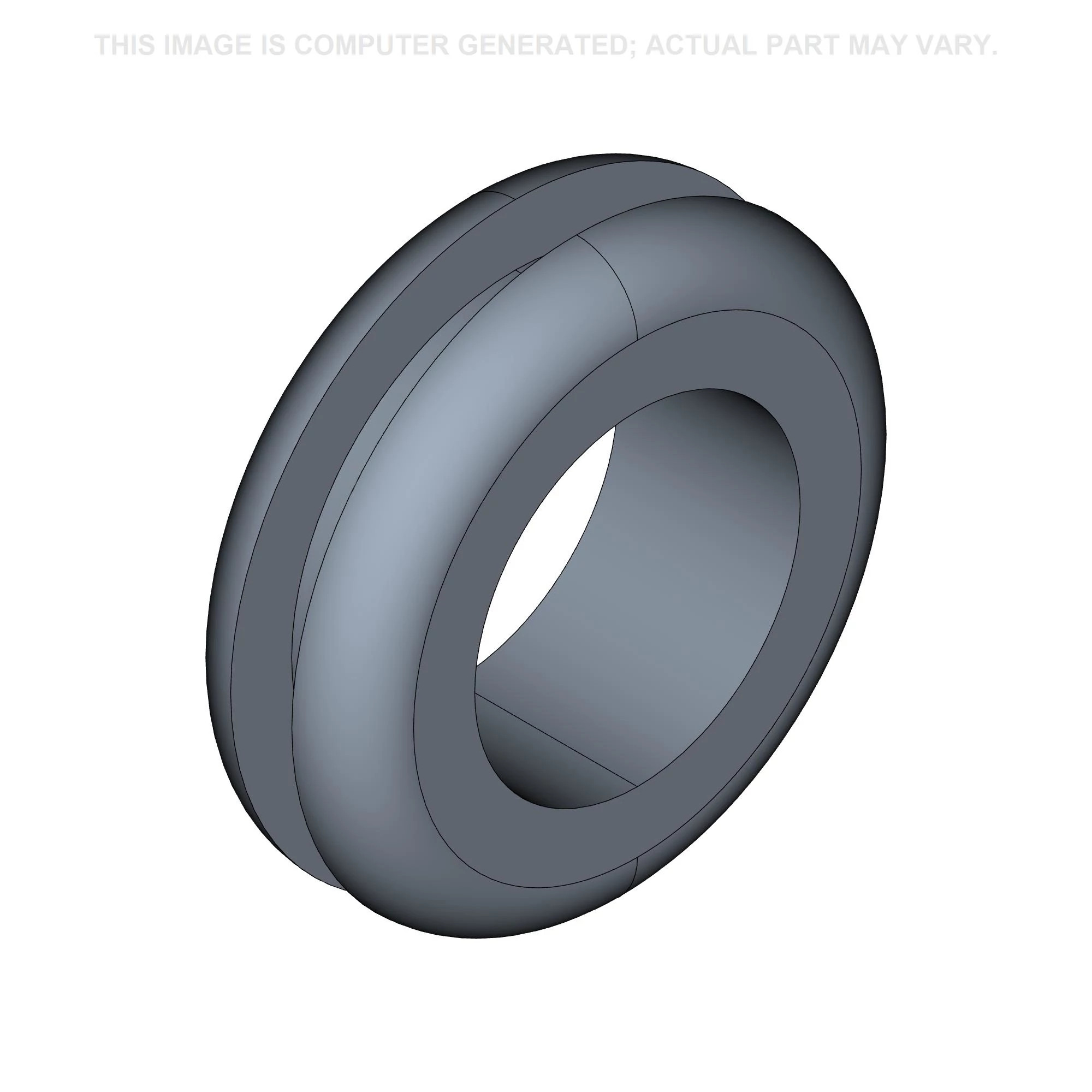

    GROMMET 1'' ID x 3/8'' Groove Dia; Hydraulic Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers; (SN Break) Up to `0
  • 49
    2
    248-2181
    GROMMET 1'' ID x 3/8'' Groove Dia; Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2162 Only; (SN Break) Up to `0
  • 49
    3
    248-2181
    GROMMET 1'' ID x 3/8'' Groove Dia; Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2152 Only; (SN Break) Up to `0
  • 50
    3
    87752718
    DIVIDER; 2-3/8 Inch
  • 51
    1
    248-21114
    GROMMET 1 1/2'' ID x 1 3/4'' Groove Dia;
  • 51
    2
    87472034
    GROMMET;
  • 53
    1
    87431899
    SEAL; Edge Trim;2152 Only; (SN Break) Up to `0
  • 54
    1
    87752649
    MOLDING; Edge Trim;2142 And 2152 Only; (SN Break) Up to `0
  • 54
    1
    87752650
    MOLDING; Edge Trim;2162 Only; (SN Break) Up to `0
  • 55
    1
    352187A1
    HOLDER; Hose;2162 Only; (SN Break) Up to `0
  • 57
    1
    248-21110
    GROMMET 1'' ID x 1 3/8'' Groove Dia; Center Arm, Until Early Production Year 2008;2162 Only; (SN Break) Up to MACDON183406`0
  • 57
    1
    248-21114
    GROMMET 1 1/2'' ID x 1 3/4'' Groove Dia; Center Arm, From Early Production Year 2008;2162 Only; (SN Break) Between MACDON183407 and `0
  • 57
    1
    248-2181
    GROMMET 1'' ID x 3/8'' Groove Dia; Center Arm, Until Early Production Year 2008;2152 Only; (SN Break) Up to MACDON183406`0
  • 57
    1
    87472039
    GROMMET; Center Arm, From Early Production Year 2008;2152 Only; (SN Break) Between MACDON183407 and `0
  • 59
    1
    87753073
    GROMMET; At Coupler Mount;2142 And 2152 Only; (SN Break) Up to `0
  • 60
    1
    84529727
    TUBE; Poly, (not Shown);40.0 Foot Header,2162 Only; (SN Break) Up to `0
  • 60
    1
    84529709
    TUBE; Poly, (Not Shown);2162 Only,45.0 Foot Header; (SN Break) Up to `0
  • 61
    1
    84529708
    HOLDER; Clamp, (Not Shown);2162 Only; (SN Break) Up to `0
  • 62
    1
    86989928
    PIPE CLAMP; Hydraulic Tube, (Not Shown);2162 Only; (SN Break) Up to `0
  • 63
    1
    86989929
    PLATE; Pipe Clamp, (Not Shown);2162 Only; (SN Break) Up to `0
  • A
    -
    281-54910
    SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';
  • B
    -
    492-11050
    LOCK WASHER 1/2'';
  • C
    -
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
  • D
    -
    413-856
    BOLT Hex, 1/2'' - 13 x 3-1/2'', Gr 5;
  • E
    -
    86632558
    JAM NUT Jam, 1/2''-13, G5;
  • F
    -
    413-1096
    BOLT Hex, 5/8'' - 11 x 6'', Gr 5;
  • G
    -
    86521611
    FLANGE NUT Flg, 5/8'' - 11;
  • H
    -
    281-54816
    SCREW Hex Wshr Hd, 5/16'' - 18 x 1'';
  • J
    -
    9706726
    SERRATED BOLT Hex Flg, 3/8'' - 16 x 1'';
  • K
    -
    434-612
    CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 3/4'', Gr 5;
  • L
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • M
    -
    231-5348
    FLANGE NUT Flg, 1/2''-13;
  • N
    -
    88444
    BOLT Hex, 3/8'' - 16 x 2-3/4'', Gr 5;
  • P
    -
    9707516
    BOLT 1/2''-13 x 1-3/4'', Gr 5;
  • Q
    -
    86977730
    SERRATED BOLT 3/8'' - 16 x 2 1/2'';
  • R
    -
    495-11053
    WASHER 1/2'', SAE;
  • S
    -
    88715
    CARRIAGE BOLT Sq Nk, 1/4'' - 20 x 1/2'', Gr 5, Full Thd;
  • T
    -
    523282
    SERRATED NUT Flg, USR, 1/4'' - 20;
  • U
    -
    409-768
    BOLT Hex Flg, 3/8'' - 16 x 1/2'', Spcl;
  • V
    -
    409-7612
    BOLT 3/8''-16 x 1.09'' OAL;
