09-24 - PICK UP REEL, DOUBLE REEL HEADERS, 30.0, 35.0, 40.0, AND 45.0 FOOT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    6
    84178107
    TUBE 6647 mm L; Finger, Narrow Stagger;5 Bat Reel,45.0 Foot Header
  • 1
    10
    87561620
    REEL TINE; Finger, Narrow Stagger;9 Bat Reel,30.0 Foot Header
  • 1
    6
    87561620
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,30.0 Foot Header
  • 1
    6
    87561622
    REEL TINE; Finger, Narrow Stagger;40.0 Foot Header,5 And 6 Bat Reel
  • 1
    6
    87561628
    REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,35.0 Foot Header
  • 1
    10
    87561628
    REEL TINE; Finger, Narrow Stagger;35.0 Foot Header,9 Bat Reel

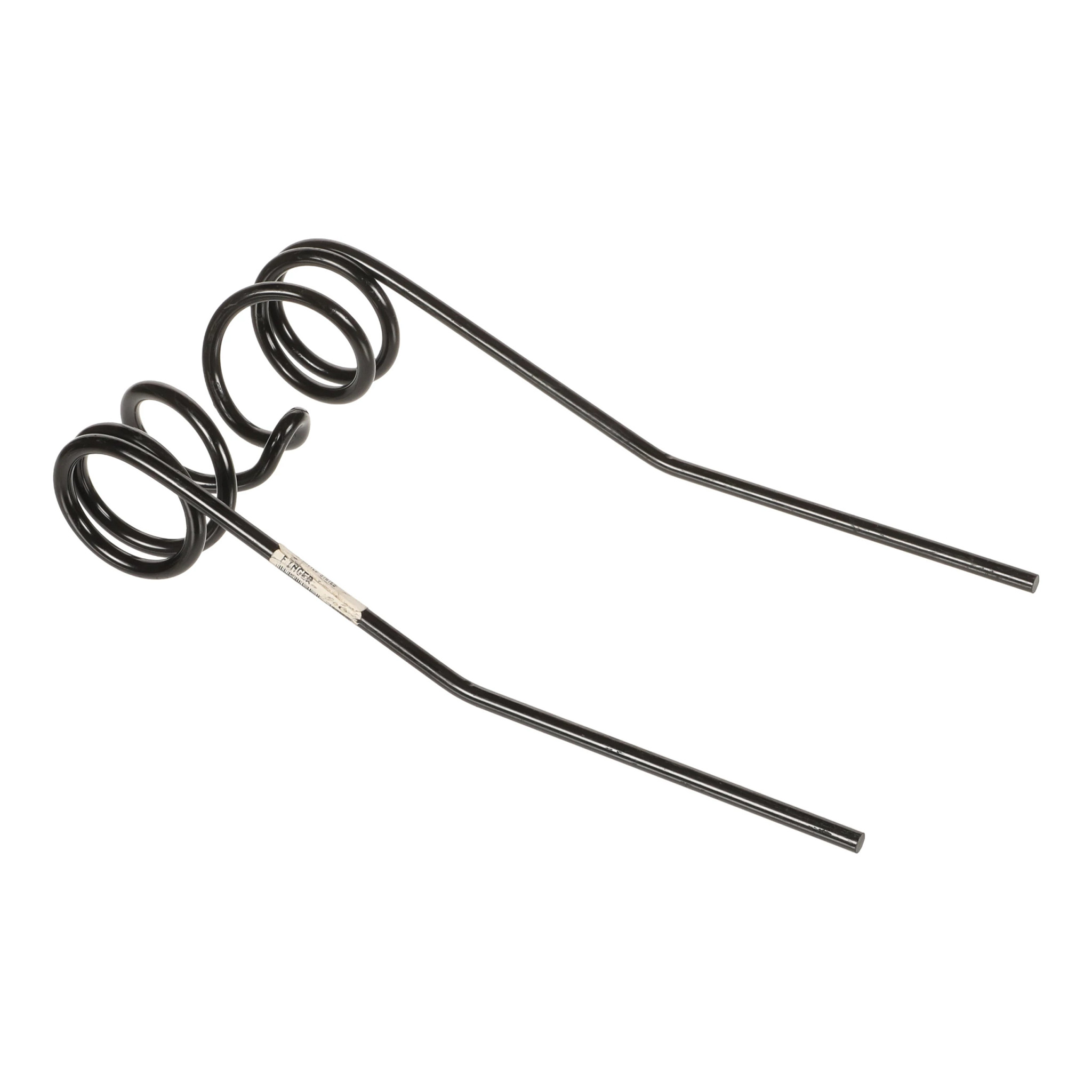

  • 2
    135
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header
  • 2
    182
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header
  • 2
    243
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header
  • 2
    186
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;6 Bat Reel,35.0 Foot Header
  • 2
    219
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;40.0 Foot Header,6 Bat Reel
  • 2
    162
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header
  • 2
    156
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,35.0 Foot Header
  • 2
    280
    87560996
    FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header
  • 3
    6
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header
  • 3
    17
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header
  • 3
    12
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;35.0 And 40.0 Foot Header,6 Bat Reel
  • 3
    9
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header
  • 3
    9
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,35.0 Foot Header
  • 3
    5
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header
  • 3
    11
    87561018
    FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header
  • 4
    AR
    84328701
    FINGER Coiled, 1 Prong, 313mm L; Single, Tail End, Left Hand;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201
  • 4
    5
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;5 Bat Reel
  • 4
    9
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;9 Bat Reel,30.0 And 35.0 Foot Header
  • 4
    6
    87561022
    FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;6 Bat Reel

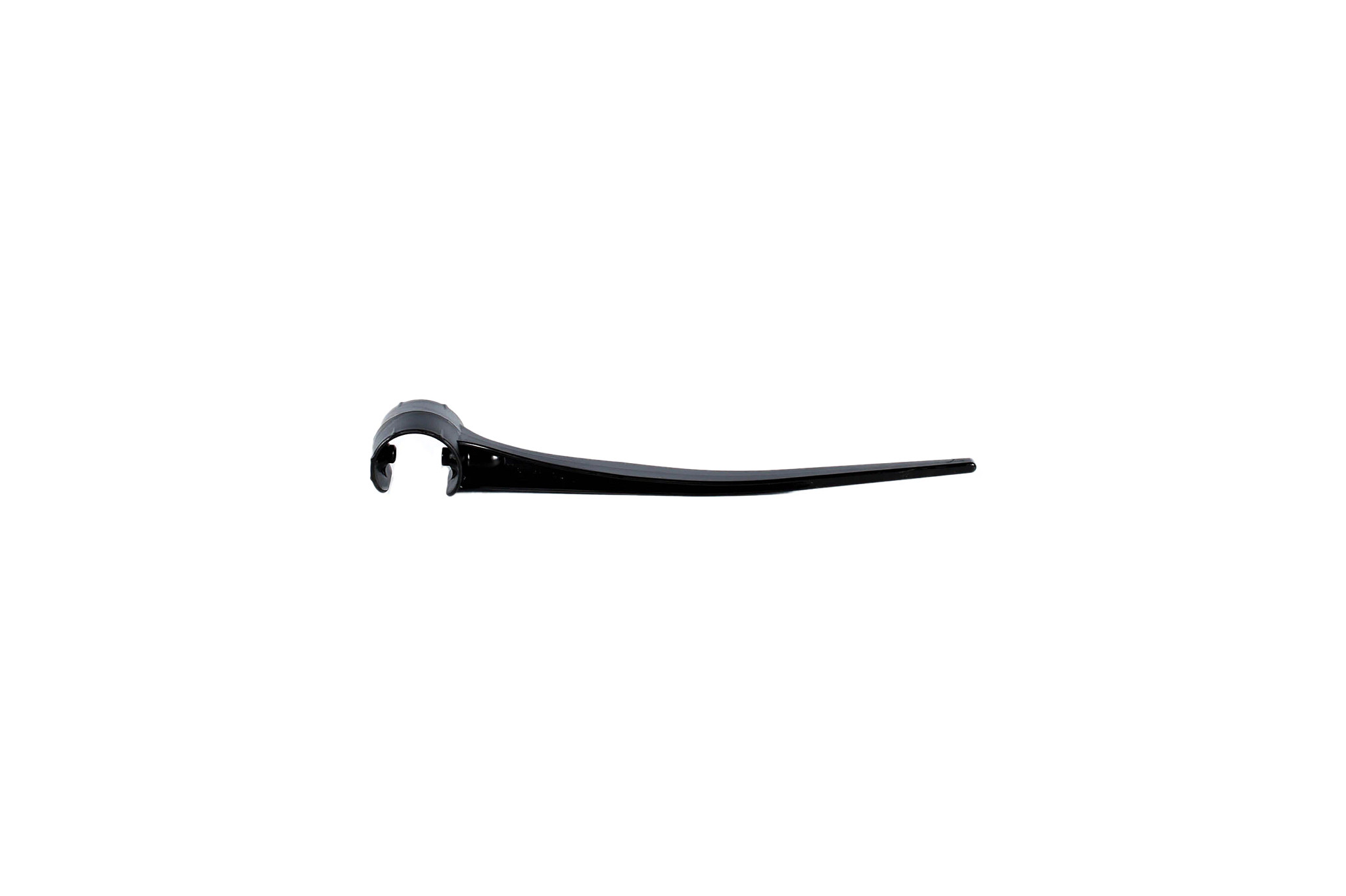

  • 5
    332
    84130300
    FINGER; Plastic, Normal Duty;5 Bat Reel,35.0 Foot Header
  • 5
    280
    84130300
    FINGER; Plastic, Normal Duty;5 Bat Reel,30.0 Foot Header
  • 5
    598
    84130300
    FINGER; Plastic, Normal Duty;9 Bat Reel,35.0 Foot Header
  • 5
    336
    84130300
    FINGER; Plastic, Normal Duty;6 Bat Reel,30.0 Foot Header
  • 5
    399
    84130300
    FINGER; Plastic, Normal Duty;6 Bat Reel
  • 5
    462
    84130300
    FINGER; Plastic, Normal Duty;40.0 Foot Header,6 Bat Reel
  • 5
    384
    84130300
    FINGER; Plastic, Normal Duty;5 Bat Reel,40.0 Foot Header
  • 5
    504
    84130300
    FINGER; Plastic, Normal Duty;9 Bat Reel,30.0 Foot Double Knife Header With Manual Deck Shift
  • 5
    1
    84331098
    SET OF PARTS; Finger, Plastic, Heavy Duty (Includes 10 of 87561020)
  • 5
    1
    84331097
    KIT; Plastic, Heavy Duty (Includes 100 of 87561020)
  • 5
    399
    87561020
    FINGER; Plastic, Heavy Duty;6 Bat Reel,35.0 Foot Header
  • 5
    336
    87561020
    FINGER; Plastic, Heavy Duty;6 Bat Reel,30.0 Foot Header
  • 5
    462
    87561020
    FINGER; Plastic, Heavy Duty;40.0 Foot Header,6 Bat Reel
  • 5
    504
    87561020
    FINGER; Plastic, Heavy Duty;9 Bat Reel,30.0 Foot Header
  • 5
    598
    87561020
    FINGER; Plastic, Heavy Duty;9 Bat Reel,35.0 Foot Header
  • 5
    384
    87561020
    FINGER; Plastic, Heavy Duty;5 Bat Reel,40.0 Foot Header
  • 5
    332
    87561020
    FINGER; Plastic, Heavy Duty;5 Bat Reel,35.0 Foot Header
  • 5
    280
    87561020
    FINGER; Plastic, Heavy Duty;5 Bat Reel,30.0 Foot Header
  • 6
    4
    84122229
    TUBE 6647 mm Length; Finger, Wide Stagger;5 Bat Reel,45.0 Foot Header
  • 6
    8
    87561621
    REEL TINE; Finger, Wide Stagger;9 Bat Reel,30.0 Foot Header
  • 6
    6
    87561621
    REEL TINE; Finger, Wide Stagger;6 Bat Reel,30.0 Foot Header
  • 6
    4
    87561621
    REEL TINE; Finger, Wide Stagger;5 Bat Reel,30.0 Foot Header
  • 6
    4
    87561623
    TINE BAR; Finger, Wide Stagger;5 Bat Reel,40.0 Foot Header
  • 6
    6
    87561623
    TINE BAR; Finger, Wide Stagger;40.0 Foot Header,6 Bat Reel
  • 6
    6
    87561629
    REEL TINE; Finger, Wide Stagger;6 Bat Reel,35.0 Foot Header
  • 6
    8
    87561629
    REEL TINE; Finger, Wide Stagger;9 Bat Reel,35.0 Foot Header
  • 6
    4
    87561629
    REEL TINE; Finger, Wide Stagger;35.0 Foot Header,5 Bat Reel
  • 7
    12
    87560462
    ARM; Cam End;6 Bat Reel
  • 7
    10
    87560462
    ARM; Cam End;5 Bat Reel
  • 7
    18
    87560462
    ARM; Cam End;9 Bat Reel
  • 8
    108
    47548631
    BUSHING; Finger Tube;9 Bat Reel
  • 8
    72
    47548631
    BUSHING; Finger Tube;6 Bat Reel
  • 8
    60
    47548631
    BUSHING; Finger Tube;5 Bat Reel
  • 9
    3
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 And 6 Bat Reel,35.0 Foot Header
  • 9
    2
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header
  • 9
    3
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;40.0 Foot Header,6 Bat Reel
  • 9
    6
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header
  • 9
    8
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header
  • 9
    5
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header
  • 9
    4
    87561021
    FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header
  • 10
    18
    87560460
    ARM; 9 Bat Reel,30.0 And 35.0 Foot Header
  • 10
    12
    87560460
    ARM; 6 Bat Reel
  • 10
    10
    87560460
    ARM; 5 Bat Reel

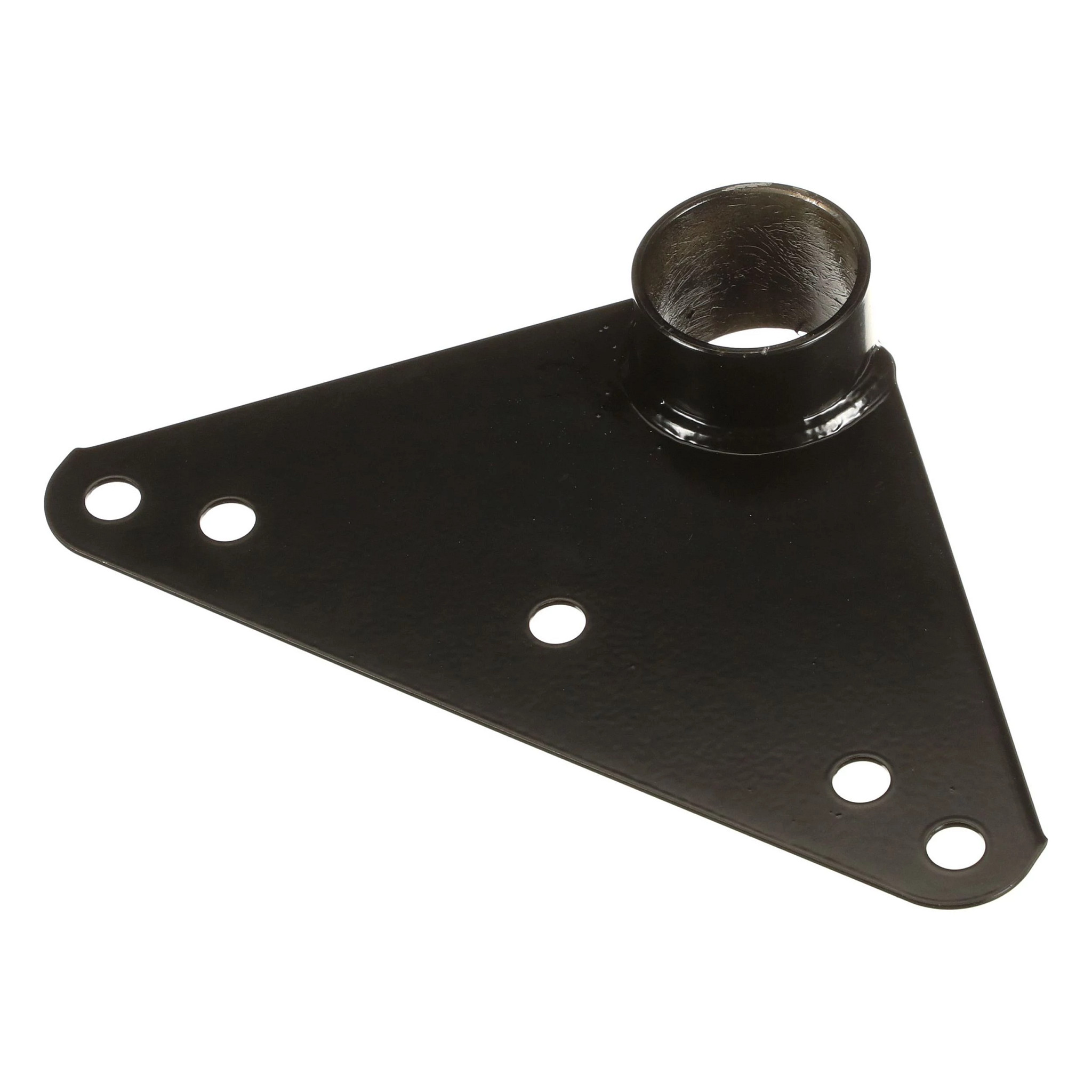

  • 11
    12
    87560464
    ARM; Tail End;6 Bat Reel
  • 11
    10
    87560464
    ARM; Tail End;5 Bat Reel
  • 11
    18
    87560464
    ARM; Tail End;9 Bat Reel
  • 12
    AR
    84328697
    FINGER Coiled, 1 Prong, 309mm L; Cam End, Right Hand Reel;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201
  • 12
    6
    87561025
    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;6 Bat Reel
  • 12
    9
    87561025
    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;9 Bat Reel
  • 12
    5
    87561025
    FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;5 Bat Reel
  • 13
    9
    84328697
    FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;9 Bat Reel
  • 13
    5
    84328697
    FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;5 Bat Reel
  • 13
    6
    84328697
    FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;6 Bat Reel
  • 14
    18
    87560452
    ARM; Crank;9 Bat Reel
  • 14
    12
    87560452
    ARM; Crank;6 Bat Reel
  • 14
    10
    87560452
    ARM; Crank;5 Bat Reel
  • 15
    6
    87561493
    SECTOR; Cam End
  • 16
    6
    87560866
    CHANNEL; Cam Disc
  • 17
    12
    87561586
    STUD; Link;6 Bat Reel
  • 17
    10
    87561586
    STUD; Link;5 Bat Reel
  • 17
    18
    87561586
    STUD; Link;9 Bat Reel
  • 18
    6
    87407586
    SHIELD; Reel Tube Support 16 Gauge
  • 19
    6
    87561502
    SECTOR; Reel Tube Support 18 Gauge
  • 20
    10
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;5 Bat Reel
  • 20
    12
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;6 Bat Reel
  • 20
    18
    87560473
    ARM; Tine Control Assembly, Inc. 21 - 24;9 Bat Reel
  • 21
    10
    87560455
    ARM; Tine Control;5 Bat Reel
  • 21
    12
    87560455
    ARM; Tine Control;6 Bat Reel
  • 21
    18
    87560455
    ARM; Tine Control;9 Bat Reel
  • 22
    30
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 5 Bat Reel
  • 22
    36
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 6 Bat Reel
  • 22
    54
    87566354
    BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 9 Bat Reel
  • 23
    18
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;9 Bat Reel
  • 23
    12
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;6 Bat Reel
  • 23
    10
    344805A1
    BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;5 Bat Reel
  • 24
    12
    300625
    SNAP RING M16, Ext; 6 Bat Reel
  • 24
    10
    300625
    SNAP RING M16, Ext; 5 Bat Reel
  • 24
    18
    300625
    SNAP RING M16, Ext; 9 Bat Reel
  • 25
    12
    87560450
    ARM; Inc. 22, 26;6 Bat Reel
  • 25
    18
    87560450
    ARM; Inc. 22, 26;9 Bat Reel
  • 25
    10
    87560450
    ARM; Inc. 22, 26;5 Bat Reel
  • 26
    10
    87560882
    CLAMP; Finer Tube Bushing;5 Bat Reel
  • 26
    18
    87560882
    CLAMP; Finer Tube Bushing;9 Bat Reel
  • 26
    12
    87560882
    CLAMP; Finer Tube Bushing;6 Bat Reel
  • 27
    12
    370016
    SNAP RING M17, Ext, PHC; 6 Bat Reel
  • 27
    18
    370016
    SNAP RING M17, Ext, PHC; 9 Bat Reel
  • 27
    10
    370016
    SNAP RING M17, Ext, PHC; 5 Bat Reel
  • 28
    18
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;9 Bat Reel
  • 28
    12
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;6 Bat Reel
  • 28
    10
    87561535
    SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;5 Bat Reel
  • 29
    1
    84122231
    REEL; Center, Inc. Decals, Right Hand;45.0 Foot Header
  • 29
    1
    84122230
    REEL; Center, Inc. Decals, Left Hand;45.0 Foot Header
  • 29
    1
    87560487
    REEL; Center, Inc. Decals, Right Hand;40.0 Foot Header
  • 29
    1
    87560486
    REEL; Center, Inc. Decals, Left Hand;40.0 Foot Header
  • 29
    1
    87560483
    REEL TINE; Center, Inc. Decals, Left Hand;35.0 Foot Header
  • 29
    1
    87560484
    REEL TINE; Center, Inc. Decals, Right Hand;35.0 Foot Header
  • 29
    1
    87560478
    REEL TINE; Center, Inc. Decals, Left Hand;30.0 Foot Header
  • 29
    1
    87560481
    REEL TINE; Center, Inc. Decals, Right Hand;30.0 Foot Header
  • 30
    10
    87561229
    PLUG; Tine Tube;5 Bat Reel
  • 30
    12
    87561229
    PLUG; Tine Tube;6 Bat Reel
  • 30
    18
    87561229
    PLUG; Tine Tube;9 Bat Reel
  • 31
    9
    87561017
    FINGER; Double, Angled, Right Hand Steel Reel Tail End;9 Bat Reel
  • 31
    5
    87561017
    FINGER; Double, Angled, Right Hand Steel Reel Tail End;5 Bat Reel
  • 31
    6
    87561017
    FINGER; Double, Angled, Right Hand Steel Reel Tail End;6 Bat Reel
  • 32
    6
    84328701
    FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;6 Bat Reel
  • 32
    5
    84328701
    FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;5 Bat Reel
  • 32
    9
    84328701
    FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;9 Bat Reel
  • 33
    -
    NSS
    NOT SOLD SEPARAT; KIT, Endshield;5 Bat Reel,Available Through Whole Goods Only, Order B5110
  • 33
    -
    NSS
    NOT SOLD SEPARAT; KIT, Endshield;Available Through Whole Goods Only, Order B5111,6 Bat Reel
  • 33
    -
    NSS
    NOT SOLD SEPARAT; KIT, Endshield;9 Bat Reel,Available Through Whole Goods Only, Order B5112
  • 34
    9
    87560985
    SHIELD; Cam End, Right Hand;9 Bat Reel

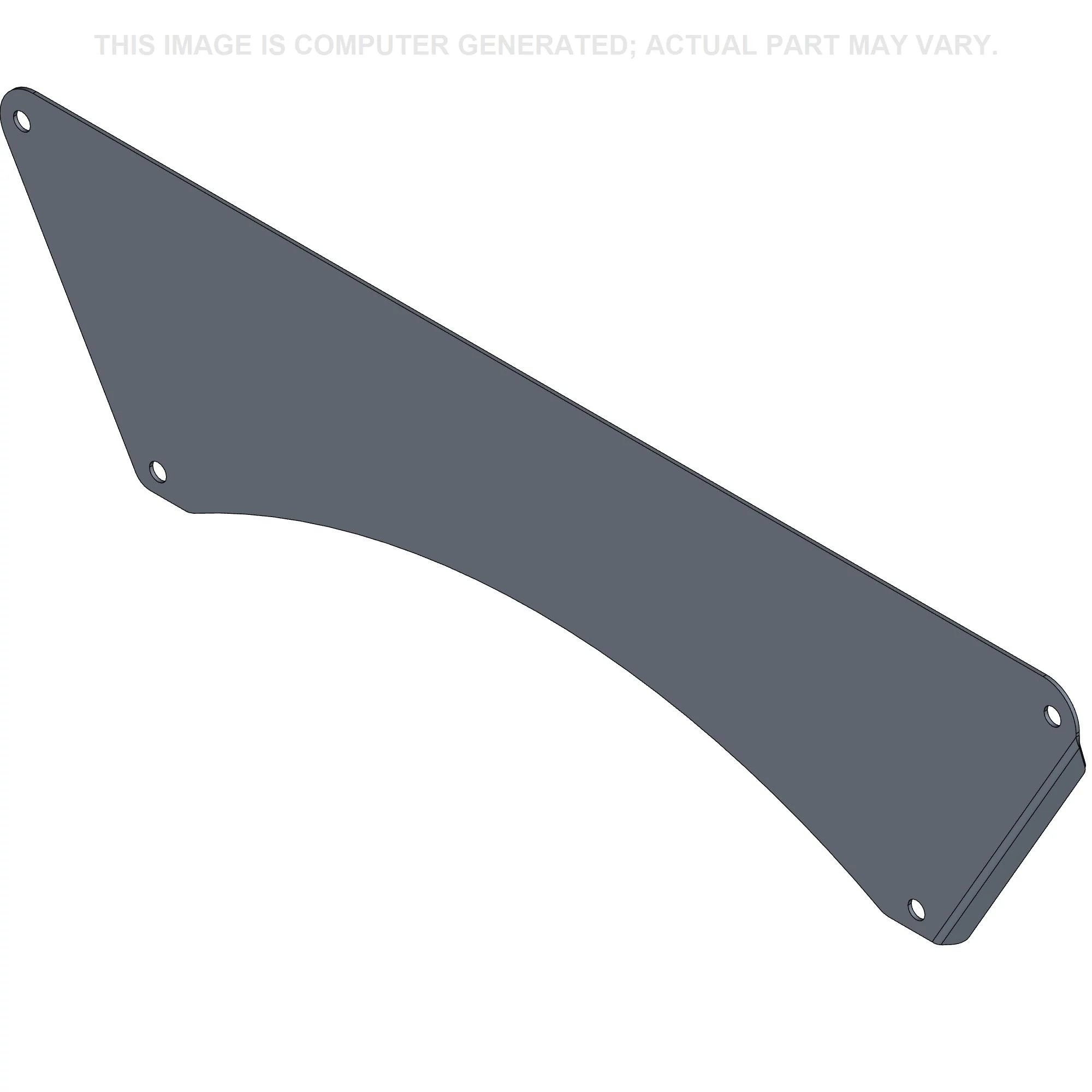

  • 34
    6
    87560984
    SHIELD; Cam End, Right Hand;6 Bat Reel
  • 34
    5
    87585295
    SHIELD; Cam End, Right Hand;5 Bat Reel
  • 34
    5
    87585295R
    SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Reman Cam End, Right Hand for 87585295
  • 34
    1
    87585295C
    SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Core Return
  • 35
    5
    87561597
    SUPPORT; Endshield, Cam End;5 Bat Reel
  • 35
    6
    87561597
    SUPPORT; Endshield, Cam End;6 Bat Reel
  • 35
    9
    87561597
    SUPPORT; Endshield, Cam End;9 Bat Reel
  • 36
    6

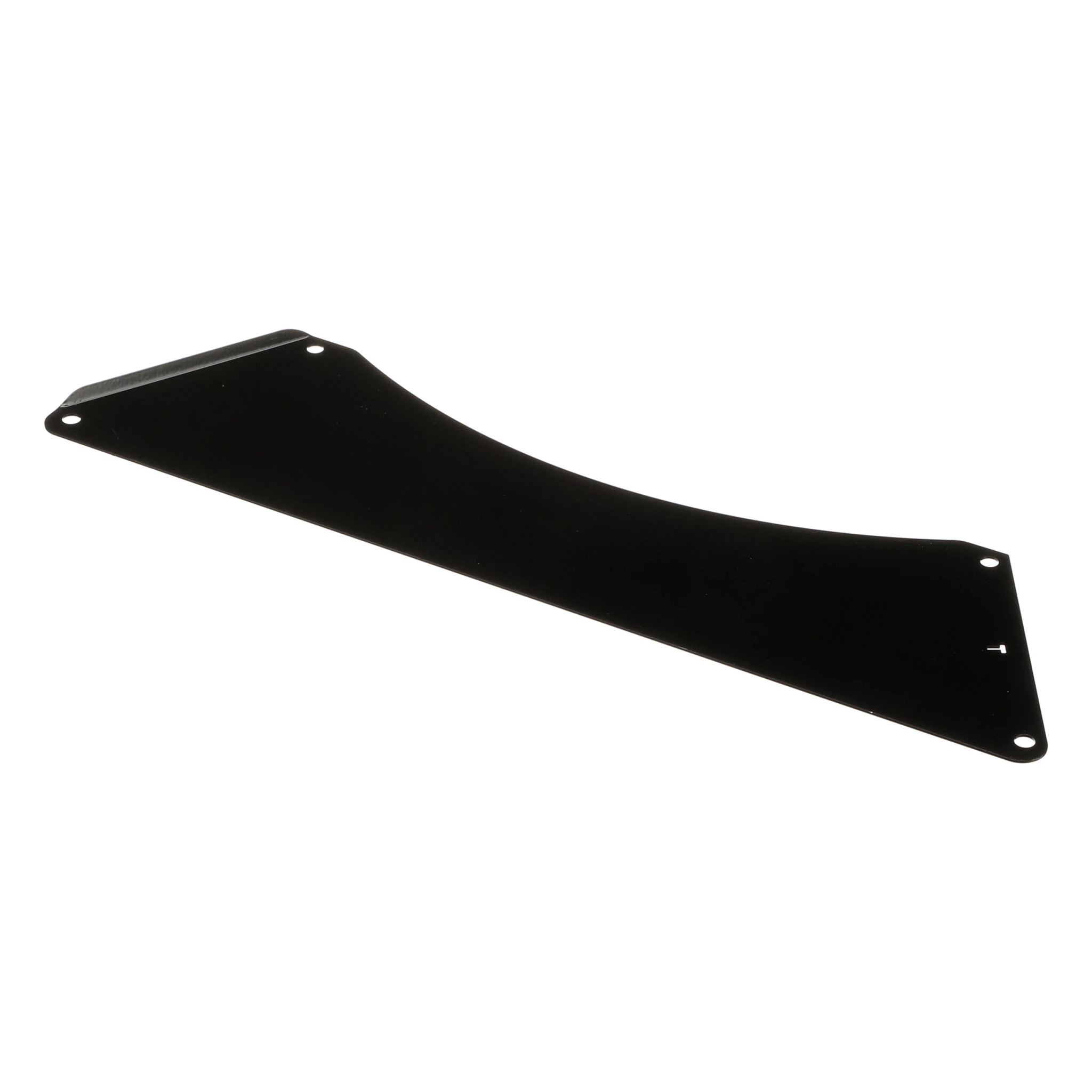

    87560992
    SHIELD; Endshield, Tail End, Left Hand;6 Bat Reel
  • 36
    9
    87560993
    SHIELD; Endshield, Tail End, Left Hand;9 Bat Reel
  • 36
    5

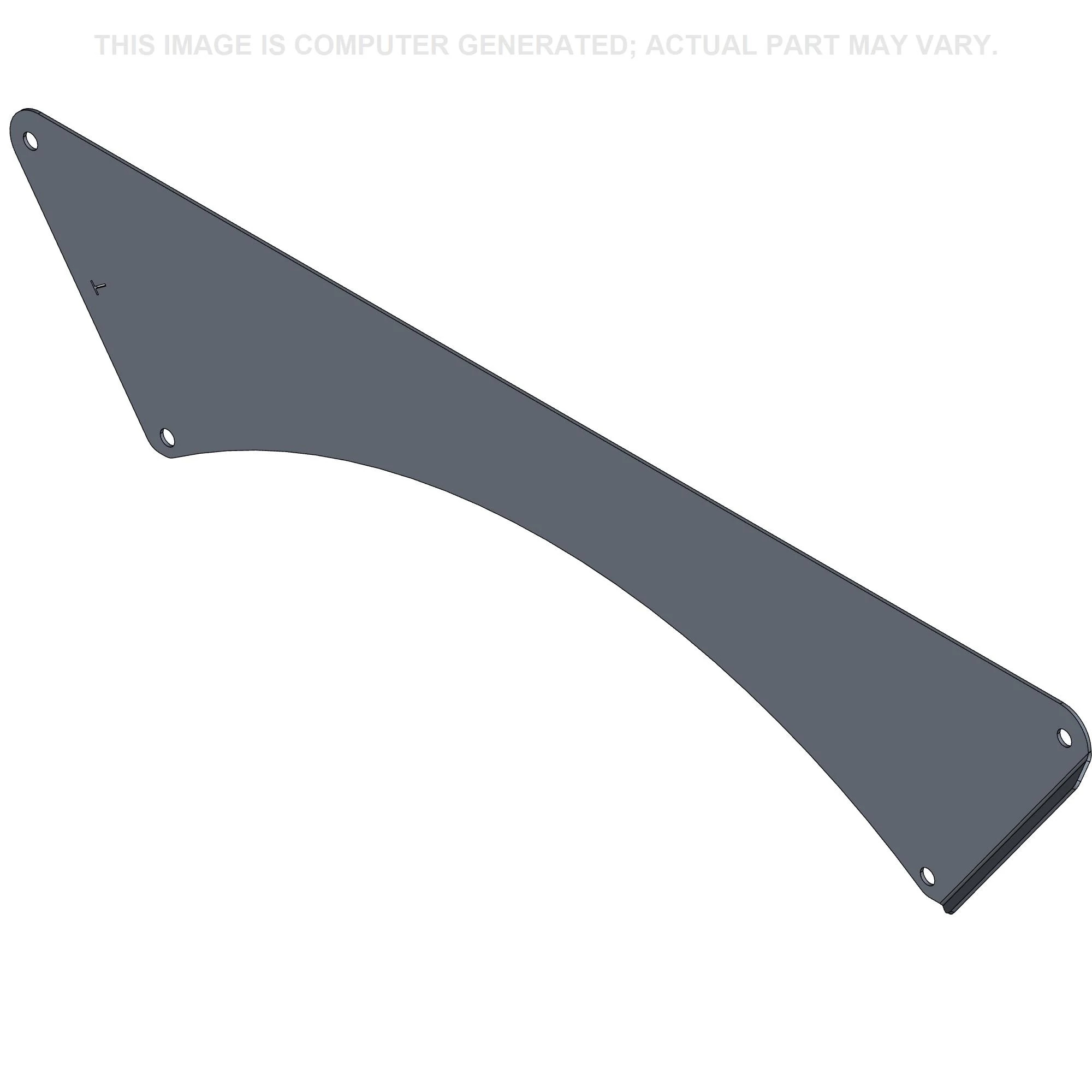

    87585306
    SHIELD; Endshield, Tail End, Left Hand;5 Bat Reel
  • 36
    5
    87585306R
    SHIELD END, SHIELD TAIL END 5 BAT SEG; Reman Endshield, Tail End, Left Hand for 87585306
  • 36
    1
    87585306C
    SHIELD END, SHIELD TAIL END 5 BAT SEG; Core Return
  • 37
    5
    87561598
    SUPPORT; Tail End;5 Bat Reel
  • 37
    9
    87561598
    SUPPORT; Tail End;9 Bat Reel
  • 37
    6
    87561598
    SUPPORT; Tail end;6 Bat Reel
  • B
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • D
    -
    280420
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
  • F
    -
    86512371
    SERRATED NUT Flg, USR, 1/2''-13;
  • G
    -
    358045A1
    SCREW Torx, Truss HD, 1/2'' - 13 x 3/4'', Gr 5;
  • H
    -
    358046A1
    SCREW Torx, Truss HD, 1/2'' - 13 x 1'', Gr 5;
  • K
    -
    496-41053
    WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; 5 Bat Reel
  • L
    -
    358048A1
    LOCK BOLT;
  • N
    -
    347305A1
    LOCK BOLT;
  • P
    -

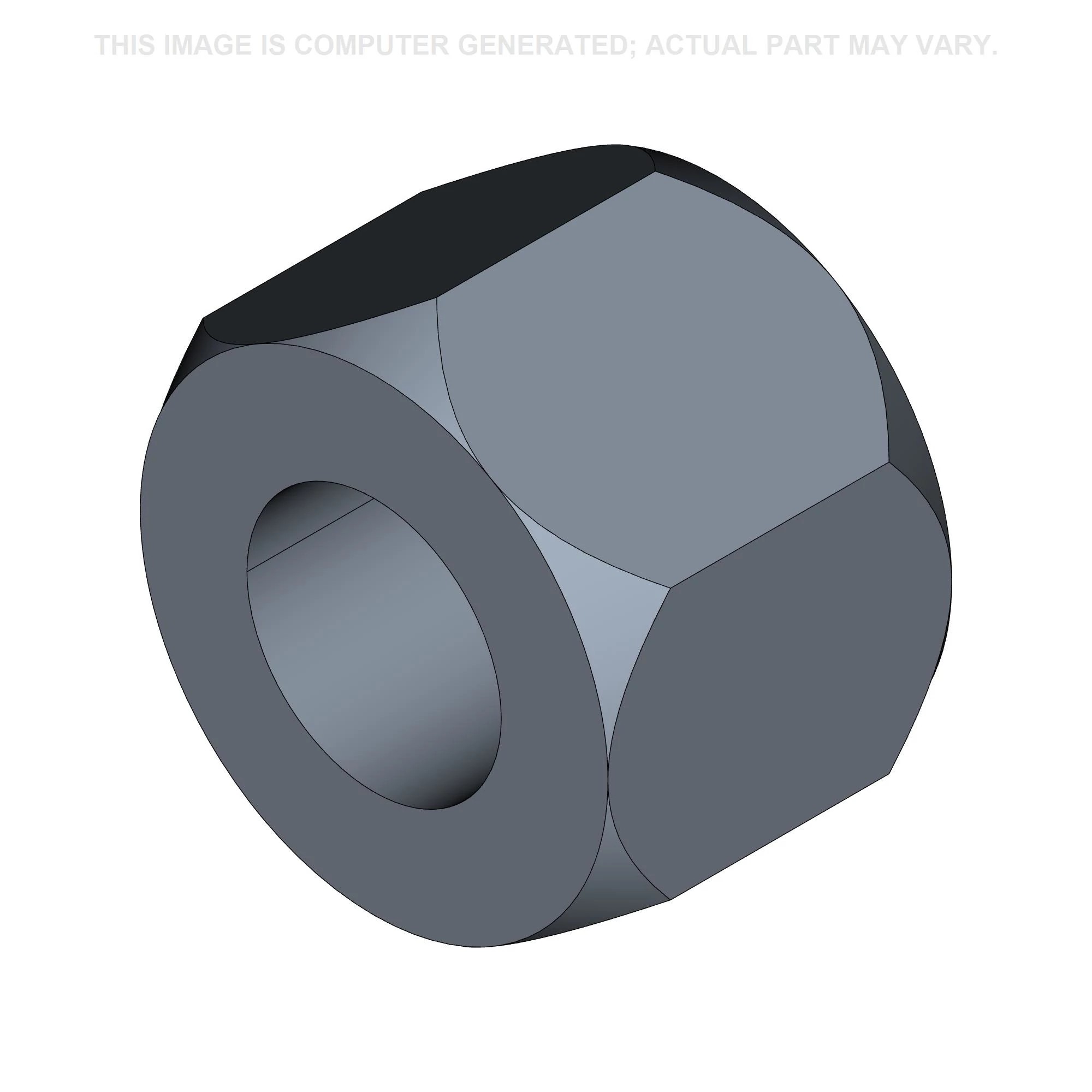

    231-4146
    NUT 3/8''-16, GB;
  • R
    -
    358047A1
    SCREW Torx, Truss HD, 3/8'' - 16 x 1/2'', Gr 5; SCREW
  • S
    -
    87016560
    JAM NUT Jam, 3/8''-16, G5; NUT
  • -
    87566781
    SOCKET;
  • -
    NSS
    NOT SOLD SEPARAT; KIT, Tine Tube Conversion - 30 Foot Dual Reel - 5 to 6 Bat, Includes One Complete Bat Assembly, Order Through Whole Goods Only, B5278
  • -
    NSS
    NOT SOLD SEPARAT; KIT, Tine Tube Conversion - 30 Foot Dual Reel - 6 to 9 Bat, Includes One Complete Bat Assembly, Order Through Whole Goods Only, B5279
  • A
    -
    87566368
    BOLT Wheel, 3/8 - 16 x 2.2244, CST;
  • C
    -
    87566777
    SCREW Torx, 1/4'' - 10 x 2-1/4'';
  • E
    -
    86512178
    SERRATED BOLT Hex Flg, 1/2'' - 13 x 3/4'', Gr 5;
  • J
    -
    87323841
    FLANGE NUT;
Select All

Select

Ref.

1

Qty

6

Availability

Part #

84178107

Description

TUBE 6647 mm L; Finger, Narrow Stagger;5 Bat Reel,45.0 Foot Header


Alts

Select

Ref.

1

Qty

10

Availability

Part #

87561620

Description

REEL TINE; Finger, Narrow Stagger;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

1

Qty

6

Availability

Part #

87561620

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

1

Qty

6

Availability

Part #

87561622

Description

REEL TINE; Finger, Narrow Stagger;40.0 Foot Header,5 And 6 Bat Reel


Alts

Select

Ref.

1

Qty

6

Availability

Part #

87561628

Description

REEL TINE; Finger, Narrow Stagger;5 And 6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

1

Qty

10

Availability

Part #

87561628

Description

REEL TINE; Finger, Narrow Stagger;35.0 Foot Header,9 Bat Reel


Alts

Select

Ref.

2

Qty

135

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

2

Qty

182

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

2

Qty

243

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

2

Qty

186

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

2

Qty

219

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

2

Qty

162

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

2

Qty

156

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

2

Qty

280

Availability

Part #

87560996

Description

FINGER Coiled, 2 Prongs, 321mm L; Double, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

3

Qty

6

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

3

Qty

17

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

3

Qty

12

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;35.0 And 40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

3

Qty

9

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

3

Qty

9

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

3

Qty

5

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

3

Qty

11

Availability

Part #

87561018

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Left Hand Offset, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

4

Qty

AR

Availability

Part #

84328701

Description

FINGER Coiled, 1 Prong, 313mm L; Single, Tail End, Left Hand;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201


Alts

Select

Ref.

4

Qty

5

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;5 Bat Reel


Alts

Select

Ref.

4

Qty

9

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;9 Bat Reel,30.0 And 35.0 Foot Header


Alts

Select

Ref.

4

Qty

6

Availability

Part #

87561022

Description

FINGER Coiled, 1 Prong, 282mm L; Single, Tail End, Left Hand;6 Bat Reel


Alts

Select

Ref.

5

Qty

332

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

280

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

5

Qty

598

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

336

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

5

Qty

399

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;6 Bat Reel


Alts

Select

Ref.

5

Qty

462

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

5

Qty

384

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

5

Qty

504

Availability

Part #

84130300

Description

FINGER; Plastic, Normal Duty;9 Bat Reel,30.0 Foot Double Knife Header With Manual Deck Shift


Alts

Select

Ref.

5

Qty

1

Availability

Part #

84331098

Description

SET OF PARTS; Finger, Plastic, Heavy Duty (Includes 10 of 87561020)


Alts

Select

Ref.

5

Qty

1

Availability

Part #

84331097

Description

KIT; Plastic, Heavy Duty (Includes 100 of 87561020)


Alts

Select

Ref.

5

Qty

399

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

336

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

5

Qty

462

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

5

Qty

504

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

5

Qty

598

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

384

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

5

Qty

332

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;5 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

5

Qty

280

Availability

Part #

87561020

Description

FINGER; Plastic, Heavy Duty;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

84122229

Description

TUBE 6647 mm Length; Finger, Wide Stagger;5 Bat Reel,45.0 Foot Header


Alts

Select

Ref.

6

Qty

8

Availability

Part #

87561621

Description

REEL TINE; Finger, Wide Stagger;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

6

Availability

Part #

87561621

Description

REEL TINE; Finger, Wide Stagger;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

87561621

Description

REEL TINE; Finger, Wide Stagger;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

87561623

Description

TINE BAR; Finger, Wide Stagger;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

6

Qty

6

Availability

Part #

87561623

Description

TINE BAR; Finger, Wide Stagger;40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

6

Qty

6

Availability

Part #

87561629

Description

REEL TINE; Finger, Wide Stagger;6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

6

Qty

8

Availability

Part #

87561629

Description

REEL TINE; Finger, Wide Stagger;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

6

Qty

4

Availability

Part #

87561629

Description

REEL TINE; Finger, Wide Stagger;35.0 Foot Header,5 Bat Reel


Alts

Select

Ref.

7

Qty

12

Availability

Part #

87560462

Description

ARM; Cam End;6 Bat Reel


Alts

Select

Ref.

7

Qty

10

Availability

Part #

87560462

Description

ARM; Cam End;5 Bat Reel


Alts

Select

Ref.

7

Qty

18

Availability

Part #

87560462

Description

ARM; Cam End;9 Bat Reel


Alts

Select

Ref.

8

Qty

108

Availability

Part #

47548631

Description

BUSHING; Finger Tube;9 Bat Reel


Alts

Select

Ref.

8

Qty

72

Availability

Part #

47548631

Description

BUSHING; Finger Tube;6 Bat Reel


Alts

Select

Ref.

8

Qty

60

Availability

Part #

47548631

Description

BUSHING; Finger Tube;5 Bat Reel


Alts

Select

Ref.

9

Qty

3

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 And 6 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

9

Qty

2

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 Bat Reel,40.0 Foot Header


Alts

Select

Ref.

9

Qty

3

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;40.0 Foot Header,6 Bat Reel


Alts

Select

Ref.

9

Qty

6

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;6 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

9

Qty

8

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;9 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

9

Qty

5

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;9 Bat Reel,35.0 Foot Header


Alts

Select

Ref.

9

Qty

4

Availability

Part #

87561021

Description

FINGER Coiled, 1 Prong, 321mm L; Single, Right Hand Offset, Steel Fingered Reels Only;5 Bat Reel,30.0 Foot Header


Alts

Select

Ref.

10

Qty

18

Availability

Part #

87560460

Description

ARM; 9 Bat Reel,30.0 And 35.0 Foot Header


Alts

Select

Ref.

10

Qty

12

Availability

Part #

87560460

Description

ARM; 6 Bat Reel


Alts

Select

Ref.

10

Qty

10

Availability

Part #

87560460

Description

ARM; 5 Bat Reel


Alts

Select

Ref.

11

Qty

12

Availability

Part #

87560464

Description

ARM; Tail End;6 Bat Reel


Alts

Select

Ref.

11

Qty

10

Availability

Part #

87560464

Description

ARM; Tail End;5 Bat Reel


Alts

Select

Ref.

11

Qty

18

Availability

Part #

87560464

Description

ARM; Tail End;9 Bat Reel


Alts

Select

Ref.

12

Qty

AR

Availability

Part #

84328697

Description

FINGER Coiled, 1 Prong, 309mm L; Cam End, Right Hand Reel;2142 - ASN YBZN01301,2152 - ASN YBZN07601,2162 - ASN YBZN14201


Alts

Select

Ref.

12

Qty

6

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;6 Bat Reel


Alts

Select

Ref.

12

Qty

9

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;9 Bat Reel


Alts

Select

Ref.

12

Qty

5

Availability

Part #

87561025

Description

FINGER Coiled, 1 Prong, 284mm L; Cam End, Right Hand Reel;5 Bat Reel


Alts

Select

Ref.

13

Qty

9

Availability

Part #

84328697

Description

FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;9 Bat Reel


Alts

Select

Ref.

13

Qty

5

Availability

Part #

84328697

Description

FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;5 Bat Reel


Alts

Select

Ref.

13

Qty

6

Availability

Part #

84328697

Description

FINGER Coiled, 1 Prong, 309mm L; Cam End, Left Hand Reel;6 Bat Reel


Alts

Select

Ref.

14

Qty

18

Availability

Part #

87560452

Description

ARM; Crank;9 Bat Reel


Alts

Select

Ref.

14

Qty

12

Availability

Part #

87560452

Description

ARM; Crank;6 Bat Reel


Alts

Select

Ref.

14

Qty

10

Availability

Part #

87560452

Description

ARM; Crank;5 Bat Reel


Alts

Select

Ref.

15

Qty

6

Availability

Part #

87561493

Description

SECTOR; Cam End


Alts

Select

Ref.

16

Qty

6

Availability

Part #

87560866

Description

CHANNEL; Cam Disc


Alts

Select

Ref.

17

Qty

12

Availability

Part #

87561586

Description

STUD; Link;6 Bat Reel


Alts

Select

Ref.

17

Qty

10

Availability

Part #

87561586

Description

STUD; Link;5 Bat Reel


Alts

Select

Ref.

17

Qty

18

Availability

Part #

87561586

Description

STUD; Link;9 Bat Reel


Alts

Select

Ref.

18

Qty

6

Availability

Part #

87407586

Description

SHIELD; Reel Tube Support 16 Gauge


Alts

Select

Ref.

19

Qty

6

Availability

Part #

87561502

Description

SECTOR; Reel Tube Support 18 Gauge


Alts

Select

Ref.

20

Qty

10

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;5 Bat Reel


Alts

Select

Ref.

20

Qty

12

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;6 Bat Reel


Alts

Select

Ref.

20

Qty

18

Availability

Part #

87560473

Description

ARM; Tine Control Assembly, Inc. 21 - 24;9 Bat Reel


Alts

Select

Ref.

21

Qty

10

Availability

Part #

87560455

Description

ARM; Tine Control;5 Bat Reel


Alts

Select

Ref.

21

Qty

12

Availability

Part #

87560455

Description

ARM; Tine Control;6 Bat Reel


Alts

Select

Ref.

21

Qty

18

Availability

Part #

87560455

Description

ARM; Tine Control;9 Bat Reel


Alts

Select

Ref.

22

Qty

30

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 5 Bat Reel


Alts

Select

Ref.

22

Qty

36

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 6 Bat Reel


Alts

Select

Ref.

22

Qty

54

Availability

Part #

87566354

Description

BALL BEARING 17 mm ID x 40 mm OD x 17.5 mm; 9 Bat Reel


Alts

Select

Ref.

23

Qty

18

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;9 Bat Reel


Alts

Select

Ref.

23

Qty

12

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;6 Bat Reel


Alts

Select

Ref.

23

Qty

10

Availability

Part #

344805A1

Description

BALL BEARING 15.9 mm ID x 50.81 mm OD x 15 mm; Cam Follower;5 Bat Reel


Alts

Select

Ref.

24

Qty

12

Availability

Part #

300625

Description

SNAP RING M16, Ext; 6 Bat Reel


Alts

Select

Ref.

24

Qty

10

Availability

Part #

300625

Description

SNAP RING M16, Ext; 5 Bat Reel


Alts

Select

Ref.

24

Qty

18

Availability

Part #

300625

Description

SNAP RING M16, Ext; 9 Bat Reel


Alts

Select

Ref.

25

Qty

12

Availability

Part #

87560450

Description

ARM; Inc. 22, 26;6 Bat Reel


Alts

Select

Ref.

25

Qty

18

Availability

Part #

87560450

Description

ARM; Inc. 22, 26;9 Bat Reel


Alts

Select

Ref.

25

Qty

10

Availability

Part #

87560450

Description

ARM; Inc. 22, 26;5 Bat Reel


Alts

Select

Ref.

26

Qty

10

Availability

Part #

87560882

Description

CLAMP; Finer Tube Bushing;5 Bat Reel


Alts

Select

Ref.

26

Qty

18

Availability

Part #

87560882

Description

CLAMP; Finer Tube Bushing;9 Bat Reel


Alts

Select

Ref.

26

Qty

12

Availability

Part #

87560882

Description

CLAMP; Finer Tube Bushing;6 Bat Reel


Alts

Select

Ref.

27

Qty

12

Availability

Part #

370016

Description

SNAP RING M17, Ext, PHC; 6 Bat Reel


Alts

Select

Ref.

27

Qty

18

Availability

Part #

370016

Description

SNAP RING M17, Ext, PHC; 9 Bat Reel


Alts

Select

Ref.

27

Qty

10

Availability

Part #

370016

Description

SNAP RING M17, Ext, PHC; 5 Bat Reel


Alts

Select

Ref.

28

Qty

18

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;9 Bat Reel


Alts

Select

Ref.

28

Qty

12

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;6 Bat Reel


Alts

Select

Ref.

28

Qty

10

Availability

Part #

87561535

Description

SHIM 18mm ID x 25mm OD x 0.91mm Thk; Crank Bearing;5 Bat Reel


Alts

Select

Ref.

29

Qty

1

Availability

Part #

84122231

Description

REEL; Center, Inc. Decals, Right Hand;45.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

84122230

Description

REEL; Center, Inc. Decals, Left Hand;45.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560487

Description

REEL; Center, Inc. Decals, Right Hand;40.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560486

Description

REEL; Center, Inc. Decals, Left Hand;40.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560483

Description

REEL TINE; Center, Inc. Decals, Left Hand;35.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560484

Description

REEL TINE; Center, Inc. Decals, Right Hand;35.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560478

Description

REEL TINE; Center, Inc. Decals, Left Hand;30.0 Foot Header


Alts

Select

Ref.

29

Qty

1

Availability

Part #

87560481

Description

REEL TINE; Center, Inc. Decals, Right Hand;30.0 Foot Header


Alts

Select

Ref.

30

Qty

10

Availability

Part #

87561229

Description

PLUG; Tine Tube;5 Bat Reel


Alts

Select

Ref.

30

Qty

12

Availability

Part #

87561229

Description

PLUG; Tine Tube;6 Bat Reel


Alts

Select

Ref.

30

Qty

18

Availability

Part #

87561229

Description

PLUG; Tine Tube;9 Bat Reel


Alts

Select

Ref.

31

Qty

9

Availability

Part #

87561017

Description

FINGER; Double, Angled, Right Hand Steel Reel Tail End;9 Bat Reel


Alts

Select

Ref.

31

Qty

5

Availability

Part #

87561017

Description

FINGER; Double, Angled, Right Hand Steel Reel Tail End;5 Bat Reel


Alts

Select

Ref.

31

Qty

6

Availability

Part #

87561017

Description

FINGER; Double, Angled, Right Hand Steel Reel Tail End;6 Bat Reel


Alts

Select

Ref.

32

Qty

6

Availability

Part #

84328701

Description

FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;6 Bat Reel


Alts

Select

Ref.

32

Qty

5

Availability

Part #

84328701

Description

FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;5 Bat Reel


Alts

Select

Ref.

32

Qty

9

Availability

Part #

84328701

Description

FINGER Coiled, 1 Prong, 313mm L; Single, Angled, Right Hand Plastic Reel Tail End;9 Bat Reel


Alts

Select

Ref.

33

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Endshield;5 Bat Reel,Available Through Whole Goods Only, Order B5110


Alts

Select

Ref.

33

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Endshield;Available Through Whole Goods Only, Order B5111,6 Bat Reel


Alts

Select

Ref.

33

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Endshield;9 Bat Reel,Available Through Whole Goods Only, Order B5112


Alts

Select

Ref.

34

Qty

9

Availability

Part #

87560985

Description

SHIELD; Cam End, Right Hand;9 Bat Reel


Alts

Select

Ref.

34

Qty

6

Availability

Part #

87560984

Description

SHIELD; Cam End, Right Hand;6 Bat Reel


Alts

Select

Ref.

34

Qty

5

Availability

Part #

87585295

Description

SHIELD; Cam End, Right Hand;5 Bat Reel


Alts

Select

Ref.

34

Qty

5

Availability

Part #

87585295R

Description

SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Reman Cam End, Right Hand for 87585295


Alts

Select

Ref.

34

Qty

1

Availability

Part #

87585295C

Description

SHIELD SHIELD, END CAM ENDS 5 BAT SEG; Core Return


Alts

Select

Ref.

35

Qty

5

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;5 Bat Reel


Alts

Select

Ref.

35

Qty

6

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;6 Bat Reel


Alts

Select

Ref.

35

Qty

9

Availability

Part #

87561597

Description

SUPPORT; Endshield, Cam End;9 Bat Reel


Alts

Select

Ref.

36

Qty

6

Availability

Part #

87560992

Description

SHIELD; Endshield, Tail End, Left Hand;6 Bat Reel


Alts

Select

Ref.

36

Qty

9

Availability

Part #

87560993

Description

SHIELD; Endshield, Tail End, Left Hand;9 Bat Reel


Alts

Select

Ref.

36

Qty

5

Availability

Part #

87585306

Description

SHIELD; Endshield, Tail End, Left Hand;5 Bat Reel


Alts

Select

Ref.

36

Qty

5

Availability

Part #

87585306R

Description

SHIELD END, SHIELD TAIL END 5 BAT SEG; Reman Endshield, Tail End, Left Hand for 87585306


Alts

Select

Ref.

36

Qty

1

Availability

Part #

87585306C

Description

SHIELD END, SHIELD TAIL END 5 BAT SEG; Core Return


Alts

Select

Ref.

37

Qty

5

Availability

Part #

87561598

Description

SUPPORT; Tail End;5 Bat Reel


Alts

Select

Ref.

37

Qty

9

Availability

Part #

87561598

Description

SUPPORT; Tail End;9 Bat Reel


Alts

Select

Ref.

37

Qty

6

Availability

Part #

87561598

Description

SUPPORT; Tail end;6 Bat Reel


Alts

Select

Ref.

B

Qty

-

Availability

Part #

86521609

Description

FLANGE NUT Flg, 3/8'' - 16;


Alts

Select

Ref.

D

Qty

-

Availability

Part #

280420

Description

CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;


Alts

Select

Ref.

F

Qty

-

Availability

Part #

86512371

Description

SERRATED NUT Flg, USR, 1/2''-13;


Alts

Select

Ref.

G

Qty

-

Availability

Part #

358045A1

Description

SCREW Torx, Truss HD, 1/2'' - 13 x 3/4'', Gr 5;


Alts

Select

Ref.

H

Qty

-

Availability

Part #

358046A1

Description

SCREW Torx, Truss HD, 1/2'' - 13 x 1'', Gr 5;


Alts

Select

Ref.

K

Qty

-

Availability

Part #

496-41053

Description

WASHER 13.49mm ID x 31.75mm OD x 5.05mm Thk; 5 Bat Reel


Alts

Select

Ref.

L

Qty

-

Availability

Part #

358048A1

Description

LOCK BOLT;


Alts

Select

Ref.

N

Qty

-

Availability

Part #

347305A1

Description

LOCK BOLT;


Alts

Select

Ref.

P

Qty

-

Availability

Part #

231-4146

Description

NUT 3/8''-16, GB;


Alts

Select

Ref.

R

Qty

-

Availability

Part #

358047A1

Description

SCREW Torx, Truss HD, 3/8'' - 16 x 1/2'', Gr 5; SCREW


Alts

Select

Ref.

S

Qty

-

Availability

Part #

87016560

Description

JAM NUT Jam, 3/8''-16, G5; NUT


Alts

Select

Ref.

Qty

-

Availability

Part #

87566781

Description

SOCKET;


Alts

Select

Ref.

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Tine Tube Conversion - 30 Foot Dual Reel - 5 to 6 Bat, Includes One Complete Bat Assembly, Order Through Whole Goods Only, B5278


Alts

Select

Ref.

Qty

-

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; KIT, Tine Tube Conversion - 30 Foot Dual Reel - 6 to 9 Bat, Includes One Complete Bat Assembly, Order Through Whole Goods Only, B5279


Alts

Select

Ref.

A

Qty

-

Availability

Part #

87566368

Description

BOLT Wheel, 3/8 - 16 x 2.2244, CST;


Alts

Select

Ref.

C

Qty

-

Availability

Part #

87566777

Description

SCREW Torx, 1/4'' - 10 x 2-1/4'';


Alts

Select

Ref.

E

Qty

-

Availability

Part #

86512178

Description

SERRATED BOLT Hex Flg, 1/2'' - 13 x 3/4'', Gr 5;


Alts

Select

Ref.

J

Qty

-

Availability

Part #

87323841

Description

FLANGE NUT;


Alts
