2152 - DRAPER HEADER (09/... 03 - CHASSIS-MOUNTED EQUI... 09-01A - FRAME AND COMPON...
09-01A - FRAME AND COMPONENTS - 2142, 2152
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87585354
    SERVICE KIT; Wobble Box Mount, Left Hand
  • 1
    1
    87589378
    SERVICE KIT; Wobble Box Mount, Left Hand
  • 1
    1
    87585355
    SERVICE KIT; Wobble Box Mount, Right Hand;Double Knife Header
  • 1
    1
    87589379
    SERVICE KIT; Wobble Box Mount, Right Hand;Double Knife Header
  • 2
    1
    87561560
    STAND; Header
  • 3
    1
    87566773
    PIN; Header Stand
  • 4
    1
    87566785
    SPRING;

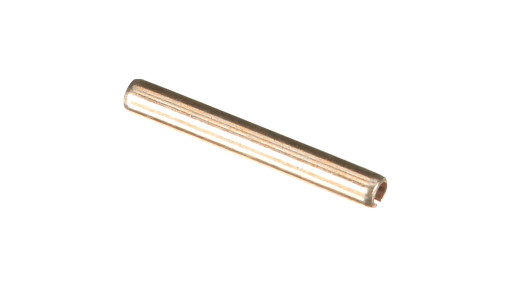

  • 5
    2
    87020817
    LOCK PIN 3/16'' OD x 1-1/2'' L, Slotted;
  • 6
    1
    88005
    LOCK PIN 5/16'' x 1'', Slotted;
  • 7
    2
    87566772
    PIN 19.05mm OD;
  • 8
    1
    410679A1
    SPECIAL RING;
  • 9
    1
    87655419
    HEADLESS PIN;
  • 10
    1
    88182
    COTTER PIN 1/4'' OD x 2'' L;
  • 11
    1
    87589368
    ANGLE; End Deflector, Left Hand Lower
  • 11
    1
    87589369
    ANGLE; End Deflector, Right Hand Lower
  • 12
    2
    87560518
    BAR; Deflector
  • 13
    2
    87560966
    DEFLECTOR; End, Rubber, Wide, (240 mm At Front End)
  • 13
    2
    87627743
    RUBBER; End, Narrow, (90 mm At Front End);2152 Only,40.0 And 45.0 Foot Headers
  • 14
    14
    86512629
    RIVET;
  • 15
    1
    87560967
    DEFLECTOR; Left Hand Upper, End (Shown)
  • 15
    1
    87560968
    DEFLECTOR; Right Hand Upper, End
  • 16
    2
    87560519
    BAR; Rear, Deflector Retainer
  • 17
    AR
    87409005
    CUTTERBAR 1300mm L; Repair Piece, 1300 mm (4.3 ft);30.0, 35.0, 40.0, And 45.0 Foot Headers
  • 17
    AR
    87605711
    CUTTERBAR; Repair Piece, 1300 mm (4.3 ft);20.0 And 25.0 Foot Header
  • 18
    4
    87561573
    ANTI-SKID STRIP; 2152 Only,25.0, 30.0, And 35.0 Foot Header
  • 18
    4
    D55216
    ANTI-SKID STRIP 2'' x 9''; 2152 Only,20.0, 25.0, 30.0, And 35.0 Foot Headers
  • 19
    3
    87561585
    ANTI-SKID STRIP; 2152 Only,25.0, 30.0, And 35.0 Foot Header
  • 20
    1
    87560328
    SHIELD; Guard, Left Hand
  • 20
    1
    87561533
    SHIELD; Guard, Right Hand
  • 21
    1
    87560971
    DIVIDER; ASSY. Right Hand
  • 21
    1
    87560327
    DIVIDER ASSY.; Left Hand
  • 22
    2
    87560972
    DIVIDER; Tube
  • 23
    2
    87561129
    HOOK; Divider Latch
  • 24
    1
    87561532
    SHIELD; Poly Wobble Box Mount, Left Hand
  • 24
    1
    87561534
    SHIELD; Poly Wobble Box Mount, Right Hand
  • 25
    1
    87561249
    RETAINER; Wobble Box Poly Shield

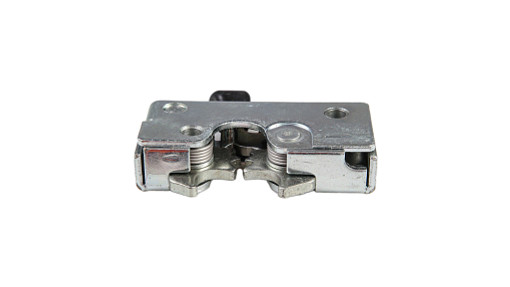

  • 26
    1
    87561161
    LATCH; Divider, Left Hand;2152 Only

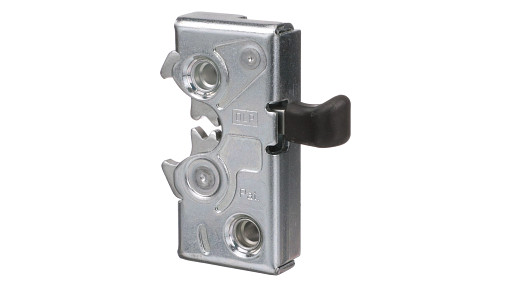

  • 26
    1
    87561163
    LATCH; Divider, Right Hand;2152 Only
  • 27
    1
    87561162
    LATCH; Divider Safety, Left Hand;2152 Only
  • 27
    1
    87561164
    LATCH; Divider Safety, Right Hand;2152 Only
  • 28
    2
    87560446
    ANGLE; Divider Rod Storage
  • 29
    1
    87560841
    BRACKET; Divider Rod Storage
  • 30
    1
    87561618
    DIVIDER; Divider Rod Storage
  • 31
    AR
    338573A1
    TUBE 215.9 mm OD, 1500 mm Length; Frame, Repair Piece, 1500mm Long
  • 32
    2
    87561604
    SUPPORT; Endshield Latch
  • 33
    1
    84147689
    WOBBLE BOX; 30.0, 35.0, 40.0, And 45.0 Foot Headers
  • 33
    1
    84147688
    WOBBLE BOX; 20.0 And 25.0 Foot Header
  • 34
    1
    341005A1
    LINCH PIN;
  • 35
    1
    87725613
    COVER; Cutterbar Splice - Splice From Header

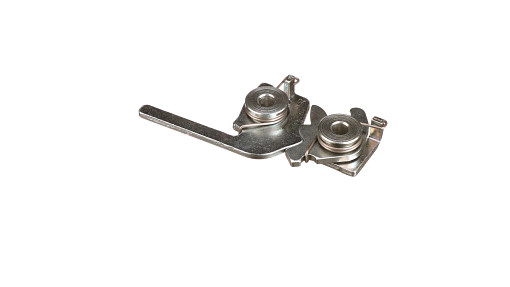

  • 36
    1
    87560476
    LATCH; Stirrup, Right Hand Endshield

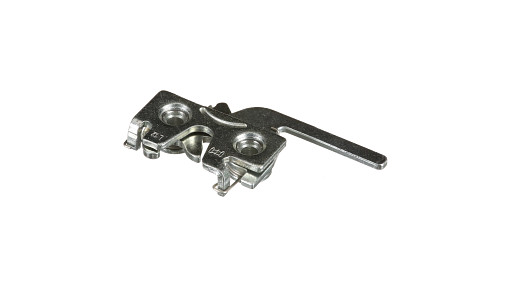

  • 36
    1
    87560475
    LATCH; Stirrup, Left Hand Endshield
  • 38
    2
    87561245
    RETAINER; Rubber Deflector
  • 39
    2
    87561225
    PLATE; Outer;20.0 Foot Header
  • 40
    2
    87561224
    PLATE; Inner;20.0 Foot Header
  • 41
    1
    87566775
    PLASTIC PLUG; Single Knife Header
  • 42
    1
    87560353
    DEFLECTOR; Left Hand End
  • 42
    1
    87560969
    DEFLECTOR; Right Hand End
  • 43
    2
    87561101
    GUIDE; Endshield Latch;European Headers Only
  • 44
    1
    87589365
    SUPPORT ASSY.; Endshield Latch, Left Hand
  • 44
    1
    87589377
    SUPPORT; Endshield Latch, Right Hand
  • 45
    1
    87752666
    BAR; BAR Cutterbar Splice, 4-Hole-Split Frame Headers

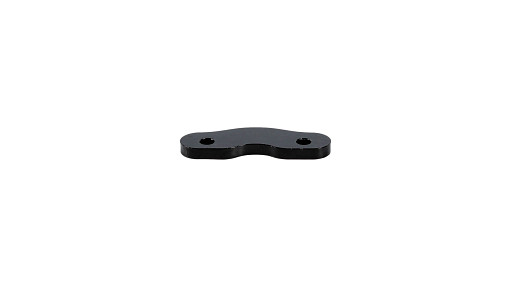

  • 46
    1
    84518313
    BAR; BAR Cutterbar Splice, 2-Hole-Split Frame Headers
  • 47
    1
    87605751
    SUPPORT; Steel Deflector, Left Hand
  • 47
    1
    87605752
    SUPPORT; Steel Deflector, Right Hand
  • 48
    1
    87752683
    DEFLECTOR; Angle, Left Hand;2142 Only
  • 48
    1
    87752684
    DEFLECTOR; Angle, Right Hand;2142 Only
  • 49
    1
    87585273
    COVER ASSY; Cutterbar Splice, Split Frame Header
  • 51
    1
    84147689
    WOBBLE BOX; Jig, 30.0, 35.0, And 40.0 Foot Headers
  • A
    -
    281-54910
    SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';

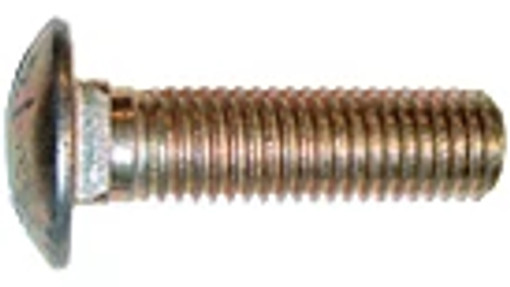

  • B
    -
    86508748
    CARRIAGE BOLT Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;
  • C
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • D
    -
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;

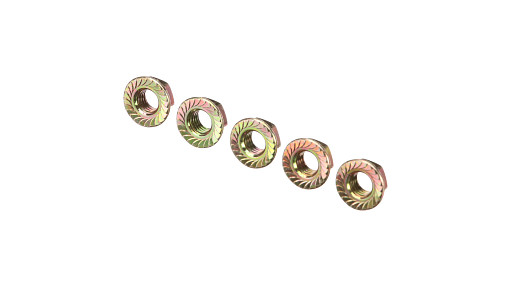

  • E
    -
    86512371
    SERRATED NUT Flg, USR, 1/2''-13;
  • F
    -
    87689
    BOLT 1/2''-13 x 1.813'' OAL, Gr 5;

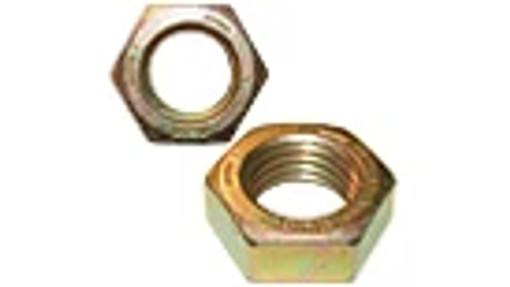

  • G
    -
    219758
    JAM NUT Jam, 3/4''-10, G5;

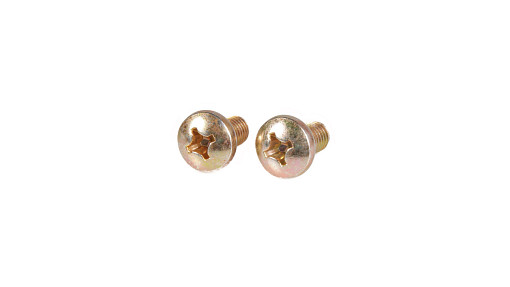

  • H
    -
    86511946
    SCREW Phillips Drive, Pan HD, 3/8'' - 16 x 3/4'';
  • J
    -
    443-13124
    SCREW Cross Flat Hd, 5/16''-18 x 1 1/2'';
  • K
    -
    87034814
    FLANGE NUT Flg, 5/16''-18;
  • L
    -
    492-11038
    LOCK WASHER 3/8'';
  • M
    -
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5;
  • N
    -
    495-11041
    WASHER 0.406'' ID x 0.812'' OD x 0.065'' W;
  • P
    -
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • Q
    -
    492-11025
    LOCK WASHER 1/4'';
  • R
    -
    9707580
    BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5, Full Thd;
  • S
    -
    495-11028
    WASHER 1/4'', SAE;
  • T
    -
    413-816
    BOLT Hex, 1/2'' - 13 x 1'', Gr 5; 2142
  • T
    -
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; 2152
  • U
    -

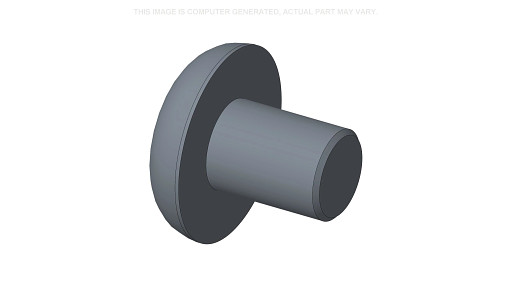

    358047A1
    SCREW Torx, Truss HD, 3/8'' - 16 x 1/2'', Gr 5;
  • V
    -
    86632558
    JAM NUT Jam, 1/2''-13, G5;
  • W
    -
    86632558
    JAM NUT Jam, 1/2''-13, G5;
  • X
    -
    87566780
    SCREW Hex Washer, 5/16'' x 1'';
  • Y
    -
    87423184
    RIVET;
  • Z
    -
    424-728
    BOLT Hex, 7/16'' - 14 x 1-3/4'', Gr 2; 20.0, 25.0, 30.0, And 35.0 Foot Headers
  • Z
    -
    433-732
    CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 2'', Gr 5; 40.0 Foot Header
  • AA
    -
    425-107
    NUT 7/16''-14, G5;
  • BB
    -
    434-1016
    CARRIAGE BOLT Sht Sq Nk, 5/8'' - 11 x 1'', Gr 5;
  • DD
    -
    129-390
    JAM NUT Jam, 5/8''-11, G5;
  • EE
    -
    280245
    BOLT Hex, 3/4'' - 16 x 1 1/2'', Gr 5, Full Thd; 2142 Only
  • FF
    -
    9847025
    LOCK WASHER 21.2mm ID x 33.6mm OD x 6mm Thk; 2142 Only
  • GG
    -
    495-81042
    WASHER 25/32'' x 1 1/2'' x .120''; 2142 Only
  • HH
    -
    219758
    JAM NUT Jam, 3/4''-10, G5; 2152 Only
