09-16 - DRAPERS, DRIVE AND TENSIONER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    87753072
    ARM ASSY.; Motor Support;All 2142, All 2162, And 2152 45.0 Foot Headers,If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 1
    2
    87560459
    ARM; Motor Support;2152 Only,20.0 Foot Header,If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 1
    1
    87560468
    ARM; Motor Support, Left Hand;2152 Only,25.0, 30.0, 35.0, And 40.0 Foot Headers,If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 1
    1
    87560469
    ARM; Motor Support, Right Hand;2152 Only,25.0, 30.0, 35.0, And 40.0 Foot Headers,If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 2
    1
    87585450
    STABILIZER; Left Hand;If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 2
    1
    87585451
    STABILIZER; Right Hand;If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 3
    2
    87585452
    BELLCRANK;
  • 4
    2
    87585454
    SUPPORT; Compression Member
  • 5
    2
    87472959
    HYDRAULIC MOTOR GEAR, 40 CC; Draper Drive, Inc. Key, 4-Bolt Mounting
  • 5
    2
    47564869C
    CORE-MOTOR HYDRAULIC CORE-MOTOR HYDRAULIC; Draper Drive, Inc. Key, 4-Bolt Mounting
  • 5
    2
    87472959R
    REMAN-HYD MOTOR GEAR, 40 CC; 2142, 2152, 2162, All DRAPER HEADER, Draper Drive (9/06-)
  • 5
    2
    87472959C
    CORE-MOTOR HYDRAULIC GEAR, 40 CC; Return Number
  • 5
    2
    87561200
    HYDRAULIC MOTOR; Draper Drive, Inc. Key, 2-Bolt Mounting
  • 5
    2
    84139602
    HYDRAULIC MOTOR; Draper Drive, Inc. Key, 4-Bolt Mounting
  • *
    1
    410841A1
    WOODRUFF KEY; Draper Drive Motor
  • *
    1
    87585425
    SEAL KIT; Kit, For Draper Drive Motor 87561200 Or 87472959
  • *
    1
    84139603
    SEAL KIT; For Draper Drive Motor 84139602
  • *
    1
    87605747

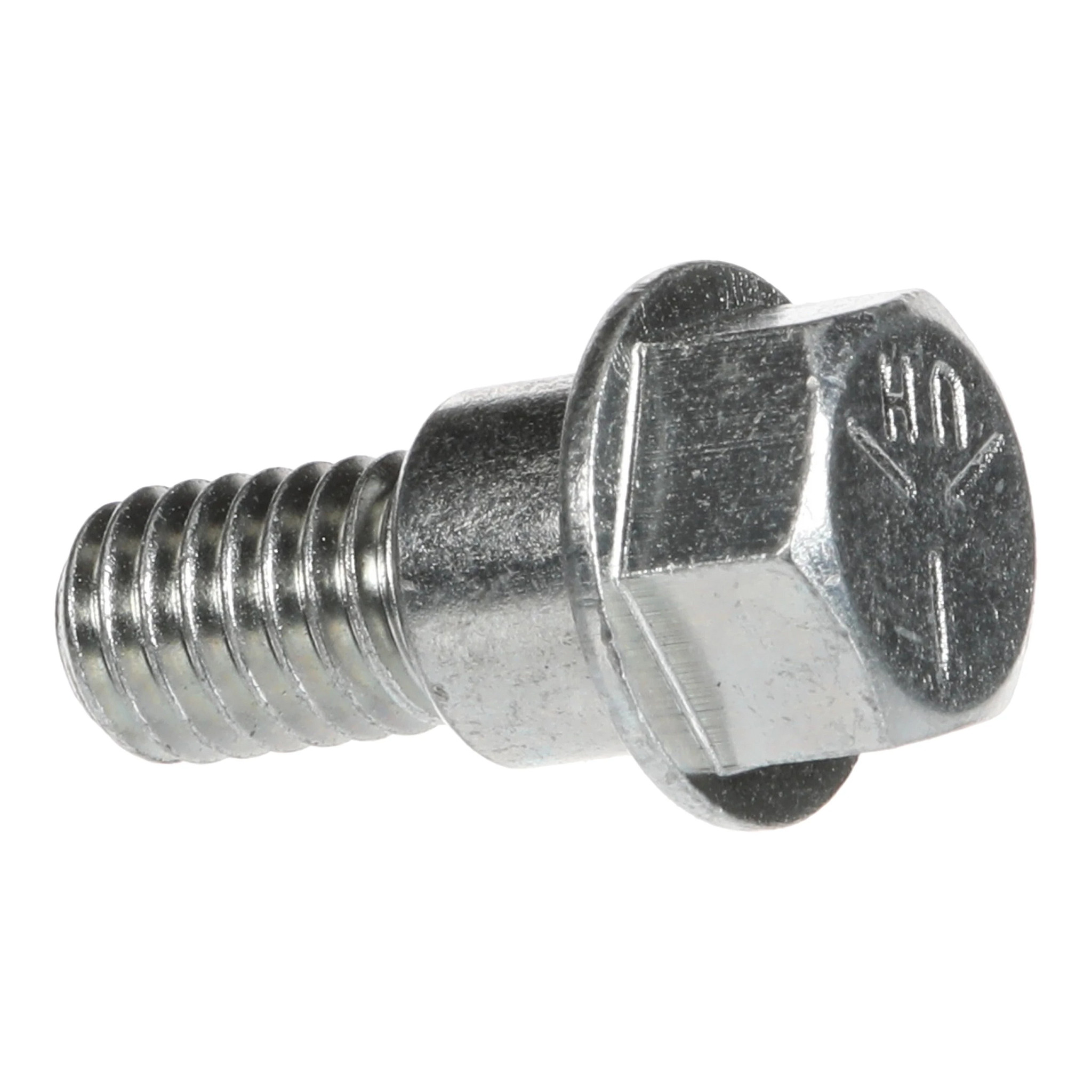

    BOLT Wheel, 3/8 - 16, Gr 5; Screw for Hyd Motor
  • 6
    2
    87561475
    ROLLER ASSY.; Vulcanized Rubber, Incl 7 - 8;Ref Figure 09-50A For Double Drive
  • 7
    6
    87560474
    BEARING ASSY; Inc. V and J
  • 8
    6
    87561492

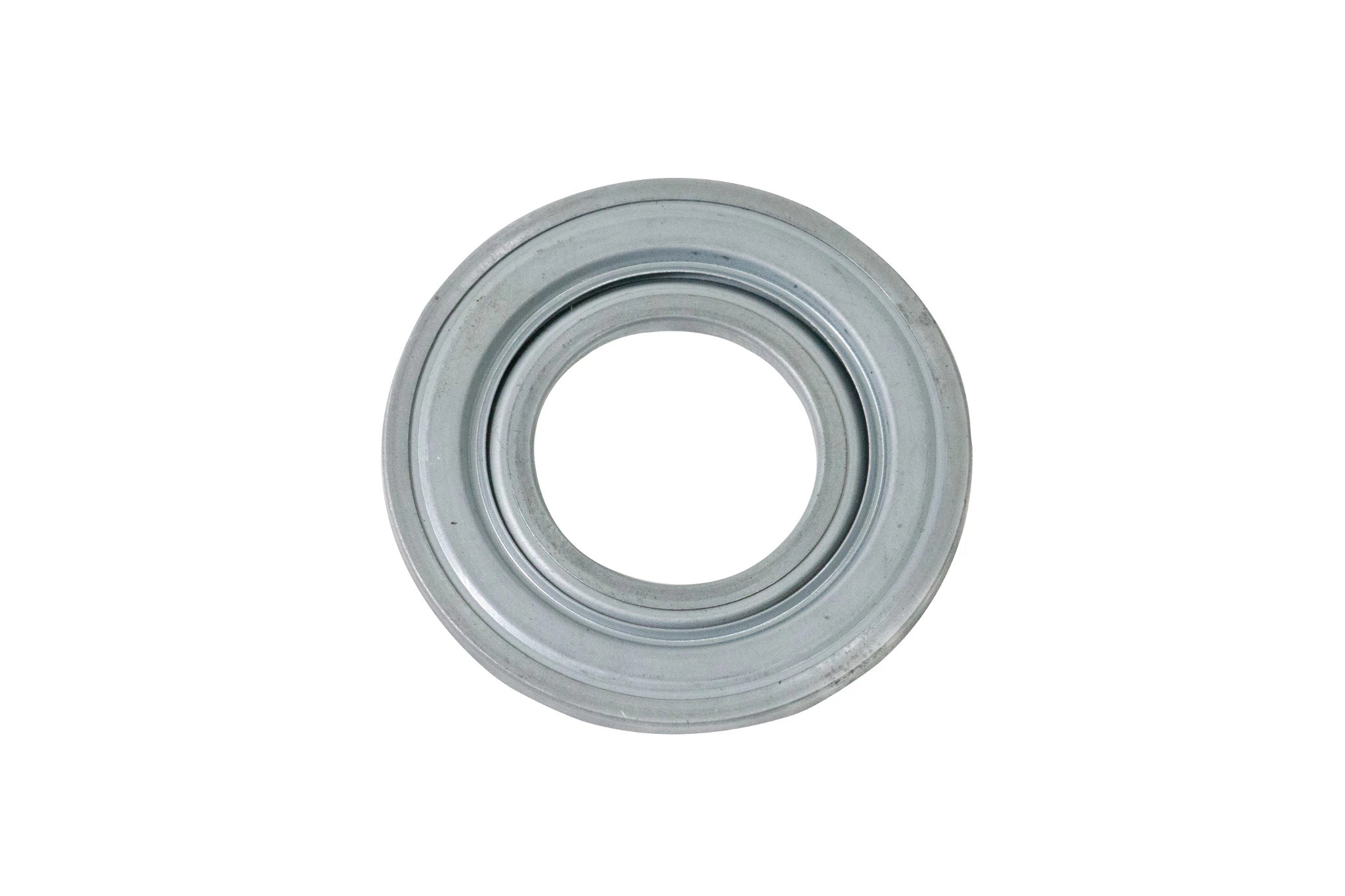

    SEAL 25mm ID x 52mm OD x 4mm Thk;
  • 9
    1
    87560453
    ARM; Front Support, Left Hand
  • 9
    1
    87560333
    SUPPORT; Front Support, Right Hand
  • 10
    2
    87561174
    BRACKET; Idler
  • 11
    2
    87566764

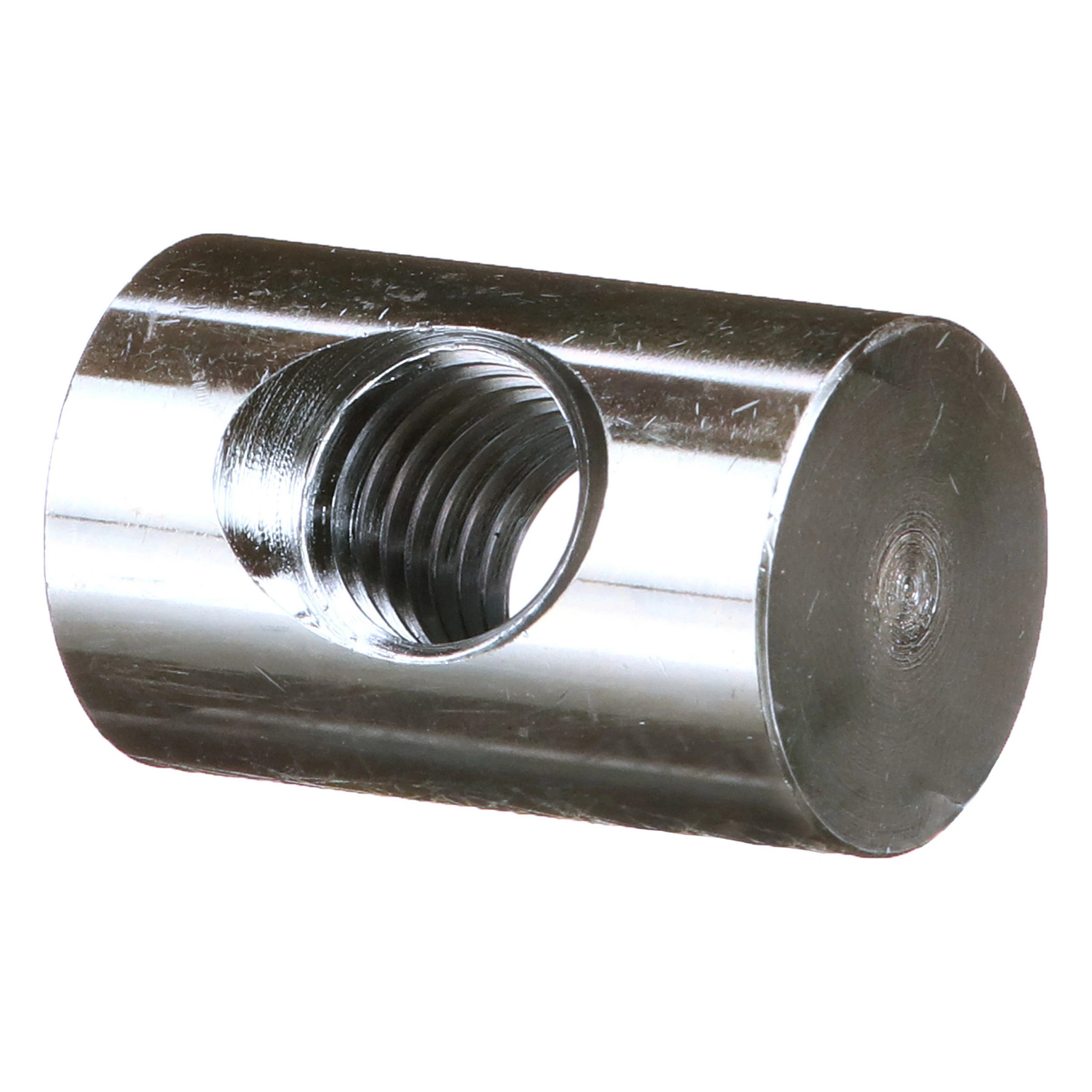

    SPECIAL NUT;
  • 12
    2
    87561150
    INDICATOR; If Ordering For BSN Y9ZN00701, Also Order Qty 2 Ref. A For Motor Support Arms, Qty 1 For Stabalizer/Indicator.
  • 13
    2
    87561165
    SPRING, LEAF; Tensioner
  • 14
    2
    87560444
    ADJUSTER; Drive Roller
  • 15
    2
    87560443
    ADJUSTER; Idler Roller
  • 16
    2
    87560456
    ARM; Rear Support
  • 17
    2
    87585170
    ARM; Idler Roller
  • 18
    2
    87561635
    TUBE 50.55 - 51.51 mm ID x 60.33 mm OD x 995 mm L; Idler Roller Includes 875560474 Bearing Assy and 87561492 Seal
  • 19
    2
    280250
    COTTER PIN 3/32'' OD x 3/4'' L;
  • 20
    2
    87566783
    SPACER;
  • 21
    2
    495-31056
    WASHER 14.27mm ID x 47.63mm OD x 2.77mm Thk;
  • 22
    2
    254146
    SPACER 25/64'' ID x 5/8'' OD x 1/2'' L;
  • 23
    2
    87560976
    SHEET ASSY.; With Tapered Cleats, Inc. 24;2152 Only,20.0 Foot Header
  • 23
    2
    87605705
    DRAPER; With Square Cleats, Inc. 24;2162 Only,20.0 Foot Header
  • 23
    2
    87560977
    DRAPER; With Tapered Cleats, Inc. 24;2152 Only,25.0 Foot Header
  • 23
    2
    87605706
    DRAPER; With Square Cleats, Inc. 24;2162 Only,25.0 Foot Header
  • 23
    2
    87560978
    DRAPER; With Tapered Cleats, Inc. 24;2152 Only,2162 Only,30.0 Foot Header
  • 23
    2
    87560979
    DRAPER; With Tapered Cleats, Inc. 24;2142, 2152, 2162, 35.0 Foot Header
  • 23
    2
    84399891
    DRAPER; With Square Cleats, Inc. 24;2142, 2162, 35.0 Foot Header
  • 23
    2
    87560980
    DRAPER; Double V-Guide, With Tapered Cleat, Inc. 24;40.0 Foot Header,2152 And 2162 Only
  • 23
    2
    84399890
    DRAPER; Double V-Guide, With Square Cleat, Inc. 24;40.0 Foot Header,2152 And 2162 Only
  • 23
    2
    87752713
    DRAPER; DRAPER, Single V-Guide, With Tapered Cleats, Inc. 24;2142 Only,25.0 Foot Header
  • 23
    2
    87752690
    DRAPER 1057mm W x 7042mm L; Single V-Guide, With Tapered Cleats, Inc. 24;2142 Only,30.0 Foot Header
  • 23
    2
    87752692
    DRAPER; Single V-Guide, With Tapered Cleats, Inc. 24;2142 Only,35.0 Foot Header
  • 23
    2
    87605707
    DRAPER; Double V-Guide, With Square Cleats, Inc. 24;30.0 Foot Double Knife Header With Manual Deck Shift
  • 23
    2
    87605709
    DRAPER; Double V-Guide, With Square Cleats, Inc. 24;30.0 Foot Double Knife Header With Hydraulic Deck Shift
  • 23
    2
    87605710
    DRAPER; Double V-Guide, With Square Cleats, Endless;35.0 Foot Double Knife Header With Hydraulic Deck Shift
  • 23
    2
    84122227
    BELT; Double V-Guide, With Tapered Cleats, Inc. 24;2152 Only,45.0 Foot Header
  • 23
    2
    84399888
    DRAPER; Double V-Guide, With Square Cleats, Inc. 24;2162 Only,45.0 Foot Header
  • AR
    87494157
    DRAPER; Double V-Guide, 150 Ft Bulk Roll, No Holes
  • AR
    84122233

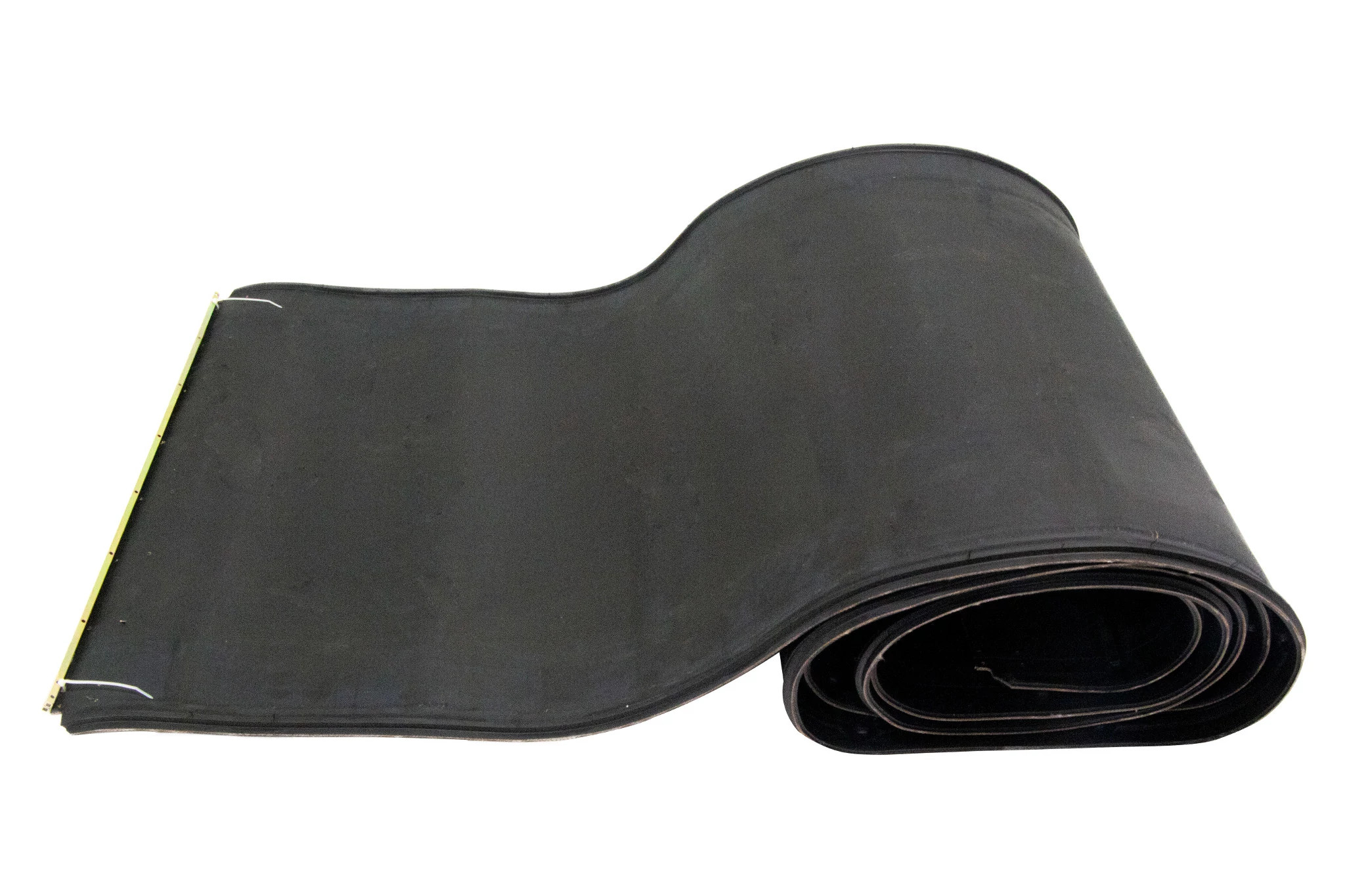

    BELT; Double V-Guide, Repair Piece, 500mm (200, 1 Slat, Includes Connector Kit)
  • 24
    4
    87585256
    SERVICE KIT; Draper, Inc. Two Slats and Hardware
  • AR
    87666084
    HARDWARE; Hardware Bag, Draper Connector
  • 25
    -
    NSS
    NOT SOLD SEPARAT; KIT, Draper Extension, Includes Parts For 2 Decks;Available Through Whole Goods Only, Order B5407
  • 26
    2
    NSS
    NOT SOLD SEPARAT; ARM, Support, Rear
  • 27
    2
    NSS
    NOT SOLD SEPARAT; ARM, Support, Front Inner
  • 28
    2
    NSS
    NOT SOLD SEPARAT; ARM, Support, Front Outer
  • 29
    2
    84122233
    BELT; 500mm (200, 1 Slat, Includes 2 Connector Kits)
  • A
    -
    87605747
    BOLT Wheel, 3/8 - 16, Gr 5; Bolt Shoulder 0.375-16UNC QTY 4
  • B
    -
    495-11053
    WASHER 1/2'', SAE;
  • C
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • D
    -
    231-2448
    LOCK NUT 1/2''-20, GB;
  • E
    -
    86632558
    JAM NUT Jam, 1/2''-13, G5;
  • G
    -
    80425
    SET SCREW Hex Soc, 3/8''-16 x 3/8'';
  • J
    -
    414-1016
    BOLT Hex, 5/8'' - 18 x 1'', Gr 5;
  • L
    -
    9628503
    NUT 3/8'' - 16, Gr 5;
  • M
    -
    495-11041
    WASHER 0.406'' ID x 0.812'' OD x 0.065'' W;
  • N
    -
    88682
    CARRIAGE BOLT Short Nk, 3/8'' - 16 x 1'', Gr 5;
  • P
    -
    87868
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5, Full Thd;
  • Q
    -
    86508773
    CARRIAGE BOLT Sq Nk, 3/8'' - 16 x 1 1/4'', Gr 5, Full Thd;
  • R
    -
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • S
    -
    280486
    CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1'', Gr 5, Full Thd;
  • T
    -
    87848
    BOLT Hex, 1/2'' - 20 x 1'', Gr 5;
  • V
    -
    1013623
    WASHER;
  • W
    -
    87323841
    FLANGE NUT;
  • X
    -
    346551A1
    BOLT;
  • Y
    -
    87670
    BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
