09-19 - DRAPER DRIVE HYDRAULICS, MANUAL DECK SHIFT HEADERS, 2162
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87565697
    HOSE;
  • 2
    1
    87565686
    HOSE;
  • 3
    1
    87565685
    HOSE;
  • 4
    1
    87565703
    HOSE;
  • 5
    1
    87561124
    HOLDER; Hose
  • 6
    1
    87605745
    QUICK MALE COUPLING; Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.
  • 8
    1
    87472038

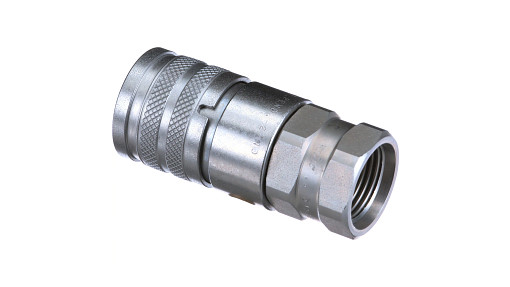

    FITTING; Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.
  • 9
    1
    87561552
    SLEEVE; Hose Protector
  • 10
    4
    86508629

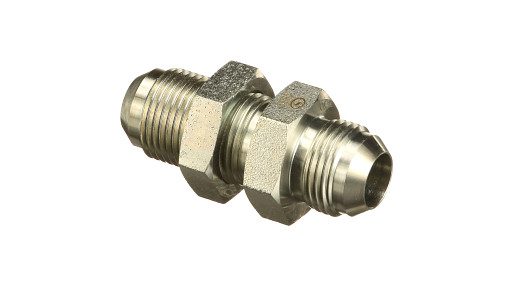

    FITTING Blkhd, 1 1/16''-12, 37 Degree x 1 1/16''-12, 37 Degree; Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.
  • 11
    1
    87561121
    HOLDER; Hose
  • 12
    1
    241074
    ELBOW 90 Degree, 9/16''-18, 37 Degree x 9/16''-18, 37 Degree; Single Knife Header
  • 13
    1
    84674
    HOSE CLAMP 33.3mm - 57.1mm, Worm Gear;
  • 14
    1
    311164C1
    CLAMP;
  • 15
    1
    1336064C1

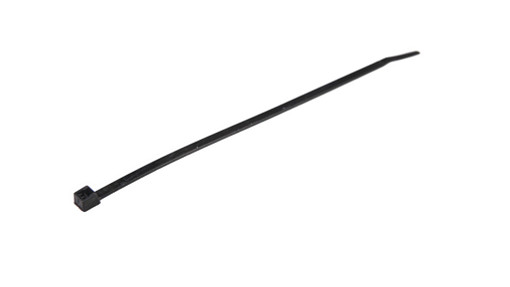

    CABLE TIE; CABLE STRAP Cable Tie
  • 16
    4
    218-5137
    ELBOW 45 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB;
  • 17
    3
    338322A1
    CLIP;
  • 18
    1
    218-5278
    ELBOW 9/16'' - 18 JIC x 7/16'' - 20 ORB; Incl. O-Ring
  • 1
    237-6004
    O-RING 0.072'' Thk x 0.351'' ID, -904, Cl 6, 90 Duro;
  • 19
    1
    219603
    90 ELBOW 1-1/16'' - 12 JIC x 1-1/16'' - 12, 37 Degree Fem Sw;
  • 20
    1
    86512937

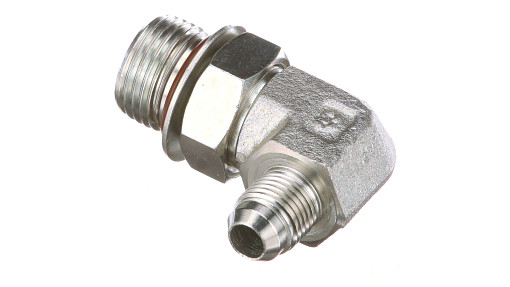

    90 ELBOW 9/16''-18, 37 Degree x 7/8''-14, O-Ring;
  • A
    -
    281-54910
    SELF-TAP SCREW Hex Wash Hd, 3/8''-16 x 5/8'';
  • B
    -
    434-612
    CARRIAGE BOLT Sht Sq Nk, 3/8'' - 16 x 3/4'', Gr 5;
  • C
    -
    86508748
    CARRIAGE BOLT Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;
  • D
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
