09-17 - DRAPER DRIVE HYDRAULIC DECK SHIFT HEADERS (STANDARD COMPONENTS)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87585265
    RACCORD; Pressure
  • 1
    1
    87472038
    FITTING; Pressure
  • 2
    1
    87585264
    COUPLING; Return
  • 2
    1
    87605745
    QUICK MALE COUPLING; Return
  • 3
    1
    87566756
    TEE 3/4'' JIC x 3/4'' JIC x 3/4'' JIC x 3/8'' JIC; FITTING;See Figure 09-12
  • 10
    1
    87561127
    HOLDER; Hose, Right Center;2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 10
    1
    87561125
    HOLDER; Hose, Left Center;2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 11
    2
    REF
    INSTRUCTION; MOTOR, Draper Drive;See Figure 09-16
  • 12
    2
    347484A1
    BRACKET; Hose;2142 And 2152 Only
  • 13
    1
    87561550
    SLEEVE; 2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 14
    1
    87561552
    SLEEVE; 25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 15
    1
    87561121
    HOLDER; Hose;25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 16
    1
    241074

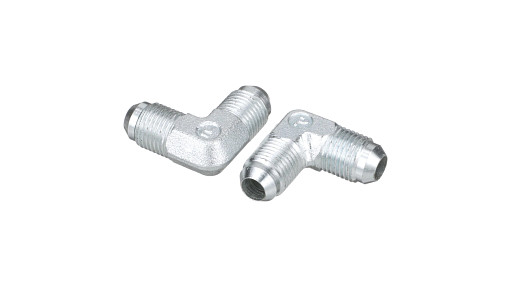

    ELBOW 90 Degree, 9/16''-18, 37 Degree x 9/16''-18, 37 Degree; Single Knife Header
  • 17
    1
    84674

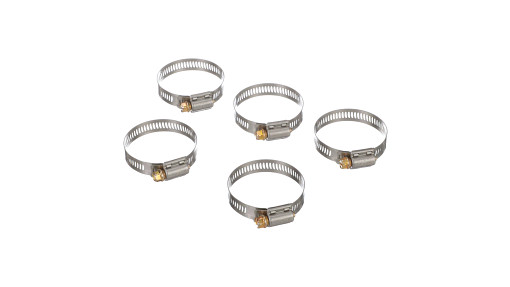

    HOSE CLAMP 33.3mm - 57.1mm, Worm Gear; 25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 18
    1
    507586
    HOSE CLAMP 20.6mm - 44.4mm, Worm Gear; 25.0, 30.0, 35.0, And 40.0 Foot Headers
  • 20
    2
    87566796
    GEAR; Hydraulic Deck Shift, 10 Teeth
  • 21
    1
    87712717
    GUIDE; Chain, Deck Shift, Ended Early 2008 Production
  • 21
    1
    87753066
    GUIDE; Chain, Deck Shift, Began Early 2008 Production
  • 22
    2
    87566337
    CHAIN; Roller, Deck Shift
  • 23
    4
    87560296
    STOP; Chain, Deck Shift
  • 24
    2
    87561105
    GUIDE; Chain, Deck Shift
  • 25
    2
    87560299
    STUD; Deck Shift Chain Adjustment
  • 26
    2
    128819
    HYD CONNECTOR 7/8'' - 14 ORB x 3/4'' - 16 JIC;
  • 27
    5
    218-5137
    ELBOW 45 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB;
  • 1
    237-6010
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;
  • 28
    1
    87561198
    MOTEUR HYDRAULIQUE; Left Hand Deck Shift
  • 1
    87585424
    KIT DE JOINTS; Deck Shift Motor (Eaton)
  • 1
    700709231
    KIT DE JOINTS; Deck Shift Motor (Parker)
  • 2
    14457080

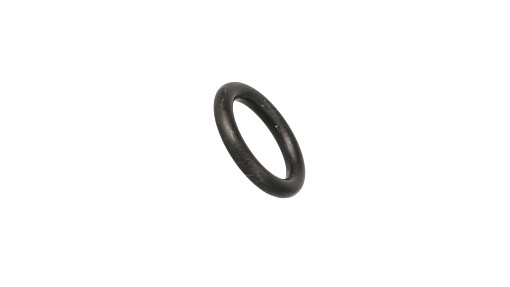

    JOINT TORIQUE 0.103'' Thk x 0.487'' ID, -112, Cl 5, 75 Duro; Manifold Ports
  • 29
    3
    338322A1
    CLIP; Hose
  • 30
    1
    218-5278
    ELBOW 9/16'' - 18 JIC x 7/16'' - 20 ORB;
  • 1
    237-6004
    JOINT TORIQUE 0.072'' Thk x 0.351'' ID, -904, Cl 6, 90 Duro;
  • 31
    4
    87561536
    SHIM; Chain Guide
  • 32
    1
    87560925
    COVER; Deck Shift Chain, Right
  • 33
    1
    87561102
    GUIDE; Deck Shift Hose, Left
  • 34
    1
    87561199
    HYDRAULIC MOTOR; Right Hand Deck Shift
  • 1
    87585424
    SEAL KIT; Deck Shift Motor
  • 35
    1
    87566344
    CLAMP;
  • 36
    2
    86509028
    RACCORD HYDRAULIQUE 3/4'' - 16 JIC x 9/16'' - 18 ORB;
  • 1
    237-6006
    JOINT TORIQUE 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;
  • 37
    3
    218-5107
    COUDE A 90° 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB;
  • 38
    1
    87561641
    SOUPAPE; 2 Position, Solenoid Operated 4-Way
  • 39
    1
    87566758
    PASSE-FIL;
  • 40
    1
    87752650
    MOLDING;
  • 41
    2
    87472034
    GROMMET; 1.75'' ID
  • 42
    1
    87383364
    MOULURE;
  • A
    -
    281-54910
    VIS AUTOTARAUDEUSE Hex Wash Hd, 3/8''-16 x 5/8'';
  • B
    -
    409-7612
    VIS 3/8''-16 x 1.09'' OAL;
  • C
    -
    86508748
    VIS A TETE BOMBEE Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;
  • D
    -
    86521609
    FLANGE NUT Flg, 3/8'' - 16;
  • E
    -
    80435
    SET SCREW Hex Soc, 3/8''-16 x 3/4'';
  • F
    -
    86509499
    JAM NUT 3/8''-16, G2;
  • G
    -
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • H
    -
    86632556
    JAM NUT Jam, 5/8''-11, G5;
  • J
    -
    523282
    SERRATED NUT Flg, USR, 1/4'' - 20;
  • K
    -
    87716
    BOLT 1/4''-20 x 1-1/4'', Cl 5;
  • L
    -
    280742
    CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 2'', Gr 5;
  • M
    -
    86521611
    FLANGE NUT Flg, 5/8'' - 11;
  • N
    -
    492-11038
    LOCK WASHER 3/8'';
  • P
    -
    87566359
    BOLT;
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87585265

Description

RACCORD; Pressure


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87472038

Description

FITTING; Pressure


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87585264

Description

COUPLING; Return


Alts

Select

Ref.

2

Qty

1

Availability

Part #

87605745

Description

QUICK MALE COUPLING; Return


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87566756

Description

TEE 3/4'' JIC x 3/4'' JIC x 3/4'' JIC x 3/8'' JIC; FITTING;See Figure 09-12


Alts

Select

Ref.

10

Qty

1

Availability

Part #

87561127

Description

HOLDER; Hose, Right Center;2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

10

Qty

1

Availability

Part #

87561125

Description

HOLDER; Hose, Left Center;2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

11

Qty

2

Availability

Part #

REF

Description

INSTRUCTION; MOTOR, Draper Drive;See Figure 09-16


Alts

Select

Ref.

12

Qty

2

Availability

Part #

347484A1

Description

BRACKET; Hose;2142 And 2152 Only


Alts

Select

Ref.

13

Qty

1

Availability

Part #

87561550

Description

SLEEVE; 2152 Only;25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

14

Qty

1

Availability

Part #

87561552

Description

SLEEVE; 25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

15

Qty

1

Availability

Part #

87561121

Description

HOLDER; Hose;25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

16

Qty

1

Availability

Part #

241074

Description

ELBOW 90 Degree, 9/16''-18, 37 Degree x 9/16''-18, 37 Degree; Single Knife Header


Alts

Select

Ref.

17

Qty

1

Availability

Part #

84674

Description

HOSE CLAMP 33.3mm - 57.1mm, Worm Gear; 25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

18

Qty

1

Availability

Part #

507586

Description

HOSE CLAMP 20.6mm - 44.4mm, Worm Gear; 25.0, 30.0, 35.0, And 40.0 Foot Headers


Alts

Select

Ref.

20

Qty

2

Availability

Part #

87566796

Description

GEAR; Hydraulic Deck Shift, 10 Teeth


Alts

Select

Ref.

21

Qty

1

Availability

Part #

87712717

Description

GUIDE; Chain, Deck Shift, Ended Early 2008 Production


Alts

Select

Ref.

21

Qty

1

Availability

Part #

87753066

Description

GUIDE; Chain, Deck Shift, Began Early 2008 Production


Alts

Select

Ref.

22

Qty

2

Availability

Part #

87566337

Description

CHAIN; Roller, Deck Shift


Alts

Select

Ref.

23

Qty

4

Availability

Part #

87560296

Description

STOP; Chain, Deck Shift


Alts

Select

Ref.

24

Qty

2

Availability

Part #

87561105

Description

GUIDE; Chain, Deck Shift


Alts

Select

Ref.

25

Qty

2

Availability

Part #

87560299

Description

STUD; Deck Shift Chain Adjustment


Alts

Select

Ref.

26

Qty

2

Availability

Part #

128819

Description

HYD CONNECTOR 7/8'' - 14 ORB x 3/4'' - 16 JIC;


Alts

Select

Ref.

27

Qty

5

Availability

Part #

218-5137

Description

ELBOW 45 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB;


Alts

Select

Ref.

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro;


Alts

Select

Ref.

28

Qty

1

Availability

Part #

87561198

Description

MOTEUR HYDRAULIQUE; Left Hand Deck Shift


Alts

Select

Ref.

Qty

1

Availability

Part #

87585424

Description

KIT DE JOINTS; Deck Shift Motor (Eaton)


Alts

Select

Ref.

Qty

1

Availability

Part #

700709231

Description

KIT DE JOINTS; Deck Shift Motor (Parker)


Alts

Select

Ref.

Qty

2

Availability

Part #

14457080

Description

JOINT TORIQUE 0.103'' Thk x 0.487'' ID, -112, Cl 5, 75 Duro; Manifold Ports


Alts

Select

Ref.

29

Qty

3

Availability

Part #

338322A1

Description

CLIP; Hose


Alts

Select

Ref.

30

Qty

1

Availability

Part #

218-5278

Description

ELBOW 9/16'' - 18 JIC x 7/16'' - 20 ORB;


Alts

Select

Ref.

Qty

1

Availability

Part #

237-6004

Description

JOINT TORIQUE 0.072'' Thk x 0.351'' ID, -904, Cl 6, 90 Duro;


Alts

Select

Ref.

31

Qty

4

Availability

Part #

87561536

Description

SHIM; Chain Guide


Alts

Select

Ref.

32

Qty

1

Availability

Part #

87560925

Description

COVER; Deck Shift Chain, Right


Alts

Select

Ref.

33

Qty

1

Availability

Part #

87561102

Description

GUIDE; Deck Shift Hose, Left


Alts

Select

Ref.

34

Qty

1

Availability

Part #

87561199

Description

HYDRAULIC MOTOR; Right Hand Deck Shift


Alts

Select

Ref.

Qty

1

Availability

Part #

87585424

Description

SEAL KIT; Deck Shift Motor


Alts

Select

Ref.

35

Qty

1

Availability

Part #

87566344

Description

CLAMP;


Alts

Select

Ref.

36

Qty

2

Availability

Part #

86509028

Description

RACCORD HYDRAULIQUE 3/4'' - 16 JIC x 9/16'' - 18 ORB;


Alts

Select

Ref.

Qty

1

Availability

Part #

237-6006

Description

JOINT TORIQUE 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro;


Alts

Select

Ref.

37

Qty

3

Availability

Part #

218-5107

Description

COUDE A 90° 90 Degree Elbow, 7/8'' - 14 Male JIC x 7/8'' - 14 Male ORB;


Alts

Select

Ref.

38

Qty

1

Availability

Part #

87561641

Description

SOUPAPE; 2 Position, Solenoid Operated 4-Way


Alts

Select

Ref.

39

Qty

1

Availability

Part #

87566758

Description

PASSE-FIL;


Alts

Select

Ref.

40

Qty

1

Availability

Part #

87752650

Description

MOLDING;


Alts

Select

Ref.

41

Qty

2

Availability

Part #

87472034

Description

GROMMET; 1.75'' ID


Alts

Select

Ref.

42

Qty

1

Availability

Part #

87383364

Description

MOULURE;


Alts

Select

Ref.

A

Qty

-

Availability

Part #

281-54910

Description

VIS AUTOTARAUDEUSE Hex Wash Hd, 3/8''-16 x 5/8'';


Alts

Select

Ref.

B

Qty

-

Availability

Part #

409-7612

Description

VIS 3/8''-16 x 1.09'' OAL;


Alts

Select

Ref.

C

Qty

-

Availability

Part #

86508748

Description

VIS A TETE BOMBEE Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5;


Alts

Select

Ref.

D

Qty

-

Availability

Part #

86521609

Description

FLANGE NUT Flg, 3/8'' - 16;


Alts

Select

Ref.

E

Qty

-

Availability

Part #

80435

Description

SET SCREW Hex Soc, 3/8''-16 x 3/4'';


Alts

Select

Ref.

F

Qty

-

Availability

Part #

86509499

Description

JAM NUT 3/8''-16, G2;


Alts

Select

Ref.

G

Qty

-

Availability

Part #

88206

Description

BOLT Hex, 3/8'' - 16 x 1'', Gr 5;


Alts

Select

Ref.

H

Qty

-

Availability

Part #

86632556

Description

JAM NUT Jam, 5/8''-11, G5;


Alts

Select

Ref.

J

Qty

-

Availability

Part #

523282

Description

SERRATED NUT Flg, USR, 1/4'' - 20;


Alts

Select

Ref.

K

Qty

-

Availability

Part #

87716

Description

BOLT 1/4''-20 x 1-1/4'', Cl 5;


Alts

Select

Ref.

L

Qty

-

Availability

Part #

280742

Description

CARRIAGE BOLT Sq Nk, 5/8'' - 11 x 2'', Gr 5;


Alts

Select

Ref.

M

Qty

-

Availability

Part #

86521611

Description

FLANGE NUT Flg, 5/8'' - 11;


Alts

Select

Ref.

N

Qty

-

Availability

Part #

492-11038

Description

LOCK WASHER 3/8'';


Alts

Select

Ref.

P

Qty

-

Availability

Part #

87566359

Description

BOLT;


Alts
