3020-35 - FLEXIBLE GRAIN ... 35 - HYDRAULIC SYSTEMS 35.410.03 - HYDRAULICS, R...
35.410.03 - HYDRAULICS, REEL ARMS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1

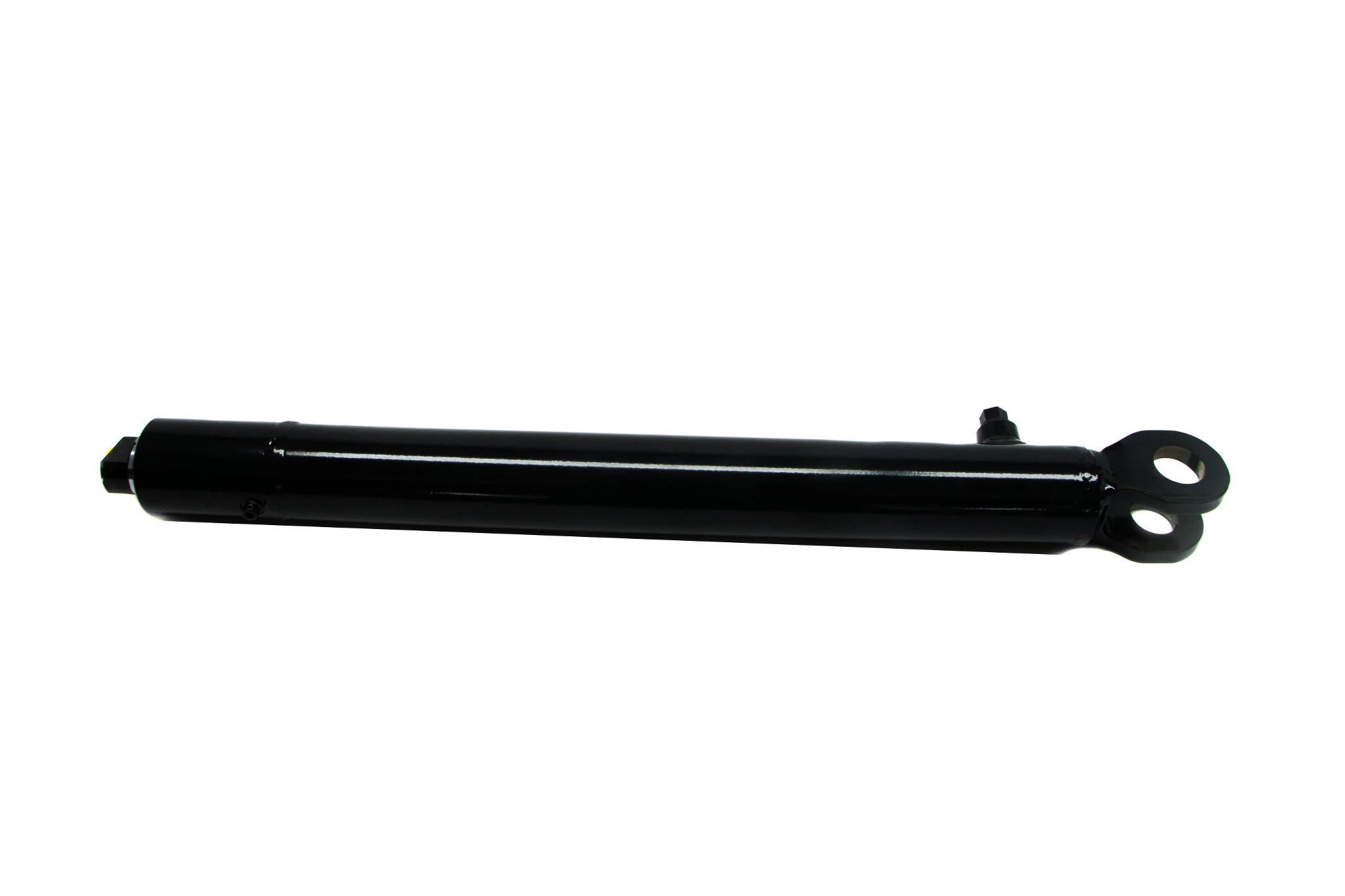

    47466444
    HYDRAULIC CYLINDER FOR AUGER/DRAPER ORDER: 51593592 x1 + 90392695 x2 + 90398302 x1; Left Hand Reel Arm, Reel Raise/Lower Left hand;Applies To MY14 And Newer Units
  • 1
    1
    51593592
    HYDRAULIC CYLINDER; Lift Arm Reel
  • 1
    1
    87647112
    HYDRAULIC CYLINDER Double Acting, 32mm Rod, 380mm Stroke; Left Hand Reel Arm, Reel Raise/Lower Left Hand
  • 2
    1
    47808889
    SEAL KIT; Stamped SERTA (SB) On Cylinder, 87647112 Cylinder.
  • 2
    1
    84023914
    SEAL KIT; Stamped SERTA (SB) On Cylinder, For Cylinder 47466444 marked SV or SB
  • 2
    1
    84139388
    SEAL KIT; Stamped M For Monarch On Cylinder Or SERTA, Will Also Need 10118611 Plug. 47466444 Cylinder.
  • 2
    1

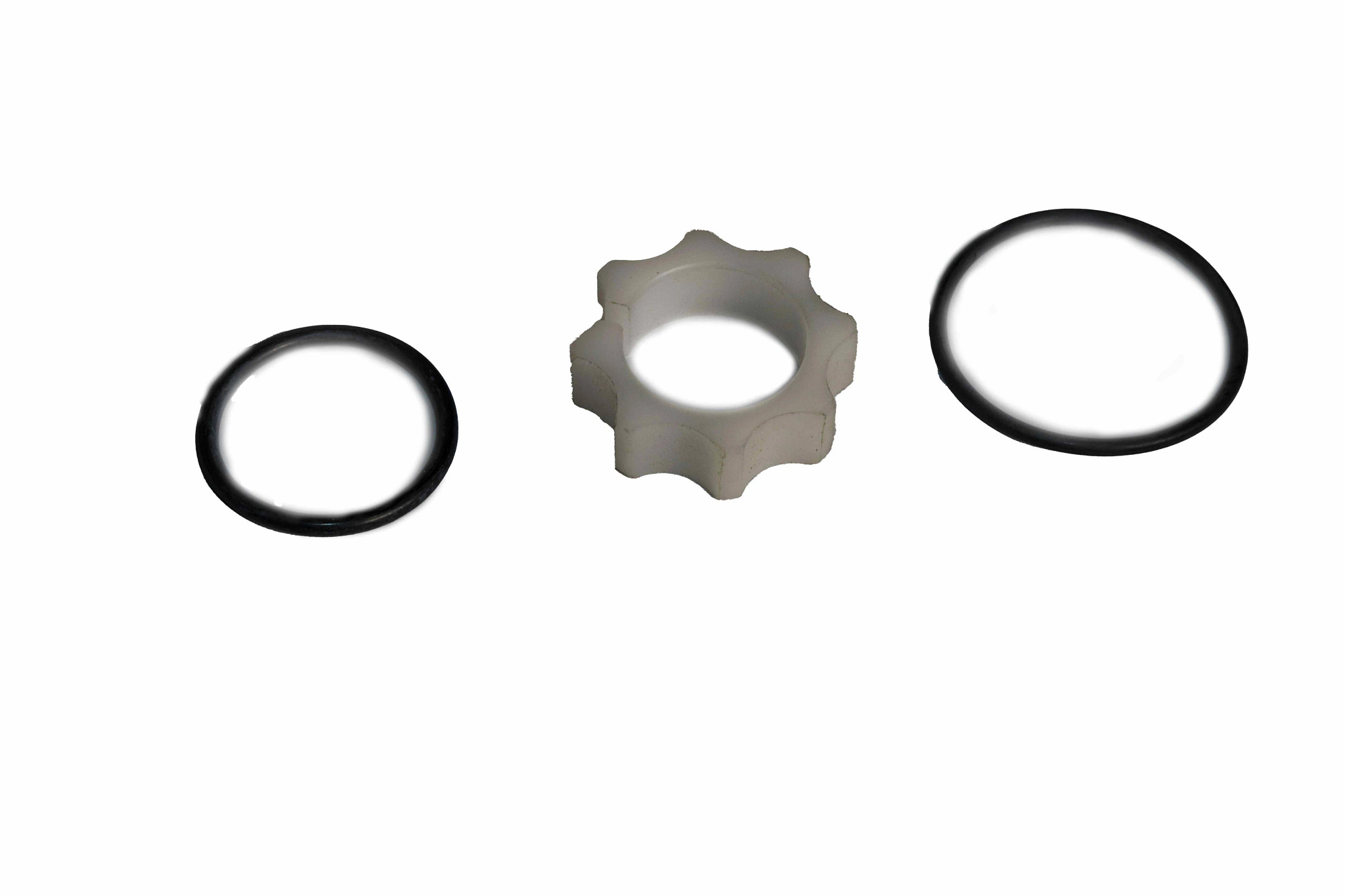

    84141839
    SEAL KIT; Stamped BSPB For Burnside On Cylinder
  • 2
    1
    90403432
    SEAL KIT; USED ON CYLINDER 51593592
  • 2
    1
    90403434
    SEAL KIT; USED ON CYLINDER 51539350
  • 3
    1
    10118611
    HEX SOCKET PLUG M12 x 1.5 x 15mm L, ORB; For Monarch Cylinder, Incl 40
  • 3
    AR

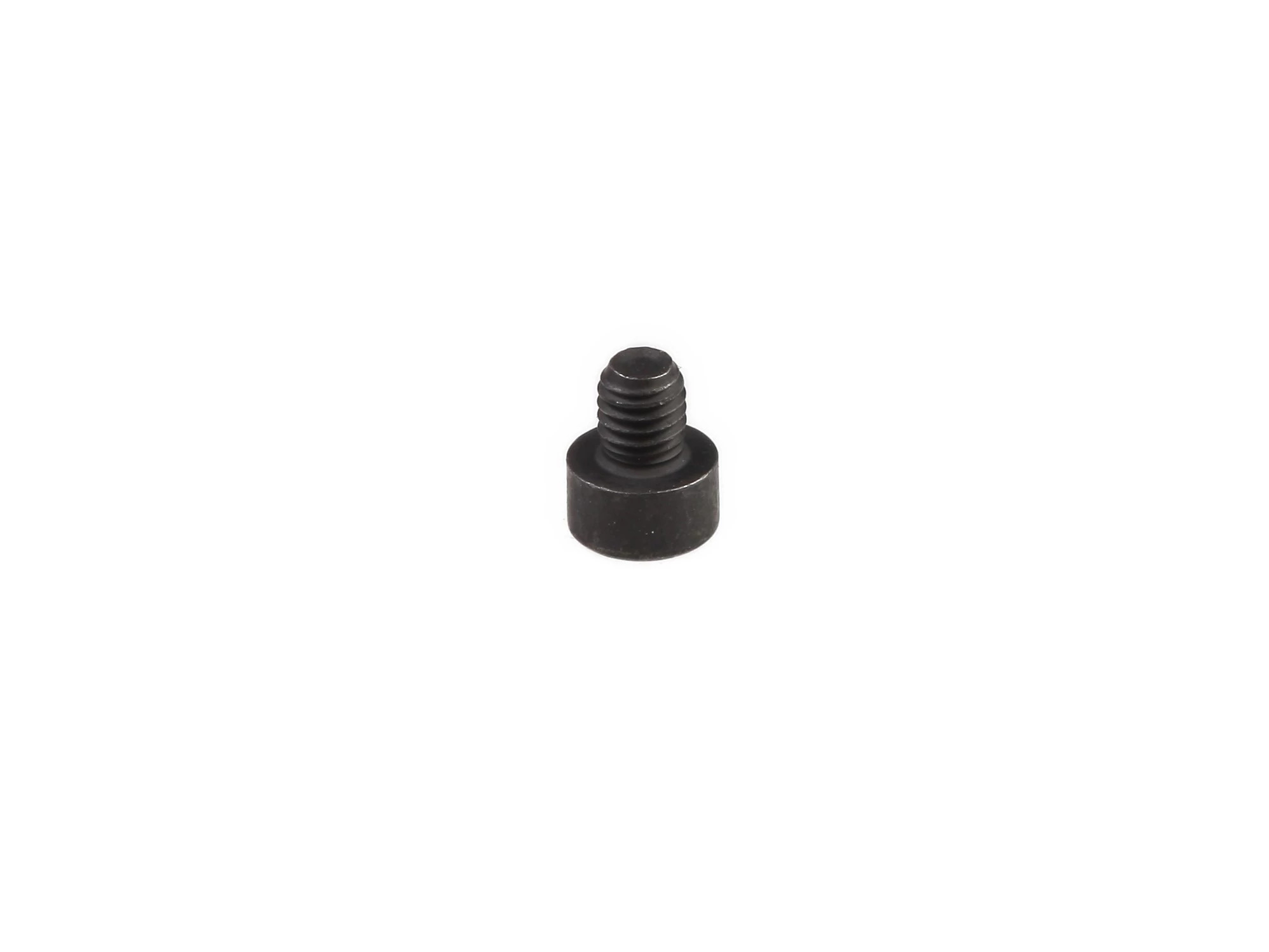

    47799035
    SCREW; For Serta or Burnside Cylinder
  • 4
    2
    354131
    BOLT; Eye
  • 5
    1

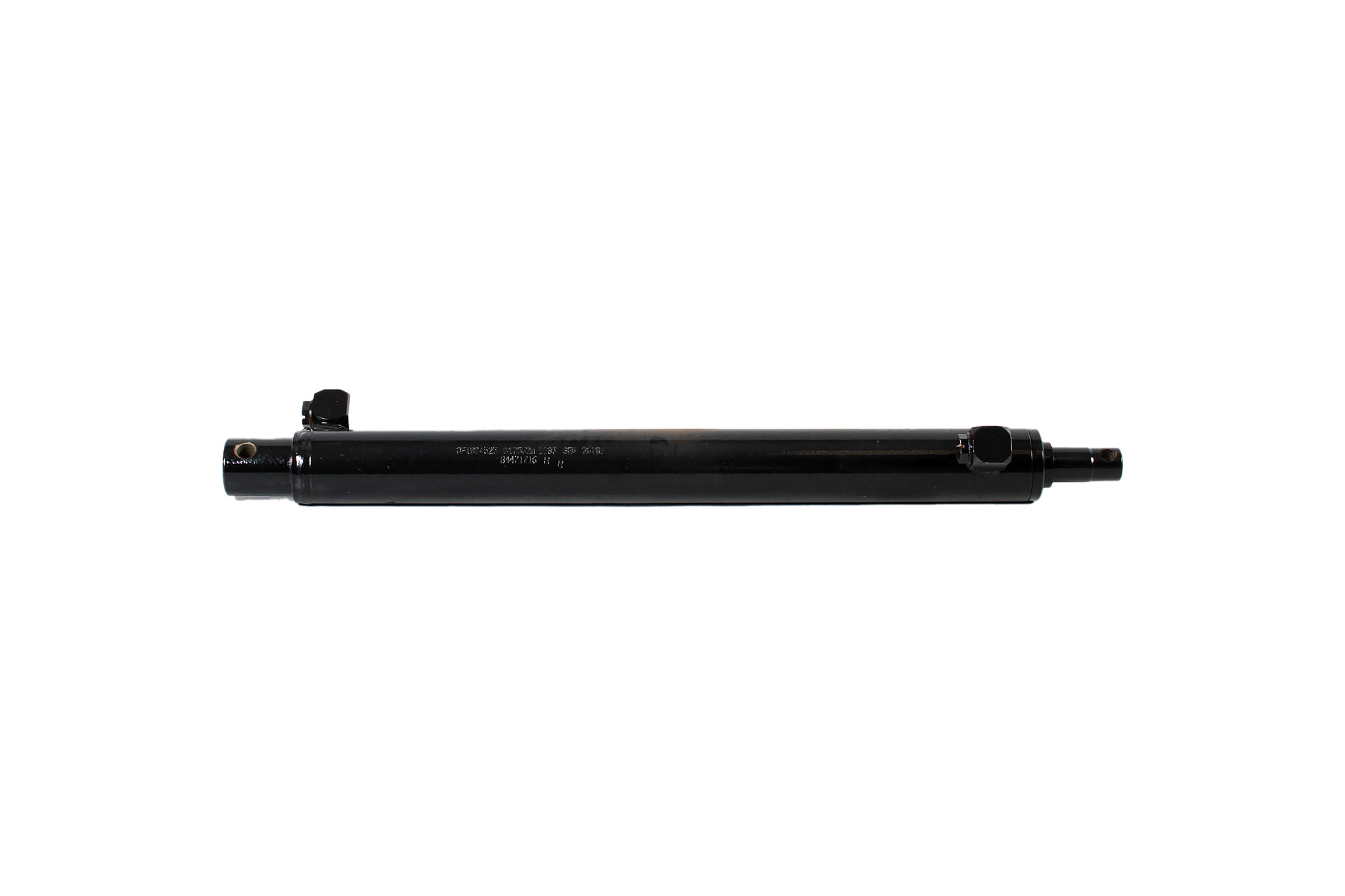

    84471716
    HYDRAULIC CYLINDER; Right Hand Reel Arm
  • 6
    1
    48103679
    SEAL KIT; Stamped SERTA (SB) On Cylinder
  • 6
    1
    84139383
    SEAL KIT; Stamped M For Monarch On Cylinder
  • 6
    1
    84139385
    SEAL KIT; Stamped BSPB For Burnside On Cylinder

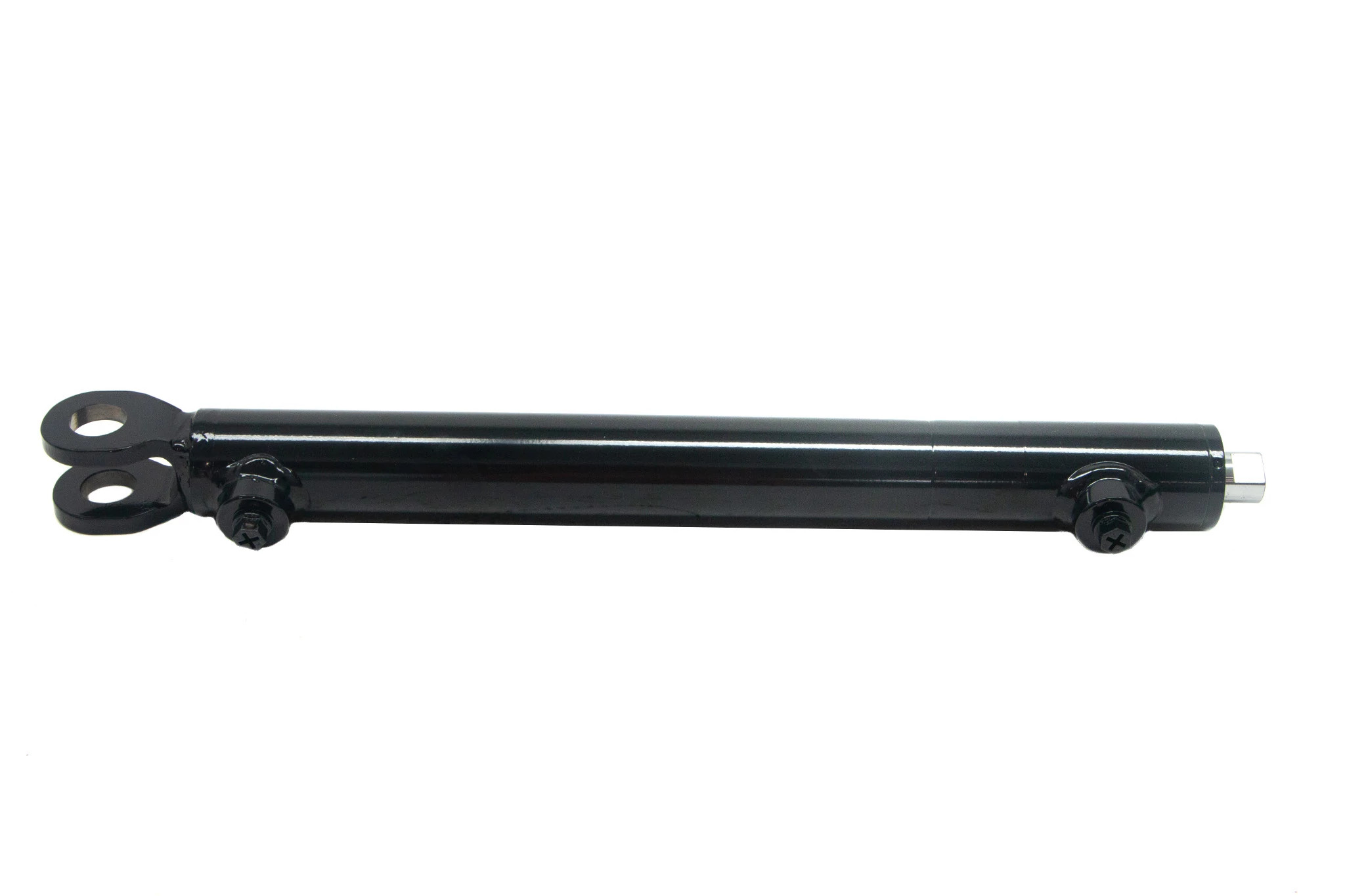

  • 7
    1
    47466435
    HYDRAULIC CYLINDER; Right Hand Reel Arm
  • 8
    1
    84023914
    SEAL KIT; Stamped SERTA (SB), SV On Cylinder
  • 8
    1
    84139383
    SEAL KIT; Stamped M For Monarch On Cylinder
  • 8
    1
    84139385
    SEAL KIT; Stamped BSPB For Burnside On Cylinder
  • 9
    1
    84471715
    HYDRAULIC CYLINDER; Left Hand Reel Arm, Reel Fore/Aft

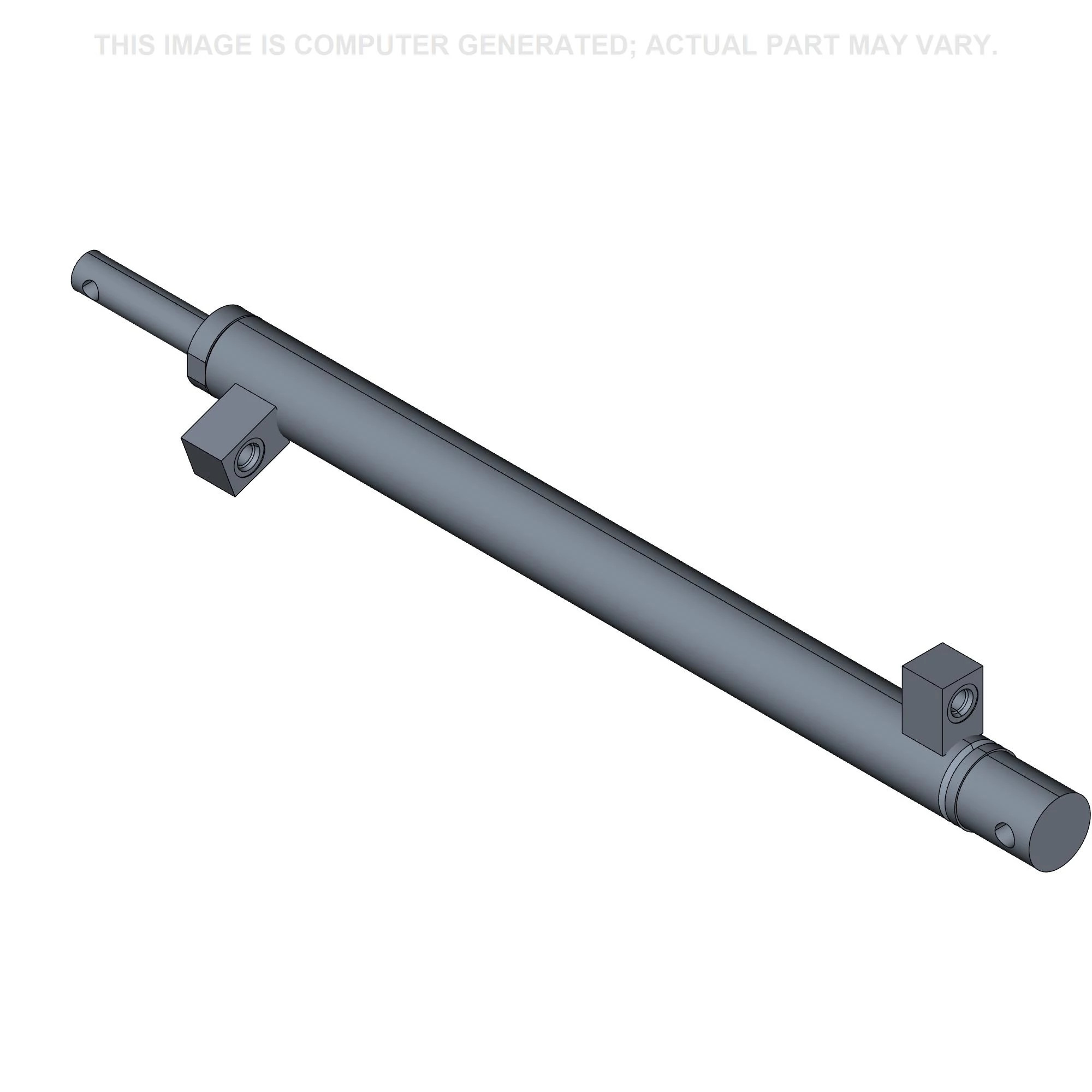

  • 9
    1
    87715949
    HYDRAULIC CYLINDER Double Acting, 20mm Rod, 400mm Stroke;
  • 10
    1
    84026460
    SEAL KIT; Stamped SERTA (SB) On Cylinder
  • 10
    1
    84139386
    SEAL KIT; Stamped M For Monarch On Cylinder
  • 10
    1
    84139387
    SEAL KIT; Stamped BSPB For Burnside On Cylinder
  • 11
    4
    86566989
    CABLE TIE 208mm L, Nylon, Black; CABLE STRAP
  • 12
    6
    140229
    WASHER;
  • 13
    2
    10717511
    THIN NUT Hex, M16 x 2, Cl 8, ZND;
  • 14
    10
    430357
    CLAMP;
  • 15
    5
    431941
    SUPPORT;
  • 16
    2
    433008
    CLAMP;
  • 17
    1
    442340
    SUPPORT;
  • 18
    2
    87723829
    PIN 25mm OD x 96mm L;
  • 19
    4
    87016613
    WASHER 25.8mm ID x 56.5mm OD x 6mm Thk, HTS, PHC;
  • 20
    2
    370002
    CIRCLIP M25, Ext, PHC;
  • 21
    2

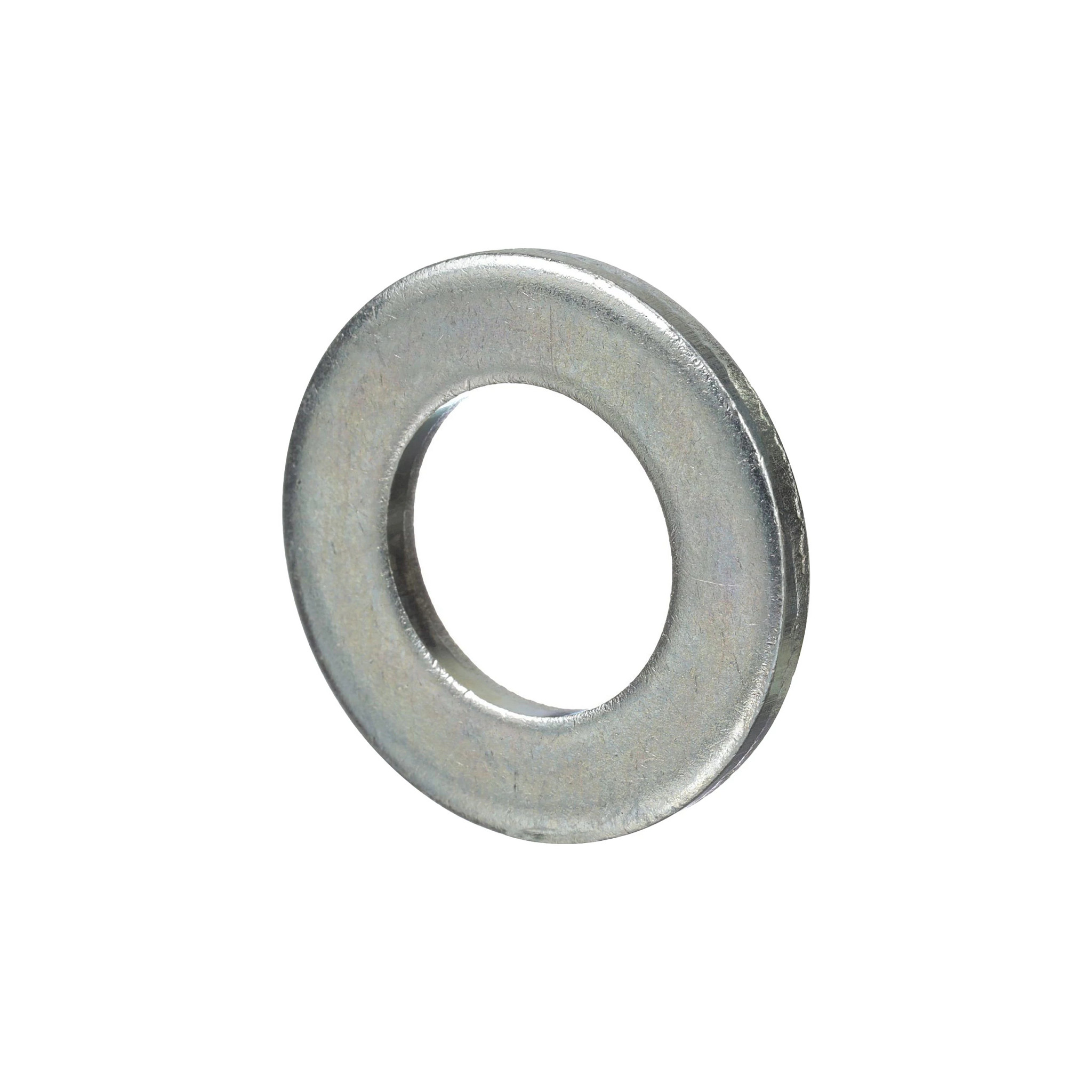

    84134795
    WASHER 25.3mm ID x 44mm OD x 3.72mm Thk;
  • 22
    1
    86580178
    ELBOW 90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB;
  • 23
    1

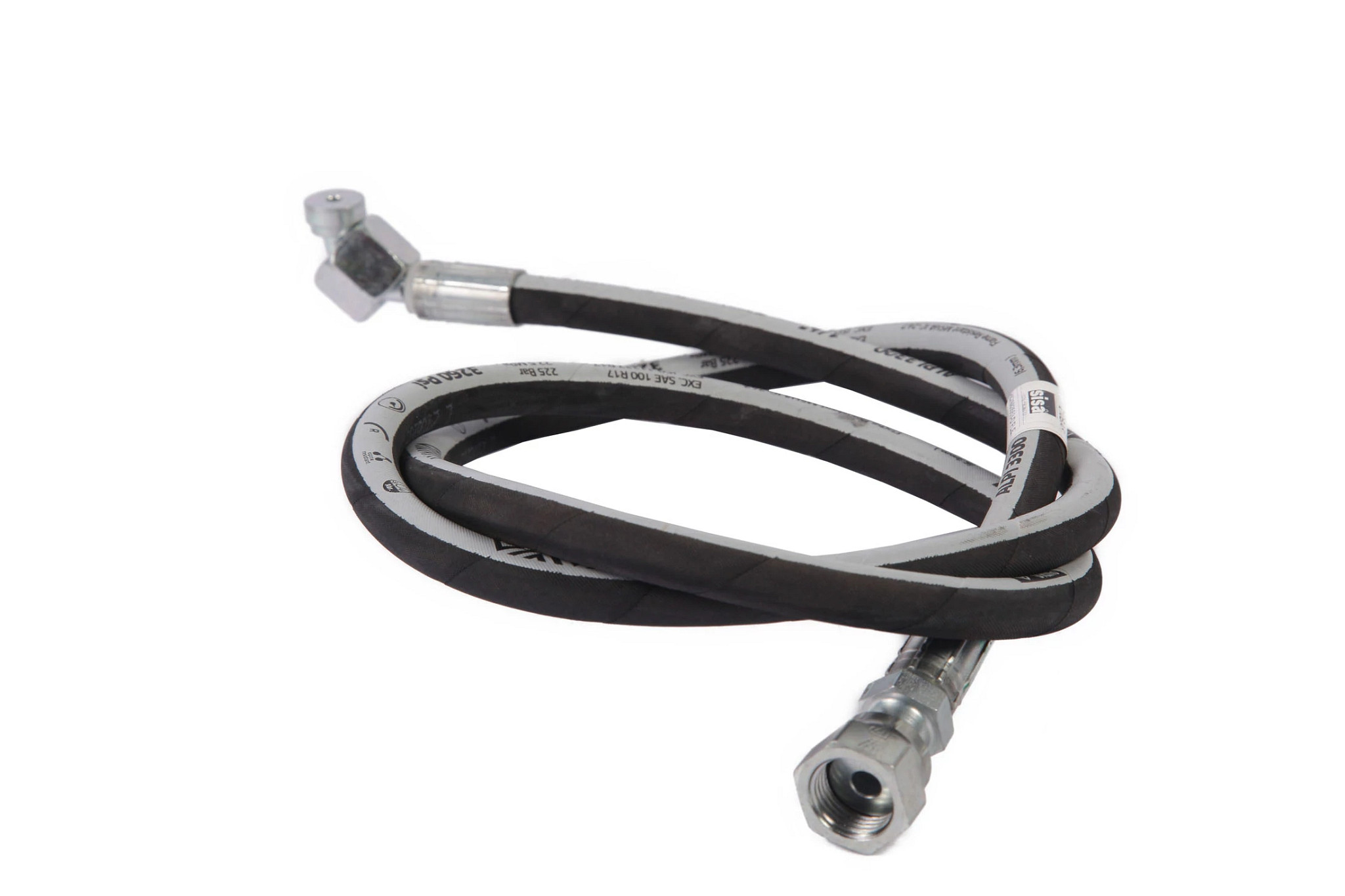

    87683553
    HOSE 6.35mm ID x 1360mm L, SAE 100R16; Right Hand Reel Arm
  • 24
    6
    86580177
    HYD CONNECTOR 11/16''-16 ORFS x M12 x 1.5 ORB;
  • 25
    2

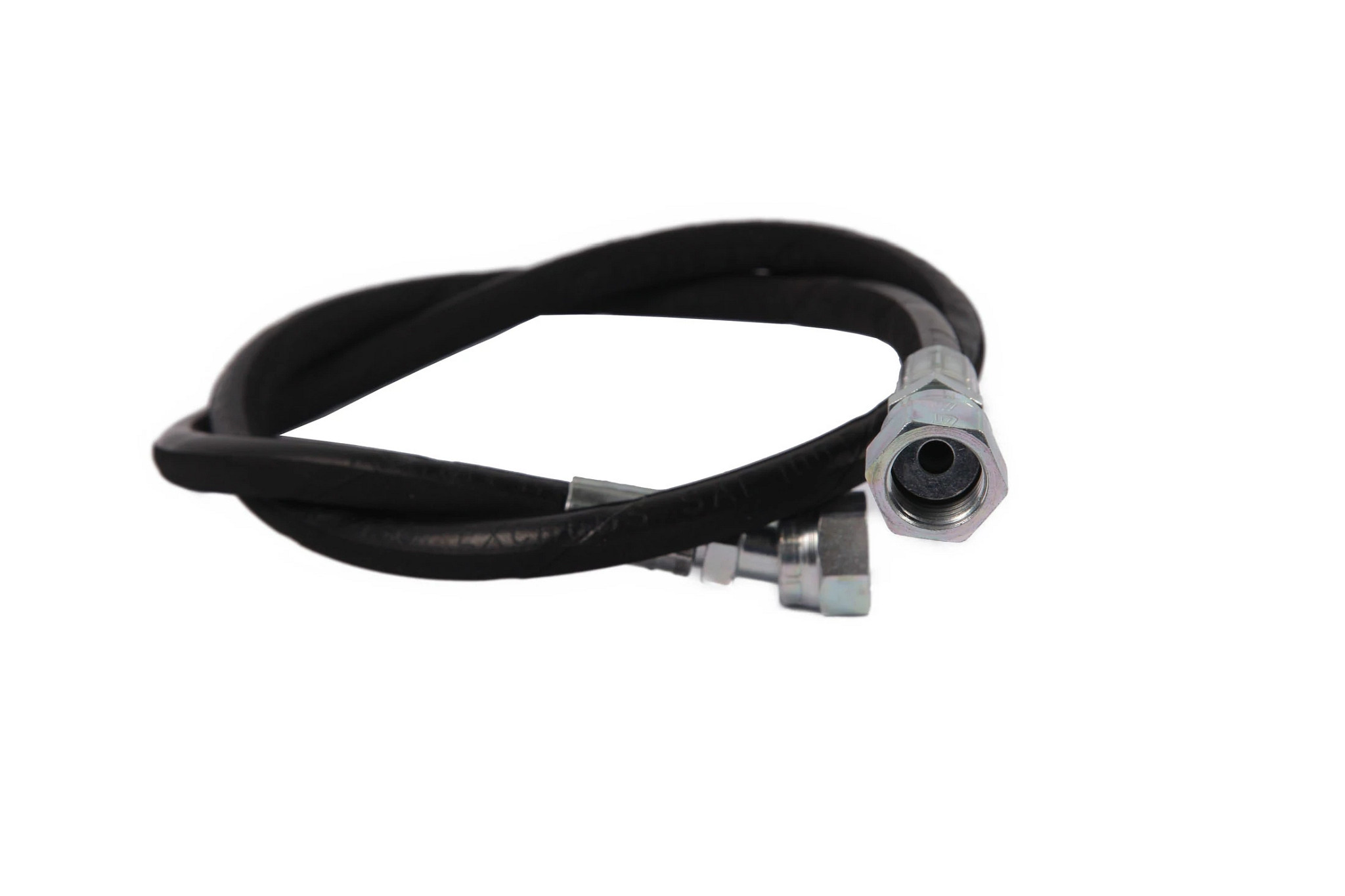

    84151314
    HOSE 6.35mm ID x 1000mm L; Right And Left Hand Reel Arm Hydraulic Cylinder
  • 26
    2
    84151317
    HOSE 6.35mm ID x 1400mm L; Right And Left Hand Reel Arm Hydraulic Cylinder
  • 27
    2
    87676380
    HOSE 6.35mm ID x 950mm L, SAE 100R16; Right And Left Hand Reel Arm Hydraulic Cylinder
  • 28
    2
    120061
    BOLT Hex, M8 x 1.25 x 60mm, 22mm Thread L, Cl 8.8, ZND;
  • 29
    2
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 30
    6
    86977790
    BOLT Hex, M6 x 1 x 45mm, 18mm Thread L, Cl 8.8, ZND;
  • 31
    2
    86588450
    WASHER 6.6mm ID x 12mm OD x 1.6mm Thk;
  • 32
    2
    353308
    NUT Hex, M6 x 1, Cl 8, ZND;
  • 33
    2
    86000441
    LOCK NUT Hex, M16 x 2, Cl 8, ZND;
  • 34
    2
    325829
    BOLT Hex, M10 x 1.5 x 45mm, 26mm Thread L, Cl 8.8, ZND;
  • 35
    2
    100037
    LOCK NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 36
    2
    86624981
    BOLT Hex, M12 x 1.75 x 85mm, 30mm Thread L, Cl 8.8, ZND;
  • 37
    2
    100038
    LOCK NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 38
    4
    86511324
    WASHER 13mm ID x 24mm OD x 2.5mm Thk;
  • 39
    2
    43874
    BOLT Hex, M16 x 2 x 110mm, 38mm Thread L, Cl 8.8, ZND;
  • 40
    AR

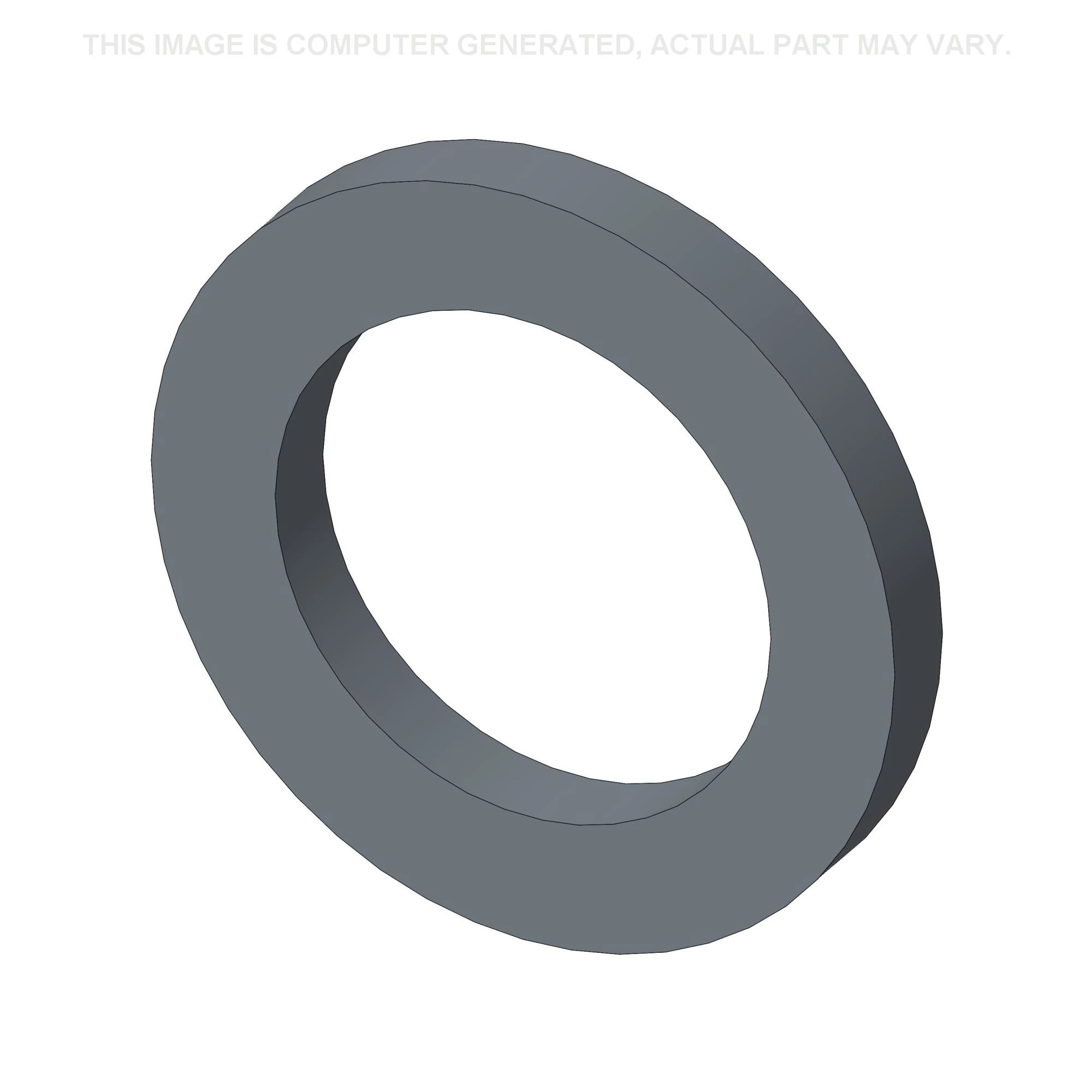

    47799036
    WASHER; For Serta or Burnside Cylinder
  • 40
    AR
    86598098
    O-RING 9.3mm ID x 2.2mm Thk, HNBR; For Monarch Cylinder
