06-010 - REEL BAT AND TINE TUBE ASSEMBLY (14 FOOT)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

8

Availability

Part #

496-21034

Description

WASHER 11/32'' x 11/16'' x 0.89'', HDN;


Alts

Select

Ref.

2

Qty

20

Availability

Part #

426-532

Description

BOLT Hex, 5/16'' - 18 x 2'', Gr 8; hex, 5/16-18 x 2 GR. 8


Alts

Select

Ref.

3

Qty

42

Availability

Part #

231-5145

Description

SERRATED NUT Flg, USR, 5/16''-18;


Alts

Select

Ref.

4

Qty

4

Availability

Part #

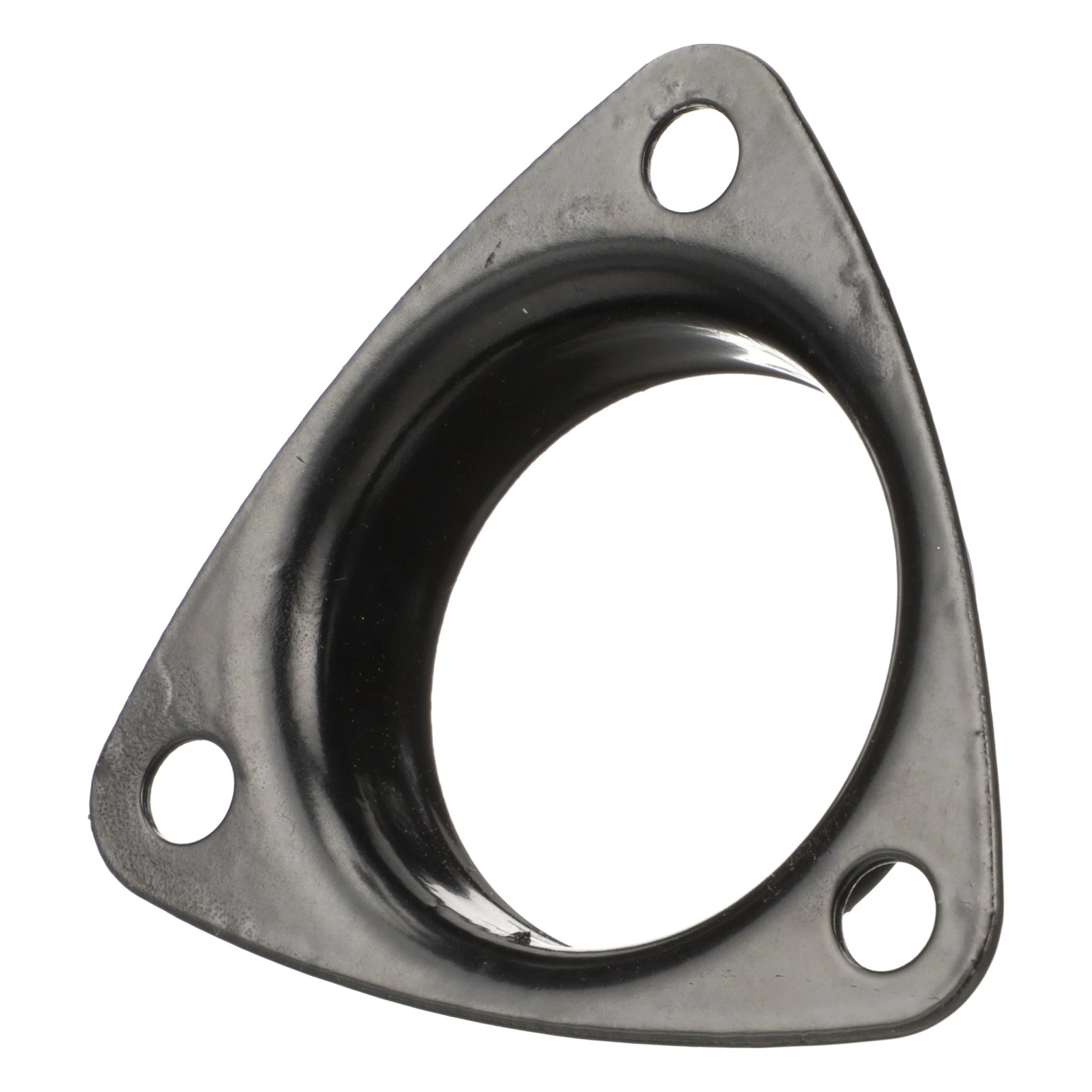

700708643

Description

BEARING HOUSING; BEARING


Alts

Select

Ref.

5

Qty

4

Availability

Part #

6105159

Description

NYLON BEARING 1.75''; TINE


Alts

Select

Ref.

6

Qty

12

Availability

Part #

121-115

Description

SERRATED BOLT Hex, 5/16'' - 18 x 3/4'';


Alts

Select

Ref.

7

Qty

4

Availability

Part #

6831986

Description

COVER; BEARING


Alts

Select

Ref.

8

Qty

4

Availability

Part #

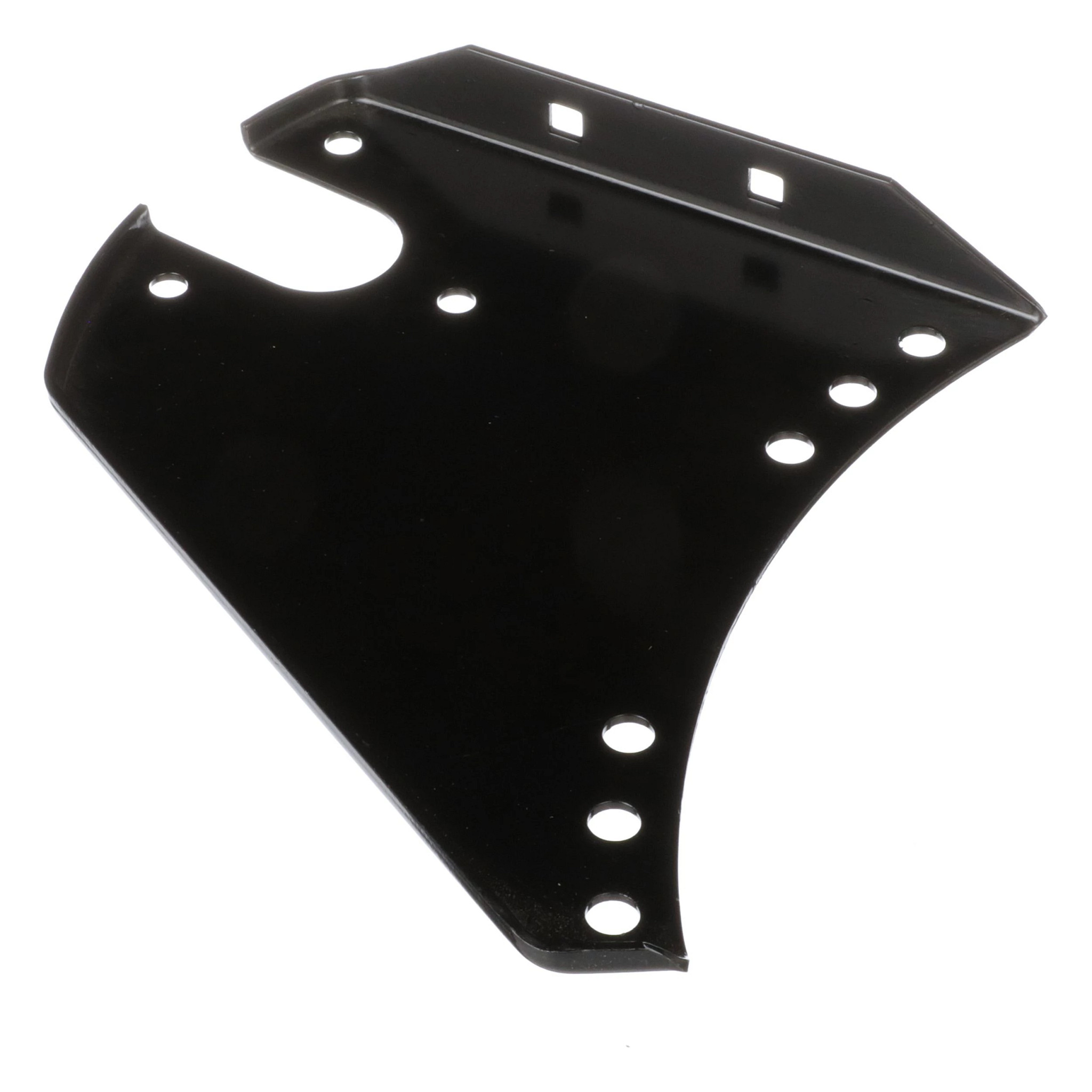

700114555

Description

SUPPORT; BEARING


Alts

Select

Ref.

9

Qty

4

Availability

Part #

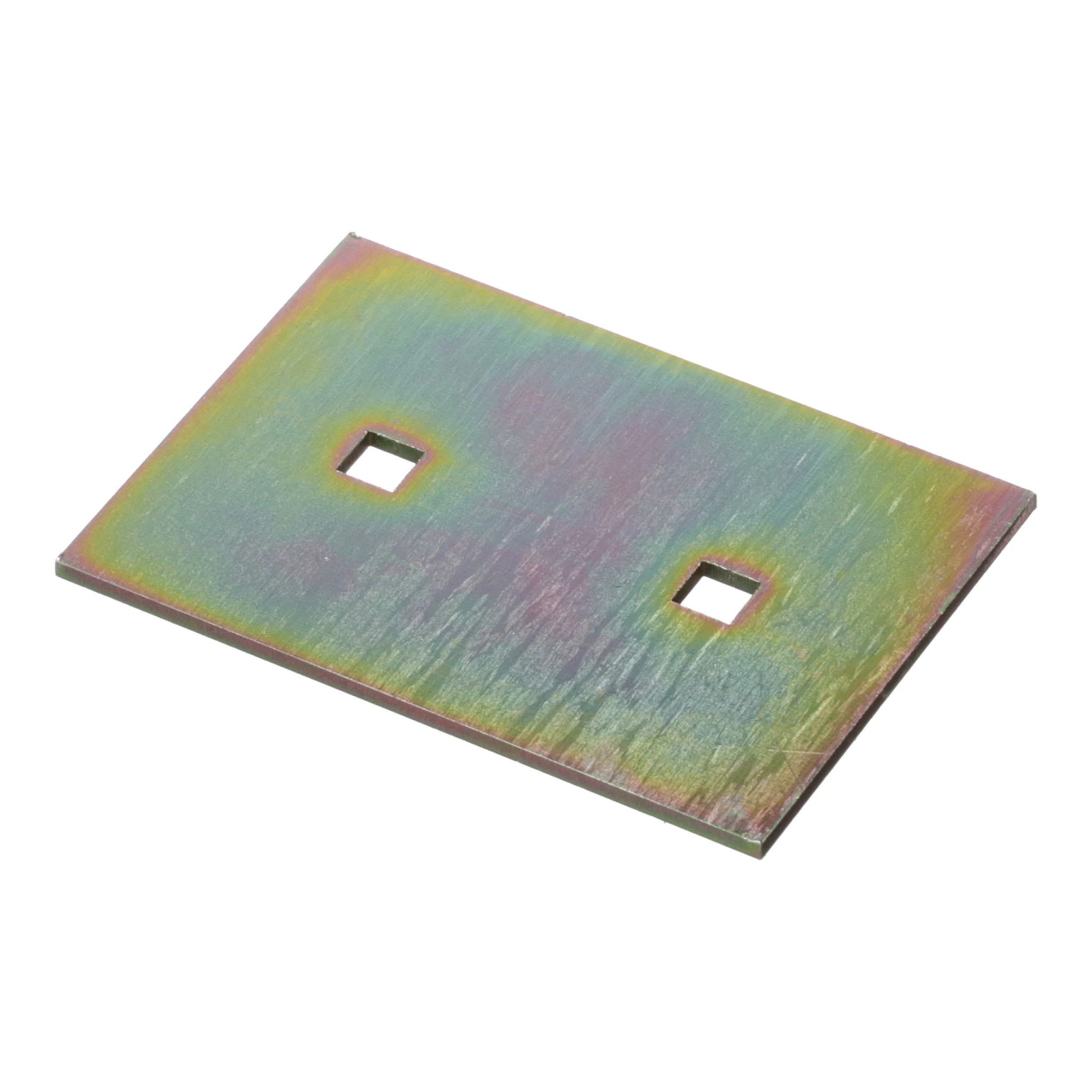

700114544

Description

PLATE; PLATE, LARGE REEL


Alts

Select

Ref.

10

Qty

4

Availability

Part #

700114543

Description

RETAINER;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

700124068

Description

BAT ASSY.; REEL


Alts

Select

Ref.

12

Qty

4

Availability

Part #

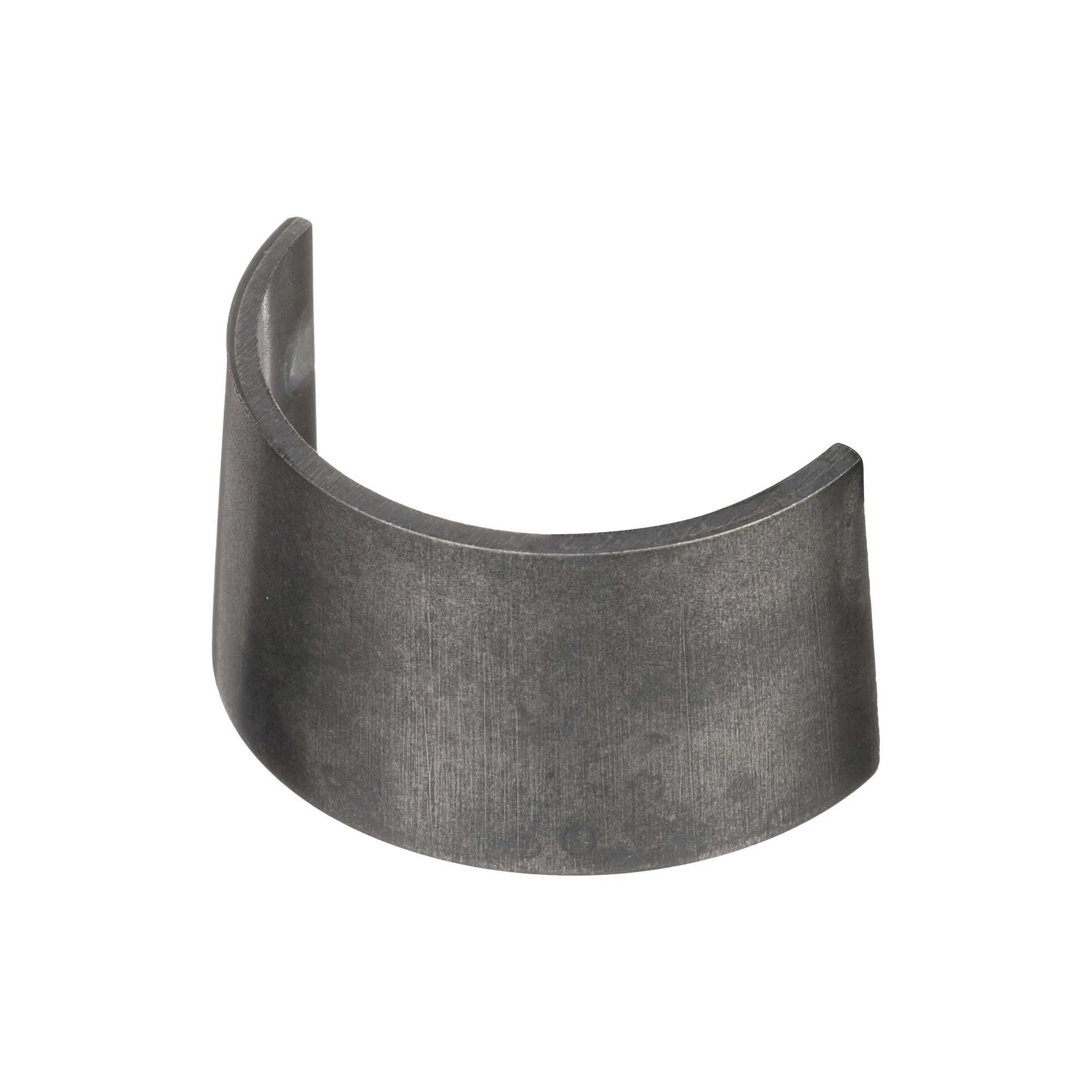

700708642

Description

BEARING HALF;


Alts

Select

Ref.

13

Qty

4

Availability

Part #

413-432

Description

BOLT Hex, 1/4'' - 20 x 2'', Gr 5;


Alts

Select

Ref.

14

Qty

4

Availability

Part #

232-4114

Description

LOCK NUT 1/4''-20, GC; hex top, 1/4-20 GR. B


Alts

Select

Ref.

15

Qty

1

Availability

Part #

195-2139

Description

WASHER; BUSHING narrow rim machinery, 1-3/8 x 14 gauge


Alts

Select

Ref.

16

Qty

8

Availability

Part #

111-237

Description

CARRIAGE BOLT Short NK, 5/16''-18 x 1'', G5;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

700122702

Description

TUBE; WA-TINE, 14 foot ''B''


Alts

Select

Ref.

18

Qty

2

Availability

Part #

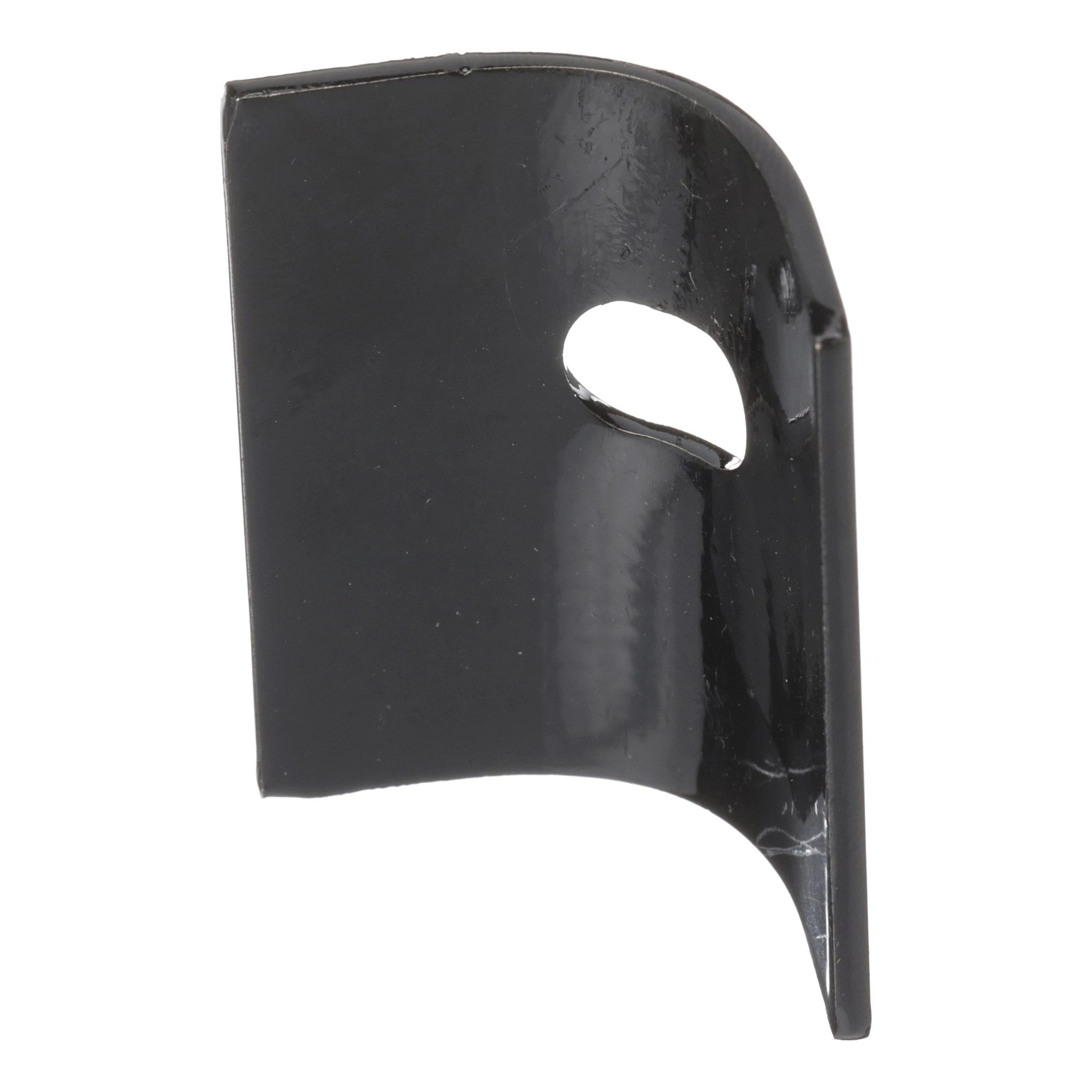

700117971

Description

RETAINER; TUBE


Alts

Select

Ref.

19

Qty

2

Availability

Part #

52233

Description

BUSHING; narrow rim machinery, 5/8 x 14 gauge


Alts

Select

Ref.

20

Qty

1

Availability

Part #

52175

Description

BUSHING 25.48mm ID x 38.2mm OD x 3.17mm L; narrow rim machinery, 5/8 x 18 gauge


Alts

Select

Ref.

21

Qty

1

Availability

Part #

667925R91

Description

SPH ROLLER BEARING Ball, 0.628 ID x 2 OD x 15 mm;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

8701005

Description

BOLT Hex, 5/8'' - 18 x 2 1/4'', Gr 5; SCREW hex cap, 5/8-18 x 2-1/4


Alts

Select

Ref.

23

Qty

2

Availability

Part #

756163

Description

TINE; single


Alts

Select

Ref.

24

Qty

1

Availability

Part #

492-11062

Description

LOCK WASHER 5/8'';


Alts

Select

Ref.

25

Qty

1

Availability

Part #

425-1510

Description

JAM NUT Jam, 5/8''-18, G5; Hex


Alts

Select

Ref.

26

Qty

20

Availability

Part #

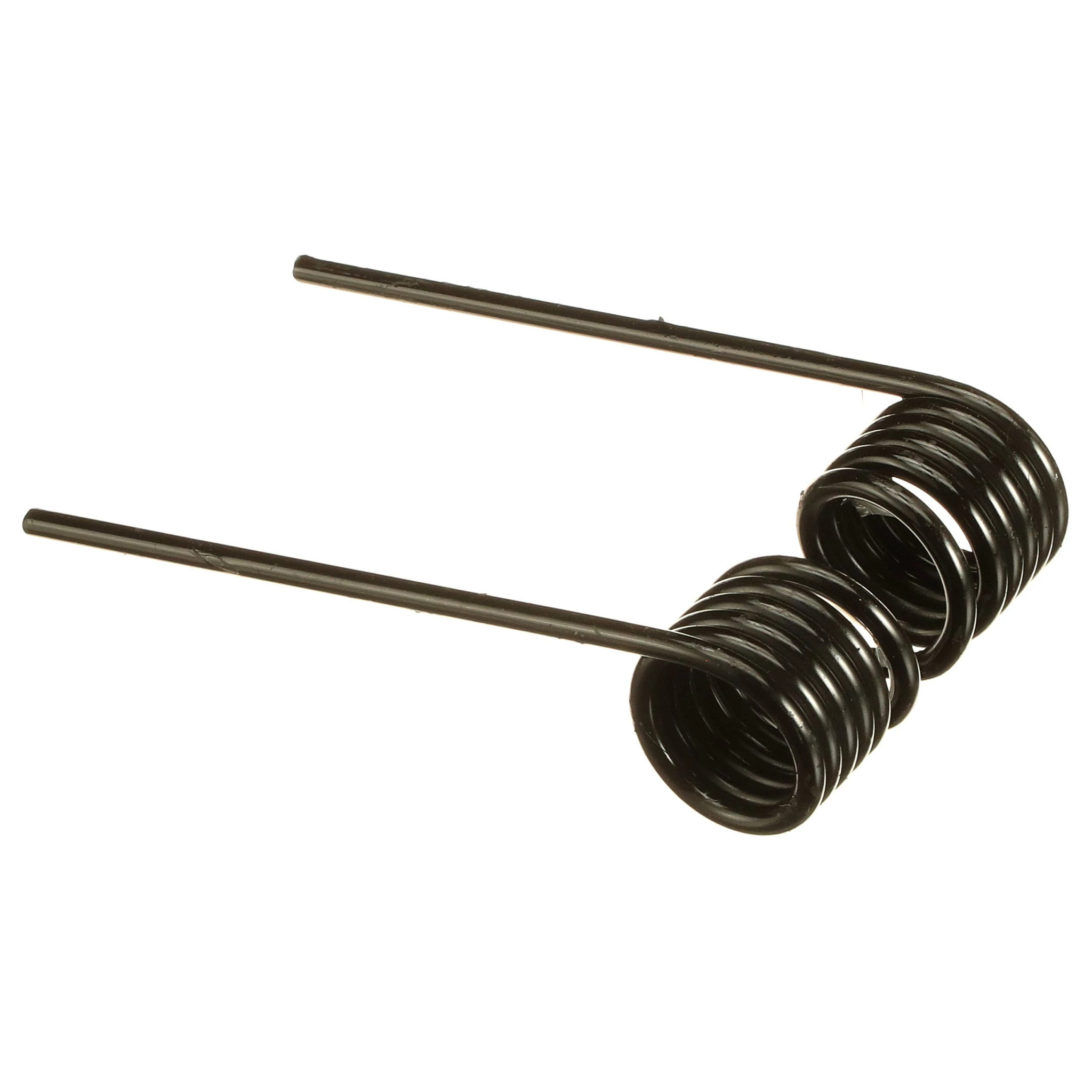

7895642

Description

TINE; TINE-double


Alts

Select

Ref.

27

Qty

20

Availability

Part #

261024

Description

CLIP; TINE


Alts
