525 - AUGER HEADER (12 FT... 58 - ATTACHMENTS-HEADERS 02-010 - SWAYBAR ASSEMBLY
02-010 - SWAYBAR ASSEMBLY
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    6582621
    LINK; WA
  • 2
    4
    6583140
    BUSHING 12.73mm ID x 16.94mm OD x 19.84mm L;
  • 3
    4
    700705454

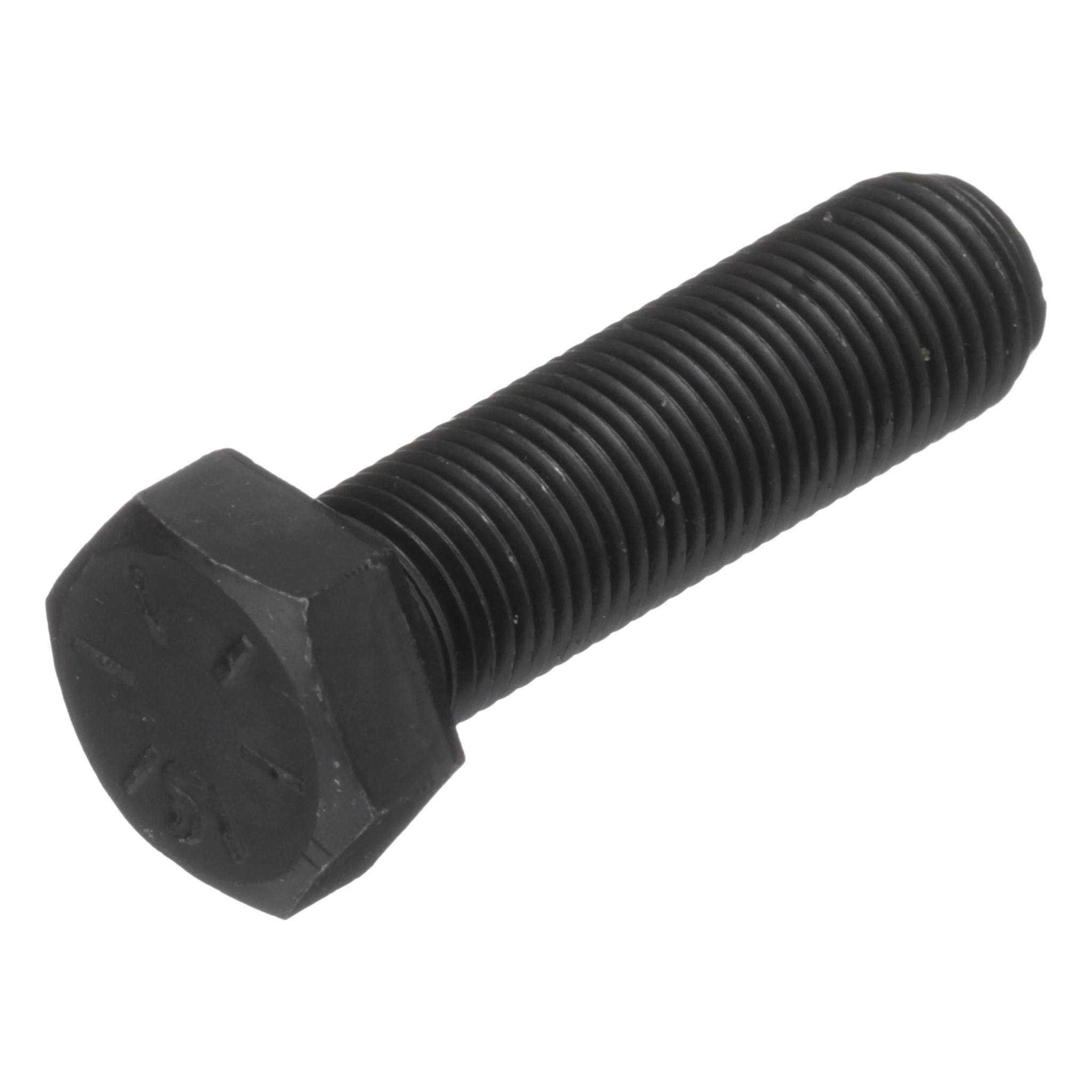

    BOLT Hex, 1/2'' - 20 x 1-3/4'', Gr 8; SCREW hex cap, 1/2-20 x 1-3/4 FT GR. 8
  • 4
    4
    329-118
    NUT 1/2''-20, G8;
  • 5
    2
    700110722
    PLATE; sickle
  • 6
    2
    700122898
    BEARING ASSY 17mm ID; ASSEMBLY (Includes: Ref. 7)
  • 7
    3
    7714629
    BALL BEARING 17mm ID x 40mm OD x 20.6mm W; cylindrical;Part of Ref. 6 and 8, part numbers 700122898 and 6582662
  • 8
    1
    6582662
    BEARING HOUSING; bearing (Includes: Ref. 7, 12, 13 and 14)
  • 9
    4
    114-410
    BOLT Hex, 1/2'' - 20 x 2'', Gr 5;
  • 10
    4
    80679
    LOCK WASHER 1/20.507 CST ZND;
  • 11
    2
    700109713

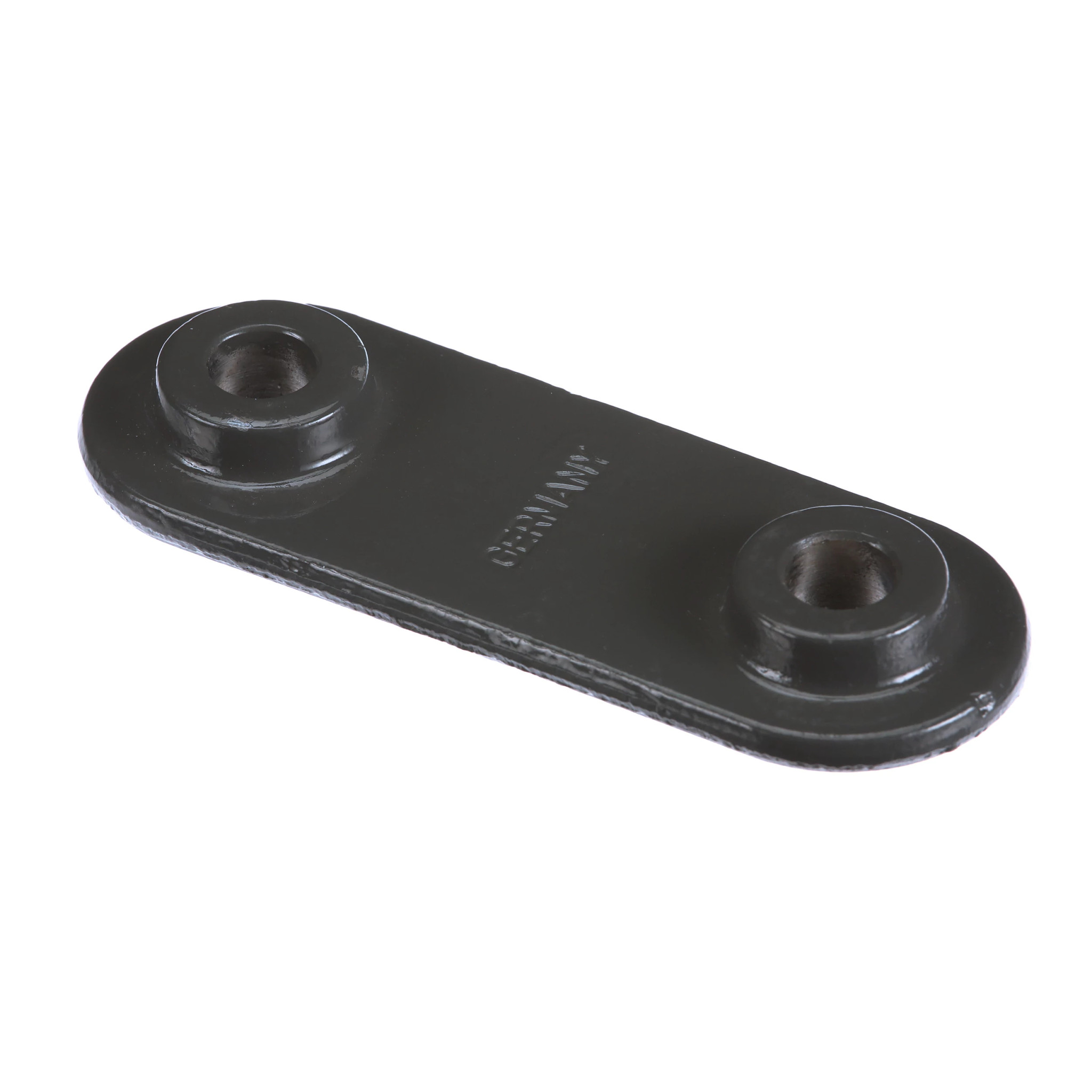

    LINK; ATTACHMENT
  • 12
    1
    740415
    SNAP RING; RING SNAP retaining;Part of ASSEMBLY, part number 6582662
  • 13
    1
    611921R92
    BEARING, ROLLER, CYL 34.92mm ID x 72mm OD x 19mm W; cylindrical;Part of ASSEMBLY, part number 6582662
  • 14
    2
    100-21156

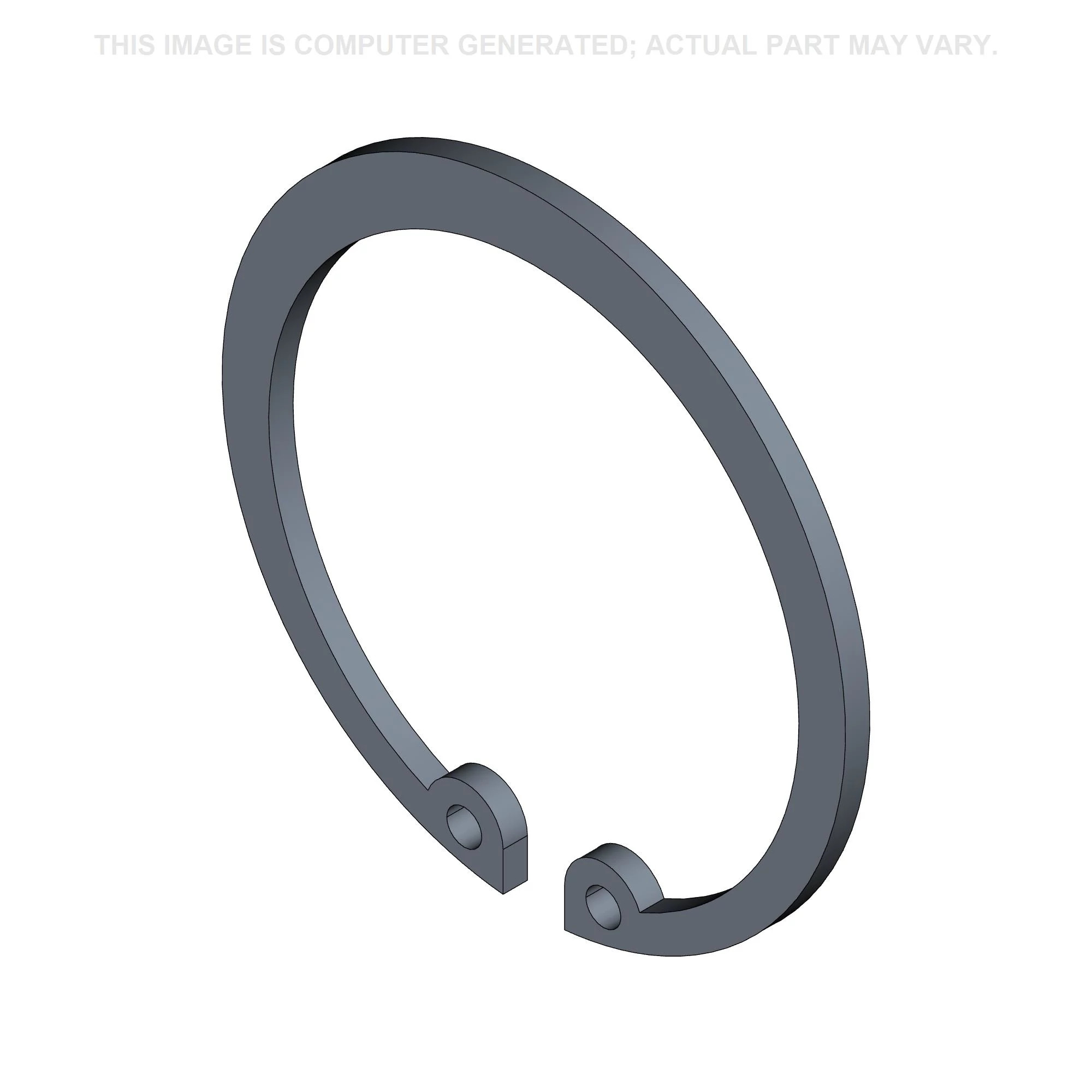

    SNAP RING 1.562'', Int, #156; Part of ASSEMBLY, part number 6582662
  • 15
    1
    700705429

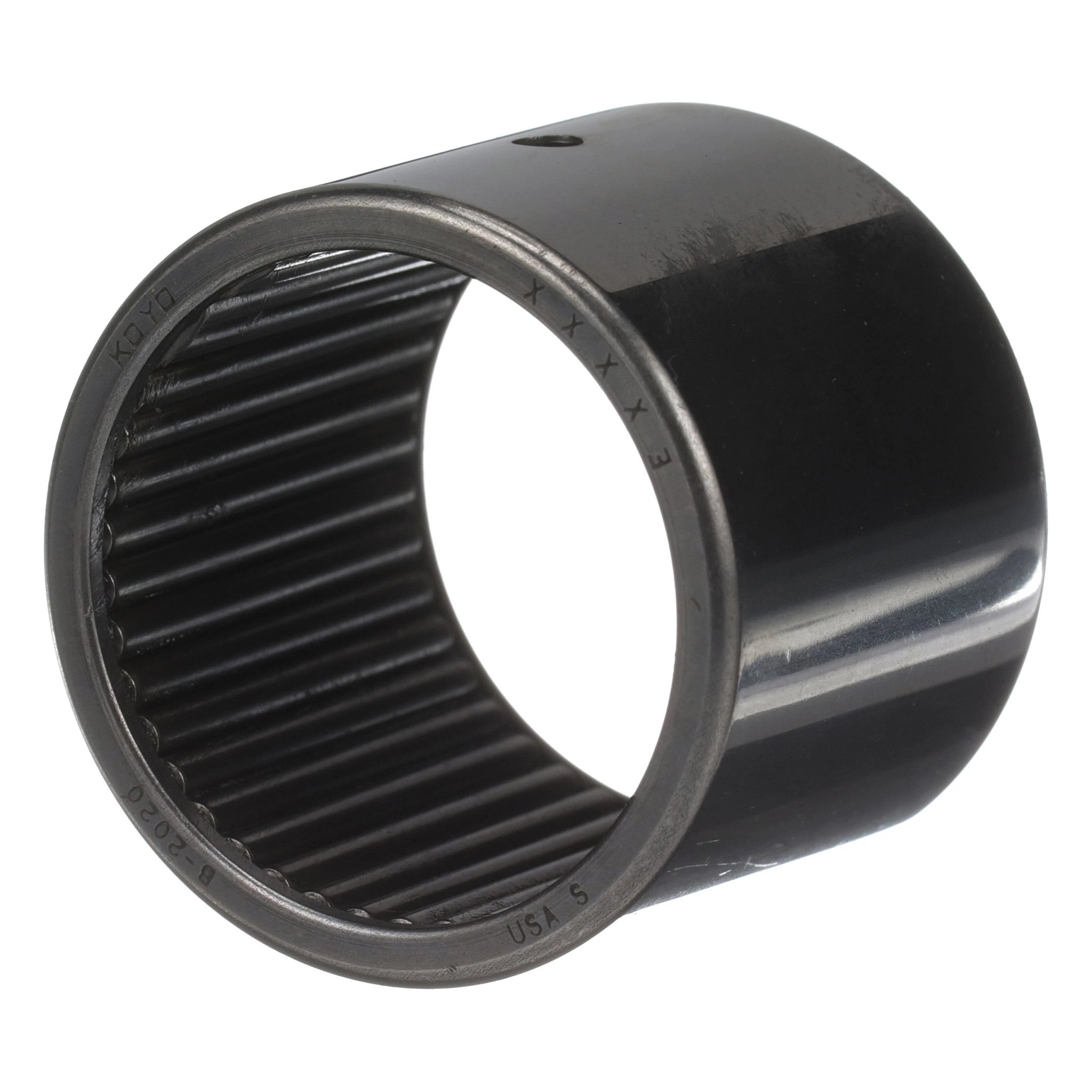

    NEEDLE BEARING Needle, 31.75mm ID x 38.1mm OD x 31.75mm W;
  • 16
    1
    700110724
    HOUSING; housing, bearing
  • 17
    1
    700706202
    PLUG; ZERK
  • 18
    2
    413-832
    BOLT Hex, 1/2'' - 13 x 2'', Gr 5;
  • 19
    2
    705541
    WASHER 0.53'' ID x 1.06'' OD x 0.14'' Thk; hardened plain, 1/2
  • 20
    2
    231-5348
    FLANGE NUT Flg, 1/2''-13; hex flange top lock, 1/2-13 GR/G
Select All

Select

Ref.

1

Qty

2

Availability

Part #

6582621

Description

LINK; WA


Alts

Select

Ref.

2

Qty

4

Availability

Part #

6583140

Description

BUSHING 12.73mm ID x 16.94mm OD x 19.84mm L;


Alts

Select

Ref.

3

Qty

4

Availability

Part #

700705454

Description

BOLT Hex, 1/2'' - 20 x 1-3/4'', Gr 8; SCREW hex cap, 1/2-20 x 1-3/4 FT GR. 8


Alts

Select

Ref.

4

Qty

4

Availability

Part #

329-118

Description

NUT 1/2''-20, G8;


Alts

Select

Ref.

5

Qty

2

Availability

Part #

700110722

Description

PLATE; sickle


Alts

Select

Ref.

6

Qty

2

Availability

Part #

700122898

Description

BEARING ASSY 17mm ID; ASSEMBLY (Includes: Ref. 7)


Alts

Select

Ref.

7

Qty

3

Availability

Part #

7714629

Description

BALL BEARING 17mm ID x 40mm OD x 20.6mm W; cylindrical;Part of Ref. 6 and 8, part numbers 700122898 and 6582662


Alts

Select

Ref.

8

Qty

1

Availability

Part #

6582662

Description

BEARING HOUSING; bearing (Includes: Ref. 7, 12, 13 and 14)


Alts

Select

Ref.

9

Qty

4

Availability

Part #

114-410

Description

BOLT Hex, 1/2'' - 20 x 2'', Gr 5;


Alts

Select

Ref.

10

Qty

4

Availability

Part #

80679

Description

LOCK WASHER 1/20.507 CST ZND;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

700109713

Description

LINK; ATTACHMENT


Alts

Select

Ref.

12

Qty

1

Availability

Part #

740415

Description

SNAP RING; RING SNAP retaining;Part of ASSEMBLY, part number 6582662


Alts

Select

Ref.

13

Qty

1

Availability

Part #

611921R92

Description

BEARING, ROLLER, CYL 34.92mm ID x 72mm OD x 19mm W; cylindrical;Part of ASSEMBLY, part number 6582662


Alts

Select

Ref.

14

Qty

2

Availability

Part #

100-21156

Description

SNAP RING 1.562'', Int, #156; Part of ASSEMBLY, part number 6582662


Alts

Select

Ref.

15

Qty

1

Availability

Part #

700705429

Description

NEEDLE BEARING Needle, 31.75mm ID x 38.1mm OD x 31.75mm W;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

700110724

Description

HOUSING; housing, bearing


Alts

Select

Ref.

17

Qty

1

Availability

Part #

700706202

Description

PLUG; ZERK


Alts

Select

Ref.

18

Qty

2

Availability

Part #

413-832

Description

BOLT Hex, 1/2'' - 13 x 2'', Gr 5;


Alts

Select

Ref.

19

Qty

2

Availability

Part #

705541

Description

WASHER 0.53'' ID x 1.06'' OD x 0.14'' Thk; hardened plain, 1/2


Alts

Select

Ref.

20

Qty

2

Availability

Part #

231-5348

Description

FLANGE NUT Flg, 1/2''-13; hex flange top lock, 1/2-13 GR/G


Alts
