05.100.03 - FILTER & CAPACITIES, 2388 ASN HAJ0292001
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    J100304
    FILTER; Coolant
  • *
    -
    CNH XHD COOLANT
    ANTIFREEZE; Coolant, 36-QT (34.1L)
  • 2
    1
    84229397
    ENGINE OIL FILTER; Spin On
  • *
    -
    NO. 1 SAE 15W40
    OIL; Crankcase, W/O Filter, 20-QT (18.9L)
  • *
    -
    NO. 1 SAE 15W40
    OIL; Crankcase, W/ Filter, 22-QT (20.8L)
  • 3
    1
    86998333
    AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Primary
  • 4
    1
    86998332
    AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Secondary
  • 5
    1
    247752A1
    CAB FILTER; Air
  • 6
    1
    120486A2
    CAB FILTER; Cab Recirculation
  • 7
    1
    294721A1
    HYDRAULIC OIL FILTER; PTO
  • 8
    1
    A177605
    HYDRAULIC OIL FILTER Spin-on, 128mm OD x 270.7mm L, 1 1/2IN - 16 UN; Spin On
  • *
    -
    HY-TRAN ULTRA
    OIL; Hydraulic System, Hy-Tran Ultra, Reservoir Capacity, 10-Gal (37.9L)
  • *
    -
    HY-TRAN ULTRA
    OIL; Transmission, Rear Frame or Differential, Hy-Tran Ultra, 4.3-Gal (16.2L)
  • 9
    1
    84557099
    FUEL FILTER; BSN HAJ0295000, User Friendly Version
  • 10
    1
    90-3941T1
    SEPARATOR; SN HAJ0292001 & ASN, Water Separator Spin On
  • *
    -
    HY-TRAN ULTRA
    OIL; Power Take-Off, Housing, 14-QT (13.3L)
  • *
    -
    HY-TRAN ULTRA
    OIL; Wheel Ends, Sprocket or Final Drive, Each, 13-QT (12.3L)
  • *
    -
    HY-TRAN ULTRA
    OIL; Wheel Ends, Sprocket or Final Drive, Straw Chopper Gear Case, 3.3-QT (3.1L)
  • *
    -
    135H EP 85W140
    OIL; Wheel Ends, Sprocket or Final Drive, Rotor Gear Case, 5-QT (4.7L)
  • *
    -
    135H EP 85W140
    OIL; Wheel Ends, Sprocket or Final Drive, Lower Unloader Gear Case, 0.97-QT (0.89L)
  • *
    -
    135H EP 85W140
    OIL; Gear Box, Feeder & Cleaning Fan Gear Case, 6.75-QT (6.4L)
Select All

Select

Ref.

1

Qty

1

Availability

Part #

J100304

Description

FILTER; Coolant


Alts

Select

Ref.

*

Qty

-

Availability

Part #

CNH XHD COOLANT

Description

ANTIFREEZE; Coolant, 36-QT (34.1L)


Alts

Select

Ref.

2

Qty

1

Availability

Part #

84229397

Description

ENGINE OIL FILTER; Spin On


Alts

Select

Ref.

*

Qty

-

Availability

Part #

NO. 1 SAE 15W40

Description

OIL; Crankcase, W/O Filter, 20-QT (18.9L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

NO. 1 SAE 15W40

Description

OIL; Crankcase, W/ Filter, 22-QT (20.8L)


Alts

Select

Ref.

3

Qty

1

Availability

Part #

86998333

Description

AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Primary


Alts

Select

Ref.

4

Qty

1

Availability

Part #

86998332

Description

AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Secondary


Alts

Select

Ref.

5

Qty

1

Availability

Part #

247752A1

Description

CAB FILTER; Air


Alts

Select

Ref.

6

Qty

1

Availability

Part #

120486A2

Description

CAB FILTER; Cab Recirculation


Alts

Select

Ref.

7

Qty

1

Availability

Part #

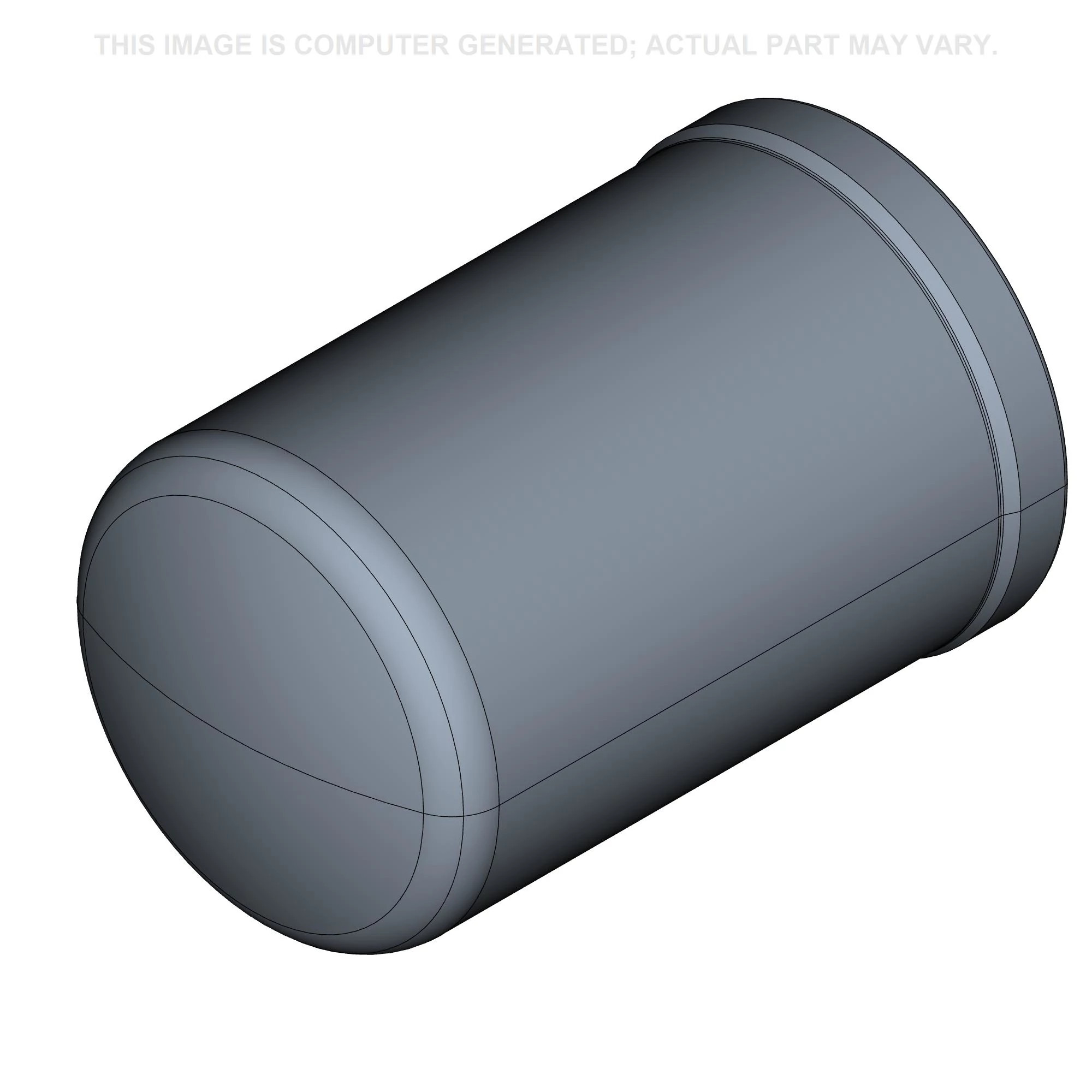

294721A1

Description

HYDRAULIC OIL FILTER; PTO


Alts

Select

Ref.

8

Qty

1

Availability

Part #

A177605

Description

HYDRAULIC OIL FILTER Spin-on, 128mm OD x 270.7mm L, 1 1/2IN - 16 UN; Spin On


Alts

Select

Ref.

*

Qty

-

Availability

Part #

HY-TRAN ULTRA

Description

OIL; Hydraulic System, Hy-Tran Ultra, Reservoir Capacity, 10-Gal (37.9L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

HY-TRAN ULTRA

Description

OIL; Transmission, Rear Frame or Differential, Hy-Tran Ultra, 4.3-Gal (16.2L)


Alts

Select

Ref.

9

Qty

1

Availability

Part #

84557099

Description

FUEL FILTER; BSN HAJ0295000, User Friendly Version


Alts

Select

Ref.

10

Qty

1

Availability

Part #

90-3941T1

Description

SEPARATOR; SN HAJ0292001 & ASN, Water Separator Spin On


Alts

Select

Ref.

*

Qty

-

Availability

Part #

HY-TRAN ULTRA

Description

OIL; Power Take-Off, Housing, 14-QT (13.3L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

HY-TRAN ULTRA

Description

OIL; Wheel Ends, Sprocket or Final Drive, Each, 13-QT (12.3L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

HY-TRAN ULTRA

Description

OIL; Wheel Ends, Sprocket or Final Drive, Straw Chopper Gear Case, 3.3-QT (3.1L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

135H EP 85W140

Description

OIL; Wheel Ends, Sprocket or Final Drive, Rotor Gear Case, 5-QT (4.7L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

135H EP 85W140

Description

OIL; Wheel Ends, Sprocket or Final Drive, Lower Unloader Gear Case, 0.97-QT (0.89L)


Alts

Select

Ref.

*

Qty

-

Availability

Part #

135H EP 85W140

Description

OIL; Gear Box, Feeder & Cleaning Fan Gear Case, 6.75-QT (6.4L)


Alts
