TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HOUSING; CASE, main drive
-
21LUBE NIPPLE Nipple, 1'' NPT x 2 1/2''; NIPPLE, 1 x 1-1/2 close pipe
-
31CAP; breather
-
51LUBE NIPPLE 1/8''-27 NPT x .50'' lg, Press Relief; VALVE, 1/8-27 PTF pressure relief
-
1BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; 3/8 x 3/4 znd hex-hd cap
-
1LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''
-
2STUD Hex, 5/8'' - 11 x 1 1/2'', Gr 5; 5/8 x 1-1/2 type 5
-
2WASHER 5/8''; .688 x 1.750 x .108
-
2LOCK WASHER 5/8''; WASHER, LOCK, 5/8''
-
71SHAFT; input, for use with 720-1000 RPM serial no. 2000 & above & 720-540 RPM
-
81SPACER; SLEEVE, input shaft
-
91GEAR; drive, 18T
-
101TAPERED BEARING ID x 76.2125 mm OD x 23.9135 mm; BEARING, cup
-
111BEARING, ROLLER, CYL 1.563'' ID x 1.01''; BEARING ASSY, cone
-
121CAP; main drive case, 720-1000 RPM
-
4LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-loc
-
121ADAPTER; main drive gear case, 720-540 RPM
-
4HEX SOC SCREW 3/8'' - 16 x 1 1/2'';
-
131OIL SEAL 38.1mm ID x 60.45mm OD x 8.13mm Thk; SEAL, oil
-
141BEARING CUP 2.391'' ID x 3.001'' OD x 0.952''; cup
-
151BEARING, ROLLER, CYL 38.11mm ID x 25.57mm W; BEARING ASSY, cone
-
161CAP; main gear case rear
-
4LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-loc
-
172KIT; KIT, gear box small shim
-
181OIL SEAL; oil
-
191HOUSING; output shaft
-
6LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-loc
-
1PLUG 1/4'' - 18 x 0.48''; 1/4 Hex Socket
-
201TAPERED BEARING;
-
211TAPERED BEARING; BEARING ASSY, cone
-
221BEARING CUP;
-
231CONE; BEARING ASSY, cone
-
241OIL SEAL; oil
-
251SHAFT; output
-
261GEAR; drive, 21T
-
1WASHER; .906 x 1-3/4 x 11 ga znd
-
271LOCK NUT 7/8''-14, GB; NUT, 7/8-14 lock
-
281KIT; gear box large shim
-
291SUPPORT; main gear case housing
-
301BOLT 1/2'' - 13 x 4.50'' W x 5.50'' L; gear case
-
2WASHER; .531 x 1.250 x .054
-
2WASHER 1/2''; LOCK, 1/2''
-
2NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
-
8BOLT Hex, 1/2'' - 13 x 5'', Gr 5; SCREW, 1/2 x 5 znd hex-hd cap
-
16WASHER; 17/32 x 1-1/2 x 11 ga znd
-
8NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5
-
8JAM NUT Jam, 1/2''-13, G5; 1/2-13 znd hex. jam
-
328SPACER; BUSHING, clutch spring, see note
-
338SPRING; see note
-
342FACING; clutch, see note
-
351RETAINER; PLATE, clutch floating, see note
-
361YOKE; JOINT ASSY, single universal rear flanged, see note, rex chainbelt, identified by rex, for components see list of parts under details of rear flanged joint assy
-
371LUBE NIPPLE 1/8''-27 x .66 lg; NIPPLE, LUBE, , PTF, See note 1/8''-27 x .66 lg
-
381SCREW; 1/2-20 x 1-3/8 hdls soc-hd set, see note
-
1JAM NUT Jam, 1/2''-20, G5; 1/2-NF jam type 5
-
391JOINT; ASSY, single rear universal, rex chainbelt, identified by rex, 720-1000 RPM w/serial no. 2000 and above, for components see list of parts under details of single rear universal joint assy
-
401JOINT; ASSY, gear box half universal, Hayes, Dana, Spicer, identified by diamond shape, optional w/133125C91 and 133127C91, for components see list of parts under details of bear box half joint assy
-
411JOINT; ASSY, cutterhead half universal, Hayes, Dana, Spicer, identified by diamond shape, optional w/133124C91 and 133126C91, for components see list of parts under details of cutterhead half joint assy
Select All
Ref.
2Qty
1Availability
Part #
190311Description
LUBE NIPPLE Nipple, 1'' NPT x 2 1/2''; NIPPLE, 1 x 1-1/2 close pipeImg
Alts
Ref.
5Qty
1Availability
Part #
18437R91Description
LUBE NIPPLE 1/8''-27 NPT x .50'' lg, Press Relief; VALVE, 1/8-27 PTF pressure reliefImg
Alts
Ref.
Qty
1Availability
Part #
113-206Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5, Full Thd; 3/8 x 3/4 znd hex-hd capImg
Alts
Ref.
Qty
1Availability
Part #
120382Description
LOCK WASHER Helical Spring, 3/8''; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
2Availability
Part #
271547Description
STUD Hex, 5/8'' - 11 x 1 1/2'', Gr 5; 5/8 x 1-1/2 type 5Img
Alts
Ref.
Qty
2Availability
Part #
492-11062Description
LOCK WASHER 5/8''; WASHER, LOCK, 5/8''Img
Alts
Ref.
7Qty
1Availability
Part #
133146C1Description
SHAFT; input, for use with 720-1000 RPM serial no. 2000 & above & 720-540 RPMImg
Alts
Ref.
10Qty
1Availability
Part #

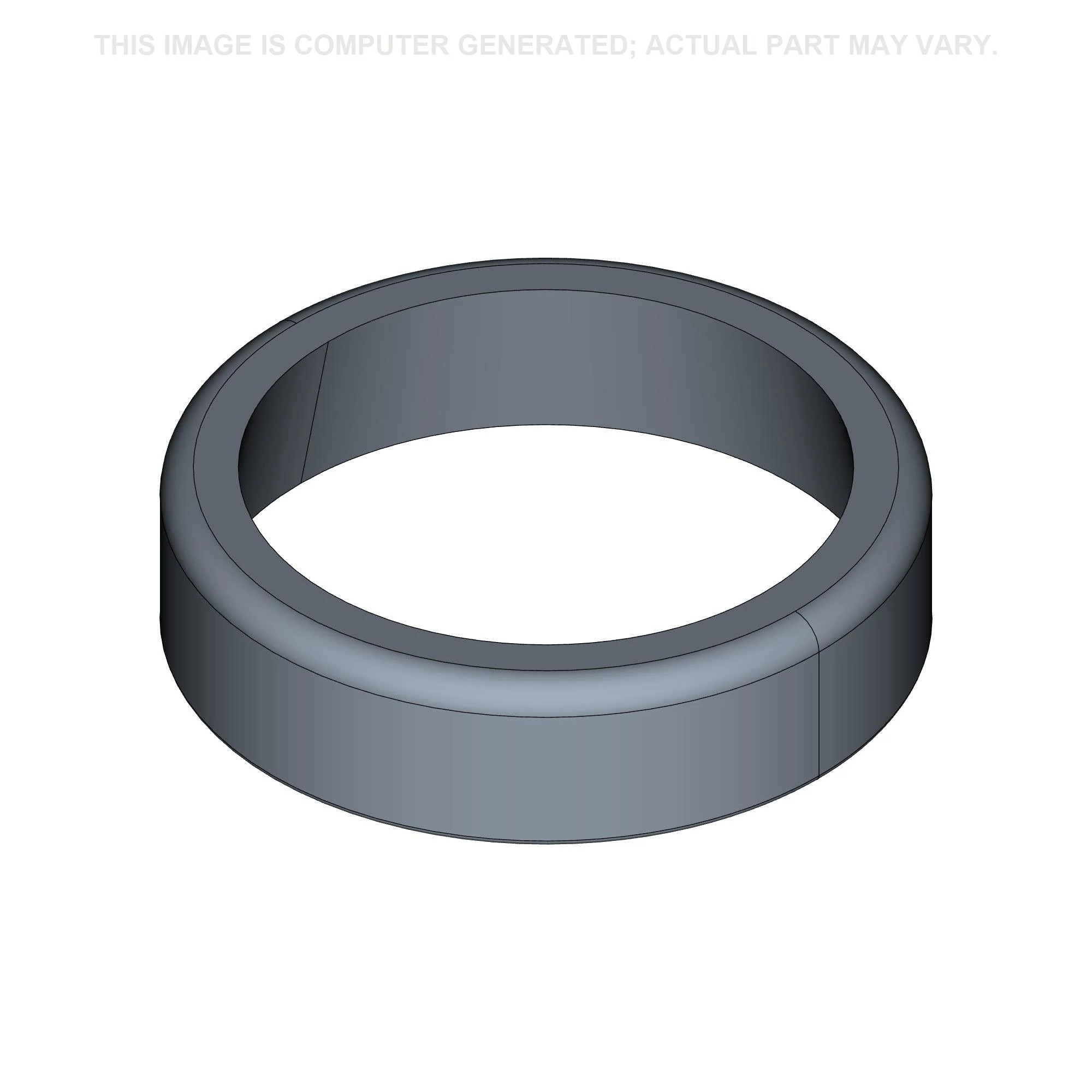

17498DDescription
TAPERED BEARING ID x 76.2125 mm OD x 23.9135 mm; BEARING, cupImg
Alts
Ref.
11Qty
1Availability
Part #
459454R91Description
BEARING, ROLLER, CYL 1.563'' ID x 1.01''; BEARING ASSY, coneImg
Alts
Ref.
Qty
4Availability
Part #
136163C1Description
LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-locImg
Alts
Ref.
12Qty
1Availability
Part #
133195C1Description
ADAPTER; main drive gear case, 720-540 RPMImg
Alts
Ref.
13Qty
1Availability
Part #
385766R91Description
OIL SEAL 38.1mm ID x 60.45mm OD x 8.13mm Thk; SEAL, oilImg
Alts
Ref.
14Qty
1Availability
Part #
13324DDescription
BEARING CUP 2.391'' ID x 3.001'' OD x 0.952''; cupImg
Alts
Ref.
15Qty
1Availability
Part #
61063C91Description
BEARING, ROLLER, CYL 38.11mm ID x 25.57mm W; BEARING ASSY, coneImg
Alts
Ref.
Qty
4Availability
Part #
136163C1Description
LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-locImg
Alts
Ref.
Qty
6Availability
Part #
136163C1Description
LOCK BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, 3/8-16 x 1-1/4 PHC hex-hd dry-locImg
Alts
Ref.
Qty
1Availability
Part #
9617020Description
PLUG 1/4'' - 18 x 0.48''; 1/4 Hex SocketImg
Alts
Ref.
27Qty
1Availability
Part #
546248R1Description
LOCK NUT 7/8''-14, GB; NUT, 7/8-14 lockImg
Alts
Ref.
30Qty
1Availability
Part #
169924C1Description
BOLT 1/2'' - 13 x 4.50'' W x 5.50'' L; gear caseImg
Alts
Ref.
Qty
2Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5Img
Alts
Ref.
Qty
8Availability
Part #
433163Description
BOLT Hex, 1/2'' - 13 x 5'', Gr 5; SCREW, 1/2 x 5 znd hex-hd capImg
Alts
Ref.
Qty
8Availability
Part #
120378Description
NUT Hex, 1/2'' - 13, Gr 5; NUT, 1/2''-13, G5Img
Alts
Ref.
Qty
8Availability
Part #
120238Description
JAM NUT Jam, 1/2''-13, G5; 1/2-13 znd hex. jamImg
Alts
Ref.
32Qty
8Availability
Part #
466295R1Description
SPACER; BUSHING, clutch spring, see noteImg
Alts
Ref.
35Qty
1Availability
Part #
466296R1Description
RETAINER; PLATE, clutch floating, see noteImg
Alts
Ref.
36Qty
1Availability
Part #
127080C91Description
YOKE; JOINT ASSY, single universal rear flanged, see note, rex chainbelt, identified by rex, for components see list of parts under details of rear flanged joint assyImg
Alts
Ref.
37Qty
1Availability
Part #
109461Description
LUBE NIPPLE 1/8''-27 x .66 lg; NIPPLE, LUBE, , PTF, See note 1/8''-27 x .66 lgImg
Alts
Ref.
38Qty
1Availability
Part #
546939R1Description
SCREW; 1/2-20 x 1-3/8 hdls soc-hd set, see noteImg
Alts
Ref.
Qty
1Availability
Part #
25-158Description
JAM NUT Jam, 1/2''-20, G5; 1/2-NF jam type 5Img
Alts
Ref.
39Qty
1Availability
Part #
133243C91Description
JOINT; ASSY, single rear universal, rex chainbelt, identified by rex, 720-1000 RPM w/serial no. 2000 and above, for components see list of parts under details of single rear universal joint assyImg
Alts
Ref.
40Qty
1Availability
Part #
133121C91Description
JOINT; ASSY, gear box half universal, Hayes, Dana, Spicer, identified by diamond shape, optional w/133125C91 and 133127C91, for components see list of parts under details of bear box half joint assyImg
Alts
Ref.
41Qty
1Availability
Part #
133123C91Description
JOINT; ASSY, cutterhead half universal, Hayes, Dana, Spicer, identified by diamond shape, optional w/133124C91 and 133126C91, for components see list of parts under details of cutterhead half joint assyImg
Alts
