010 - MANIFOLDS, ENGINE LESS FUEL DEVICE, 336BD AND 301BD NATURALLY ASPIRATED ENGINES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 2
    1
    41-1042
    PLUG Cup, 2 5/8''; - 2-5/8'' cup
  • 3
    1
    221-1011
    DRAIN PLUG Sq Hd, 1/8''-27 NPTF; PLUG - 1/8'' P. T. sq. hd.
  • 4
    4
    A58662
    KRÜMMERDICHTUNG; - intake manifold
  • 5
    1
    A20917
    STOPFEN; - heater hole
  • 6
    1
    A20916
    KRÜMMERDICHTUNG; GASKET - plug
  • 7
    16

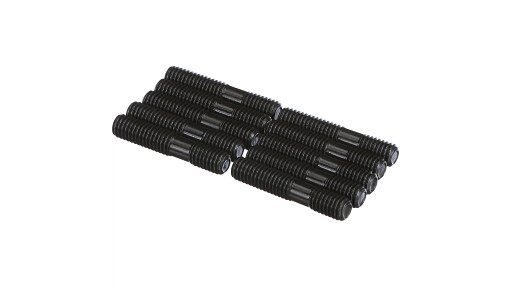

    A59077
    GEWINDEBOLZEN; - 3/8'' N.C. x 1-3/4''
  • 8
    16
    92-6
    SICHERUNGSSCHEIBE 3/8'';
  • 9
    8
    25-106
    MUTTER 3/8''-16, G5; - 3/8'' N.C. hex. (intake manifold)
  • 10
    8
    131-903
    ECROU 3/8''-16; NUT - 3/8'' N.C. hex. seez pruf (exhaust manifold)
  • 15
    1
    A58748
    COLLECTEUR; ASSY. - exhaust
  • 16
    1
    A58750
    BOUCHON Cup, 3 1/4'', Stainless; - 3-1/4'' cup
  • 17
    1
    A58751
    SILENCIEUX; STACK - exhaust
  • 18
    4
    13-616
    VIS Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;
  • 19
    4
    92-6
    RONDELLE FREIN 3/8'';
  • 20
    4
    A58666
    JOINT DE COLLECTEUR; - exhaust manifold
Select All

Select

Ref.

2

Qty

1

Availability

Part #

41-1042

Description

PLUG Cup, 2 5/8''; - 2-5/8'' cup


Alts

Select

Ref.

3

Qty

1

Availability

Part #

221-1011

Description

DRAIN PLUG Sq Hd, 1/8''-27 NPTF; PLUG - 1/8'' P. T. sq. hd.


Alts

Select

Ref.

4

Qty

4

Availability

Part #

A58662

Description

KRÜMMERDICHTUNG; - intake manifold


Alts

Select

Ref.

5

Qty

1

Availability

Part #

A20917

Description

STOPFEN; - heater hole


Alts

Select

Ref.

6

Qty

1

Availability

Part #

A20916

Description

KRÜMMERDICHTUNG; GASKET - plug


Alts

Select

Ref.

7

Qty

16

Availability

Part #

A59077

Description

GEWINDEBOLZEN; - 3/8'' N.C. x 1-3/4''


Alts

Select

Ref.

8

Qty

16

Availability

Part #

92-6

Description

SICHERUNGSSCHEIBE 3/8'';


Alts

Select

Ref.

9

Qty

8

Availability

Part #

25-106

Description

MUTTER 3/8''-16, G5; - 3/8'' N.C. hex. (intake manifold)


Alts

Select

Ref.

10

Qty

8

Availability

Part #

131-903

Description

ECROU 3/8''-16; NUT - 3/8'' N.C. hex. seez pruf (exhaust manifold)


Alts

Select

Ref.

15

Qty

1

Availability

Part #

A58748

Description

COLLECTEUR; ASSY. - exhaust


Alts

Select

Ref.

16

Qty

1

Availability

Part #

A58750

Description

BOUCHON Cup, 3 1/4'', Stainless; - 3-1/4'' cup


Alts

Select

Ref.

17

Qty

1

Availability

Part #

A58751

Description

SILENCIEUX; STACK - exhaust


Alts

Select

Ref.

18

Qty

4

Availability

Part #

13-616

Description

VIS Hex, 3/8'' - 16 x 1'', Gr 5, Full Thd;


Alts

Select

Ref.

19

Qty

4

Availability

Part #

92-6

Description

RONDELLE FREIN 3/8'';


Alts

Select

Ref.

20

Qty

4

Availability

Part #

A58666

Description

JOINT DE COLLECTEUR; - exhaust manifold


Alts
